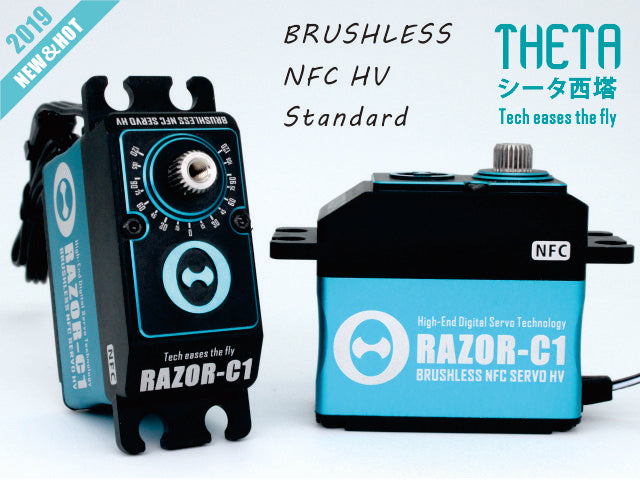

THETA RAZOR-C1 NFC HV Standard Brushless Servo
High voltage, High-Torque, standard size brushless servo
600, 700 and even 800 class helicopters swashplate
airplanes
a great throttle or steering servo on most cars
(SANWA SSR compatible)
40*20*38mm 73g
| Voltage (V) | Current (A) | Speed (s/60°) | Torque (kg*cm) |
5.0 | 2.6 | 0.108 | 23 |
6.0 | 2.6 | 0.084 | 27 |
7.4 | 2.6 | 0.071 | 34 |
8.4 | 2.6 | 0.060 | 36 |
5.0 | 5.0 | 0.102 | 32 |
6.0 | 5.0 | 0.079 | 37 |
7.4 | 5.0 | 0.067 | 44 |
8.4 | 5.0 | 0.056 | 48 |
| Type: | |
|---|---|
| Vendor: | |
| SKU: |
THETA-RAZOR-C1 |
| Weight: |
0.1 lb |
Product Spare Parts
Customer Reviews
High quality servo that offers a great servo at a great price. I’ve converted all my helis over to Theta Servos
Quite, smoosh, and function as described.
I like the features of this servo that you can configure it through android phones. Specs are better than the expensive servos that I've purchased. Nice and smooth with a lot of torque.
These servos was installed in to my GOBLIN Speed 700.
Tried Theta servos in my LOGO 550. I found my “go to servo” for life. I Will only use Theta from now on, my only problem, after purchasing 5 sets of servos, I have only received 2 tiny sticker sheets out of 2k spent. Ridiculous!!
My new "go to" brand for servos.
Excellent performance, very quite and well built.
Very well-made and working servo
