Align T-Rex 470LM Dominator Electric Helicopter Super Combo
Following the release of the T-REX 450L, which introduced an innovative design and came equipped with high-end electronic equipment. Align's most anticipated helicopter release in 2016 the T-REX 470L is born. No matter whether you are a newcomer or a professional, the brand new T-REX 470L will give you the new flying feel again.
470EFL Main Rotor Head provides superior flight stability and offers a lower CG design to reduce flying resistance while providing a more rigid and fast rotor head response. To improve the strength and durability of the main and feathering shaft the 470 main shaft outer dimension was increased from Ø5mm to Ø6mm, while the feathering shaft outer dimension was increased from Ø4mm to Ø5mm. The 470L has adopt a high standard 1.2mm 3K carbon fiber main frame and a wider body design which increases the size of the battery compartment allowing the use of larger capacity battery. The 470L utilizes a high efficient belt drive assembly design with an innovative adjustable belt guide pulley, providing a convenient way to adjust the belt tension by releasing or tightening the screw. This screw is used to maintain optimal belt tension improving the life of the belt and lowering maintains costs. The landing skid is tilted 5 degrees forward to improve crashworthiness and makes T-REX470L more avant-garde and dynamic.
The T-REX 470L is equipped with the large outer diameter 470MX motor (1800KV) which is highly efficient providing superior power, excellent torque, improved current draw, and a lower operating temperature which are excellent improvements as compared to the 460MX motor. The brand new DS450 digital cyclic servos and DS455 digital tail servo, support up to V8.4, high voltage input, improving the servos torque and speed. The new RCE-BL50X brushless ESC with an internal BEC provides 5.0V to 8.4V which can be set based on servo specification. The new high-end electronics effectively enhance flight performance.
Focus Shots
Extended 380mm main blades effectively improve the flying stability and power performance. The new engineered airfoil design effectively reduces turbulence at the end of the main blades,this saves power consumption during extreme 3D flight. New 69 size tail blades are longer in length and offer superior tail holding performance, even during demanding 3D flight.
Brand New 470EFL Main Rotor Head provides superior flight stability and offers a lower CG design to reduce flying resistance while providing a more rigid and fast rotor head response. Brand New 470 Main Shaft and Feathering Shaft: Main Shaft outer dimension increased from Ø5mm to Ø6mm, while the Feathering Shaft outer dimension increased from Ø4mm to Ø5mm,effectively strengthening the Main and Feathering Shaft while improving durability.
New 470MX motor features; high efficiency, superior power, excellent torque, low current draw, and a low operating temperature. The 470MX is capable of maintaining consistent torque and head speed through continuous 3D maneuvers. 470MX motor is designed for 3D flight.
New Swashplate design with zero slop delivering a precise and accurate controlled flight.

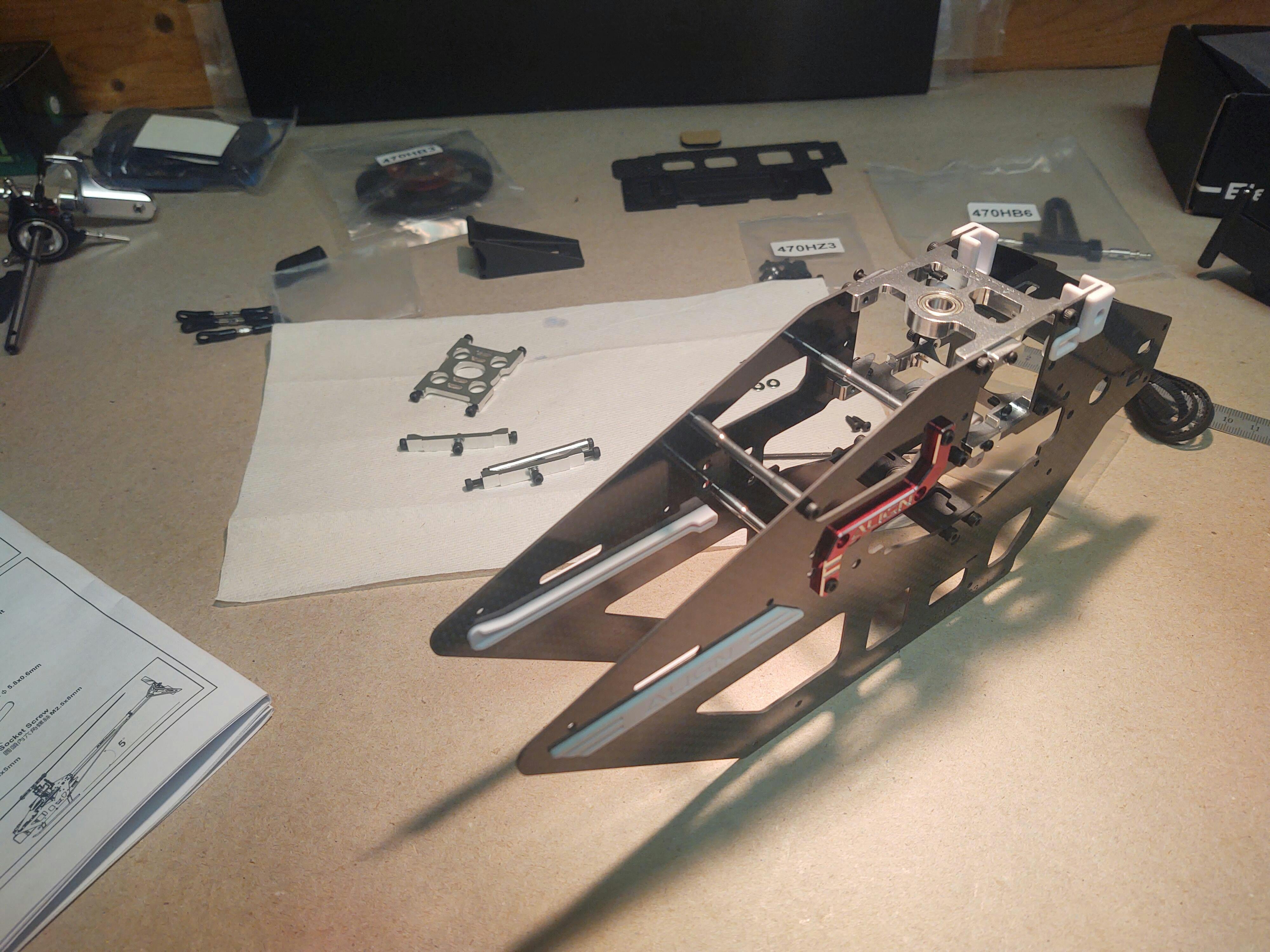

Brand new CNC metal reinforcement plate and brace compare with frame mounting bolt effectively increase the torsional stength of main frame, under extreme 3D maneuver, you can strongly feel its solid reinforcement from its structure.
Carbon fiber side frame plates are manufactured using a proprietary composite material integration technology which integrates the battery mounting rails into the frame. This unique use of open spaces within the frame creates a rigid frame and is aesthetically pleasing.
An additional 3rd main shaft bearing block increases the strength of the main frame while improving 3D flight.
Brand new latching battery tray which utilizes integrated mounting rails inside the frames to simplify insertion / removal of battery while providing protection for the battery.
Specially designed for T-REX 470 providing higher currency output and support for high voltage servos with an internal BEC output from 5V to 8.4V which can be set up based on servo specification.
DS350M HV Cyclic and DS455 HV Rudder servos support up to 8.4V for superior responsiveness, extreme torque, and improved performance.
Innovative adjustable belt guide pulley, allows a convenient way to adjust the belt tension by releasing or tightening the screw. The screw is used to maintain optimal belt tension over time.
The One Way Bearing is manufactured using bearing steal and after heat treatment the hardness is HRC50-55. This larger bearing has a higher load carry capacity which reduces the loss of momentum and improves the fficiency, speed, and smoothness of the main rotor. The new main gear case and all-metal central pulley transmission system is an efficient design to deliver the ultimate performance.
Landing skid is tilted 5 degrees forward to improve crashworthiness.
Newly designed vertical tail servo mount to improve CG while increasing the responsiveness of 3D flight.
A wider Tail Boom to improves the torsional strength. Carbon Fiber Tail Control Rod is practical and improves the helicopters tail control.
Designed using a proprietary material integration technology which creates a unique look and improves the Vertical Stabilizer's stiffness.
The newly designed dual point supported tail control assembly delivers slop free performance while improving rudder resolution and precision.
The new tail rotor holder design includes thrust bearings which increases durability, as well as significantly improving the accuracy and efficiency of the tail performance when using 69 size Tail Blades.
Standard equipment
- Microbeast PLUS Flybarless System X 1 set- RCE-BL50X 50A Brushless ESC X 1
- 470MX Brushless Motor(1800KV) X 1
- DS450M Digital Servo X 3
- DS455M Digital Servo X 1
Specification
- Length: 755mm- Height: 210mm
- Width: 108mm
- Main Blade Length: 380mm
- Main Rotor Diameter: 850mm
- Tail Rotor Diameter: 181mm
- Motor Pinion Gear: 11T
- Main Drive Gear: 121T
- Main Drive Pulley: 56T
- Tail Drive Gear: 15T
- Drive Gear Ratio: 11:1:3.73
- Weight(w/o battery): 860g
Accessories
- T-REX 470L DOMINATOR Set x 1- 380 Carbon Fiber Blades x 1set
- 69 Tail Blade x1set
- 470MX Brushless Motor(1800KV) x 1
- DS450M Digital Servo x 3
- DS455M Digital Servo x 1
- RCE-BL50X 50A Brushless ESC x 1
Radio transmitter and electronic equipment required for assembly:
1.Transmitter(6-channel or more,helicopter system)
2.Receiver(6-channel or more)
3.Pitch gauge or Digital Pitch Gauge and other tools need to assembly, setup and tuning.
| Type: | |
|---|---|
| Vendor: | |
| SKU: |
RH47E01XT |
| Weight: |
4.25 lb |
Product Spare Parts
Customer Reviews

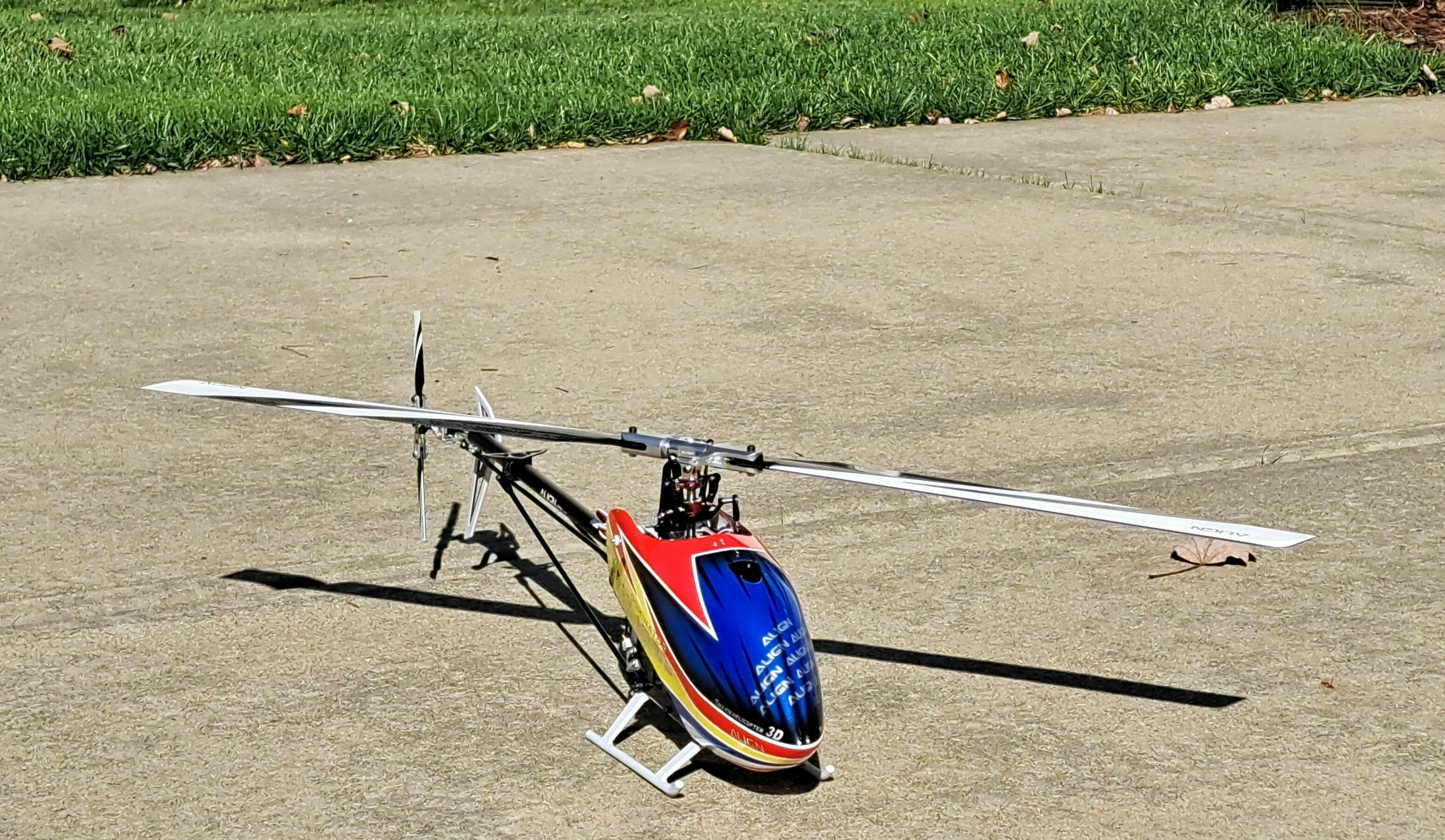

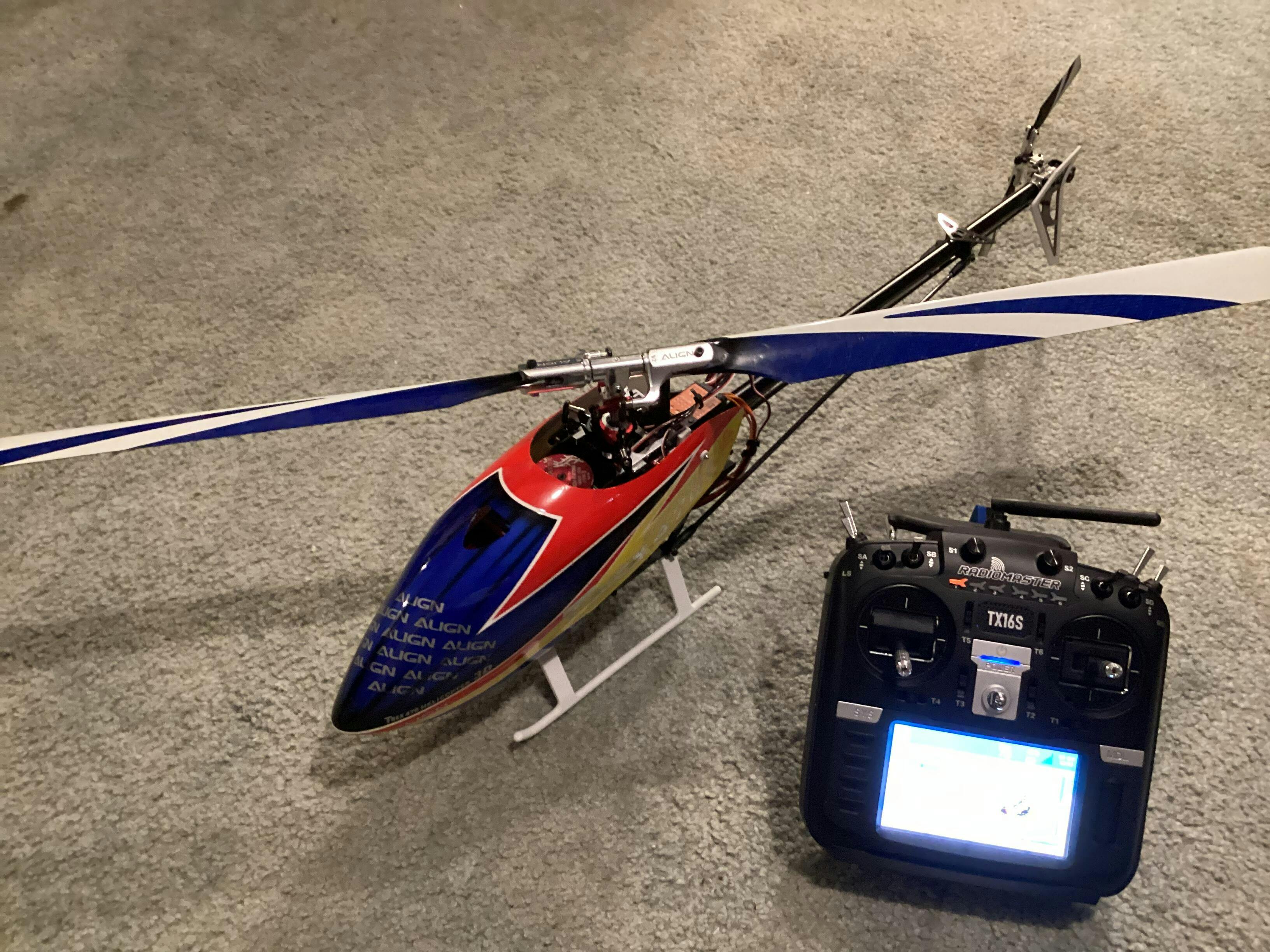

Flies so much better than the old 450 flybar helicopters. I followed youtube build videos. Not too hard to build. Very locked in and easy to fly using default sport mode and about 65% head speed. I was so inpressed that I ordered another one as a spare. It flies similar to my Trex 550e but cheaper to repair. Very nice heli.
A really nice kit and as always shipping was fast and always a friendly and helpful group of people to work with
As a beginner seems a good choice . Easy to build .

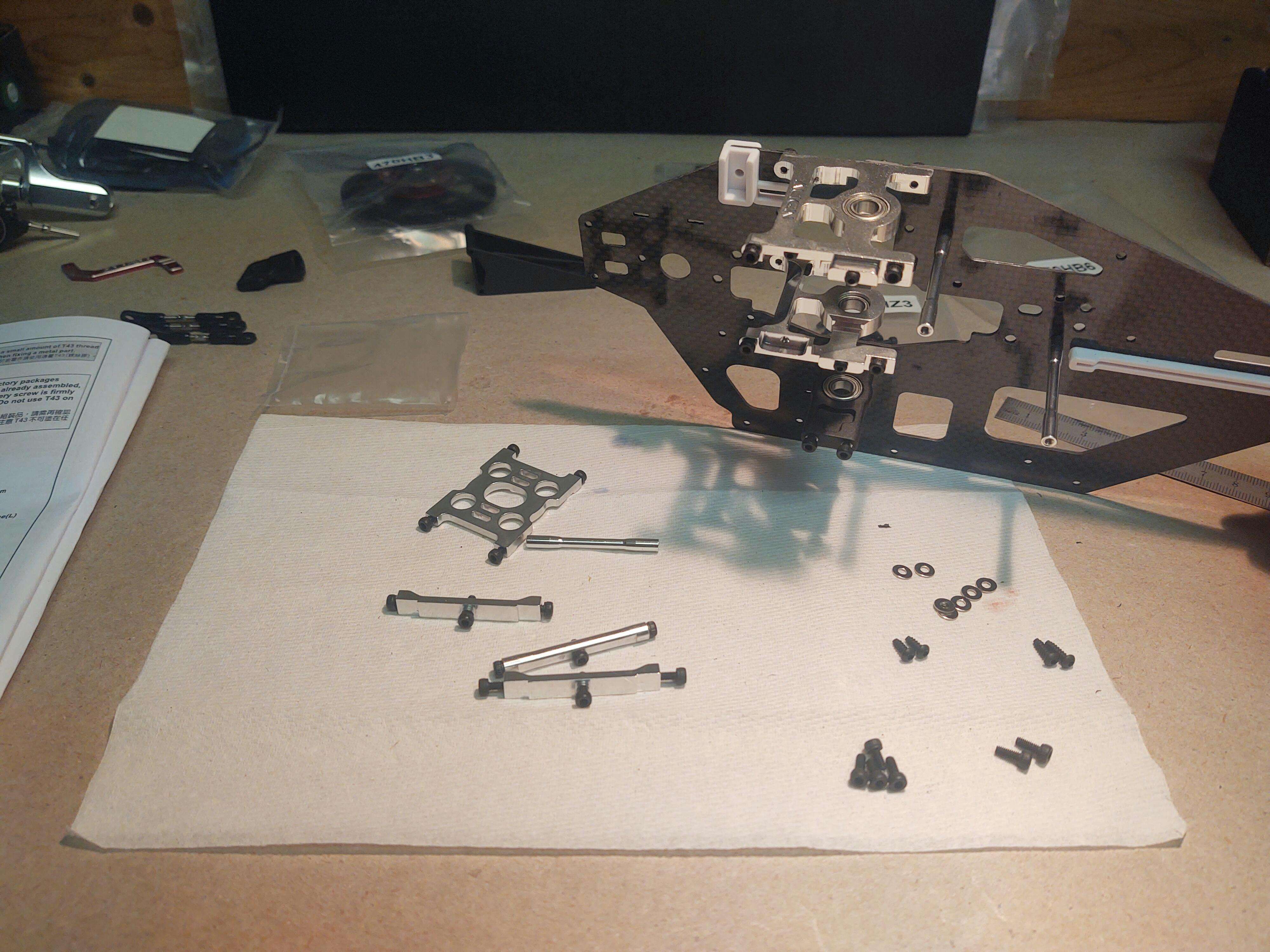

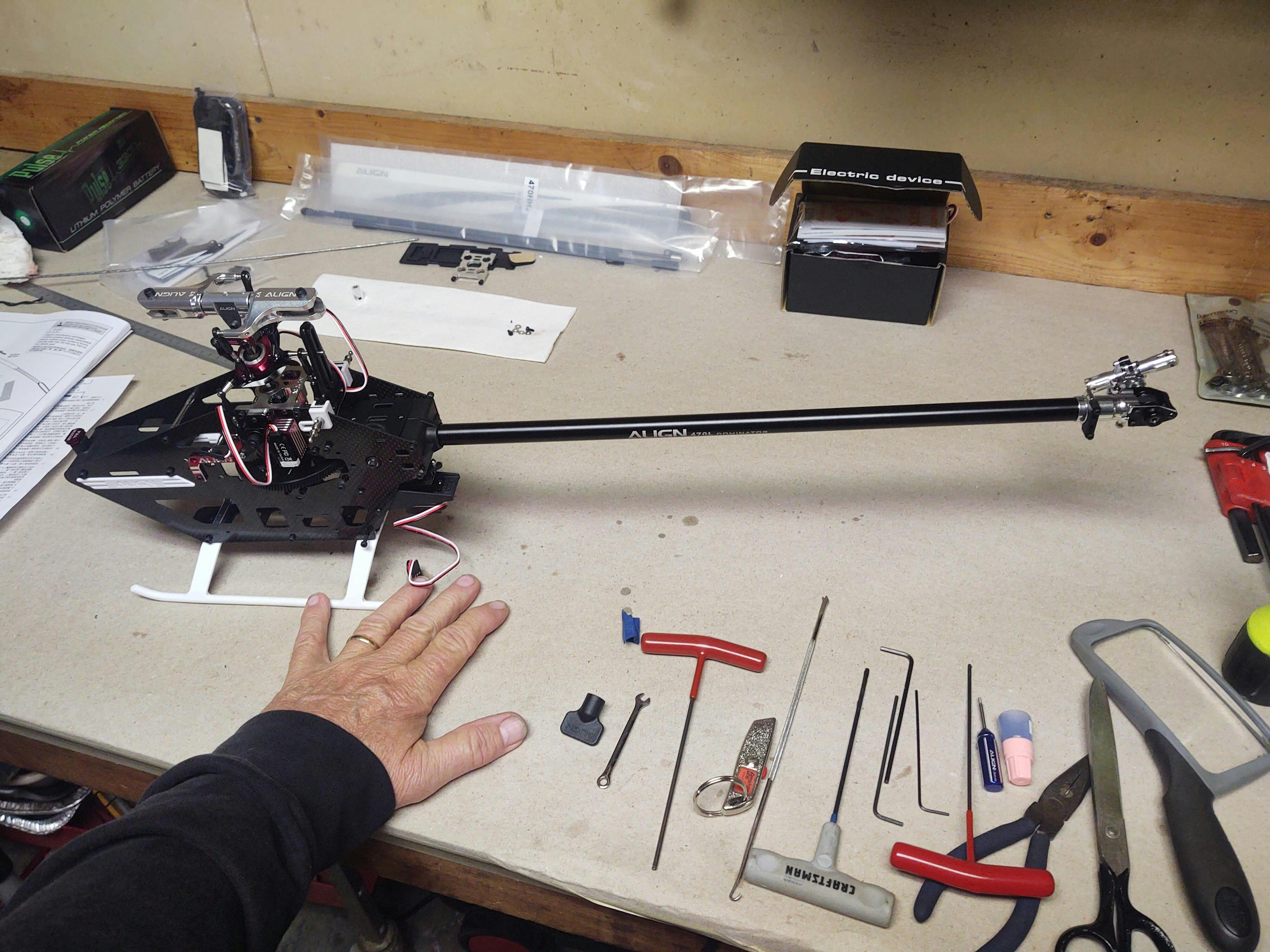

This was my first helicopter build. It went together very well. Just follow the directions. Haven't gotten it in the air yet, but I am confident it will be a winner based on it's reputation.
I've built three helicopters so far and this had the best manual and easiest to put together. Quality is high and there were no missing parts.
Great looking Kit. Can't wait to start this kit build.
I have not flown this yet but it went together well. Everything seems sturdy and well made. Customer service from Heildirect is great. I researched many machines before I bought this one and the guys at HD made me feel confident that I was not in this alone. I highly recommend HDirect.

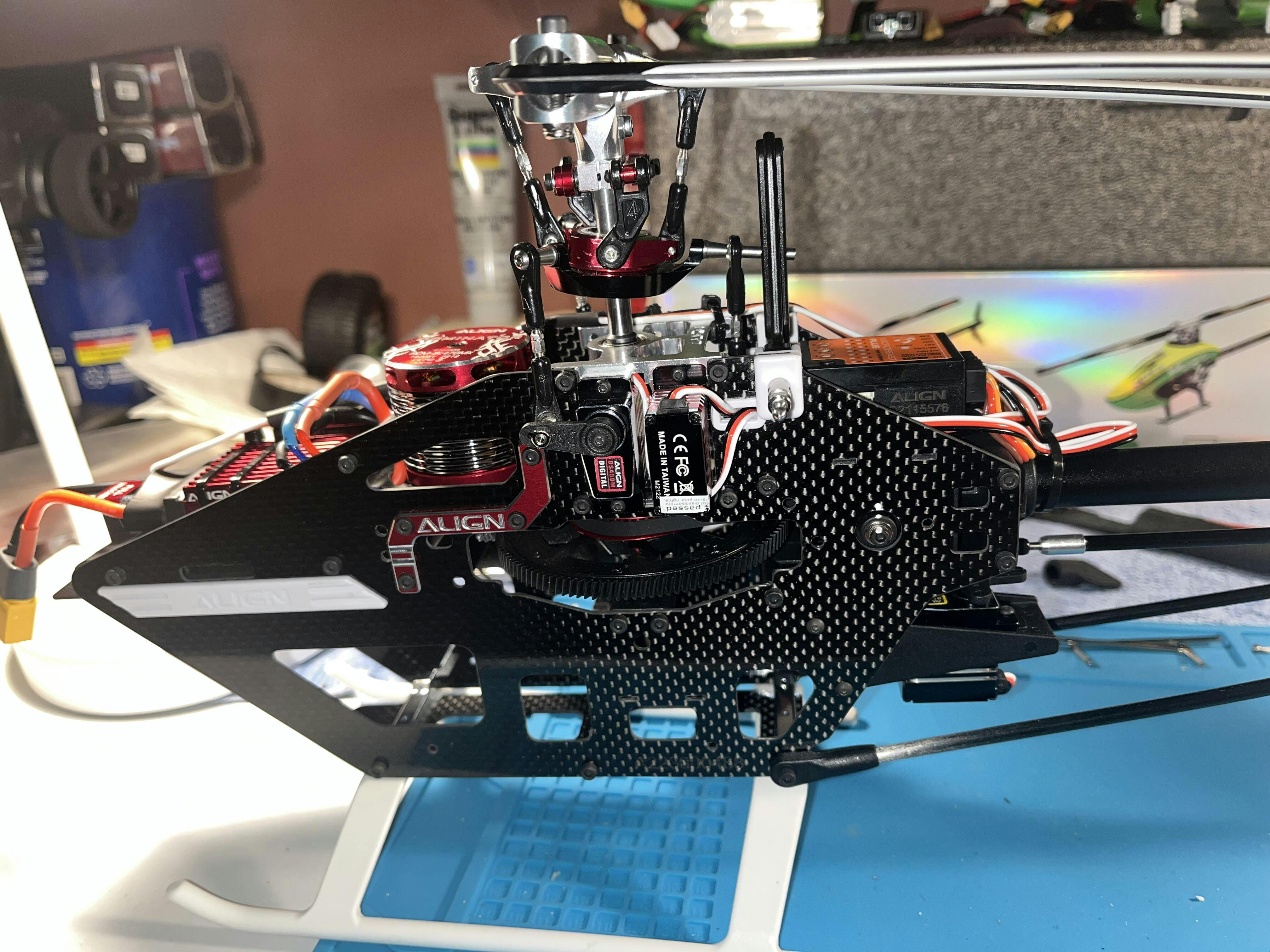

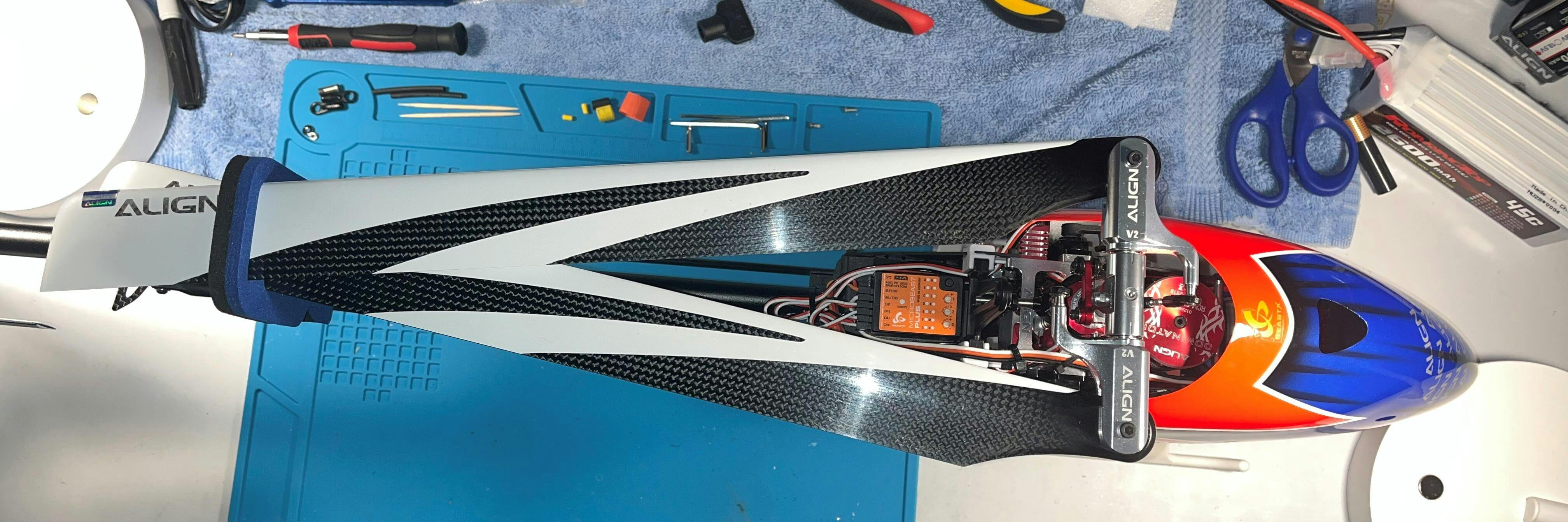

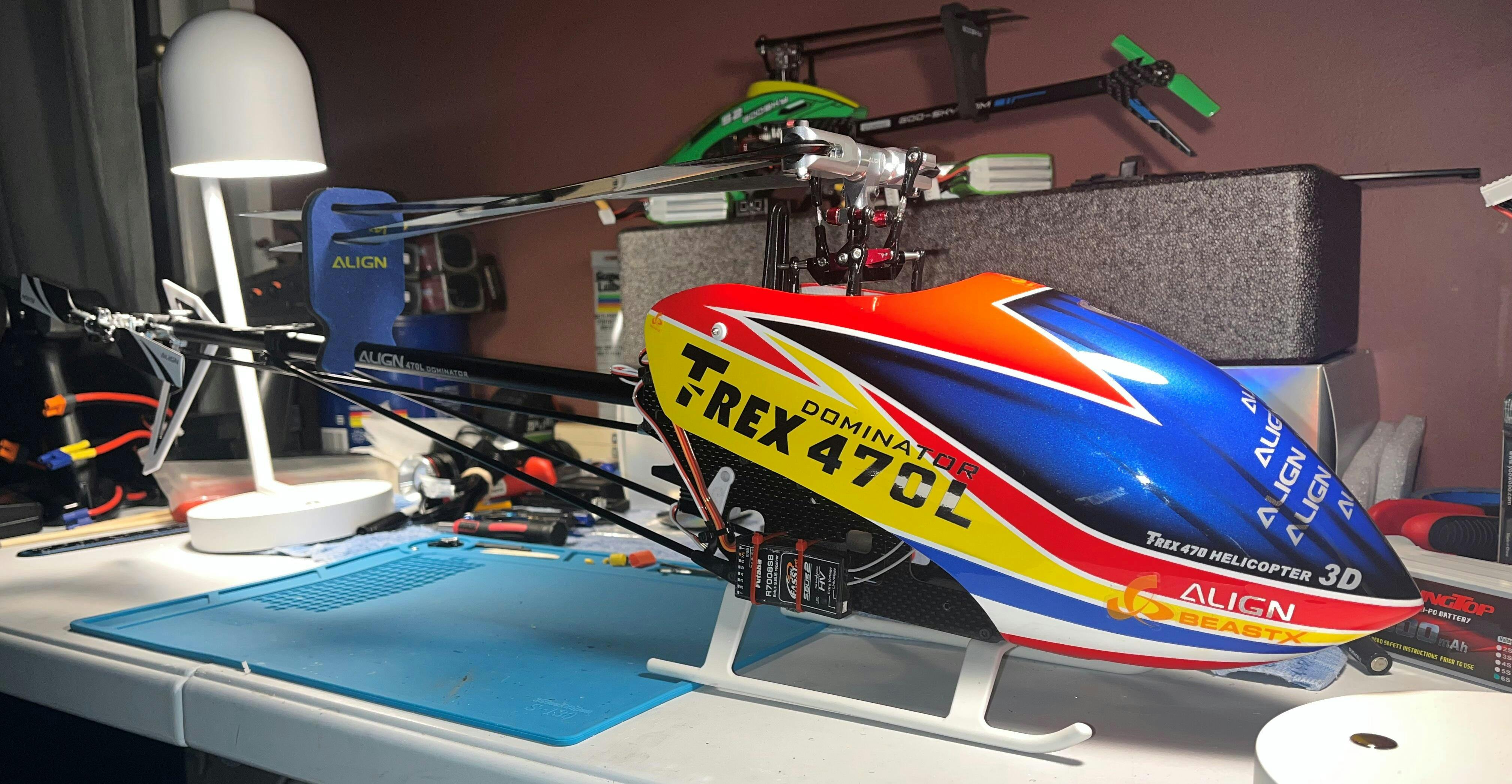

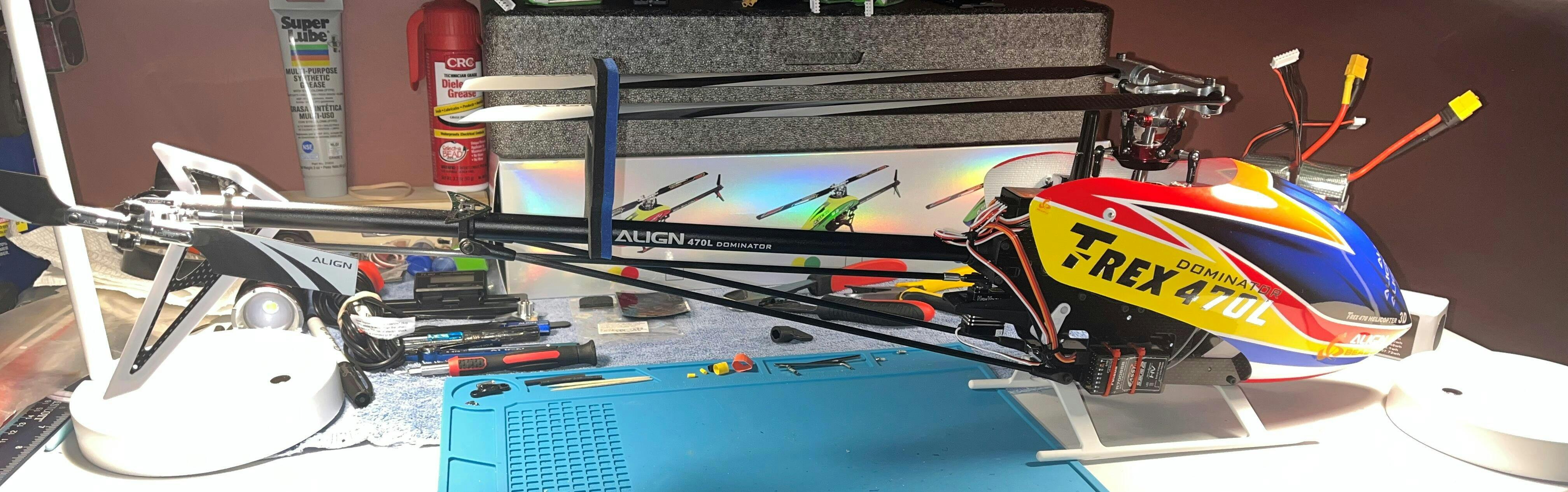

I have been building this TRex 470LM in my spare time. It’s been 8 almost 9 years since I have built and flown a heli. The last one I built was a TRex 450 DFC with the 3GX flight controller. That was a nice build and setup and the heli flew great. Practically hands off hovering and nice flight control. I learned on an old school TRex 500 with a flybar before the flybarless systems came out.

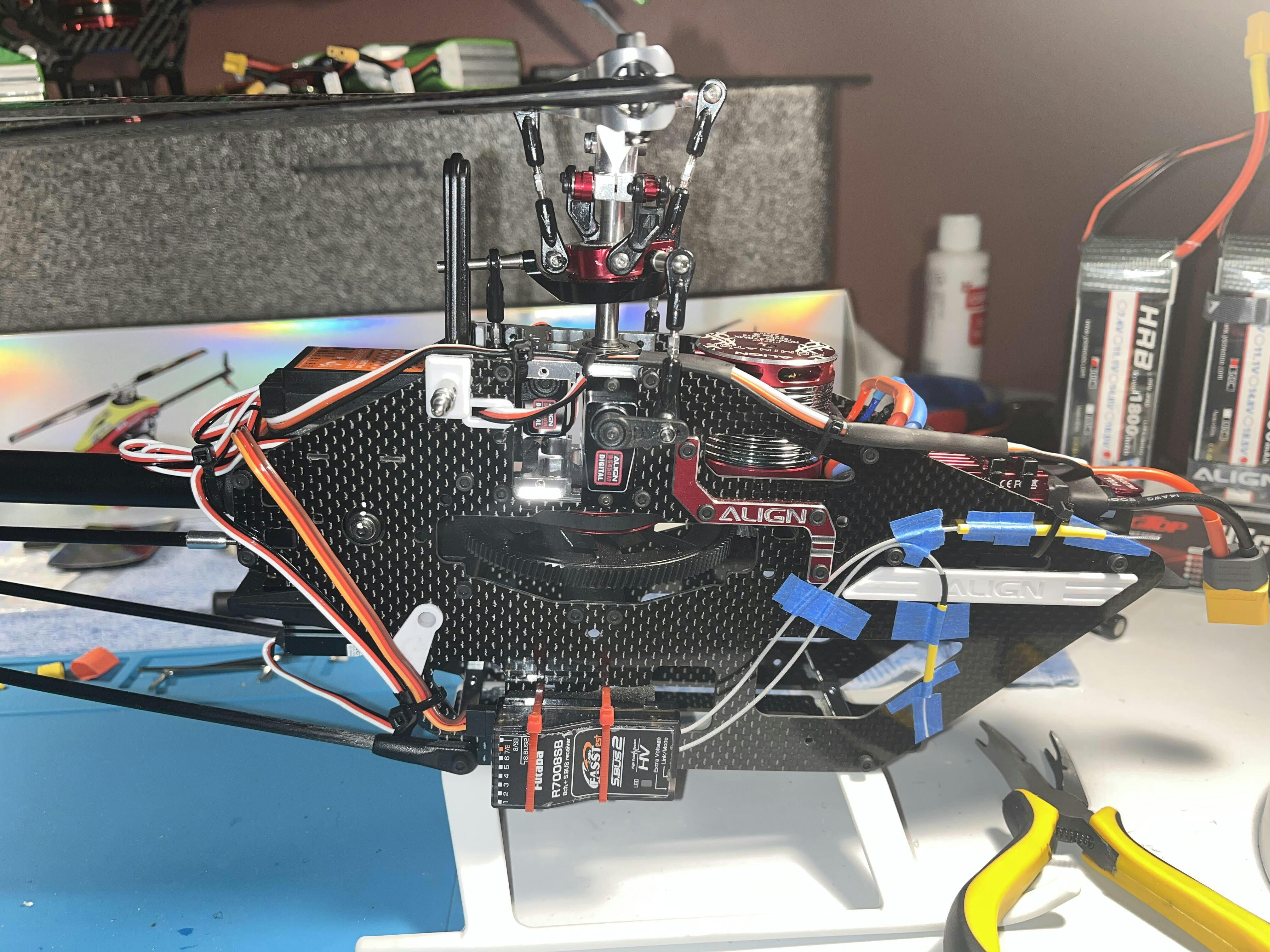

Now with Align moving to the MicroBeast Plus in their kits, this build and setup for the TRex 470LM was even better. After being out of the loop for quite a while I appreciated the ease of building instructions and the ease of setting up the Microbeast Plus. My kit came with V5.2 and getting the manual as a free download was nice. The manual for the Microbeast Plus was easy to follow and setting up the flight controller was a simple as pushing a button a few times and moving the sticks on the transmitter, nothing complicated and all was pretty straight forward. I did have to balance the Align main blades. The tails blades were spot on for balancing and I did upgrade to the 74s from the stock 69s on the tail blades as well.
I haven’t been able to take it out for the maiden flight yet because I just completed the build and flight controller setup, but I’m pretty sure it will hover when I take it out. I may have to do some adjustments here and there, but that’s all part of the hobby.
All in all this is a nice kit and well worth the time and money to build. Definitely get it if you’re thinking about moving up from the micro helicopters or just want to downsize to something you can fly in a smaller area.
It's align quality. Personally don't care for their servos. Buy the kit with Motor & ESC and get KST/Torq servos.
Very happy with my order. Got a great deal shipped very fast and was 100% complete. Will be back for more.
