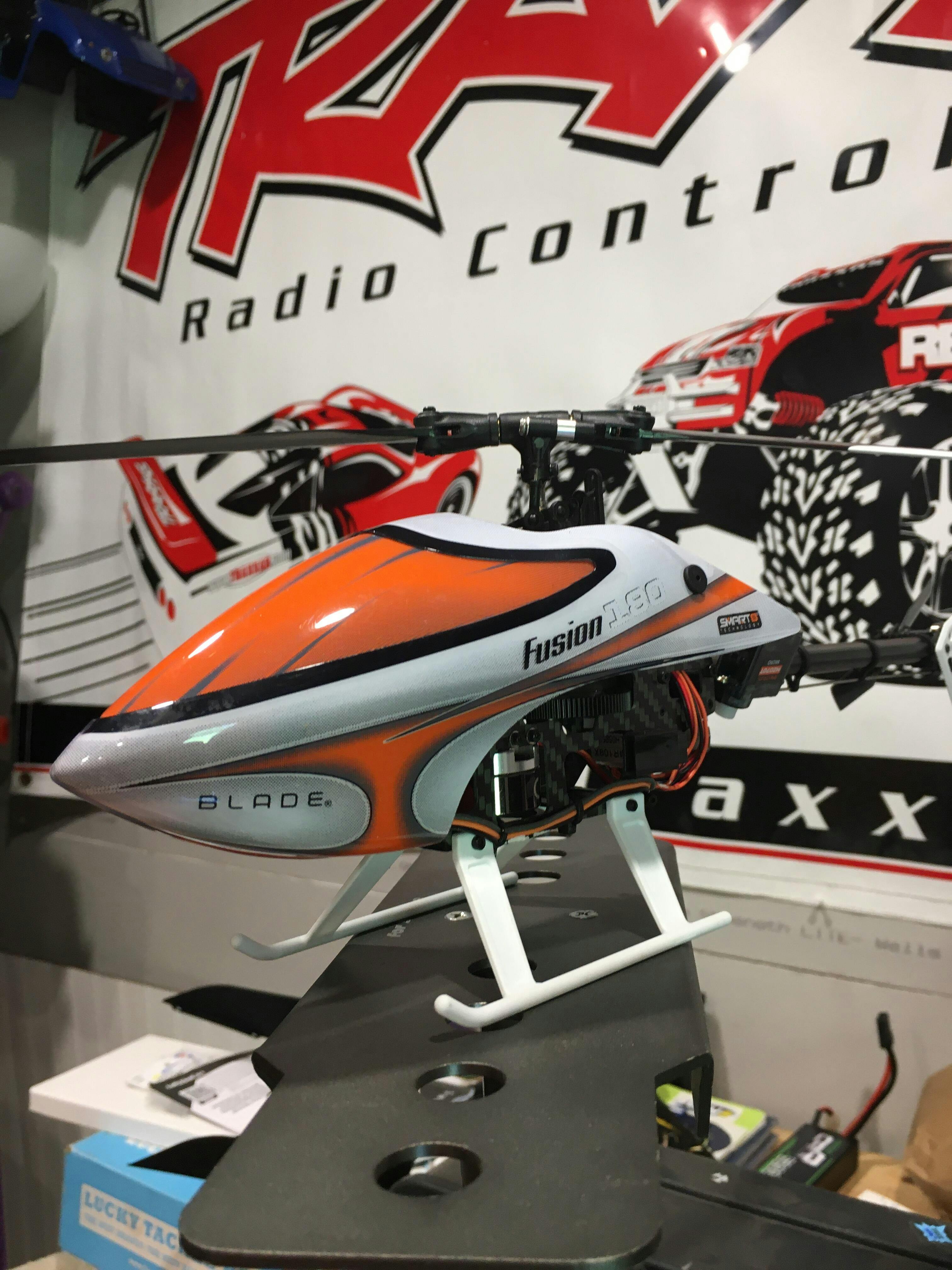

Blade Fusion 180 Smart BNF Basic

HIGH PERFORMANCE IN A SMALL SIZE

Featuring the latest advancements in Spektrum^™ technology, the Blade^® Fusion^™ 180 Smart helicopter continues the legacy of the Blade Fusion line and is a high-performance 3D machine ready for intermediate heli pilots. The revised Fusion adds a redeveloped carbon fiber main frame that's lightweight and extremely rigid. Additionally, a belt-driven tail and newly developed tail case improves tail performance and overall durability. Hosting this belt is an over-sized tail boom large enough to eliminate the need for boom supports. Optimized servo geometry greatly reduces mechanical loss and improves control efficiency to the swashplate. A painted carbon fiber tail fin finishes the sleek styling of the Fusion 180 Smart redesigned canopy. Featuring the latest in Spektrum technology, the Fusion 180 Smart is equipped with the expertly tuned micro 6250HMX Flight Controller yet remains adjustable for pilots to fine tune to their flying style. Also, a Spektrum^™ Avian^™ 15 Amp ESC offers improved, precise head speed control for that high performance flight that doesn't lag behind. Innovative SAFE technology help pilots progress from simple maneuvers to advanced 3D stunts with confidence. Plus, with the inclusion of Smart technology, battery charging, and power system management is now easier than ever and virtually worry free. With BNF Basic convenience, pilots simply add a 4S 450mAh battery, bind their 6+ channel Spektrum DSMX transmitter, and take to the skies.

Video Overview

SAFE^® Technology

The Blade^® Fusion^™ 180 Smart helicopter features exclusive SAFE^® (Sensor Assisted Flight Envelope^®) technology, a revolutionary electronic flight envelope protection system that makes it easy for anyone to fly helicopters with confidence by providing flight mode versatility and Panic Recovery mode that automatically returns the heli to a level attitude.

Spektrum^™ Avian^™ Smart 15 Amp ESC included

The Spektrum^™ Avian^™ Smart 15 amp ESC transmits Battery voltage and ESC data straight to your Spektrum Transmitter all over one wire. An Avian electronic speed control provides a one-wire solution for obtaining telemetry data such as current, voltage, temperature and RPM. The Avian ESC 32-bit M4 processor produces higher resolution signal input and more accurate motor output for a locked in and active throttle response.



Spektrum^™ AR6250MHX Flybarless Controller

Cutting-edge Spektrum technology is featured throughout this beast from Spektrum H2070 cyclic and H2070T tail servos with Optimized Servo Geometry to the new ground-breaking Spektrum AR6250MHX flybarless system. This new flybarless controller features advanced adaptive flight control algorithms, forward programming, 6-axis M.E.M.S. inertial sensor, low-latency high-speed operation, two remote receiver ports for diversity, and a vibration rejecting aluminum lower case.





Optimized Fusion Design

The carbon fiber main frame takes rigidity to another level for a rock-solid flight experience. An oversized tail boom eliminates the need for boom supports and is crowned by an ABS plastic tail case improving vibration damping and performance.





Belt Driven Tail

The Fusion 180 Smart features a belt driving tail improving durability and tail performance.





Aggressive and Attractive Trim Scheme

The Fusion 180 features an expertly painted canopy and matching tail fin that is both attractive and purposeful. The bright color scheme is easy to see when tearing up the sky and is sure to catch the eye of everyone at the flight line.





Product Specifications

Approximate Flight Time	3 - 4 Minutes
Battery	Sold Separately
Canopy/Body Material	Plastic
Channels	6
Charger	Sold Separately
Completion Level	Bind-N-Fly Basic
Power Type	Electric
Main Blade Material	Plastic
Main Frame Material	Carbon Fiber
Main Motor Type	Brushless
Main Rotor Blade Length	7.08" (180 mm)
Main Rotor Diameter	16.22" (412 mm)
Main Rotor Head Type	Collective Pitch Flybarless
Product Weight	8.46 oz (240g)
Product Width	2.36" (60 mm)
Receiver	Included
Servos	Included
Skill Level	Level 3
Speed Control	Included
Swashplate Type	120 Degree CCPM
Tail Blade Material	Plastic
Tail Drive	Belt Drive
Tail Rotor Blade Length	1.41" (36 mm)
Tail Rotor Diameter	3.93" (100 mm)
Technology	Smart, AS3X and SAFE
