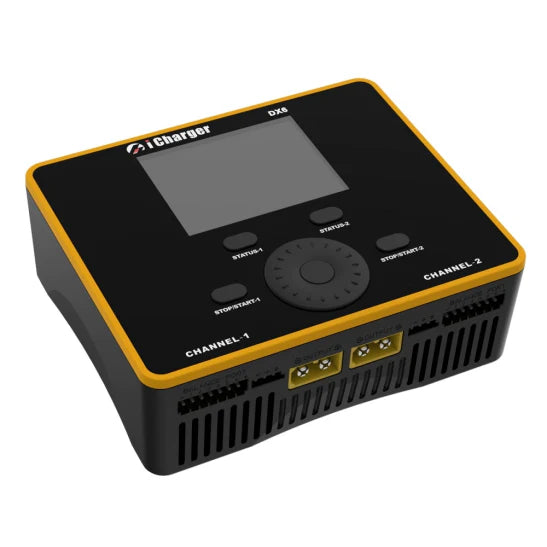

iCharger DX6

Vendor: iCharger
|
SKU: IC-DX6
Availability: In Stock

Earn [points_amount] when you buy this item.

Price Match Guarantee
$210.00
$210.00
The order quantity exceeds the stock!
iCharger DX6 - HeliDirect

iCharger DX6

$210.00
iCharger DX6 - HeliDirect

iCharger DX6

$210.00

Related Products

Description

Manual download : HERE

Special Features

  • The DX6 uses advanced Synchronous buck-boost DC/DC converter technology, high power, a high current and high-performance power conversion circuit. The maximum charge power capacity is up to 1500W, the maximum charge/discharge current of a channel is up to 32A, and two channels in Synchronous Mode are up to 50A.
  • Each channel supports 6s LiPo, Lilo, LiFe, LiHV, LTO and NiZn batteries, with maximum 2A balance current, and adopts a unique balance calculation of internal resistance correction. Supports 1-15s NiMH/NiCd batteries and 1-12s Pb batteries.
  • With digital-power mode for great protection (over-current protection, over-voltage protection, input under-voltage protection, input undercurrent protection, and etc.)
  • With type-c PD charging port, convenient for the user to charge mobile phones and PCs.
  • Intelligent fan control. Sensing internal temperature via the internal temperature sensor, to thereby control the fan speed.
  • Internal temperature protection. When the internal temperature exceeds the Power Reduce temperature, the output power is automatically reduced; and the charger will shut down when temperature exceeds the Shut-down temperature.
  • This charger can save 64 parameters sets and support the data import/export to SD card.
  • A 2.4" IPS LCD screen provides rich information including current, voltage, power, capacity, internal resistance, control status, time-consuming and temperature, etc.
  • Multi-discharge features: self-discharge, regenerative to input or discharge to another channel, and lithium battery extra expanding discharge.
  • Supports measurement for internal resistance of battery offline and online. Measure not only the internal resistance of the entire battery pack, but also measure the internal resistance of each cell within the lithium battery.
  • DX6 has protection for reversed polarity (input or output), input voltage/current, battery temperature, charging capacity, overrun time and maximum power etc.
  • Supports upgrading the hardware program by USB port or SD card. DX6 also supports the ā€œJunsi Consoleā€ software and can display, plot and analyze the charge and discharge data by it.
ļ¬Specifications:

Input voltage range:

Maximum input current limit:

Maximum charge/discharge current:

Maximum charge power capacity:

Maximum discharge power capacity:

Maximum regenerative discharge power capacity:

Maximum extra discharge power capacity:

Maximum current drain for balancing:

Type-C PD port:

Support Battery typeļ¼š


Net weight:

Dimension:

9ā€”34VDC

65A(Channel 45A)

50A(Channel 35Ax2)

1500W(Channel 900Wx2)

60W(Channel 46Wx2)

1500W(Channel 900Wx2)

1600W (Channel 900W@30V/32A)

4A(Channel 2Ax2)

5V/3Aļ¼Œ 9V/2Aļ¼Œ 12V/1.5A

LiPo, Lilo, LiFe, LiVH, LTO, NiZn, NiMH, NiCd, Pb

360g

92Ɨ112Ɨ40mm

Package Includes:Ā

-Ā iCharger DX6 x 1pc

- Drive Disc x 1pc

No any hardware includes
