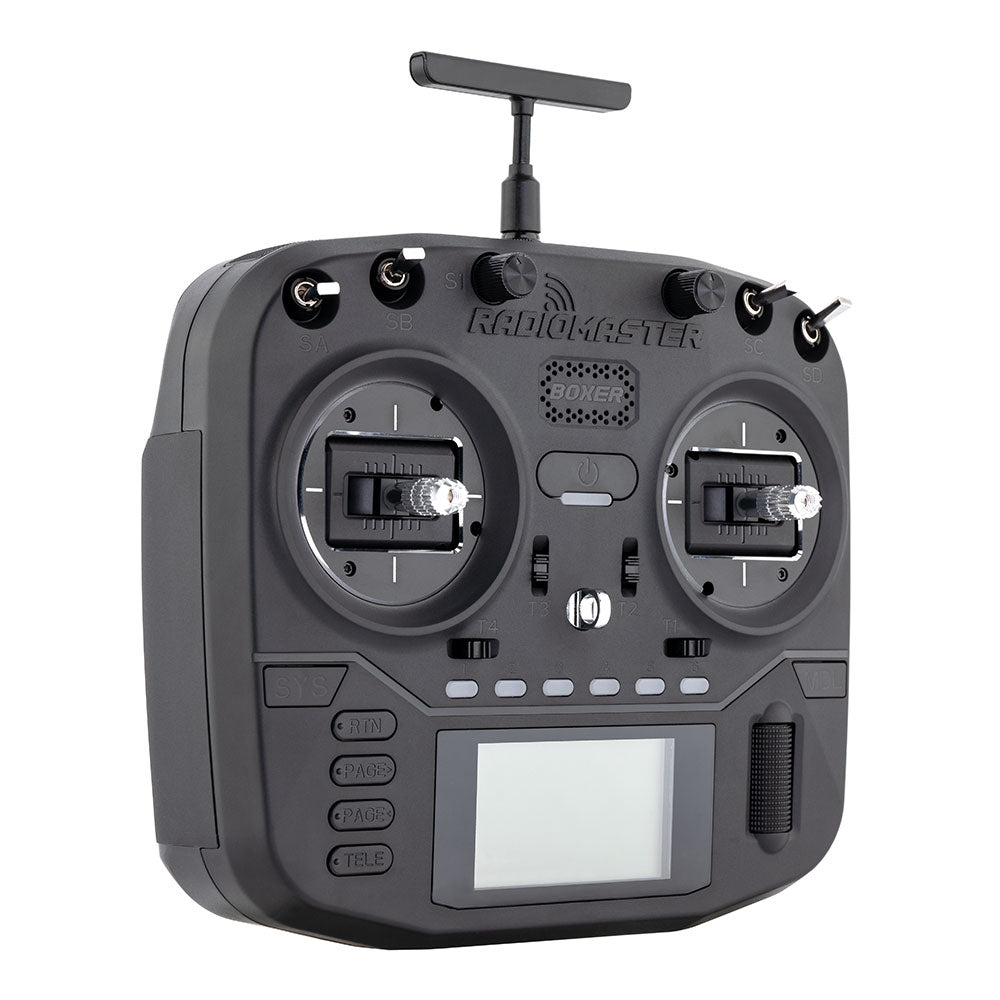

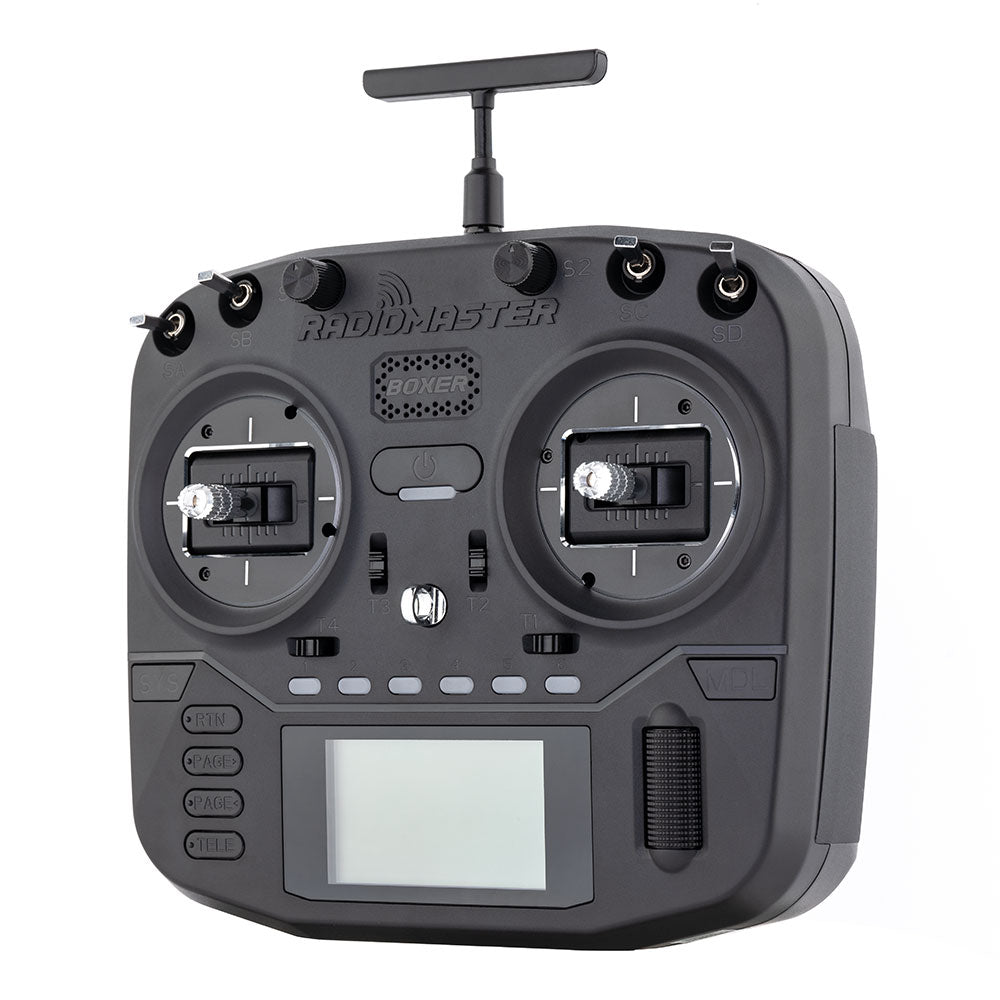

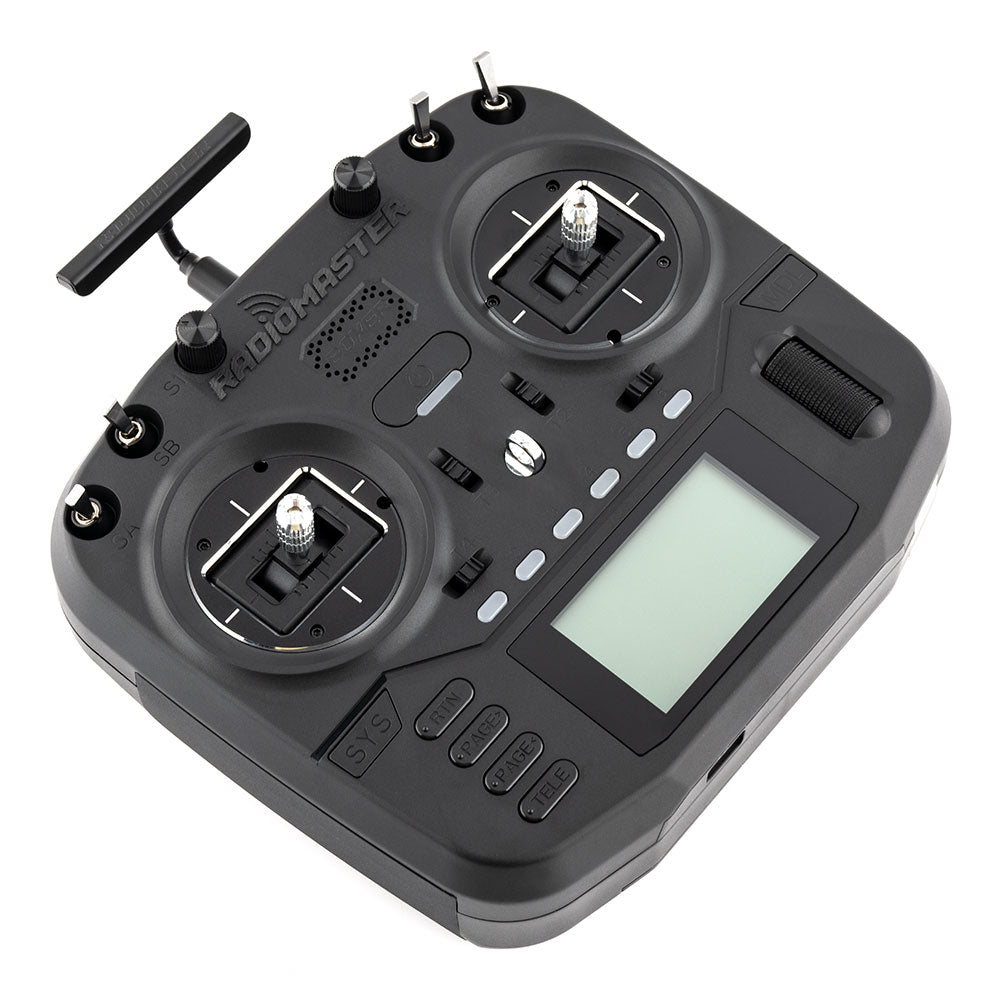

RadioMaster Boxer 4in1 Version
$139.99
$0.00( / )
Features Available with built-in ExpressLRS or 4-in-1/CC2500 MPM RF modules Featuring a powerful STM32VGT6 processor with 1MB RAM Preinstalled EdgeTX firmware Internal ELRS module capable of 1,000Hz refresh rate Adjustable ELRS RF output 30dBm max FCC 4-in-1 or CC2500 only version capable of up to 20dBm RF output QC3.0 fast...
Features
- Available with built-in ExpressLRS or 4-in-1/CC2500 MPM RF modules
- Featuring a powerful STM32VGT6 processor with 1MB RAM
- Preinstalled EdgeTX firmware
- Internal ELRS module capable of 1,000Hz refresh rate
- Adjustable ELRS RF output 30dBm max FCC
- 4-in-1 or CC2500 only version capable of up to 20dBm RF output
- QC3.0 fast charging support 2.0A MAX
- Compact design with excellent ergonomics
- New low-profile latching SE switch and momentary SF switch
- Oversized battery compartment- Space for a 2S 6200mAh pack, up to 20-hour duration (Batteries not included)
- Full sized V4.0 Hall effect gimbals as standard, upgradable to AG01 CNC Hall effect gimbals
- Standard JR module compartment
- Internal module cooling fan built in (ELRS version)
- RadioMaster standardized button layout
- Versatile 6-position switch for flight mode access

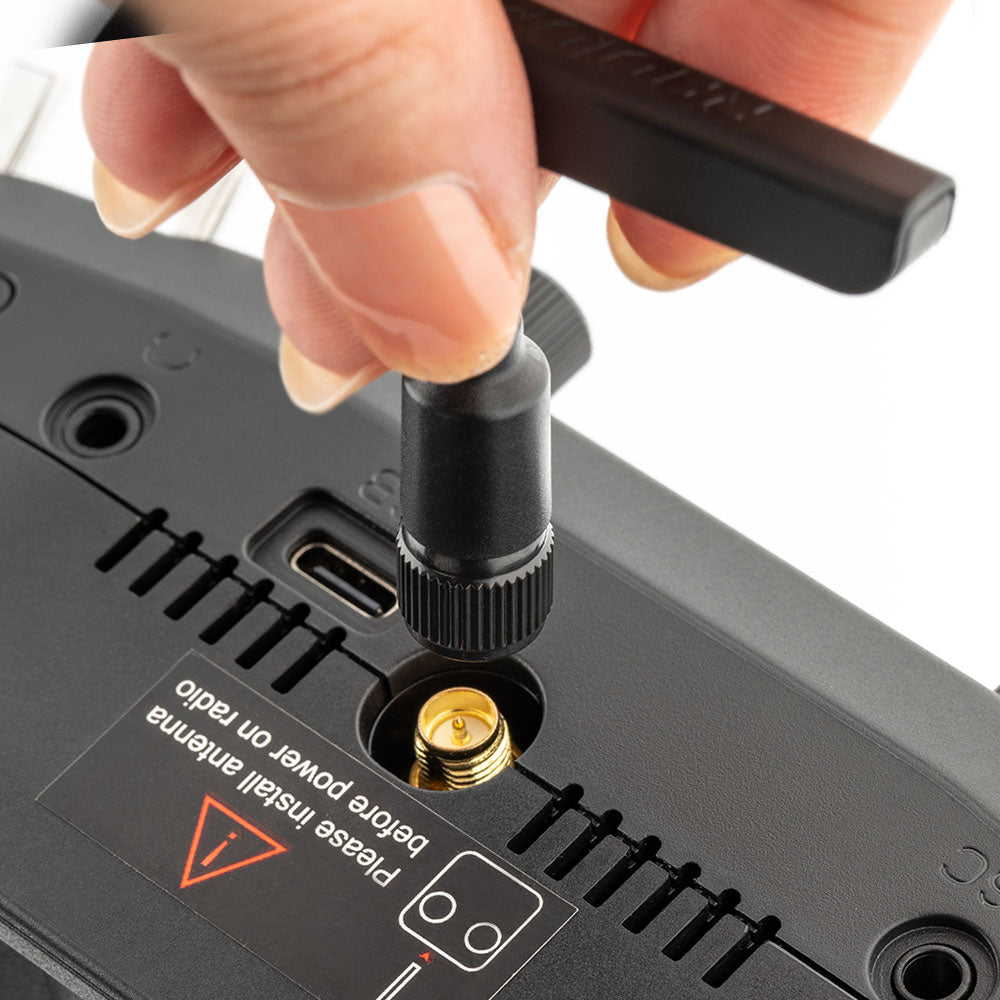

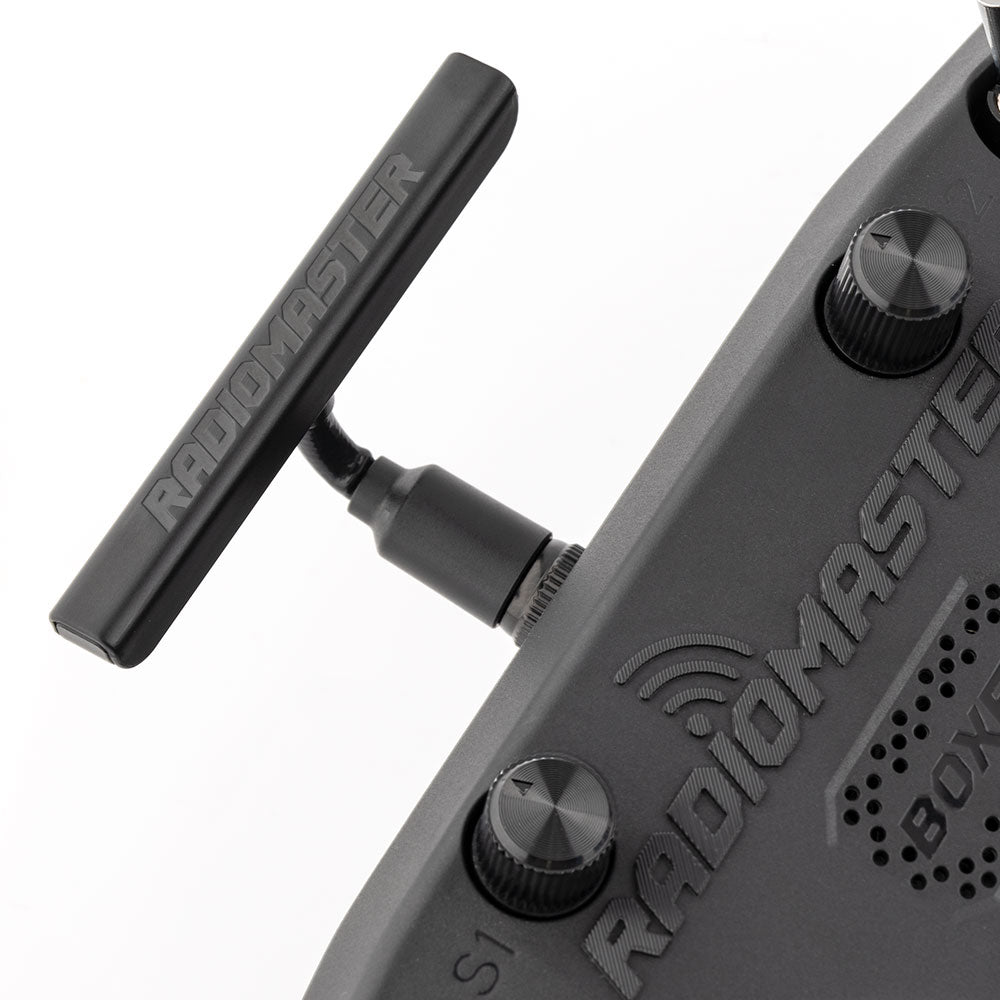

- Adjustable and Removable T-shape Antenna

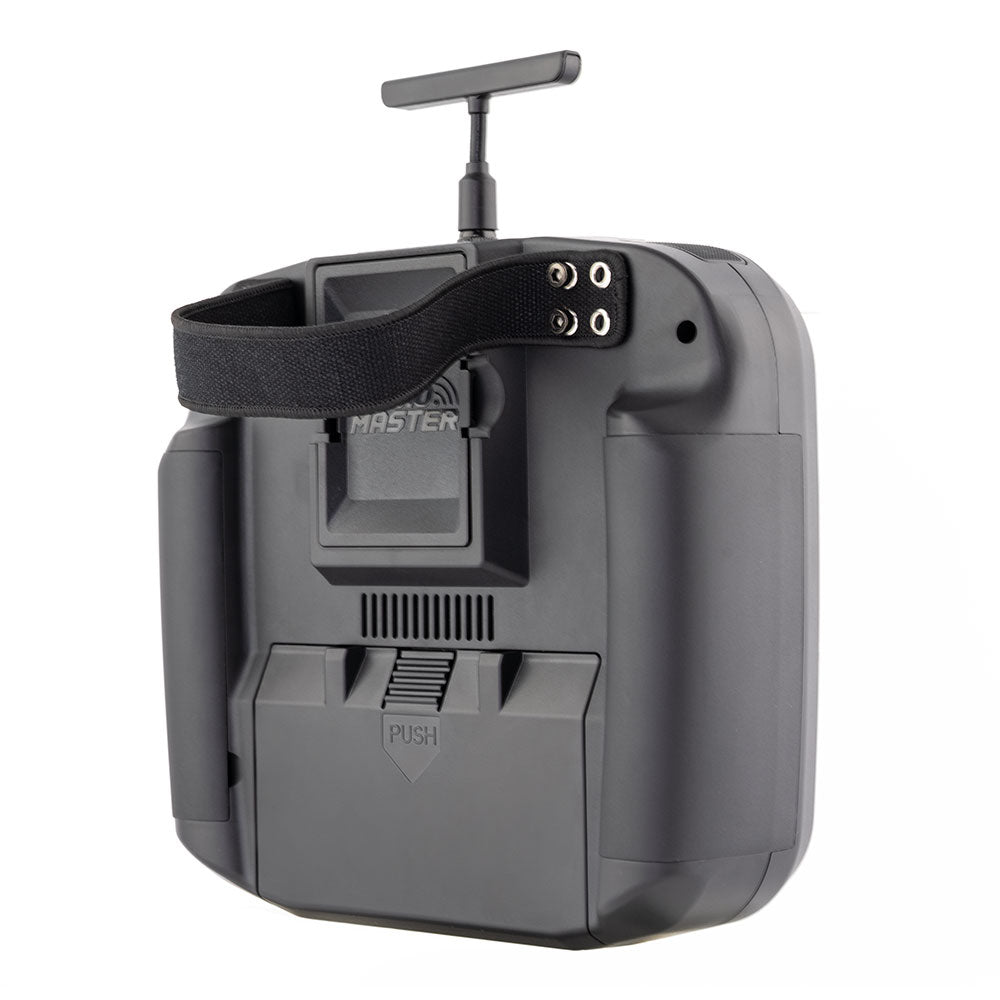

- Industry first fabric handle for improved portability
- Changeable, ergonomic grips

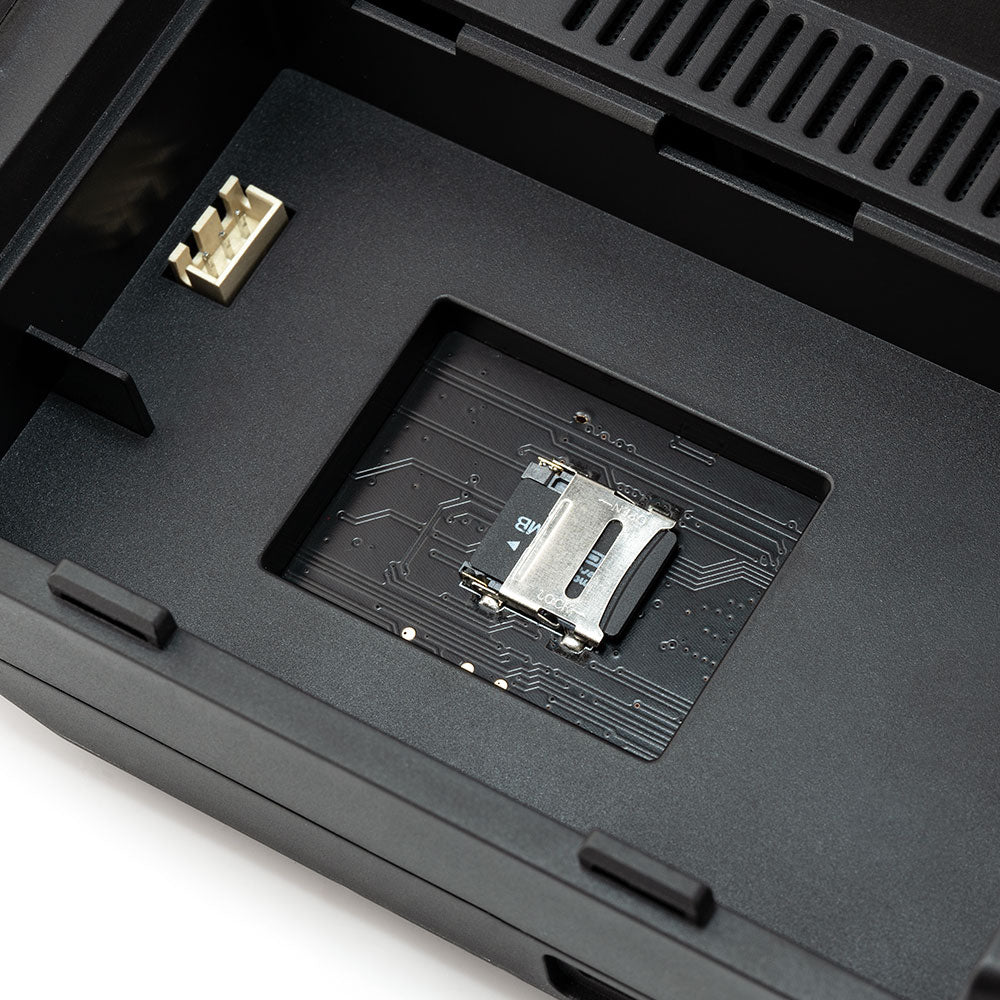

- Redesigned SD card slot with pre-loaded SD card included
- External module power slots in battery cover
- RadioMaster signature carry case and gimbal protector are included as standard to ensure your radio stays safe while on the move
Specification
- Battery: 7.4V 2-cell Lithium-Polymer / Two 3.7V 18650 Lithium-Ion cells (batteries not included)
- Battery: Supports 2S 6200mAh for up to 20 hours (Batteries are not included)
- Standardized button layout: Versatile 6-position switch for flight mode access
- Radio Firmware: EdgeTX (Transmitter) / Multi-Module (RF module) / ELRS
- Transmitting Power: 30dBm max FCC (ELRS); 20dBM (4-in1/CC2500)
- Gimbal: High precision 4.0 Hall gimbals as standard (AG01 Optional)
- Refresh Rate: Internal ELRS module capable of 1,000Hz (ELRS only)
- Upgrade Method: USB/SD card & EdgeTX Companion PC software
- Protocols Options: 4-in-1, CC2500, or ELRS 2.4GHz
- Channels: Max 16 channels (Receiver dependent)
- Processor: STM32VGT6 processor with 1MB RAM
- SD card: Slot with pre-loaded SD card included
- External module: JR/FrSKY/Crossfire compatible
- Module Power Slots: External in Battery Cover
- Antenna: Adjustable/Removable T-Antenna
- Display: 128*64 Monochrome LCD display
- Supported protocols: Module dependent
- Cooling Fan: Built-in (ELRS Only)
- Frequency: 2.400GHz-2.480GHz
- Voltage Range: 6.6-8.4V DC
- Model: Radiomaster Boxer
- Fast Charging: QC3.0
- Size: 235*178*77mm
- Weight: 532.5g
EdgeTX Operating System
Preinstalled with EdgeTX, the BOXER has cutting edge software fit for its class-leading hardware. RadioMaster works closely with the EdgeTX team to develop features and optimize the user experience. We will continue to contribute and support projects like EdgeTX, ensuring the concepts of open standards are carried forward.
Available with ExpressLRS and 4in1/CC2500 Version
In addition to the popular internal 4-in-1 Multi-module (CC2500, NRF24L01, A7105 and CYRF6936) and the CC2500 only version, the BOXER is now also available with a high-power, fan cooled, 1W internal 2.4GHz ExpressLRS (ELRS) module. Designed to provide reliable long-distance control, minimal latency, and high refresh rates. ELRS is a revolutionary open-source protocol taking the R/C industry by storm.
Standard FCC Version
- CC2500 (FCC) Version supports all CC2500 protocols
- 4in1 (FCC) Version supports all MPM protocols
- ELRS (FCC) is pre-installed witn ExpressLRS ISM FW (Max power is hardware dependant)
Powerful STM32VGT6 Processor with 1MB RAM
Compact Design with Excellent Ergonomics
Size

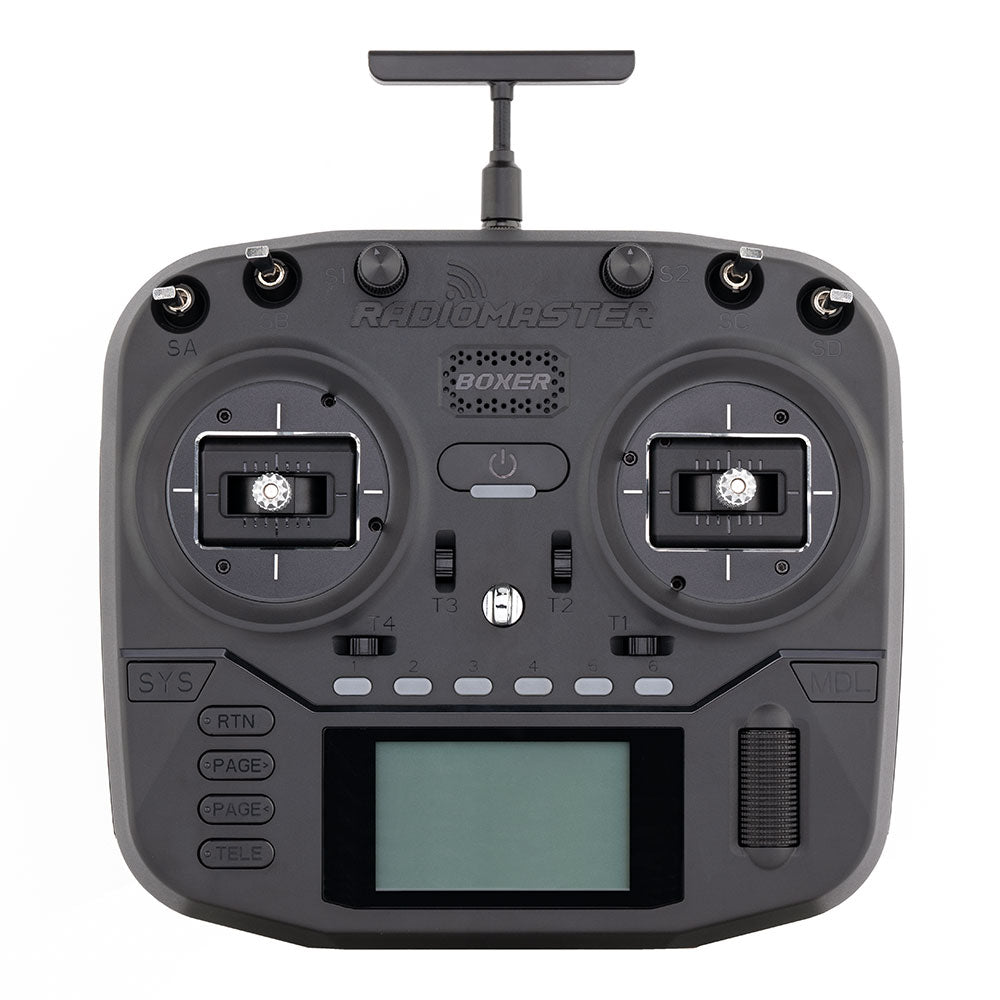

Radio Overview

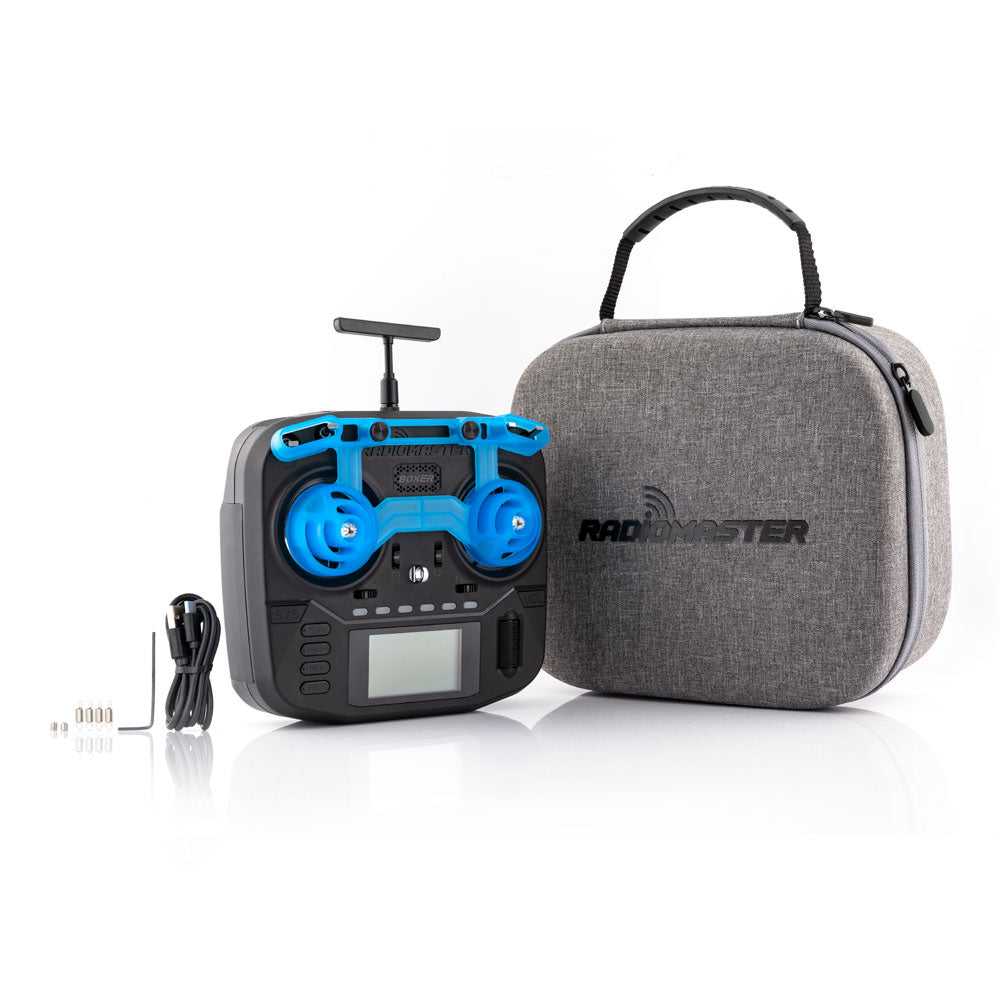

Package Includes
- 1 * BOXER Radio
- 1 * Signature Carry Case
- 1 * T Antenna
- 1 * USB-C Cable
- 1 * Gimbal Protector
- 1 * 1.5mm Allen Key
- 2 * M4*4 Screws
- 4 * Low Tension Springs
- 1 * 18650 Battery Tray
- 1 * Stickers
- 1 * Manual
