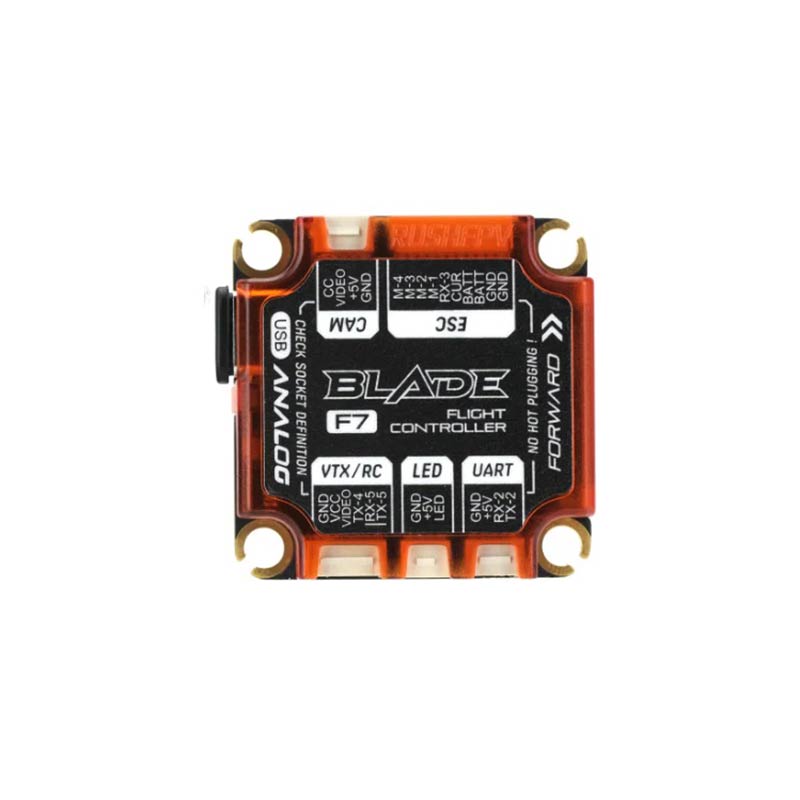

RushFPV BLADE F722 30x30 Flight Controller For Analog V2 Version

RushTank
|
DE17
You will earn 63.99 points for buying this product
Price Match Guarantee
$47.99 $63.99( / )
Features High-performance STM32 F722 MCU with speeds up to 216MHz. ICM42688P gyroscope, independent low-noise power supply. Built-in analog video OSD, 16M black box,5UART ports, 8PWM output ports, 2ADC ports, 1 I2C port, 1 camera control port. High power synchronous rectifier BEC, supports up to 36V input and provides stable 5V...

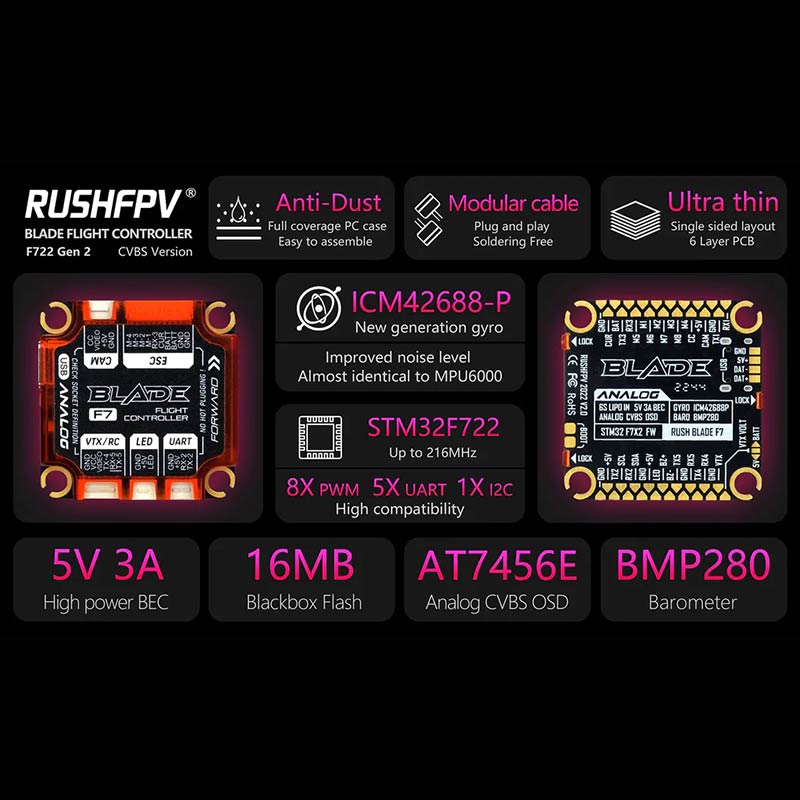

Features

  • High-performance STM32 F722 MCU with speeds up to 216MHz.
  • ICM42688P gyroscope, independent low-noise power supply.
  • Built-in analog video OSD, 16M black box,5UART ports, 8PWM output ports, 2ADC ports, 1 I2C port, 1 camera control port.
  • High power synchronous rectifier BEC, supports up to 36V input and provides stable 5V 3A output.
  • Modular cable design, with reliable locking structure, can be installed quickly, while retaining full-featured pads on the back, providing more expansion support.
  • Single-side layout, lower mounting height, 6-layer PCB, isolated ESC interference.
  • PC case is impact resistant and easy to disassemble, isolated from dust and grass clippings.

Specification

  • MCU STM32F722RET6
  • GYRO ICM42688P
  • OSD AT7456E CVBS OSD
  • BLACKBOX 16MB FLASH
  • BEC INPUT 7-36V / 3-6S LIPO
  • OUTPUT 5V 3A
  • PORT 8×PWM 5×UART 1×I2C
  • ADC V-BATT / CURR-ESC
  • LED
  • BARO
  • WS2812 LED STRIP
  • BMP280
  • SIZE 36.5mm*37mm*5.2mm
  • MOUNTING HOLES 30.5*30.5mm
  • TARGET RUSH_BLADE_F7 WEIGHT 11g (without cable)

Includes

  • 1 x RUSH BLADE F722 V2 30x30 Flight Controller For ANALOG
  • 1 x 60MM UART Cable
  • 1 x 60MM ESC Cable
  • 1 x 60MM LED Cable
  • 1 x Camera Cable
  • 1 x VTX Cable
  • 5 x 8MM Grommet
  • 5 x 5MM Grommet

Type:

FPV Electronics

Vendor:

RushTank

SKU:

DE17

Weight:

0.5 lb
