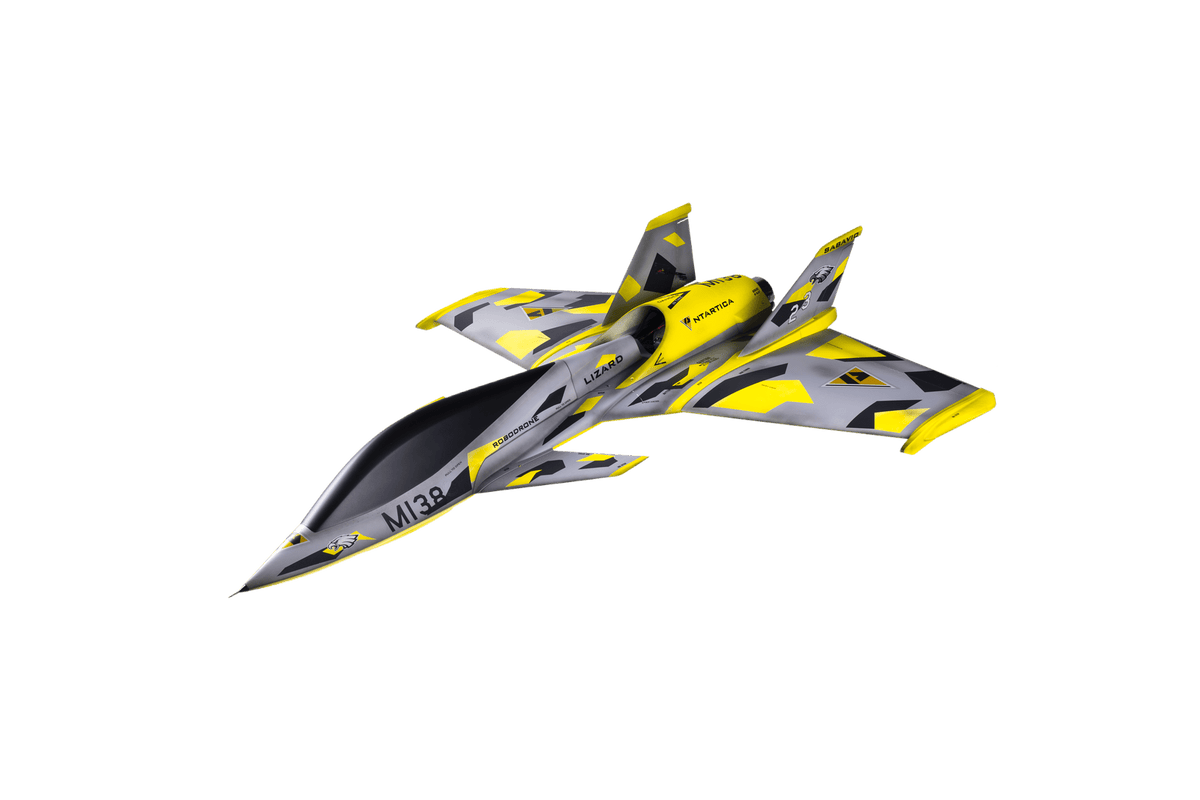

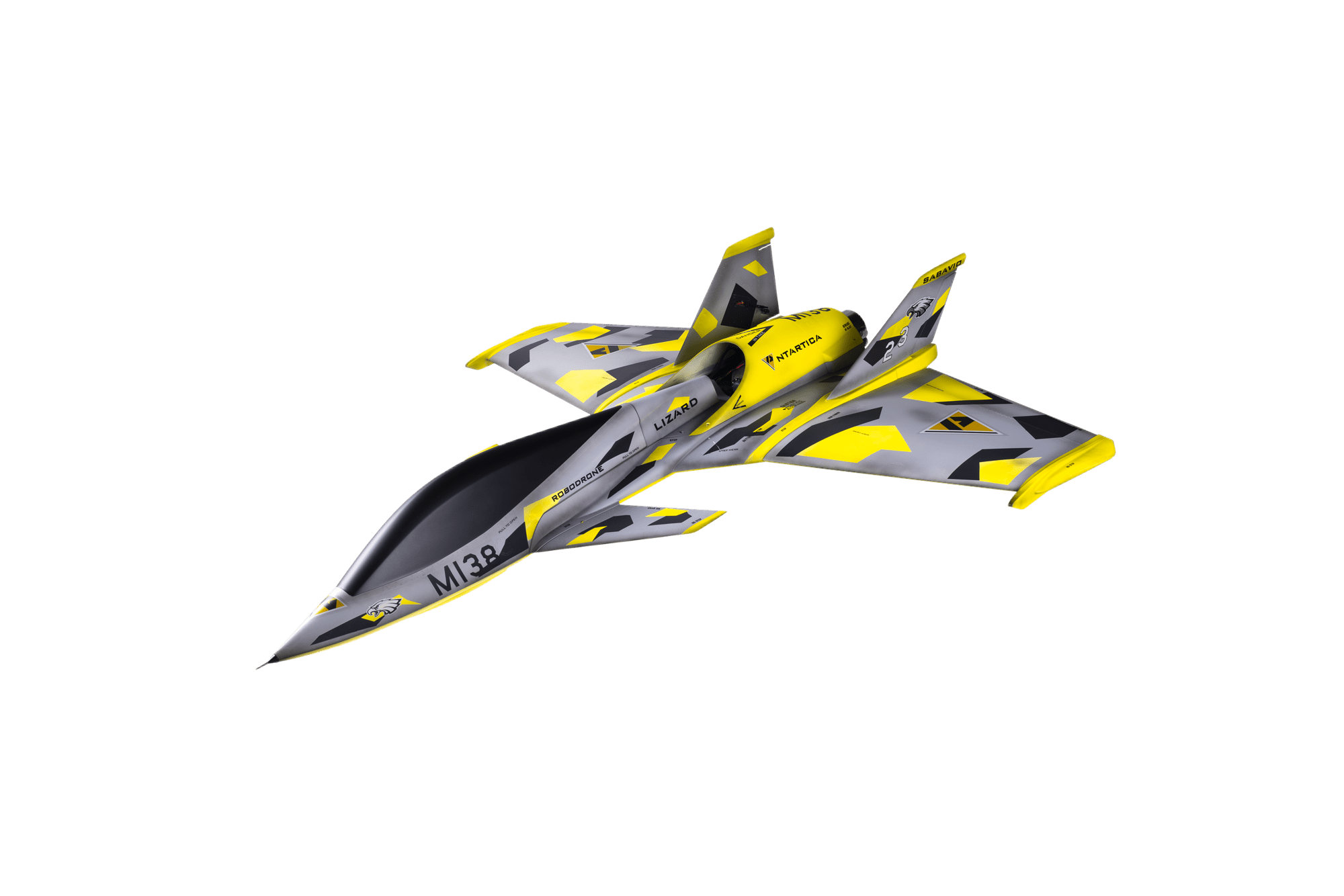

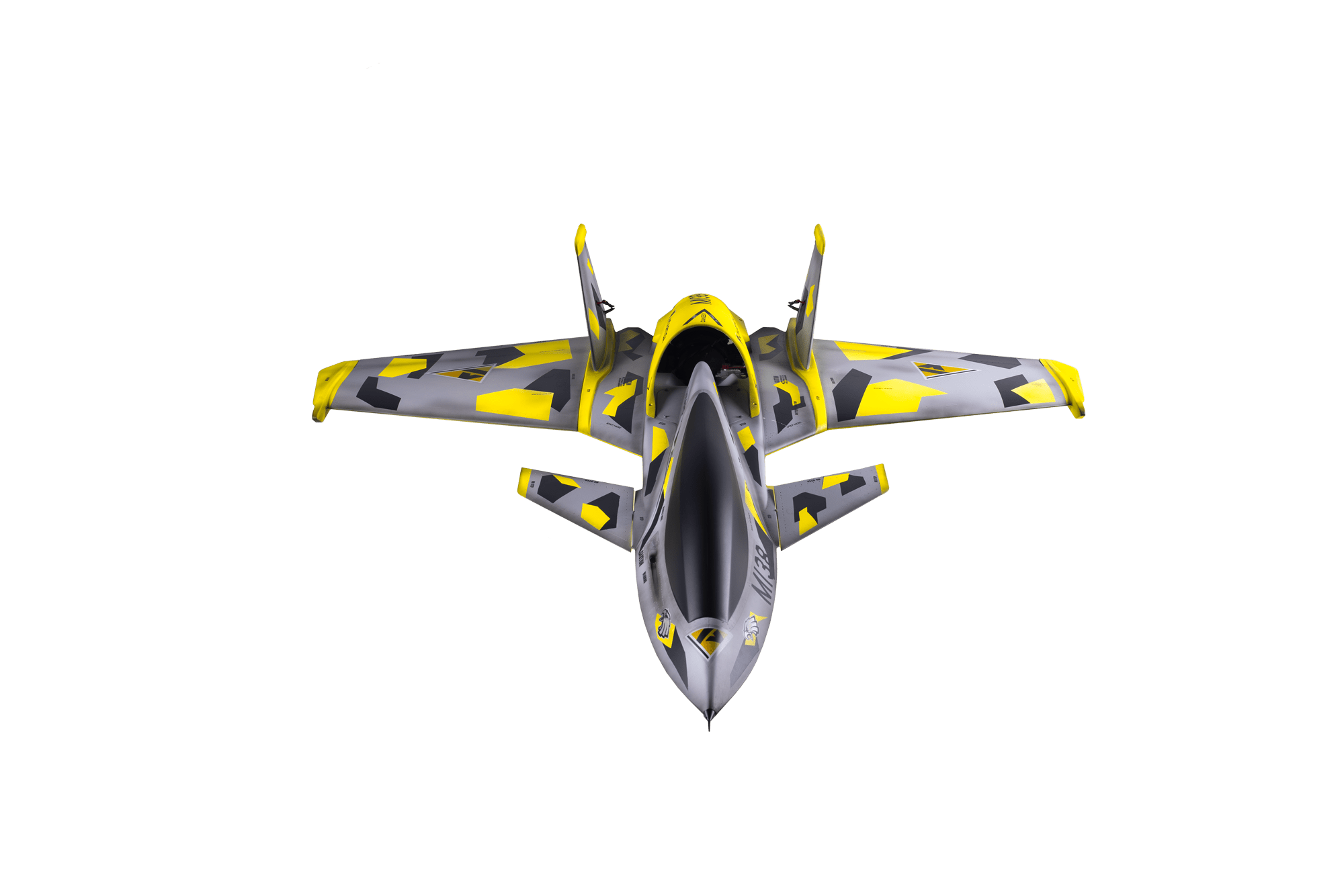

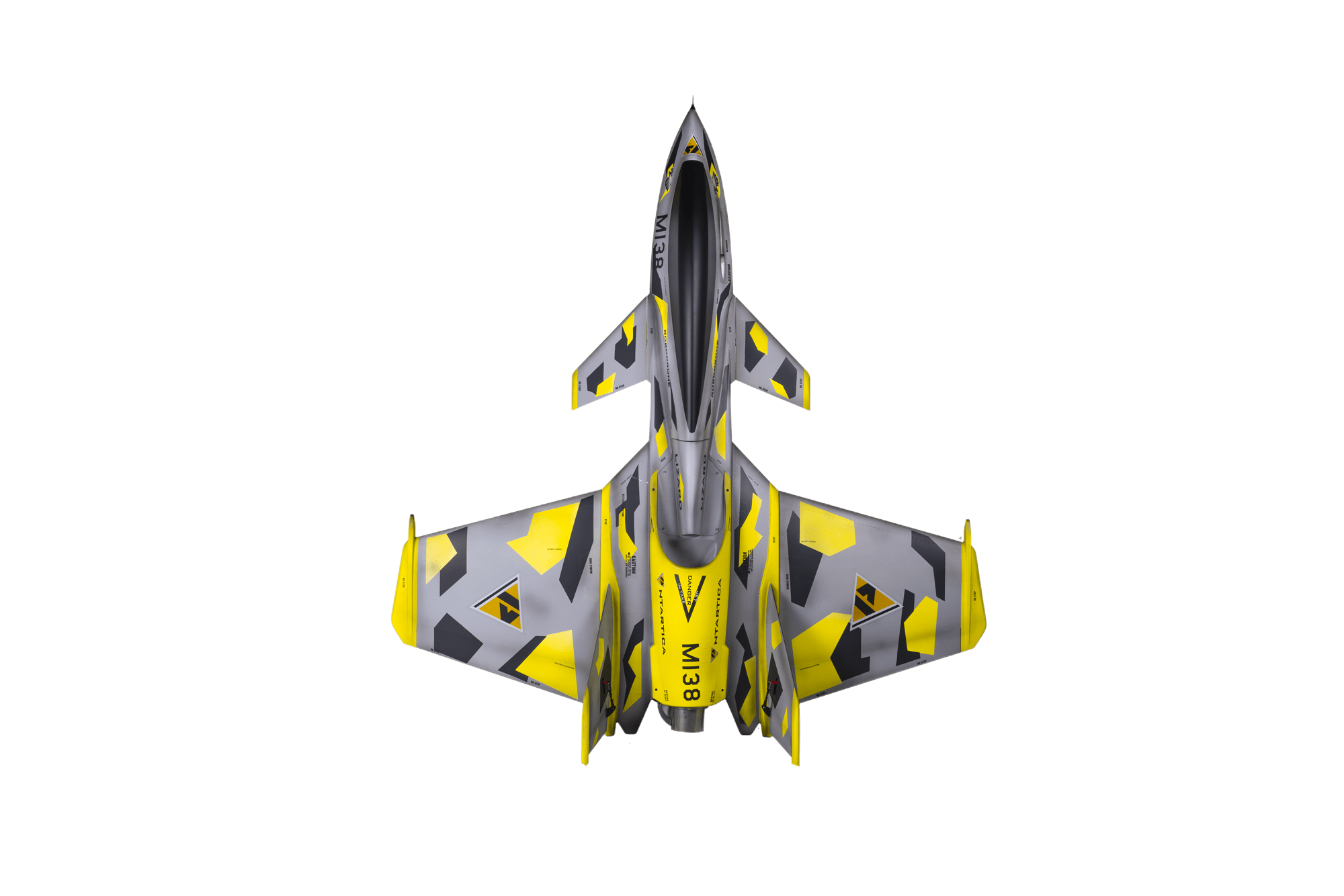

SAB AVIO M138 Lizard EDF / Turbine Jet Kit
SKU: SAM138
In Stock Out of stock
In Stock Out of stock
You will earn 1,489.99 points for buying this product |
$1,489.99
SAB AVIO M138 Lizard - Multirole Performance Unleashed.
Download manual (EDF version)
Download manual (Turbine conversion)
Check out SAB Lizard Jet Build Log at RCGroup
Enter the SAB AVIO M138 Lizard; a menacing creature of flight, featuring a radical design for the ultimate in unrivaled jet driven performance. Drawing inspiration from the Tortuga, Havok and Drake, the M138 Lizard is a purpose built beast, incorporating an aerodynamic design for epic low speed capability coalesced with the ultimate in high speed thrills.
Torn from the saga of "Antartica," the M138 Lizard is envisioned as a multirole fighter - craving the opportunity to devastate the adversary in epic all out war. Featuring a weathered pre-painted, high visibility livery, the detail and design of the M138 is stunning in form, with incredible functionality that is highly visible all throughout this impressive machine.
Compact in form, the M138 Lizard was designed as the perfect fit between its larger Havok & Drake counterparts, offering epic levels of high performance capability. A first for this size of machine, the M138 Lizard is EDF ready, with the ability to harness 100mm - 120mm EDF fans for the ultimate in electric powered thrust. For those that thirst for pure turbine madness, the Lizard awaits your turbine of choice, with the optional turbine conversion kit capable of housing 4.5Kg - 12Kg turbines for the ultimate in sky scorching speed.
Engineered for maximum control, the M138 Lizard features an array of high authority control surfaces, allowing the Lizard to excel in every regime of flight. Utilizing canards for pitch control, ailerons for roll, and optional dual rudder capability for optimized low speed flight, the Lizard was designed to perform. And for those that choose the ultimate in turbine power, the optional turbine vector kit adds massive 3D control, with 3D thrust vectoring capability for all out aerobatic insanity.
Step into the future of RC jet flight with the all new SAB M138 Lizard - ARF brilliance with looks ready to kill.
Features:
- EDF Ready with Optional Turbine Conversion Capability
- Full Sandwich Fiberglass / Airex High Strength Layup
- Optional Turbine 3D Thrust Vectoring System
- Incredible Control, Precision and Maneuverability
- Aggressive High Alpha Capability
- All New Quick Release Wing System
- Fully Painted with Incredible Levels of Detail
- Control Surface Horns / Servo Mounts Pre-Installed
- Ultra Easy Compartment Access
- Factory Set for Rapid Assembly
- Ready for SAB Retract Landing Gear System
EDF Requirements:
(1) 100mm - 120mm EDF
(1) 160A - 200A ESC
(1) 12S 5000mAh LiPo Battery
Turbine Requirements:
(1) 4.5Kg - 12Kg Turbine
(1) Turbine Conversion Kit - S0305-S(1) UAT120CC - S0296-S
(1) (Optional) Vector Thrust Kit - S0087-S
Technical Specifications:
Wing Span: 1380mm (54.3")
Length: 1550mm (61")
Dry RTF Weight: 5.8Kg - 6.5Kg / 12.3 lbs. - 14.5 lbs. (Dependent Upon Equipment Used)
Fuel Tank Capacity: 2 Liters (0.52 Gallons)
Included:
(1) M138 Lizard Kit
Required for Flight:
(1) EDF or Turbine Powerplant (ESC Required for EDF)
(3) Mini Servos
(1) Standard Servo
(2) Mini Wing Servos for Optional Rudders
(1) Retract System





Product Spare Parts
Electronics
Warranty Information
We truly thank you for your purchase, and when things go wrong, we are here to help in any way that we are capable of doing so.
In regards to any warranty related matter, please reference the below information to help understand our warranty policies, as these warranty policies are absolute when it comes to any purchase made via HeliDirect.
Warranty Time Frame
Regarding product(s) purchased via HeliDirect, each manufacturer has their own specified warranty time frame, and HeliDirect holds the sole right to direct the customer to the manufacturer for stated warranty support in regards to manufacturer's that require direct level warranty support.
Our stated (14) day return policy directly relates to brand new, unused products being returned for a refund or store credit, and does not relate to warranty related situations for faulty product(s). Faulty, damaged or problematic items are handled upon a case by case basis, and will be detailed below based upon the warranty options available.
Our team at HeliDirect is highly motivated to assist in every possible way regarding warranty support, but please be 100% aware that warranty support for the product(s) you have purchased may be handled directly via the manufacturer, and not through HeliDirect.
If your product(s) involve direct manufacturer support, we are still available to assist. We ask that the customer make the initial manufacturer contact for warranty support, but in the case where a manufacturer response is not receive within (5) business days, HeliDirect will step in upon your behalf, utilizing our channels to assist you with this manufacturer based support.
In the above case, HeliDirect will do everything in our power to make sure the manufacturer assists you directly, but please note that all such warranty in regards to an issue like this will still be directed through the manufacturer.
Warranty Related Issues
Please note that HeliDirect is not a warranty repair center, nor do we offer warranty regarding many items we resell. Product(s) purchased via HeliDirect are subject to the original vendor’s repair / replacement warranty policies & timelines, and will be directed to the manufacturer at our discretion.
HeliDirect will not assume responsibility and / or liability for any manufacturer defect, or damage due the use / misuse of the product(s) purchased. Further, HeliDirect cannot / will not be held liable for ancillary damage to product(s) based upon a manufacturer fault or defect. All such issues will be dealt with at the manufacturer based level.
If your item is found to have a fault or defect after installation or use, your product may be subject to warranty repair via the original manufacturer, no matter what the purchase date may be. HeliDirect does not cover repair, replacement or warranty via used / installed products. All such issues will need to be dealt with at the manufacturer level.
Damage Due to Ancillary Product Failure
In regards to damage that directly results to a failed product installed in conjunction with another product, we are happy to assist in terms of warranty support for the product that has failed, but please be aware that we cannot be held liable for ancillary damage to other items or components that may have been damaged due to the original product failure.
Warranty Returns
If your product is approved by our customer service staff as a valid return that we will handle directly, please note the below information regarding all such approved warranty items sent to HeliDirect.
- Any item(s) approved for return to HeliDirect will be subject to inspection and or testing to verify the noted information provided by the customer regarding the flaws, faults or damage.
- Due to the various aspects of testing, repair and other return processes, please be aware that any such approved return will require (2) to (5) business days for proper processing. Our staff will certainly do all that we can to reduce this time to the bare minimum, but please be aware that the return process can take up to (5) business days to complete.
- If the product(s) approved for return are deemed faulty by our returns specialists, we will proceed with a repair, exchange, credit or refund based upon the situation at hand. All such information will be communicated to the customer before any re-shipment is made.
- If an item that encounters a warranty issue after usage, HeliDirect may opt to repair the product versus an exchange, as exchanges can only be made for valid warranty relating to products that have no use of flaws. Our staff will be sure item is in 100% working order based upon any repairs, but exchanges, credits or refund cannot be offered for items under warranty that have been used and are no longer able to be sold as new.
- In the case of product(s) returned to us that test to be non faulty, the product(s) will be returned to the customer in the condition received. Our staff will reach out to the customer with necessary information regarding what may have been missed, and what steps to take in order to utilize the product(s) effectively.
- For non faulty diagnoses of returned product(s), refunds, store credits or exchanges cannot be offered, as the product(s) received cannot be sold as new and unused.
Great jet! I purchased the turbine version. I'm very impressed with the quality of this model from SAV AVIO. HeliDirect has always been great with their customer service and this experience has great. I have an in-depth build log and review here: https://www.rcgroups.com/forums/showthread.php?3542649-SAB-AVIO-Lizard-Build
First of all, I love SAB products (I have owned many of their Helis) and I really like my Lizard. Still, as I finished my build and prepared for maiden, I got to recognize that I am a little bit disappointed on the specifications and the Instructions for the EDF version.
On the specifications, EDF manual calls for a weight of 6.5-7.5Kg. I believe that it is unlikely to finish this plane with the recommended equipment below 7.2kg (16lb.) Mine weights 7.6kg (16.7Lb) using a Jetfan 110/HET 700-98-780, CC 160HV, 12s 6000mah power batteries and a 2s 2100Mah receiver battery. I could save a couple of grams, if I switched to a 5000mah battery, but there is not much more you can do to get it much lighter.
On the manual, even though instructions are beautifully detailed, the issue I found is that there is no way to achieve the recommended CG with the configuration recommended in the manual without adding a significant amount of nose weight, or by creating a tray in the nose to place a 2s 5000mah receiver battery as far forward as possible.
My fix was to re organize everything after I thought I had finished my build, which was frustrating. So, in order to minimize weight, I ended up putting my power packs side by side as far forward as possible and re-placed the ESC on the remaining section of the battery tray at front. I also moved the EDF forward on the EDF tray, which required then to make a trust tube. That way I ended up using the turbine tray (shortened to just beyond the retracted nose wheel area) to only having to place a 2s 2100mah receiver battery at front.
I felt that either manual was done too early before field testing on EDF version or there was not enough testing on this version of the Lizard. Also, I believe the turbine nose tray (or similar) should come standard on the EDF version in order to help minimize overall weight of the plane, by putting the receiver battery there.
