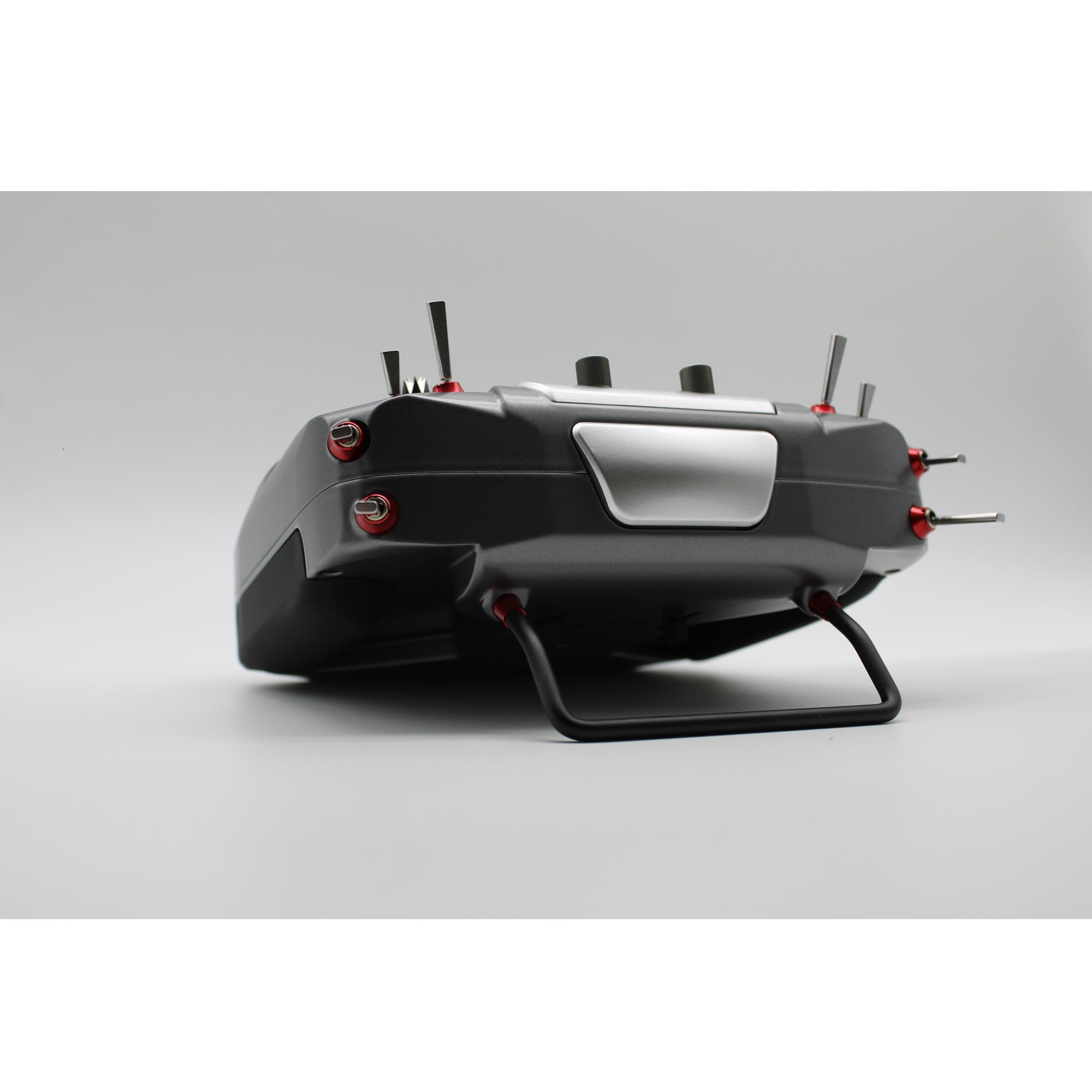

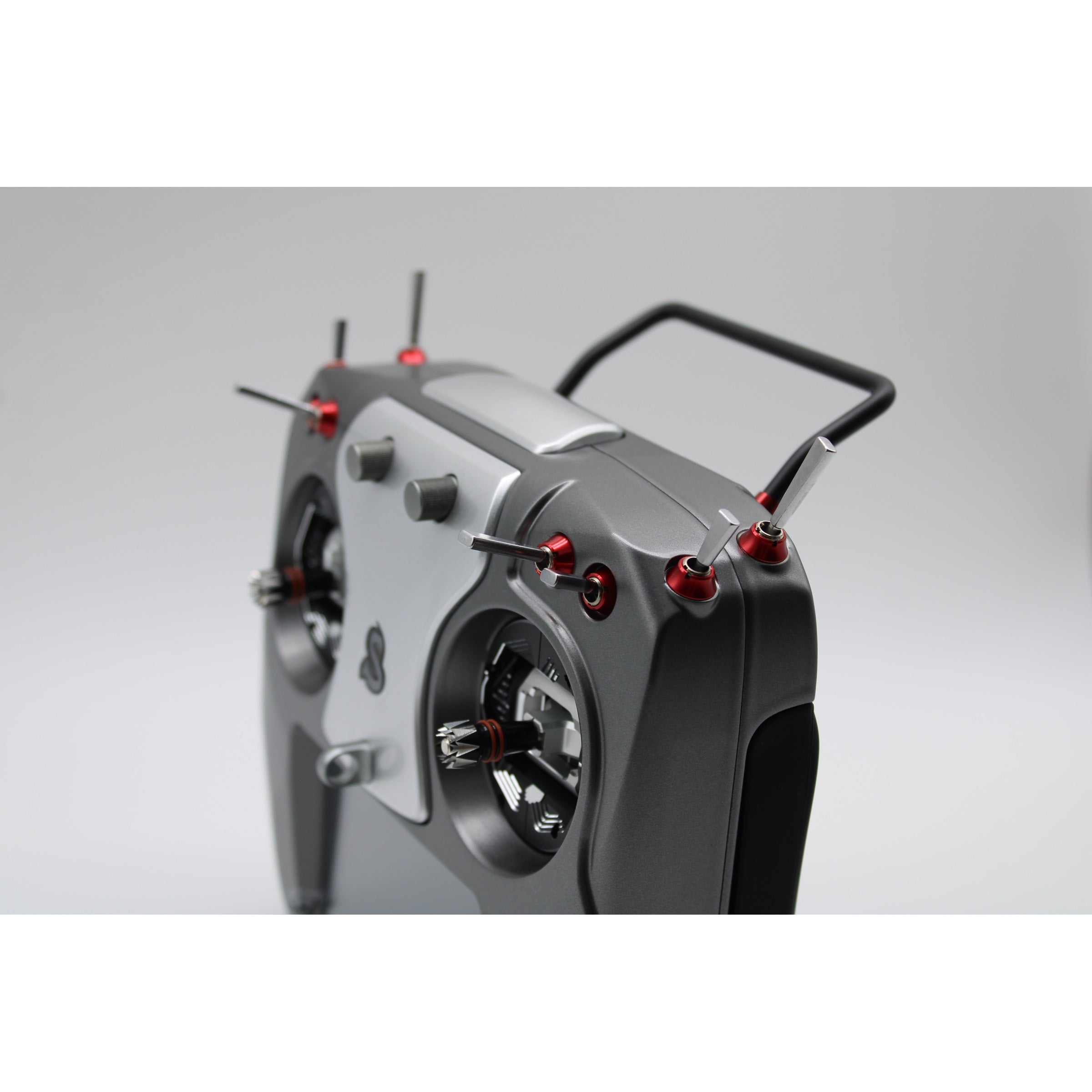

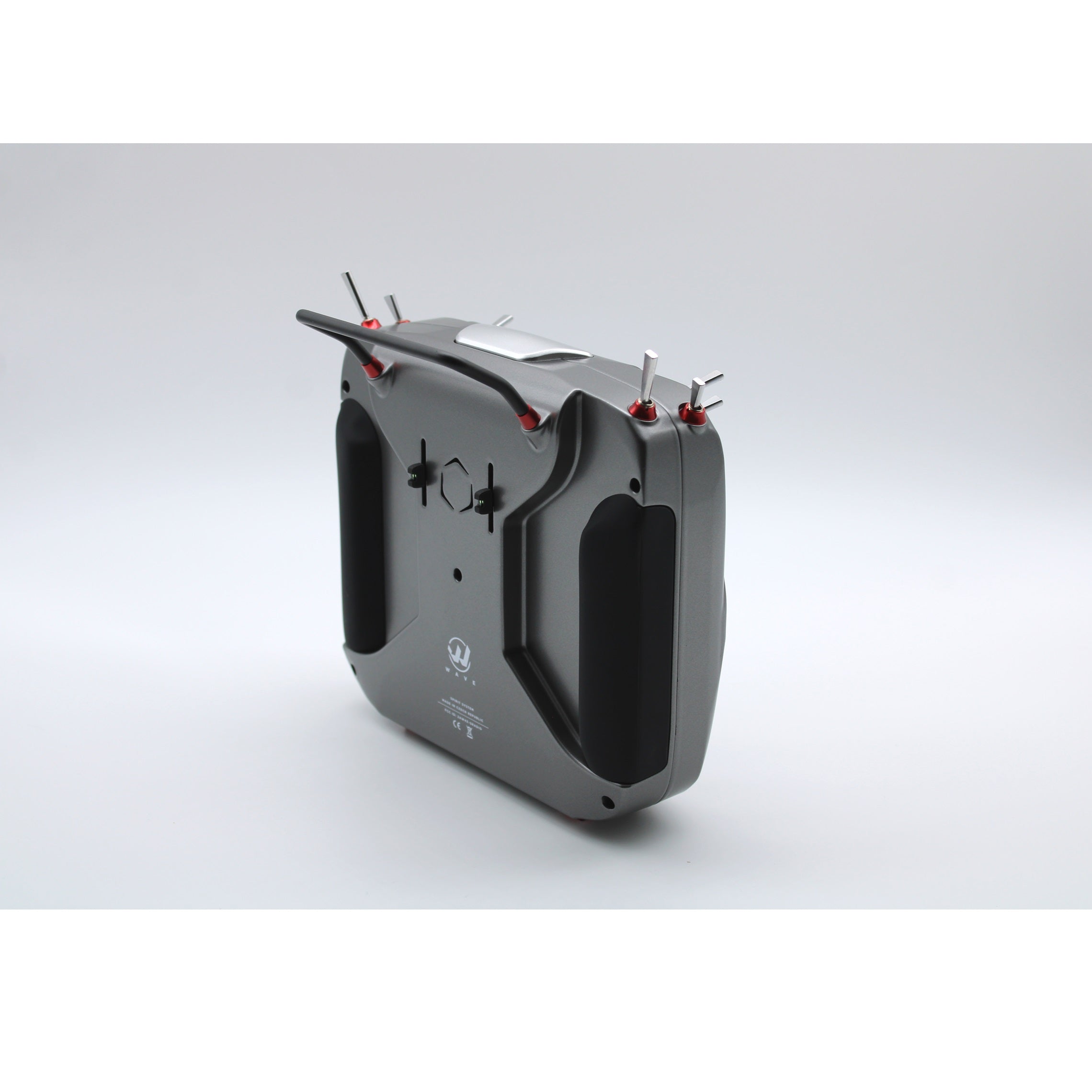

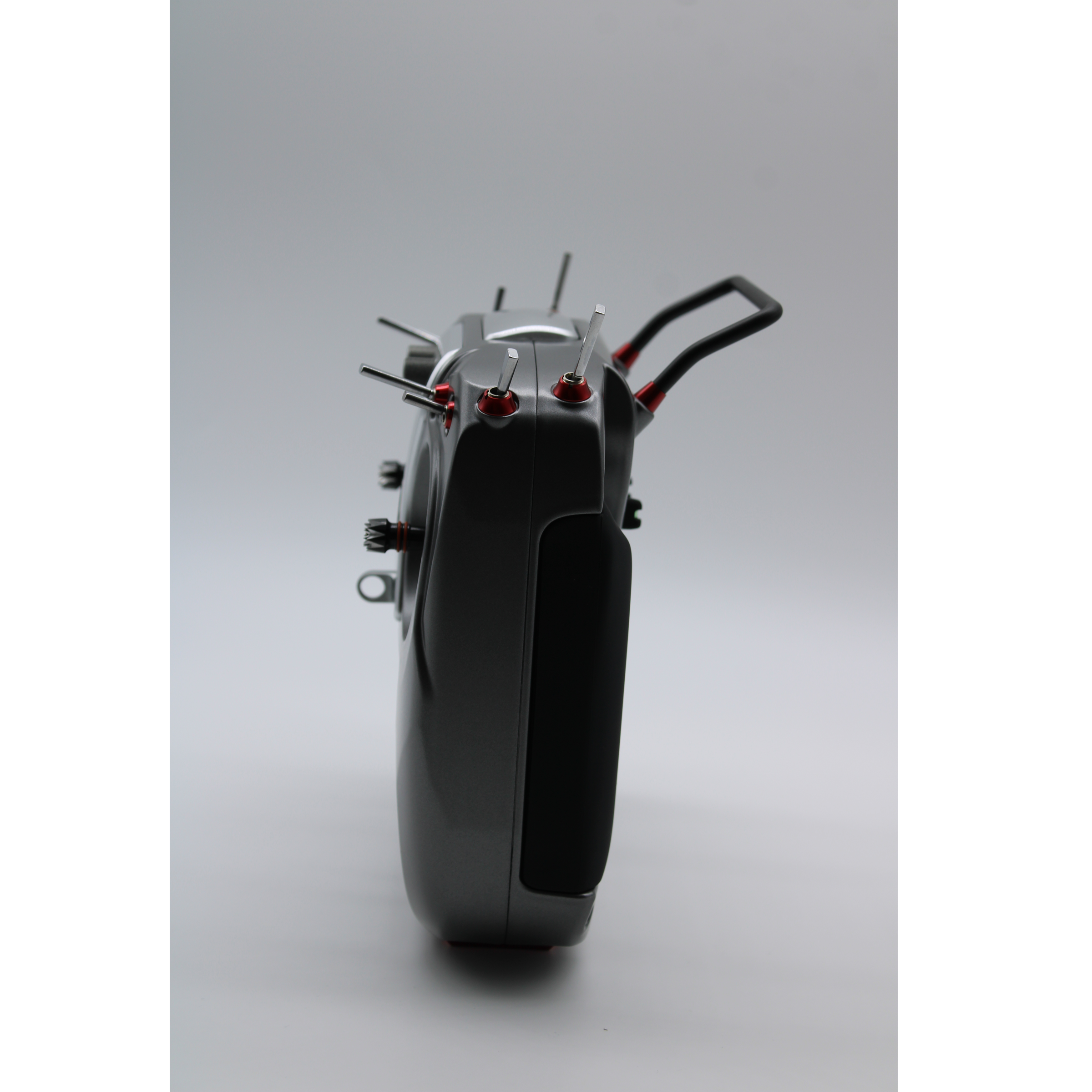

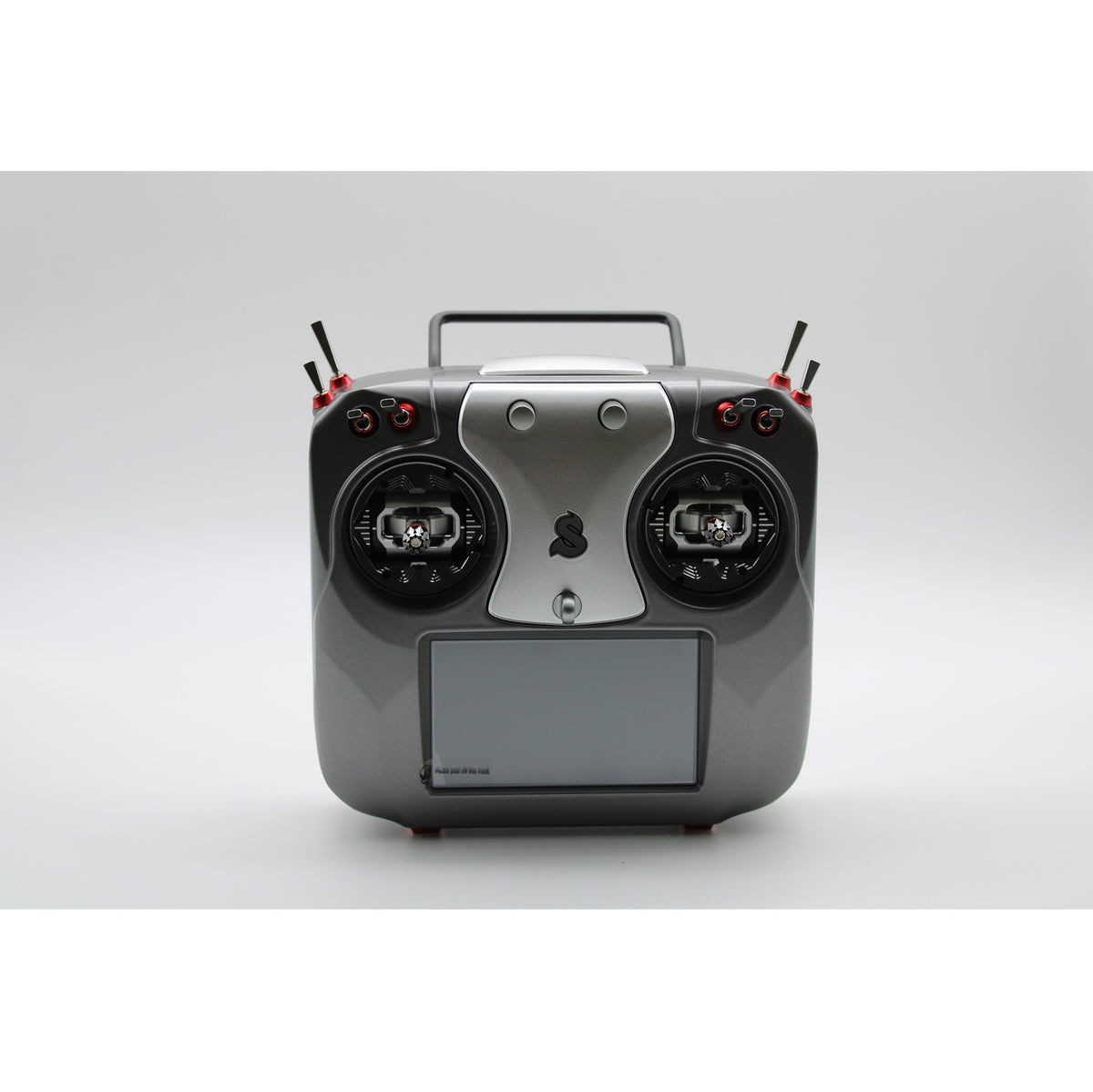

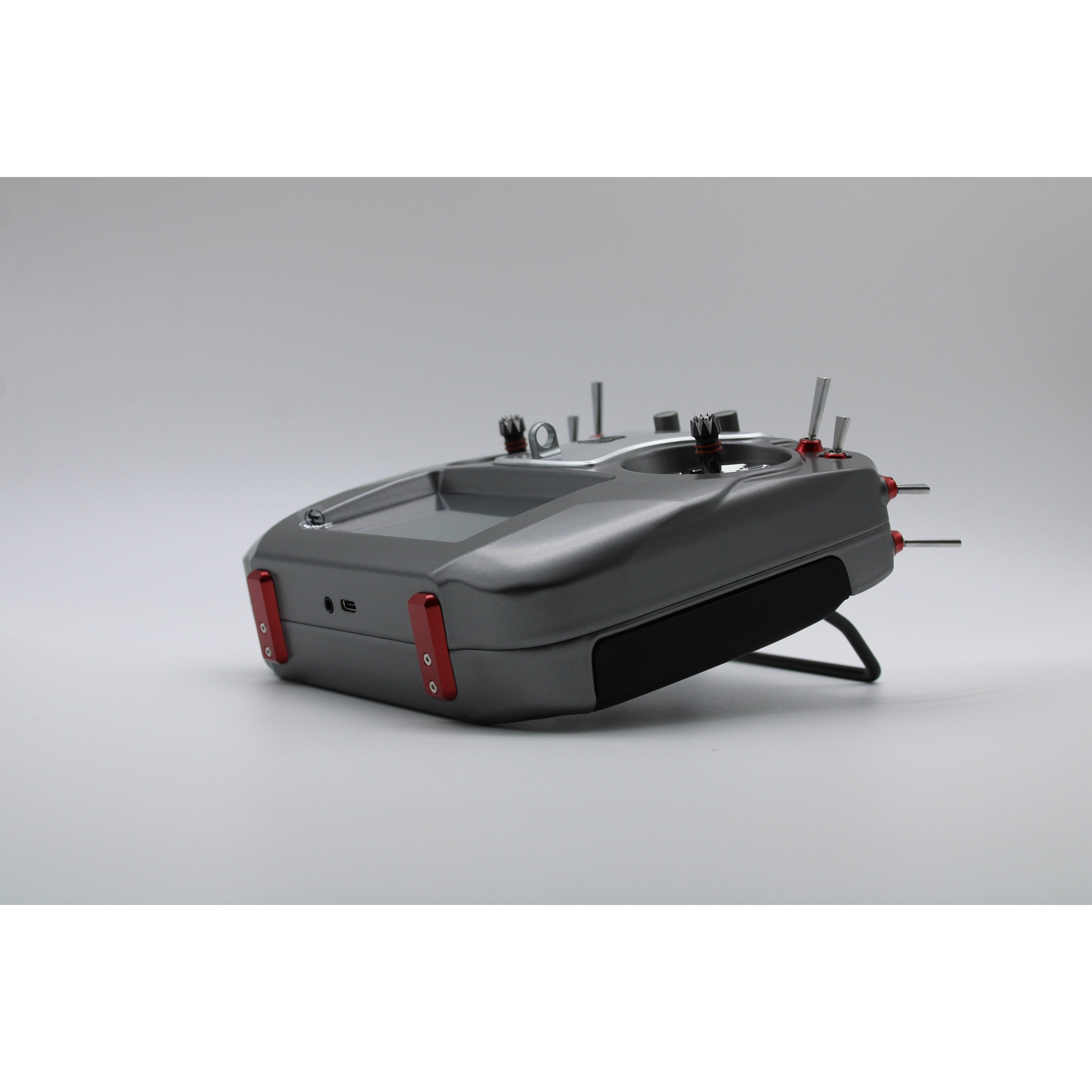

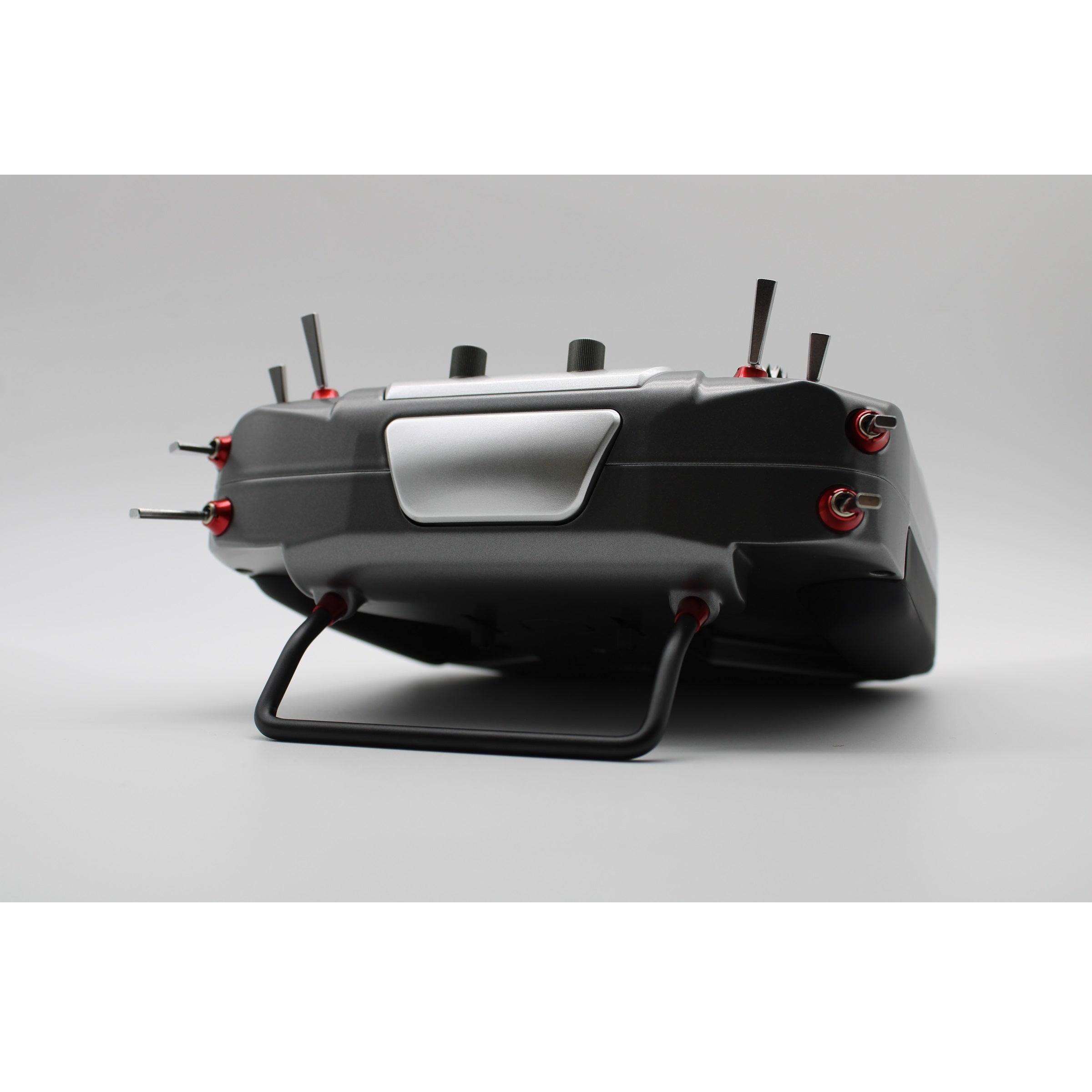

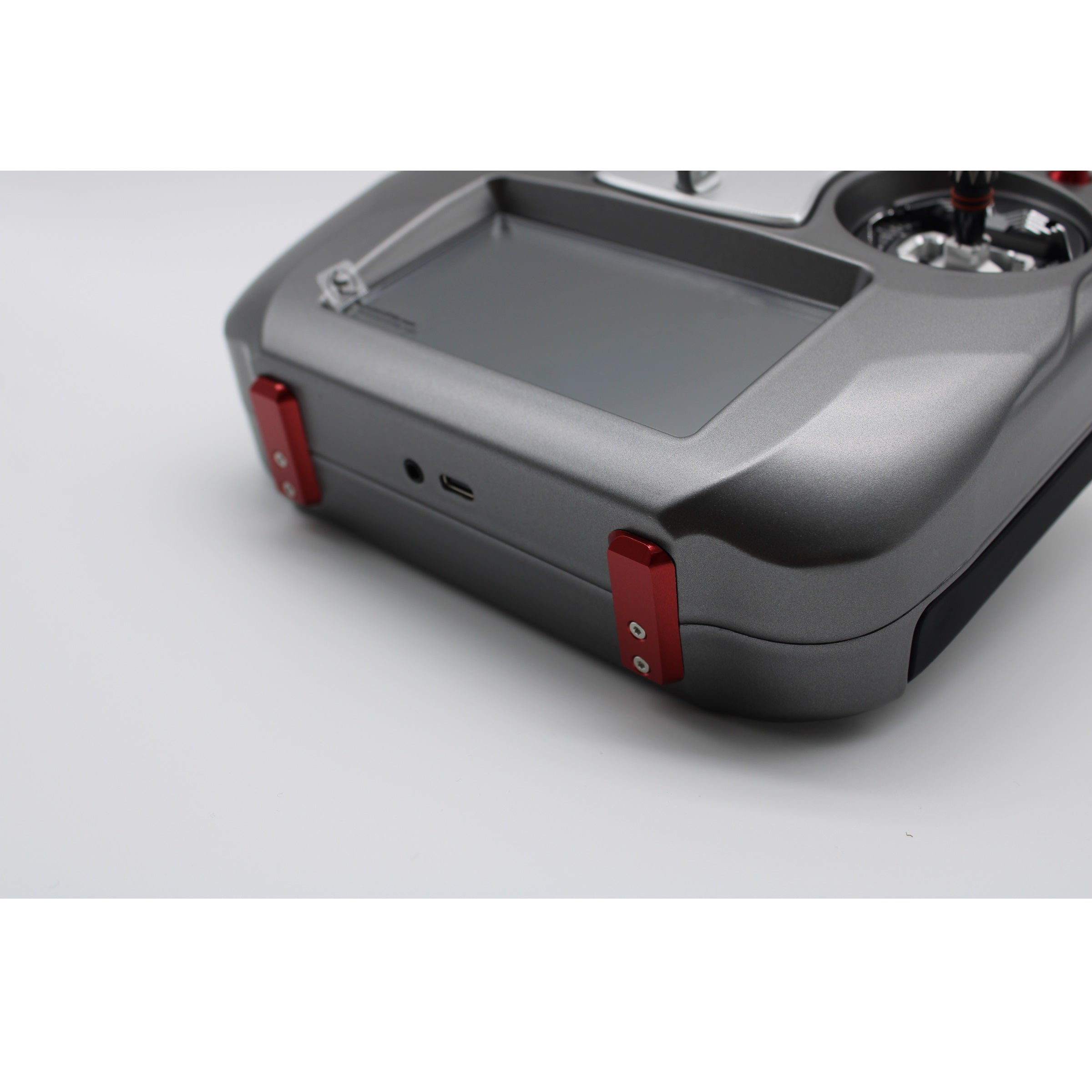

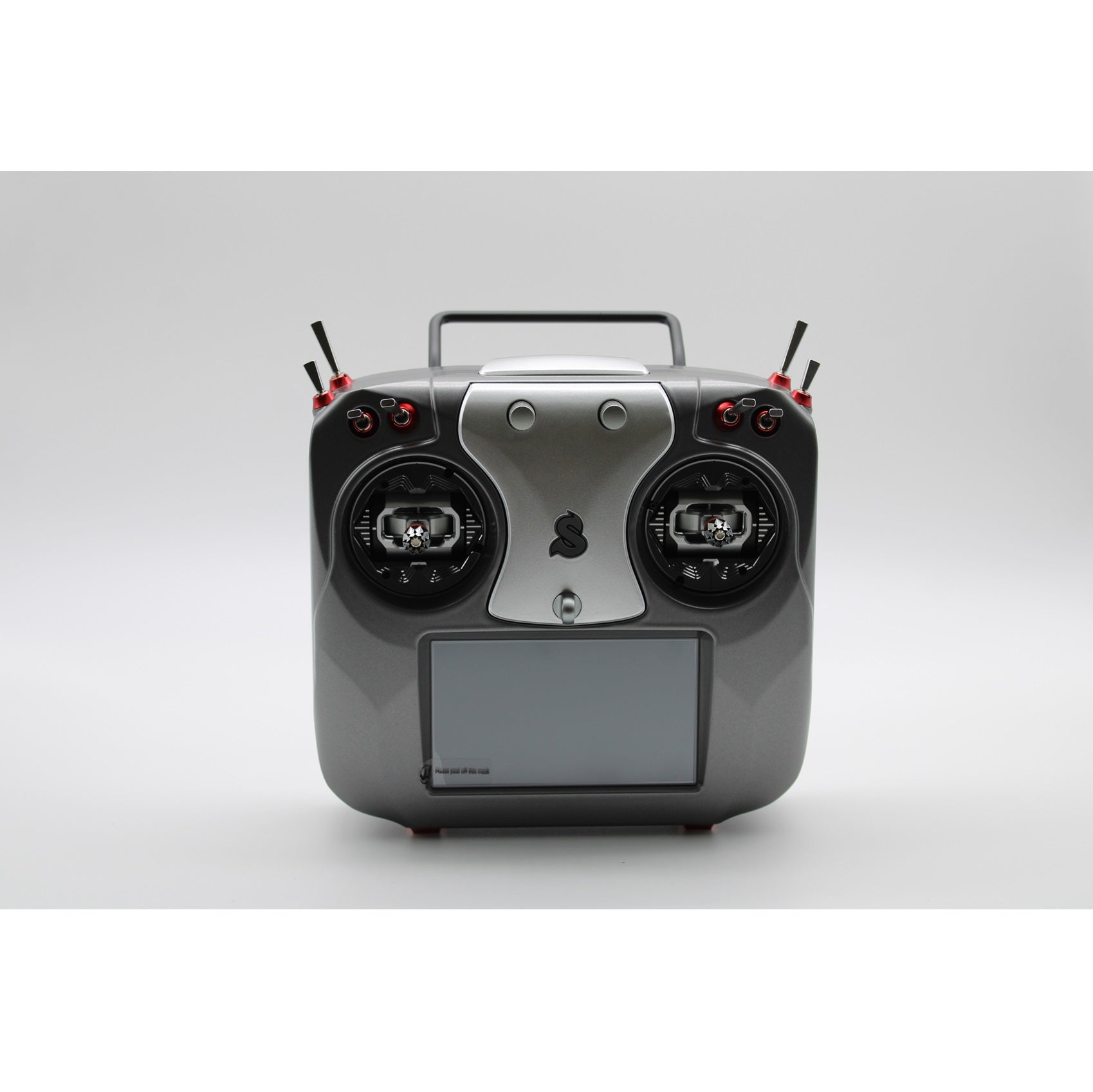

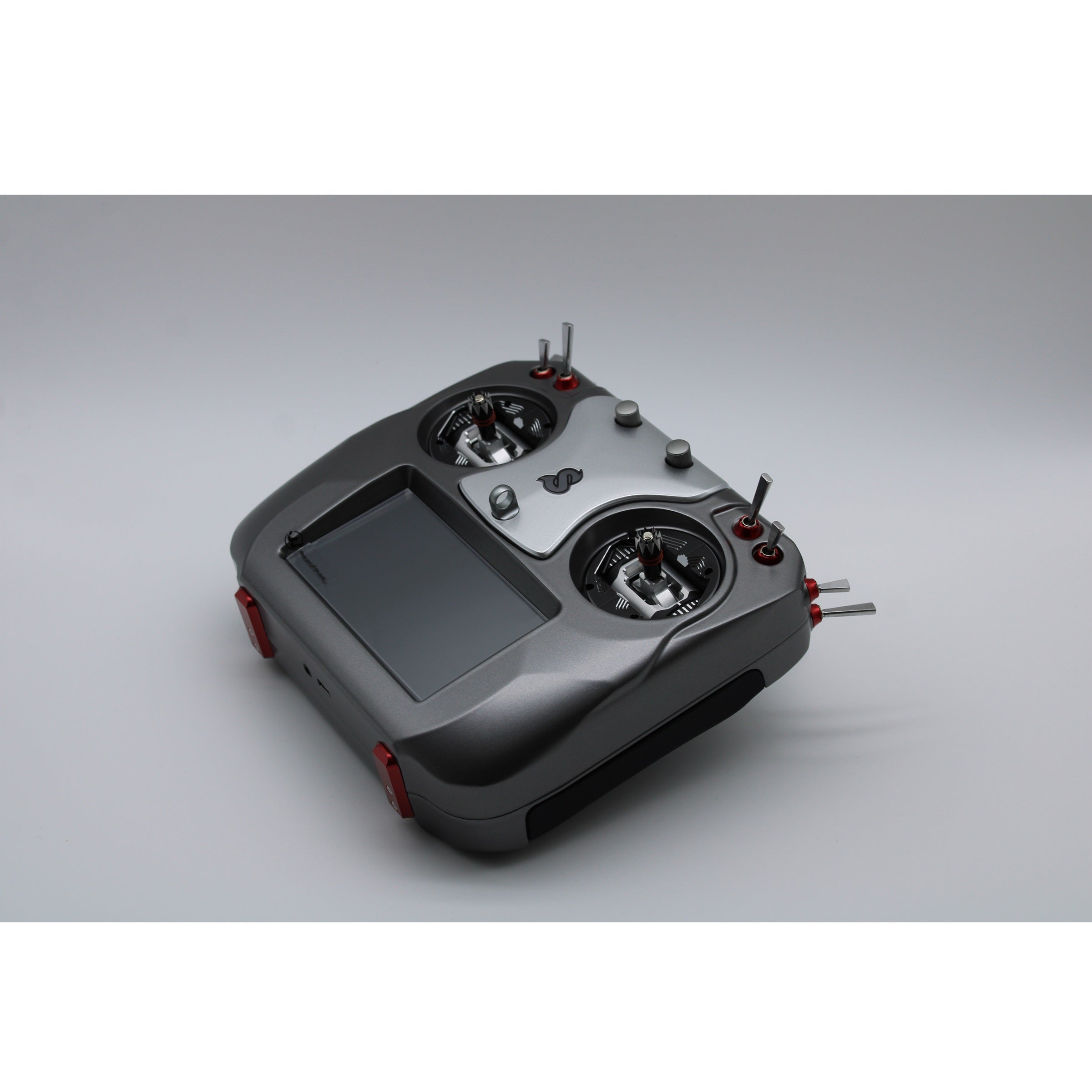

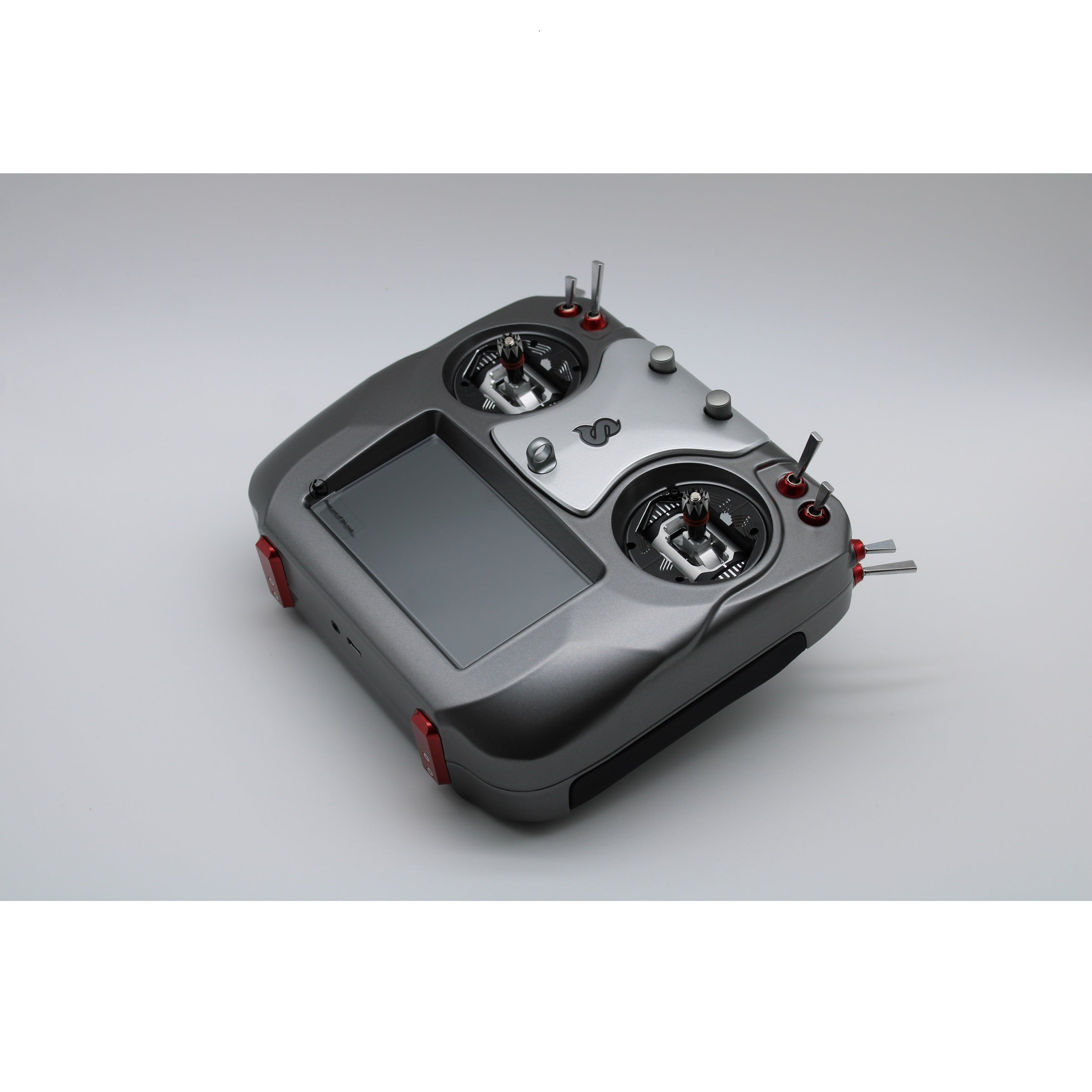

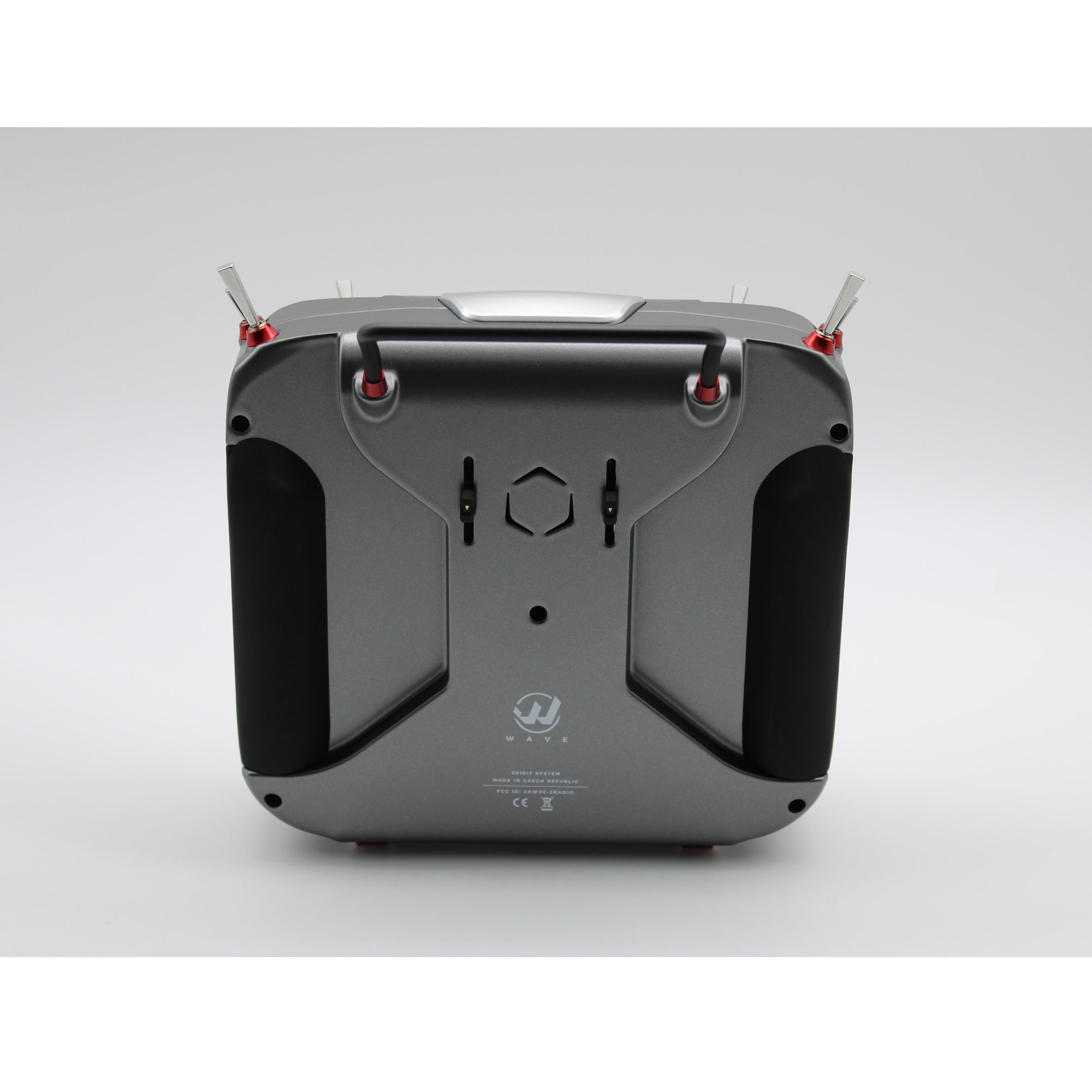

Spirit Wave Pro Radio (Gray)

Spirit Wave Pro is next generation Radio Control System utilizing the cutting edge technology. We aim to provide the best experience for R/C model enhusiast through seamless integration of all Spirit products.

It is designed for all R/C models and it's capabilities can be extended without a limitation. Easily by Updating to a new version, for free.

Spirit Wave Pro can be easily bound with Spirit W1 controllers or with Spirit RX receivers. Spirit W1 is our greatest unit for R/C helicopters and R/C airplanes with integrated Wave receiver.

Any third party controller can be connected through Spirit RX receiver by a standard PWM, S-BUS or SRXL protocols.

Everything you need.

RF module

• Designed entirely by Spirit System for allowing the unprecedented integration.
• Spirit Wave 2.4Ghz full-range telemetry.
• Dual Path independent antennas for improved safety and Signal coverage.
• Full featured 30+ channels available.
• Blazing fast 300 Hz transmission.
• High interference immunity.

Features

• Reliable Spirit RF protocol
• 333Hz Frame Rate
• Cutting Edge 3ms Link Latency
• 30 Channels (more can be added if needed)
• Dual Path Transmission
• Easy Receiver Binding
• 4.3“ IPS Touchscreen Display
• 6900mAh Battery
• Quad Core 64bit ARM CPU
• Fully optimized Touch Interface
• Pre-assembled with Tempered Glass Protector

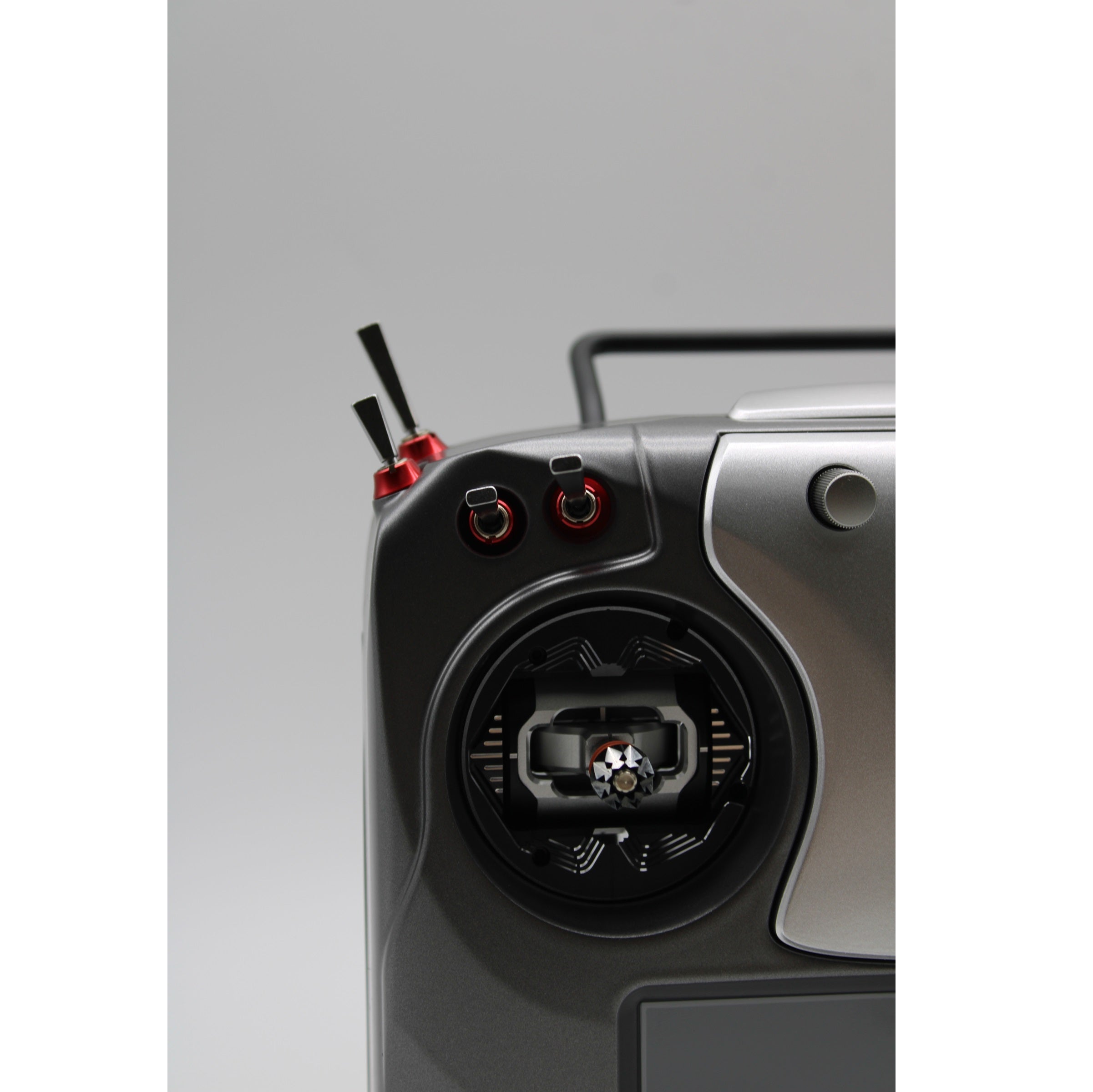

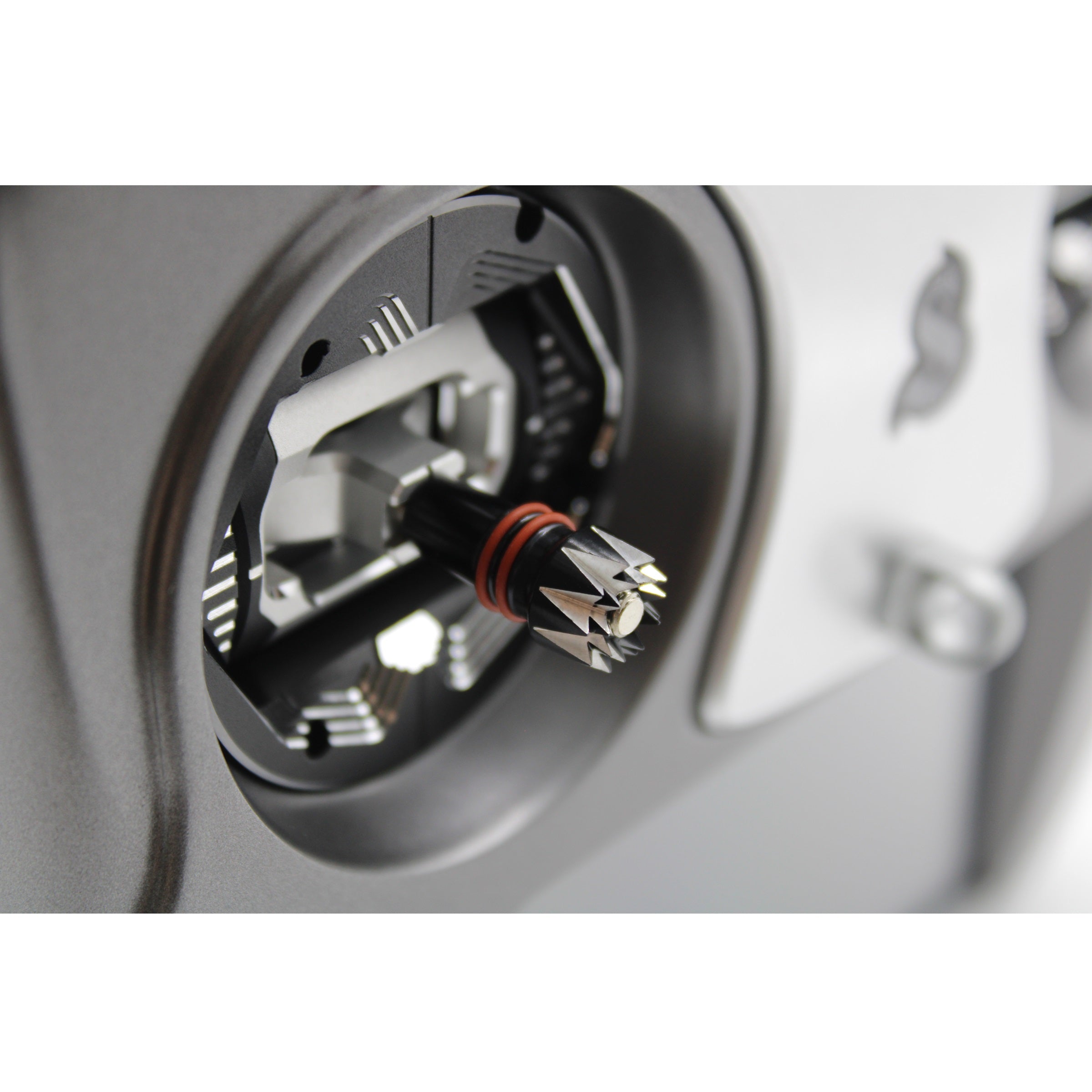

• High quality Hall AG01 gimbals

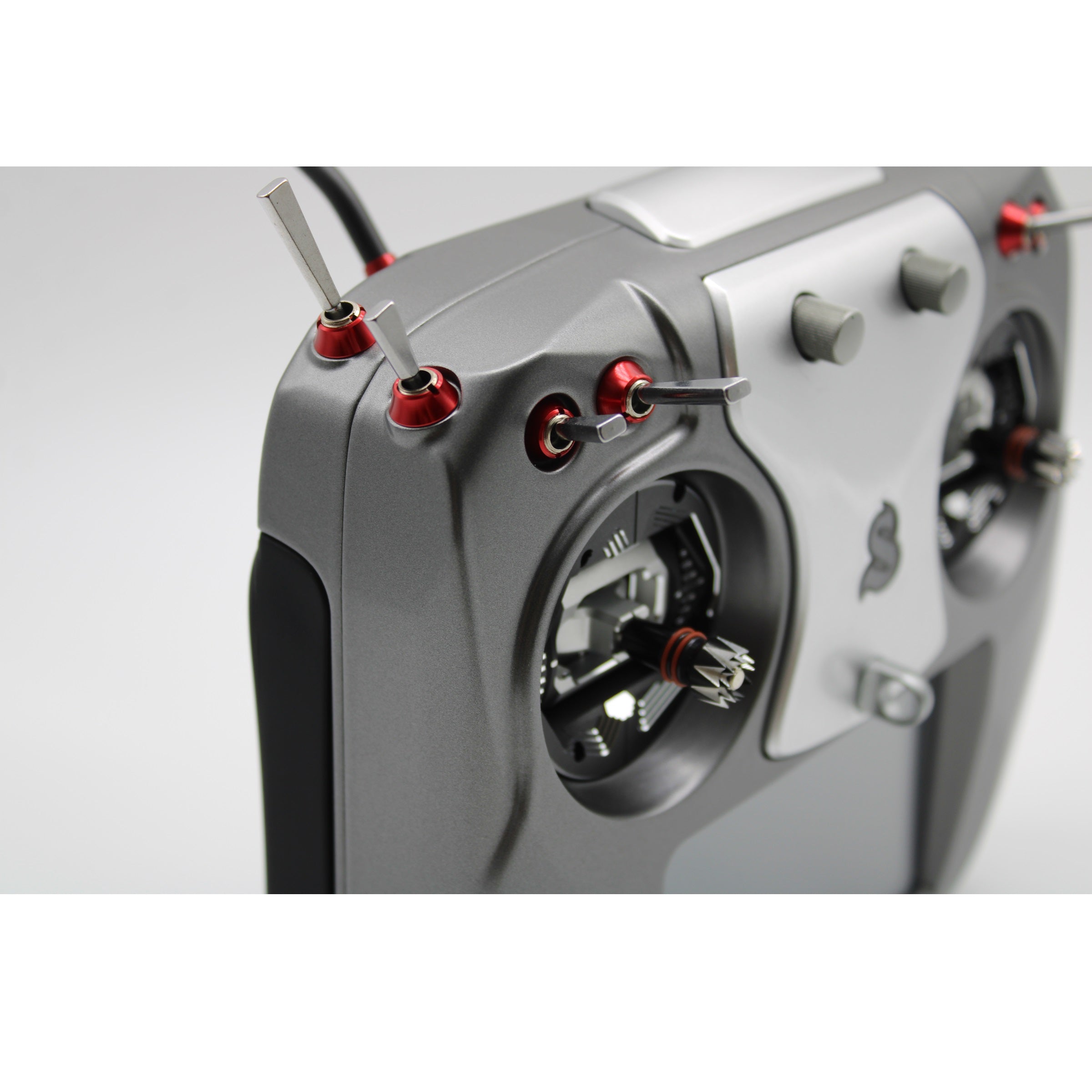

• Very durable Switches, Sliders and Potentiometers
• Interchangeable Switches
• Full of Aluminium parts, yet light
• 2.4/5GHz Dual Band WiFi
• Bluetooth/BT LE 4.0
• Virtually unlimited Model Memory and Flight Modes
• Voice Output with 3W Speaker
• High Quality Programmable Text to Speech in all languages
• Fast Telemetry with Full Range in both directions
• Based on in-house developed Spirit OS
• Multi Language localization
• Log Viewer for all Telemetry records
• Battery Manager included out of the box
• Wireless Trainer • Wireless Model Sharing
• Unique Spirit Remote Interface
• Media Player
• Full Support for R/C simulators / USB-C or WiFi
• Spirit App Store with apps designed just for Wave
• QML Scripting support
• Spirit Online Support directly in your radio
• Motion Sensor for controlling any Function
• Light Sensor for adjusting screen parameters
• Quick and Easy Online Updating without a computer
• Extremely tight Spirit Integration
• Support for all common ESC telemetries
• Modern ESC configuration directly from Radio with selected brands
• Spirit parameters per each Flight Mode

Detailed Function List

• Spirit Wave - Function List

Supported Models

• Helicopter
• Plane
• Copter
• Car
• Boat
• Other

Specifications

• Weight: 1110g
• Main Body dimension: 180 x 170 x 65 mm
  (excluding Radio Holder, Switches and Neck Strap Lock)
• Operating Temeperature: 0 - 40°C / 32°F -104°F
• Battery: 6900mAh 3.8V Premium Grade LiPo
• Current Consumption: 850 mA max., 45 nA Standby

Package Content

• Spirit Wave transmitter
• Carry Bag
• Neck Strap
• 2m USB-C Cable
• Alan Key
• Torx T6 Key

WARNING: USB Charger is not included, you can buy it optionally from us. Any USB (USB-A) charger will work, including USB port from a computer.

Package Dimension

• Carton Product Box: 260 x 250 x 145 mm

Comparison

Spirit Wave Pro

• Full Aluminium Chasis
• Weight: 1110g +/- 40g
• Free Switch Replacement Program (Up to 10 pcs)
• Free AG01 Stick Replacement Program (Up to 1pc, not set)
• All Switches, Gimbals shipped by Spirit System directly to customer as per request (eligible within Warranty Period)
• 30GB Spirit Cloud Service for Model, Log Data backup
• Secondary WiFi Antenna

Spirit Wave

• 1GB Spirit Cloud Service for Model, Log Data backup
• Weight: 865g +/- 10g
