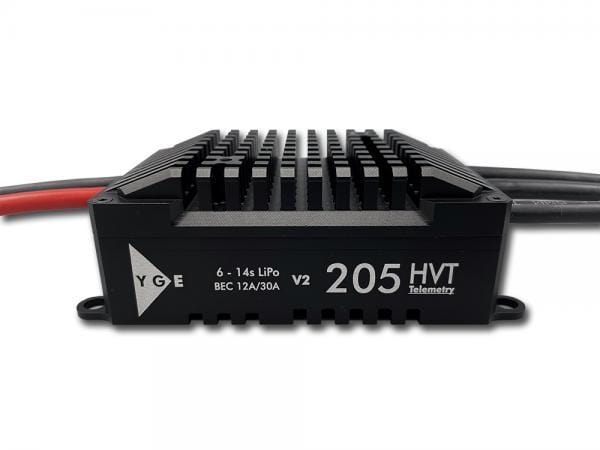

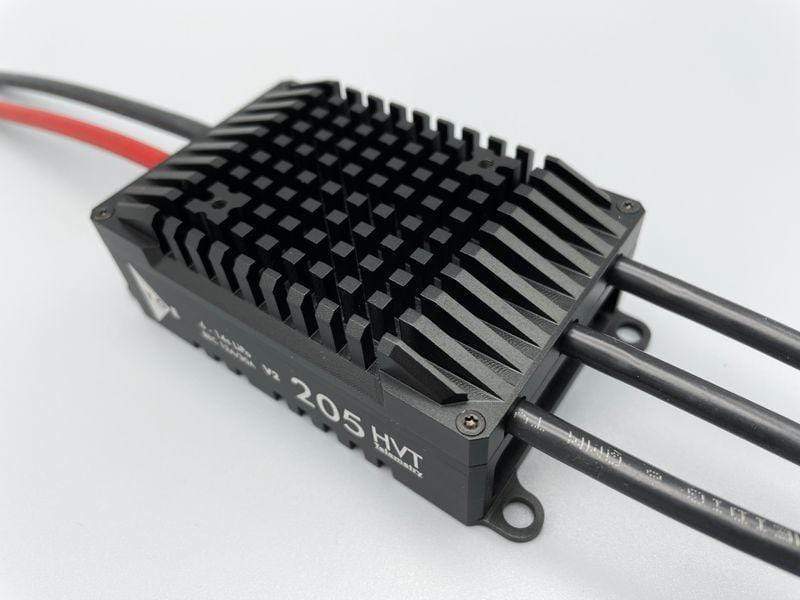

YGE 205 HVT w/ BEC 12-30A Black Edition
5 reviews
$535.49
$629.99( / )
Specifications: BEC 5,0V – 8,4V BEC 12A continuous, 30A Peak “T” for Telemetry. following protocols are currently compatible: Mikado VBC, Graupner HoTT V4, Jeti ExBUS, Multiplex Sensor BUS V2, YGE-protocol for different telemetry-connections for example via YGE TexY (Futaba, Spektrum, FrSky, Core), MSH Brain 2 or Spirit FBL Update capable...
Specifications:
- BEC 5,0V – 8,4V
- BEC 12A continuous, 30A Peak
- “T” for Telemetry. following protocols are currently compatible: Mikado VBC, Graupner HoTT V4, Jeti ExBUS, Multiplex Sensor BUS V2, YGE-protocol for different telemetry-connections for example via YGE TexY (Futaba, Spektrum, FrSky, Core), MSH Brain 2 or Spirit FBL
- Update capable (optional USB-Adapter available)
- Entirely overhauled hard- and software (32-bit)
- The PWM-frequency will be set automatically to the requirements of the motor
- The specified current is the maximum continuous full power current
- 6 to 14s LiPo, incl under voltage protection by power reduction
- Current limiting
- Disconnectable under voltage detection
- Electronic speed control (Governor- mode)
- Soft start
- Super soft startup for scale-helicopters possible (60 sec.)
- Active free-wheel, allowing unlimited part load operation
- Automatic or 6 step adjustable timing
- Adjustable EMK brake
- F3A (Acro brake (brake force control infinitely adjustable)
- Frequency: 16 to 32 kHz
- Speed limit: 240.000 rpm (2- Poles)
- Temperature and overload warning
- Anti- flash: decreases the closing spark
- Basic -Programming with mode programming
- Fine adjustment and selection of telemetry log with the PC Setup
- Suitable USB-adapter optionally available
- Dimensions (mm): 84 x 54,5 x 33mm
- Weight without/with cables: 219g/287g
Type: | |
---|---|
Vendor: | |
SKU: |
YGE-205HVTB-BE |
Weight: |
1.0 lb |
