Xnova 4020-1.5Y-1350KV Shaft D (Synergy 516)

SKU: XN402015Y1350-D
You will earn 185 points for buying this product


Availability: In Stock

$184.99
As low as$17.14/mo with Affirm Learn More
Write a review earn 100 points

Description

This is the Xnova 4020-1350KV 1.5Y Brushless Motor with a 5mm "Type D" 32mm Shaft. This high performance brushless motor has the best power to weight ratio of the Xnova 4020 line. This is an ideal option for the Synergy 516 helicopter and is a great choice for Intermediate to Hard 3D flying styles.

Features:

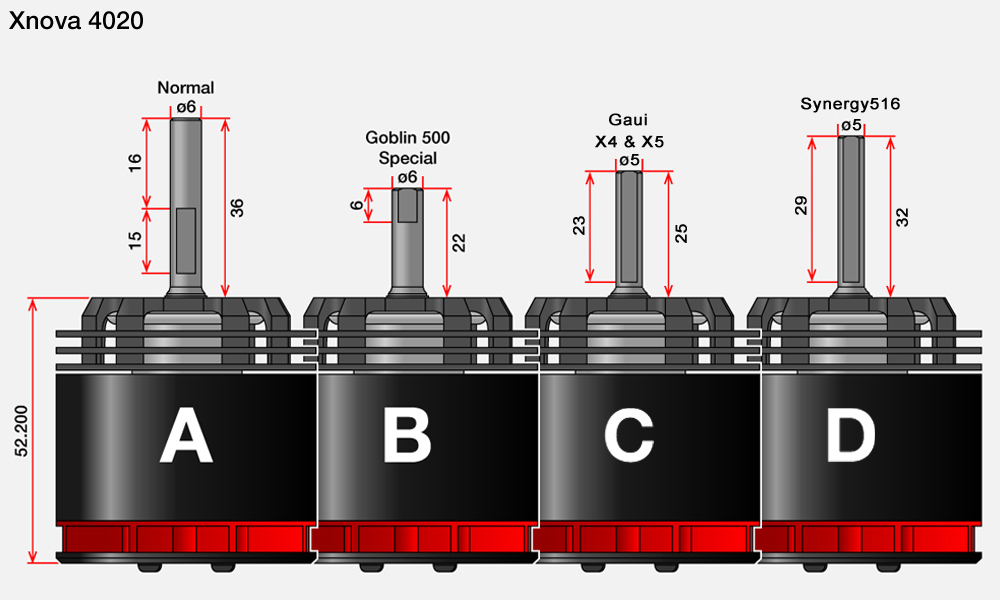

  • "D Shaft" 32mm long, 5mm diameter
  • Ideal for Synergy 516
  • Good for hard 3D
  • Best power to weight ratio
  • High quality Neo Magnets, heat resistant up to 150 degree C
  • Specialized wires, heat resistance up to 250 degree C
  • Precision balanced
  • High performance stator metal sheet
  • Optimized ventilation
  • High quality NMB bearings
  • Marked leading high efficiency up to 92%
  • Superb quality and machining of CNC parts

Specifications:
Slots & Poles: 24n8p
Winding T: 1.5Y
rpm/V: 1350
Weight (without connector): 336g
Body Length (no shaft): 50.75mm
Diameter: 49.5mm
Shaft Length: 32mm
Shaft Diameter: 6mm
Mounting Holes CTC Distance: 25mm
Mounting Screw: 4* M3
