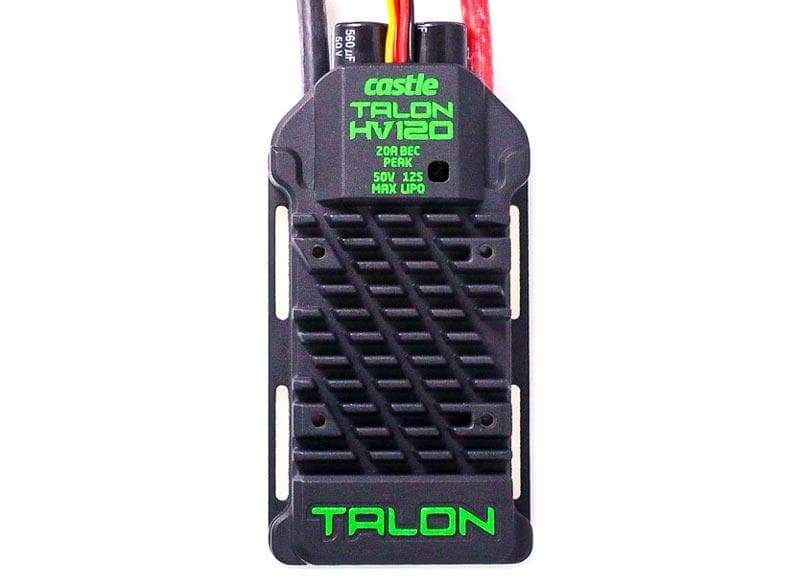

Castle Creations Talon 120HV 120A 12S Max HD BEC

|
010-0131-00
You will earn 199.95 points for buying this product
Price Match Guarantee
$199.95 $0.00( / )
The biggest BEC on the block.The first entry in the Talon HV Series, Talon HV 120, has the power in all the right places, and the looks to match. The first high voltage controller to come out of the Castle factory with a built-in BEC deserves nothing but the biggest...

The biggest BEC on the block.
The first entry in the Talon HV Series, Talon HV 120, has the power in all the right places, and the looks to match. The first high voltage controller to come out of the Castle factory with a built-in BEC deserves nothing but the biggest BEC we could muster. No more reaching for an external BEC or messing with extra wiring. At the heart of this powerhouse sits a 20A peak** BEC with selectable 6v or 8v output voltage. With a voltage input range from 3S to 12S LiPo, and a 120A* continuous amperage capability, it's capable of up to 6000W of continuous power for a wide variety of heli and fixed wing applications. Its sleek aluminum case not only ensures your Talon HV stays cool during high power demand situations, but also looks the part while doing it. For those seeking optimum cooling performance, we are offering a 40mm fan accessory, it is recommended for set ups with low airflow, such as under canopies or in a fuselage. Talon HV users will have access to our industry leading software functions and USB programming capability via Castle Link USB adapter***. (Coupon for free Castle Link included).

Talon HV 120 Specs
Item number010-0131-00
Input voltageMIN: 3S LiPo
MAX: 12S LiPo
Max continuous amperage at full throttle120 amps*
BEC voltage (voltage regulator for powering radio and servos)User selectable choice of 6 or 8 volts output
BEC output20 amp peak**
10 amp continuous
Dimensions

Width: 2.01" (51.1mm)
Length: 3.81" (96.8mm)
Depth: 0.80" (20.4mm)

Weight6.56 oz. (186g) with 150mm wires and no battery connector
ConnectorsBuilt-in 5.5mm female bullets, matching 5.5mm male bullets included, battery connector sold separately.
Items needed for operation or installation

Battery connector (not included)

ProgrammabilityFully programmable Castle feature set using Castle Link USB adapter (coupon for free Castle Link adapter included in package) and freely downloadable Castle Link Windows software.

* RC HOBBY APPLICATION RATING: 120 amps for the duration of a single 10,000 mAh battery pack with the ESC in contact with a 5 mph airflow of 25C (77F) or cooler air. Controller temperature must never exceed 100C (212F). Exceeding current or temperature ratings may damage components and may shorten the life of the ESC. Always verify system current draw at full-throttle. Decrease load or increase airflow to decrease the ESC’s operating temperature.

** Peak indicates a current level sustainable for the duration of a typical servo’s transient current loads. Your setup may vary. Always confirm servo current draw before the first flight of the model.

*** Remove BEC Power wire from receiver before connecting to Castle Link.

Type:

Heli ESCs

Vendor:

Castle Creation

SKU:

010-0131-00

Weight:

0.8 lb


Product Spare Parts


Electronics

Customer Reviews

Based on 7 reviews
86%
(6)
0%
(0)
0%
(0)
0%
(0)
14%
(1)
J
John W.

This is a awesome unit. It has great power and great reliability plus it’s very easy to set up! Not to mention very fast shipping with HeliDirect. I ordered this thing and received it in less than a week and I’m on the west coast!

j
jonathan M.
Using on my Kraken 580

Strong esc and runs cool temps 100f to 110f on 12s

S
Sheldon C.
Castle ESC

Great choice for the Goblin 570! Castle even includes a coupon for a free PC link.

j
josh

Looks very well made and I love the fact that is has a good bec makes for a clean and easy wiring using on goblin 570

M
Mark M.

It work perfect in my Blade 600 & Goblin 570. The Bec is perfect for large servos .

T
Tyler K.

Its a very large device, heavy too. I had issues arming it with my Spektrum ar7300bx FBL. Just going to return and use bec within ar7300bx. I have called castle and helidirect with no luck getting it to arm.

R
Robert N.

It is a great ESC
