1035-30 Whiplash-T II Turbine - Kit for Xicoy X45 Engine (w/o turbine engine)

Vendor: Miniature Aircraft
|
SKU: MA1035-30
Availability: In Stock
%3Cp%3EEarn%20[points_amount]%20when%20you%20buy%20this%20item.%3C/p%3E
Price Match Guarantee
$1,499.99
$1,499.99
The order quantity exceeds the stock!
1035-30 Whiplash-T II Turbine - Kit for Xicoy X45 Engine (w/o turbine engine) - HeliDirect

1035-30 Whiplash-T II Turbine - Kit for Xicoy X45 Engine (w/o turbine engine)

$1,499.99
1035-30 Whiplash-T II Turbine - Kit for Xicoy X45 Engine (w/o turbine engine) - HeliDirect
1035-30 Whiplash-T II Turbine - Kit for Xicoy X45 Engine (w/o turbine engine) - HeliDirect
1035-30 Whiplash-T II Turbine - Kit for Xicoy X45 Engine (w/o turbine engine) - HeliDirect
1035-30 Whiplash-T II Turbine - Kit for Xicoy X45 Engine (w/o turbine engine) - HeliDirect
1035-30 Whiplash-T II Turbine - Kit for Xicoy X45 Engine (w/o turbine engine) - HeliDirect

1035-30 Whiplash-T II Turbine - Kit for Xicoy X45 Engine (w/o turbine engine)

$1,499.99

Related Products

Description

1035-30 Whiplash-T II Turbine - Kit for Xicoy X45 Engine

The kit does NOT INCLUDE the Engine, Rotorblades, Servos, FBL System, Battery, Wiring, Switch, any other accessories, or any other components which are maybe seen in the pictures of the helicopter.

Specification:

Helicopter
Heli Length 52.5" (1333mm)
Heli Height 17.5" (445mm), Flybarless - 17" (432mm)
Rotor Span 1561-1601mm / 690-720mm blades
Tail Rotor Span 286mm with 105mm T/R blades
Avg. Ready-to-Fly Weight 12-13lbs - 5.8-6.2kg (less fuel)
Main Drive Ratio 8.35:1
Tail Drive Ratio 4.66:1
Main Rotor Blades 690-720mm
Recommended Power Xicoy X45 Heli Turbine

Chassis:
  • Sturdy graphite main frame unit.
  • All C/F parts are made from 100% carbon.
  • CNC machined Delrin helical main gear.
  • High quality one way bearing Made in Germany.
  • High quality one way bearing hub.
  • Heavy duty, high quality front tail drive gears.
  • High precise two-piece clutch bell with double ball bearing support.
  • Optional gear ratios.
  • True T6-6061 CNC machined aluminum components.
  • CNC machined aluminum triple main shaft bearing blocks.
  • Direct controlled 120-degree swashplate.
  • CNC machined aluminum boom clamps.
  • CNC machined aluminum engine mount.
  • Full ball bearings throughout.
  • High quality landing gear struts.

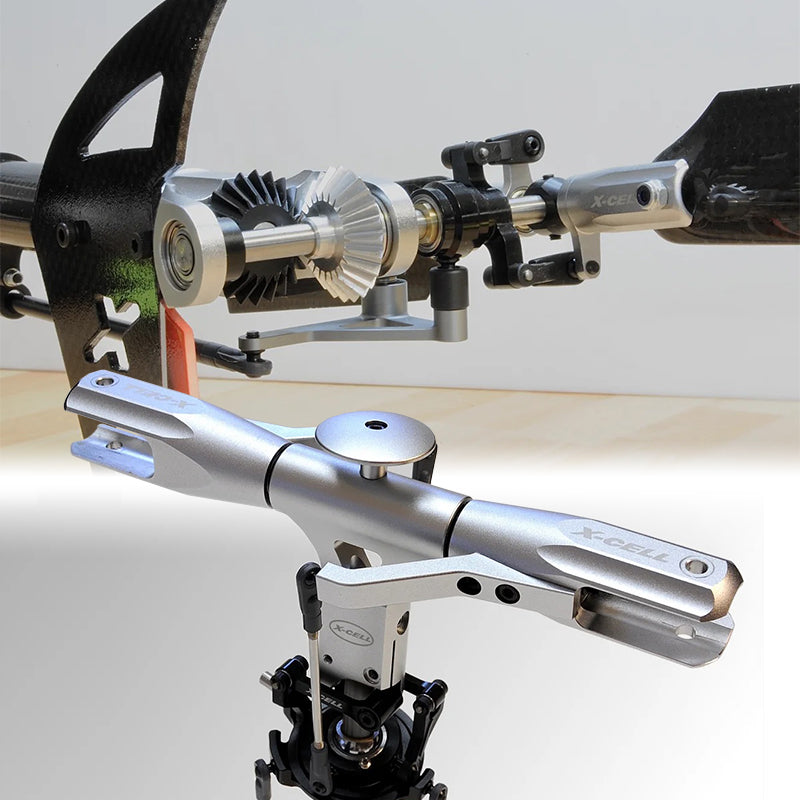

Rotor Head:
  • Full ball bearings
  • Heavy duty linkages
  • 9mm head axle made from special high quality steel
  • CNC machined aluminum swashplate
  • CNC machined main rotor grips
  • CNC machined main rotor head
  • High quality swashplate
  • High precise swash plate follower arms with 4 ball bearings each
Tail Rotor:
  • Full ball/thrust bearings
  • Tail Rotor hub made from special high quality steel
  • Graphite tail fin
  • CNC aluminum “open” gearbox
  • CNC machined tail gears made from aluminum and POM
  • Aluminum 22mm tail boom
  • Hardened tail rotor output shaft
  • High precise tail slider
  • Carbon/Aluminum boom supports
Canopy:
  • High Visibility Painted Epoxy-Glass Canopy

Turbine Engine:


Read More
Additional Information
Vendor: Miniature Aircraft
SKU: MA1035-30
Barcode: MA1035-30
Availability: In Stock
Product Type: Helicopter - Kit/Combo
Weight: 0.6 oz
