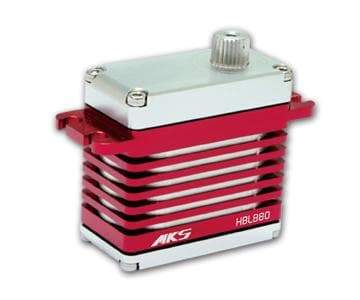

MKS HBL880 0.032 sec/60 (11.19kg.cm 8.2V) - 8mm Output Shaft.

MKS
|
MKS-HBL880
You will earn 209.99 points for buying this product
Price Match Guarantee
$209.99 $0.00( / )
Suitable Gyros Spartan DS760、Spartan Quark、Futaba GY611、GY601、GY520、ALIGN GP700、GP750、Mikado V-Bar Tail、CSM SL720、Curtis Youngblood Mini-G 、Solid G、Thunder Tiger TG-7000、BeastX Mircobeast   Torque: 8.2 kg-cm (6.0V) │10.1 kg-cm (7.4V) │11.19 kg-cm (8.2V)  Speed: 0.044 s (6.0V)  │  0.036 s (7.4V) │ 0.032 s (8.2V)  Weight: 73.2 g Dimensions:40 x 20 x 38.5 mm  Operating Voltage:6.0 ~ 8.4...

Suitable Gyros

Spartan DS760、Spartan Quark、Futaba GY611、GY601、GY520、ALIGN GP700、GP750、Mikado V-Bar Tail、CSM SL720、Curtis Youngblood Mini-G 、Solid G、Thunder Tiger TG-7000、BeastX Mircobeast



Torque: 8.2 kg-cm (6.0V) │10.1 kg-cm (7.4V) │11.19 kg-cm (8.2V)

 Speed: 0.044 s (6.0V)  │  0.036 s (7.4V) │ 0.032 s (8.2V)

 Weight: 73.2 g

Dimensions:40 x 20 x 38.5 mm
Operating Voltage:6.0 ~ 8.4 V DC Volts  ( 2S Lipo un-regulated)
Working frequence:760μs / 560hz
Dead band:------
Bearing Type:2BB
Motor Type:Brushless Motor
Gear Type:Chrome-Titanium alloy gear

Note: Due to the high torque output of this servo, this MKS servo uses an 8mm servo output shaft, and therefore traditional standard sized servo arms will not fit.






Notice

1. For all series servos, please Do Not use hand or tool to turn output gear
    directly when power is on or off.
 Otherwise, it is probable to damage
    interior electronic parts.
2. Please use the servo according to prescript operating voltage.
    Please Don Not add voltage for promoting efficacy of servo.

Type:

Heli Servo

Vendor:

MKS

SKU:

MKS-HBL880

Weight:

0.5 lb


Product Spare Parts


Electronics

Customer Reviews

Based on 17 reviews
100%
(17)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
L
Lighthorse
Awesome

Absoloutly the best servos. The responce is quick, I love the 8mm shaft for added strength. I do recomend the mettal servo armes that are available.
I use these Servos in my SAB Goblin 770's

R
RJ99
MKS HBL880 HV Servo

This tail servo is awesome! The only down side buying this servo is the servo arm. You will need a bigger diameter center core for the arm on this servo. Regular servo arm will not fit.

D
Denard D.
Awesome

These servo’s are very good performance is great !

J
Jack
Mks HBL880 tail servo

Great tail servo have it in my kraken 700 has the tail locked in

j
juan g.
The best

Best of the best

C
Cloud F.
Amazing servo

Definitely one of the best I've ever flown. The tail is locked in hard and very precise.

F
Faisal A.
Why is it expensive you might say?

Here’s why I’d spend more on MKS:
Most precise servo Iv ever came across.
Very high quality of both internal and external components.
It’s simply beautiful!!! You get performance and bling what more could you want!

j
juan g.
Nice tail servo

Do an exelent job

S
Shane S.

Best tail servo on the market, hands down. You get what you pay for!! super beefy. precision machined. like functional jewelry for your helicopter.. Matched with my Mikado 700 I have a dream machine!

j
jeff

I had used BK7000s in my other Goblins based on written specs and price, much like Mark and Christopher I had never used MKS. I based this decision on looks of the MKS X8 and 8mm MKS servo arms, I thought I was buying bling. Wow was I WRONG, well I was right, there is bling here, but, written specs are either underrated or BKs are overrated. I have BKs in my other 700 and now MKS in the new 700 same gyro BD3SX, KDE 505, 12S, only electronic difference is MKS vs BK. The MKS bird flys like its locked on rails, no elevator bounce at lower head speeds (1650rpm) and way more responsive at high head speeds (2250rpm). Tail is locked easily keeps up with KDE 505 G3 crazy torque, I had to set comp down from 4 to 2 on the BD3SX the MKS is so much quicker or powerful, the tail was going the wrong direction with the same compensation as the BK. The above said, the specs show more torque for the MKS, but, more speed for the BK either way torque, speed or both, the MKS is locked. Looks great too!
