Xnova XTS 4525-560KV YY Brushless Motor Thick Wire - Shaft A

Vendor: Xnova Performance Motors
|
SKU: XTS-XN4525-560kv-A
Availability: In Stock
%3Cp%3EEarn%20[points_amount]%20when%20you%20buy%20this%20item.%3C/p%3E
Price Match Guarantee
$321.59
$401.99
$321.59
The order quantity exceeds the stock!
Xnova XTS 4525-560KV YY Brushless Motor Thick Wire - Shaft A - HeliDirect

Xnova XTS 4525-560KV YY Brushless Motor Thick Wire - Shaft A

$401.99 $321.59
Xnova XTS 4525-560KV YY Brushless Motor Thick Wire - Shaft A - HeliDirect
Xnova XTS 4525-560KV Brushless Motor with Thick Wires - Shaft A - HeliDirect
Xnova XTS 4525-560KV Brushless Motor with Thick Wires - Shaft A - HeliDirect

Xnova XTS 4525-560KV YY Brushless Motor Thick Wire - Shaft A

$401.99 $321.59

Related Products

Description

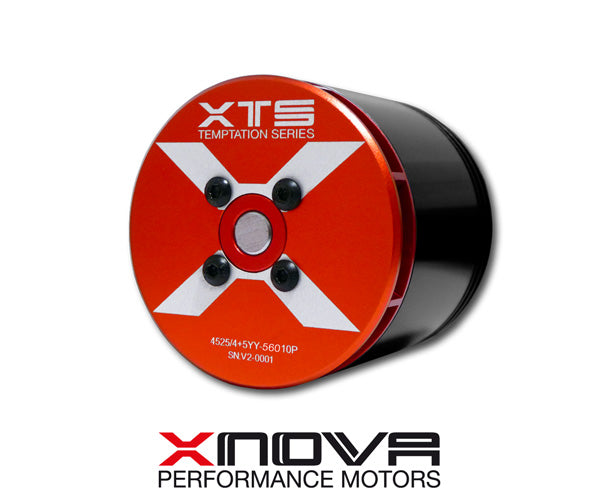

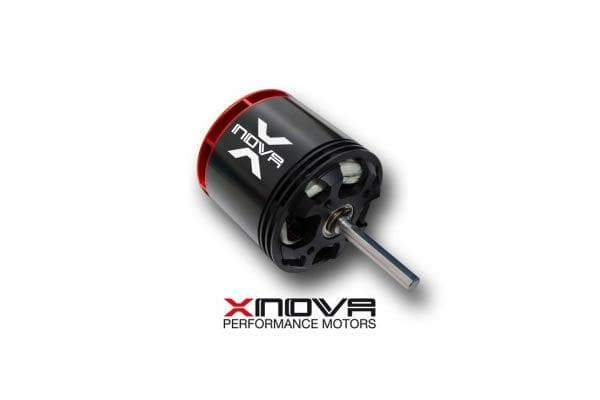

Xnova brushless high performance outrunner motor designed for extreme 3D, 600-660mm blade size helicopter where highest power to weight ratio is important. It is a extreme power plant specially developed for the new SAB-black-thunder Goblin 650 helicopter. The 560KV version is a superb choice for 2 blade and 3 blade setups.

Features:

  • High quality Neodym Magnets. Heat resistant up to 150 degrees C.
  • Specialized wires, heat resistant up to 300 degrees C.
  • Precisely balanced.
  • High performance sheet metal stator.
  • High quality NMB bearings. (2 on top 1 at bottom)
  • Marked leading efficiency up to 93%.
  • Cooler running.
  • Superb quality and machining of CNC parts.
  • Improved torque and power output.
  • thick wire.



    Specifications:

    • Slots & Poles: 12n10p
    • Winding T: YY with thick wire
    • rpm/V: 560
    • Weight (without connector): 480g
    • Body Length (no shaft): 55.5mm
    • Diameter: 55.7mm
    • Shaft Length: 36mm (Shaft A)
    • Shaft Dia.: 6mm
    • Mounting Holes CTC Distance: 30mm
    • Mounting Screw: 4x07
    • Max Continuous Power (Watts): 5000
    • Peak Continuous Power (Watts): 10000
    • Max Continuous Current (A): 100

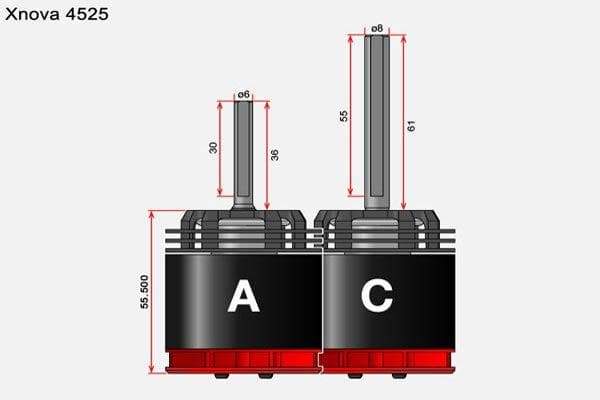

        SHAFT TYPE SELECTION BASED ON THE ILLUSTRATION BELOW A,C

        Read More
        Additional Information
        Vendor: Xnova Performance Motors
        SKU: XTS-XN4525-560kv-A
        Barcode: 000850505304
        Availability: In Stock
        Product Type: Electronics
        Weight: 2.1 lb

        You may also like

        Recently Viewed Products

        • 5 stars: 1 (100%)
        • 4 stars: 0 (0%)
        • 3 stars: 0 (0%)
        • 2 stars: 0 (0%)
        • 1 star: 0 (0%)
        F
        Fazil
        Fantastic motor, the power is mind blowing on par with xnova lightning

        The Xnova XTS 4525 560KV motor is a powerhouse designed for extreme 3D performance in 630–700mm class helicopters. Engineered with thick YY windings and high-grade Neodymium magnets, it delivers exceptional torque and efficiency, making it a top choice for demanding pilots flying setups like the Goblin 650 or Pro 700
        In short, the XTS 4525 560KV is built for pilots who demand uncompromising performance, thermal resilience, and brutal torque—all wrapped in a precision-crafted motor that’s ready for serious 3D flight.
