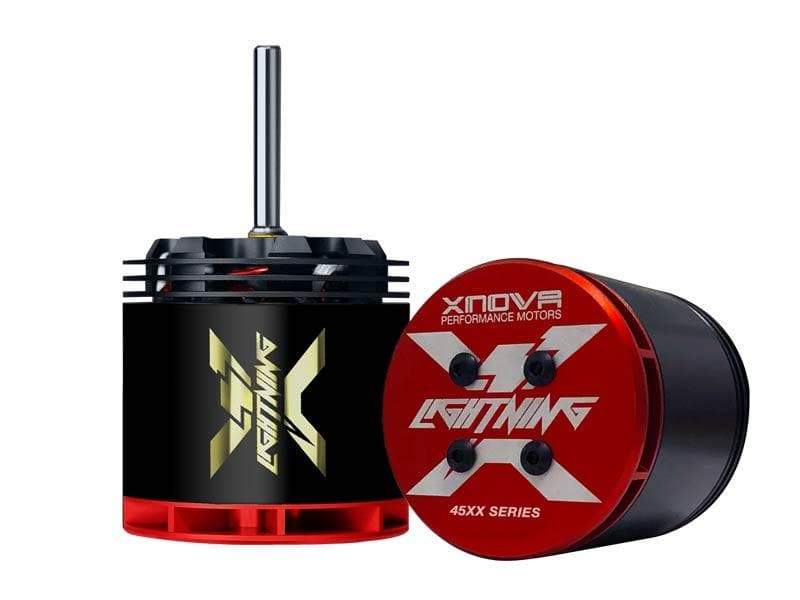

Xnova Lightning Outrunner Motor 4525 - 560KV For RC Helicopter Shaft A

Vendor: Xnova Performance Motors
|
SKU: XN4525560L-A
Availability: In Stock

Earn [points_amount] when you buy this item.

Price Match Guarantee
$483.99
$483.99
The order quantity exceeds the stock!
Xnova Lightening Outrunner Motor 4525 - 560KV For RC Helicopter Shaft A - HeliDirect

Xnova Lightning Outrunner Motor 4525 - 560KV For RC Helicopter Shaft A

$483.99
Xnova Lightening Outrunner Motor 4525 - 560KV For RC Helicopter Shaft A - HeliDirect

Xnova Lightning Outrunner Motor 4525 - 560KV For RC Helicopter Shaft A

$483.99

Related Products

Description

Xnova 4525-560kv

We have spent hours of testing to improve the very well established 4525 series. The result is an even better overall performing motor and increased efficiency. This all will provide you a cooler running motor and also more consistent power delivery over the full flight. The Xnova V3 lightning series is the highest level of motor performance money can buy nowadays.

Xnova brushless high performance outrunner motor designed for extrem 3D, 630-690mm bladesize helicopter where highest power to weight ratio is important. It is a extreme power plant specially developed for the new SAB-black-thunder Goblin 650 helicopter. The 560KV version is a superb choice for 2 blade and 3 blade setups.

  • Improved higher efficiency with thinner stator lamination, designed with integrated cooling system resulting in lower temperature.
  • Increased power output by the use of thicker hand wound YY single strand copper wires, heat resistant up to 300 degrees C.
  • High-performance neodymium magnets, heat resistant up to 180 degrees C.
  • All other features same as XTS series.


Features:

  • Designed for extreme 3D flying
  • Developed for 630-700mm helicopters
  • Optimized for 12S applications
  • High quality Neo Magnets, heat resistant up to 150 degree C
  • Specialized wires, heat resistance up to 300 degree C
  • Precise balanced
  • High performance stator metal sheet
  • High quality NMB bearings
  • Marked leading high efficiency up to 94%
  • Cooler running
  • Superb quality and machining of CNC parts
  • Improved torque and power output
  • 1.5mm thick wire

Specifications:Ā
Slots & Poles:Ā 12n10pĀ
Winding T:Ā YY with thick wireĀ
rpm/V:Ā 560Ā
Weight (without connector):Ā 510gĀ
Body Length (no shaft):Ā 56mmĀ
Diameter:Ā 55.7mmĀ
Shaft Length:Ā 36mm (Shaft A)
Shaft Dia.:Ā 6mmĀ
Mounting Holes CTC Distance:Ā 30mmĀ
Mounting Screw:Ā 4x07Ā
Max Continuous Power (Watts):Ā 4600Ā
Peak Continuous Power (Watts):Ā 10000Ā
Max Continuous Current (A):Ā 110Ā

Xnova LIGHTNING 4525 series ( thick Wire)

Designed for extrem 3D 630-690mm blade size helicopter where highest power to weight ratio is important. From 10S up to 12S ( KV related )

SHAFT TYPE SELECTION BASED ON THE ILLUSTRATION BELOW A,C,F


Read More
Additional Information
Vendor: Xnova Performance Motors
SKU: XN4525560L-A
Barcode: 000850515303
Availability: In Stock
Product Type: Heli Motors
Weight: 2.1 lb

You may also like

Recently Viewed Products

Customer Reviews

Based on 9 reviews
100%
(9)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
L
Leonardo F.
Xnova

Exceed my expectations, this motor is very powerful.

M
Manfred
Erste Bestellung

Sehr gute Abwicklung und Lieferung

J
Jason P.
The best !!

Xnova makes the best motors imo.... i've tried them all, always go back to Xnova.

A
Athoz

Power šŸ˜²

C
Chad C.
XNOVA Lighting is the best

Great motor for a SAB RAW.

A
Alan G.
AMAZING!!!

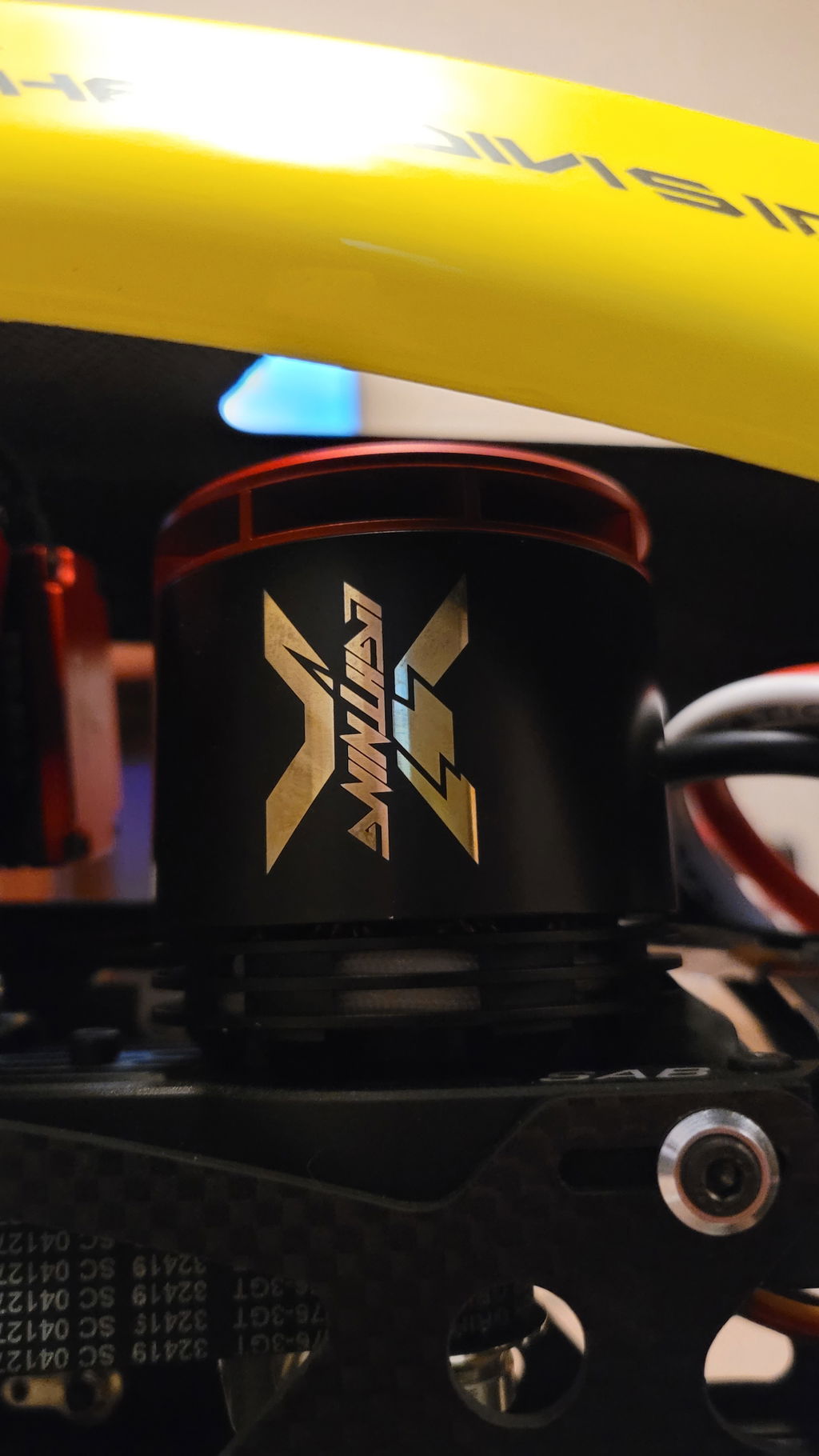

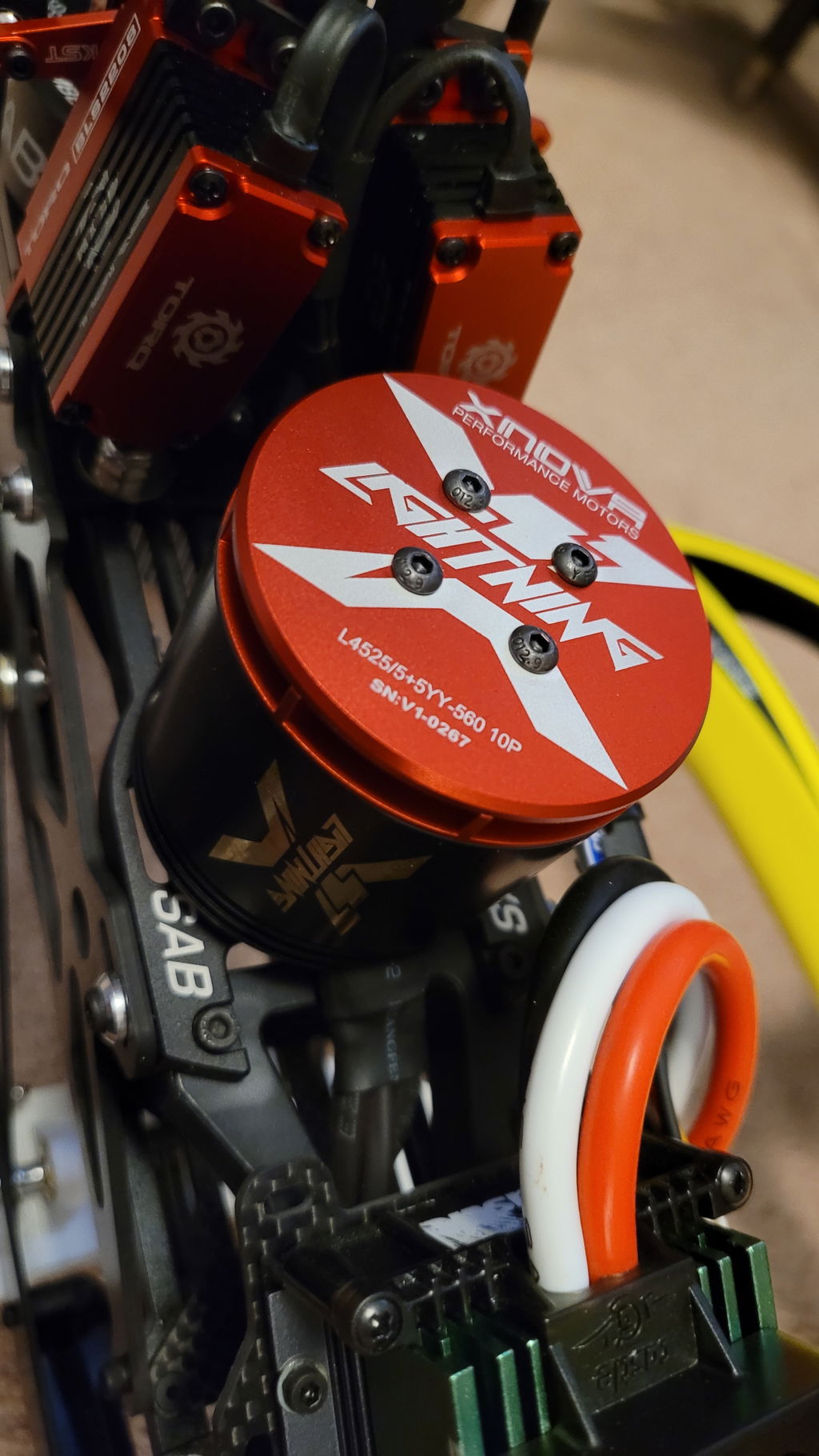

Runs nice and cool in the goblin raw!! Tons of power!! A++

User picture User picture
c
clayton m.
awesome

runs cool and looks great.

S
SA
Good quality motor

excellent quality, powerful

J
Jim S.

Great power, runs cool and looks great.
Highly recommend!
