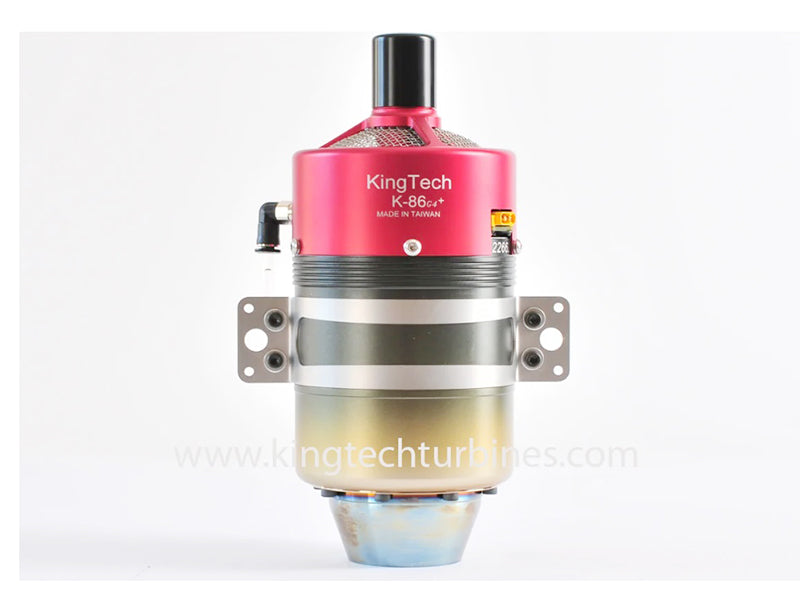

KingTech K-86G4+ Turbine Engine

• KingTech G4 utilizes SBus data transmission.

• Engine/ECU integration, all operating parameters including total run time are all recorded into the engine.

• The smaller and lighter external Data Relay Module (DRM) is responsible for all data, signal and power transmission.

• Pump: digital sbus brushless pump

• A micro USB connector is present for a future connectivity of wireless mobile apps.

• The G4 features a brushless starter motor for reliability and durability, built-in FOD screen is also integrated.

• After a run cycle and receiver switched off, GSU will remain on only until cool down completes.

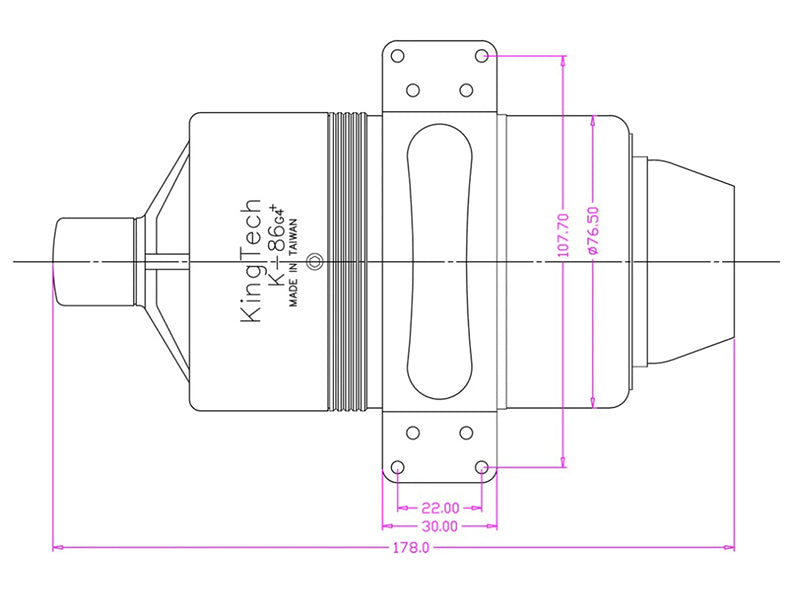

K-86G4+ SPECIFICATIONS

Diameter: 76mm ( 2.99” )

Length: 178mm ( 7.00” )

Weight: 725g ( 1 lb 9 oz ) not including bracket

Maximum RPM: 176,000

Thrust: 8.6 kg @ 15° C. ( 18.95 lb @ 59° F )

EGT: 700°C max

Fuel consumption: 300 g / min

Fuel: Diesel, Jet A1, Kerosene

Lubrication: 5%

Maintenance cycle: 25 hr US$300

G4 MODEL COMPONENTS LIST

• Engine

• Data Relay Module (DRM)

• Ground Support Unit (GSU)

• Digital SBus brushless pump(KP300BL)

• Wire Harness and Tubing Set

• Fuel Pump, Filter and Shout-off Valve

• Fuel Inlet Attachments

• Instruction Manual
