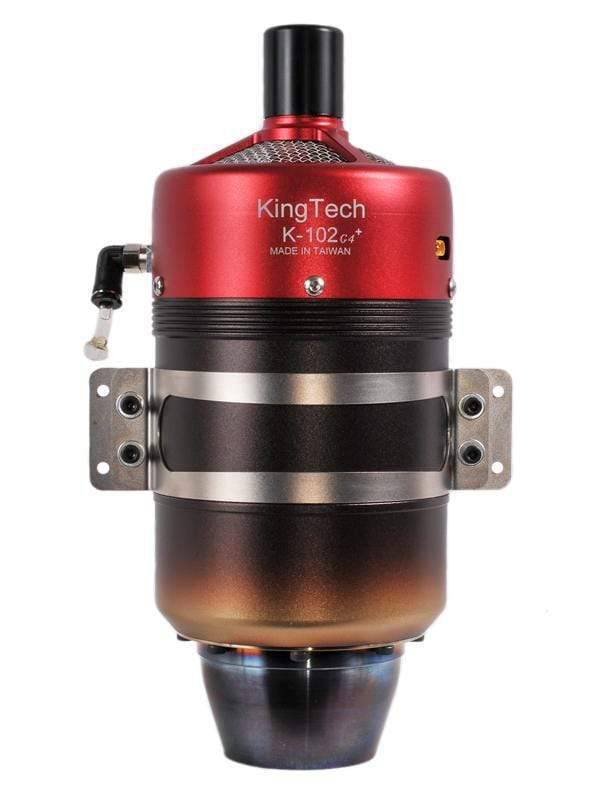

KingTech K-102G4+ Turbine Engine

. KingTech G4 utilizes SBus data transmission.

• Engine/ECU integration, all operating parameters including total run time are all recorded into the engine.
• The smaller and lighter external Data Relay Module (DRM) is responsible for all data, signal and power transmission.
• Pump: digital sbus brushless pump
• A micro USB connector is present for a future connectivity of wireless mobile apps.
• The G4 features a brushless starter motor for reliability and durability, built-in FOD screen is also integrated.
• After a run cycle and receiver switched off, GSU will remain on only until cool down completes.

K-102G4 SPECIFICATIONS

Diameter: 84mm ( 3.30" )
Length: 203.3mm (8")
Weight: 910g ( 2 lb )
Maximum RPM: up to 160000 max
Thrust: 10 kg @ 15° C.
EGT: 750°C max
Fuel consumption: 330 g / min
Fuel: Diesel, Jet A1, Kerosene
Lubrication: 5%
Maintenance cycle: 25 hr US$300

G4 MODEL COMPONENTS LIST

• Engine
• Data Relay Module (DRM)
• Ground Support Unit (GSU)
• Wire Harness and Tubing Set
• Fuel Pump, Filter and Shout-off Valve
• Fuel Inlet Attchments
• Instruction Manual
