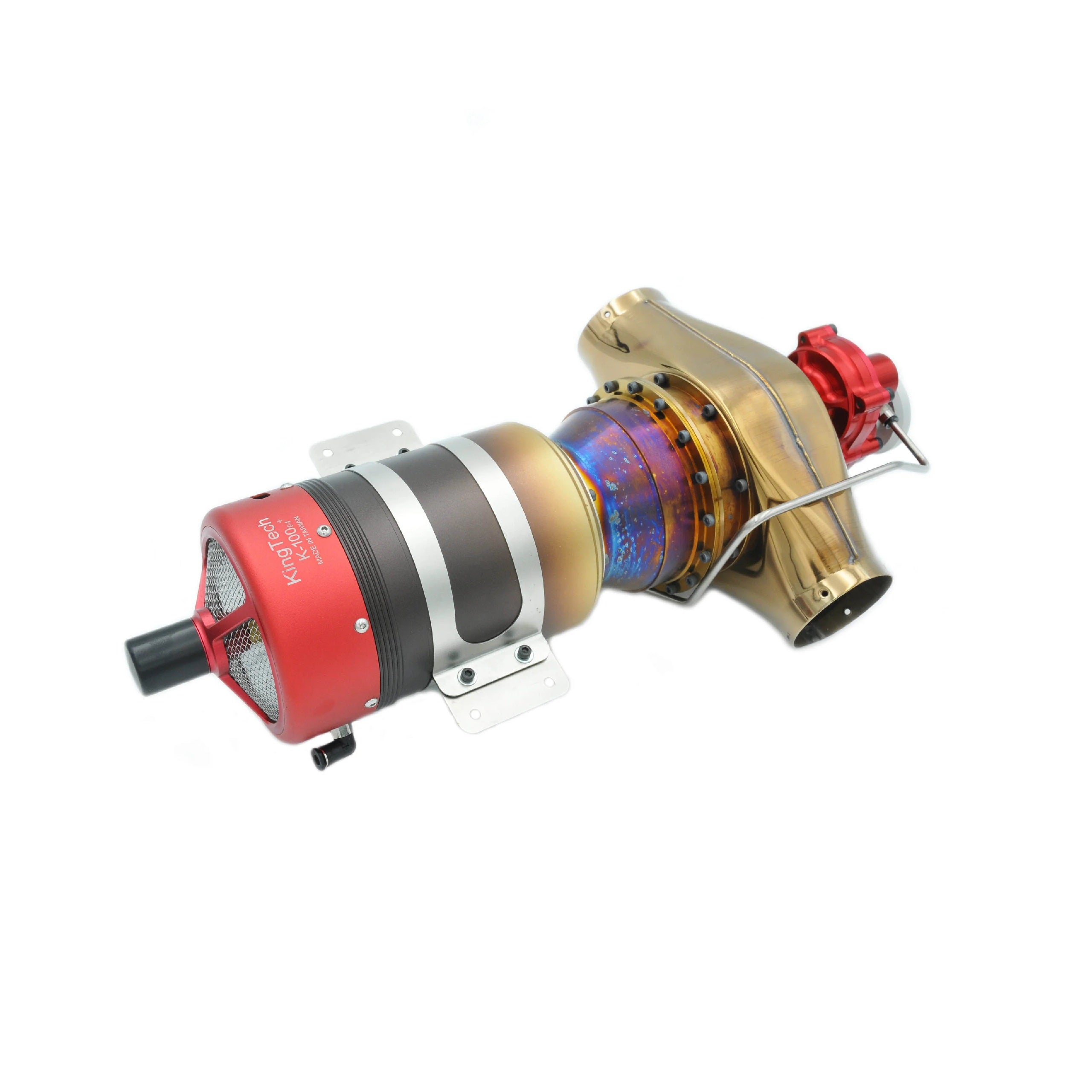

KingTech K-100TPG4+

Description:

• KingTech G4 utilizes SBus data transmission.

• Engine/ECU integration, all operating parameters including total run time are all recorded into the engine.

• The smaller and lighter external Data Relay Module (DRM) is responsible for all data, signal and power transmission.

• Pump: digital sbus brushless pump

• A micro USB connector is present for a future connectivity of wireless mobile apps. • The G4 features a brushless starter motor for reliability and durability, built-in FOD screen is also integrated.

• After a run cycle and receiver switched off, GSU will remain on only until cool down completes.

K-100TPG4+ SPECIFICATIONS

Length: 384.55mm / 15.14”

Weight: 3500g / 7.71lb

Maximum Turbine RPM: up to 135,000

Power:13KW ( 6200 RPM )

EGT: 700°C max ( 1292°F max )

Fuel consumption: 360g / min ( 12.69 oz. )

Fuel: Diesel, Jet A1, Kerosene

Lubrication: 5%

Maintenance cycle: 25 hr US$550

Recommended Propeller Size: 3 blade, 26x20 (inch)
