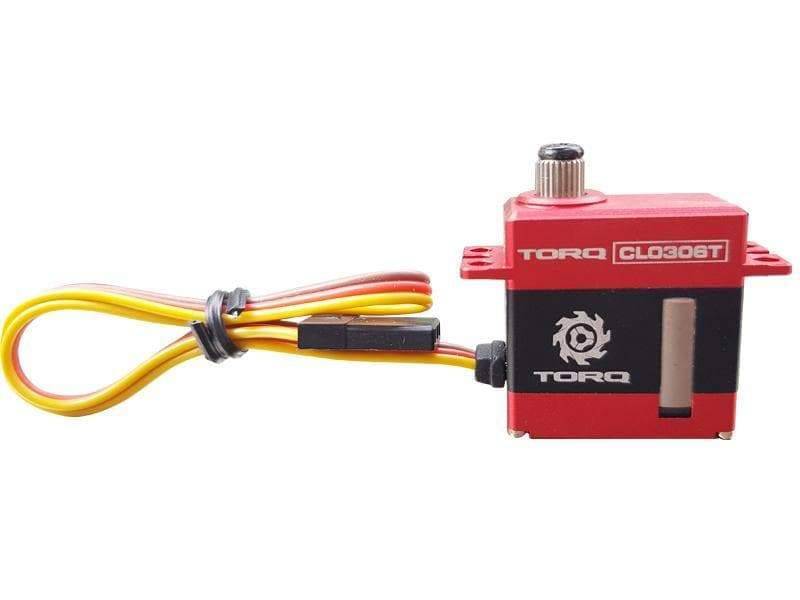

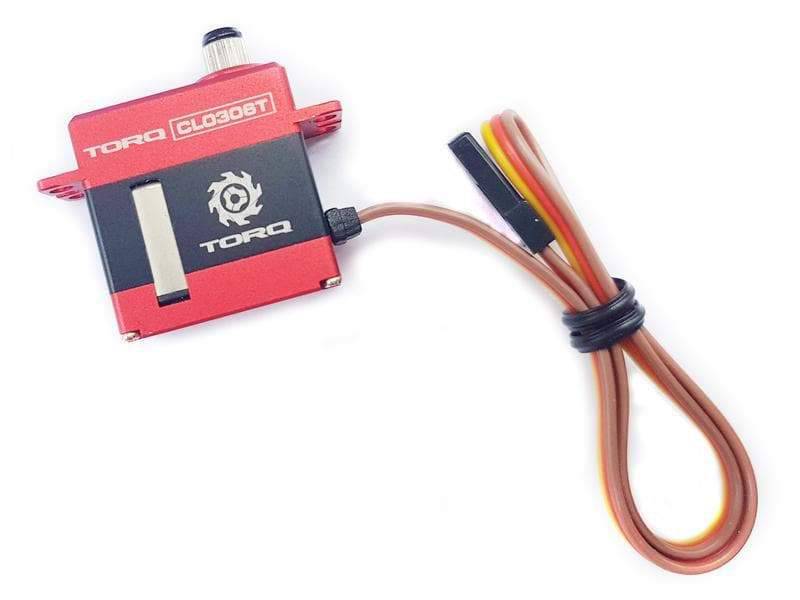

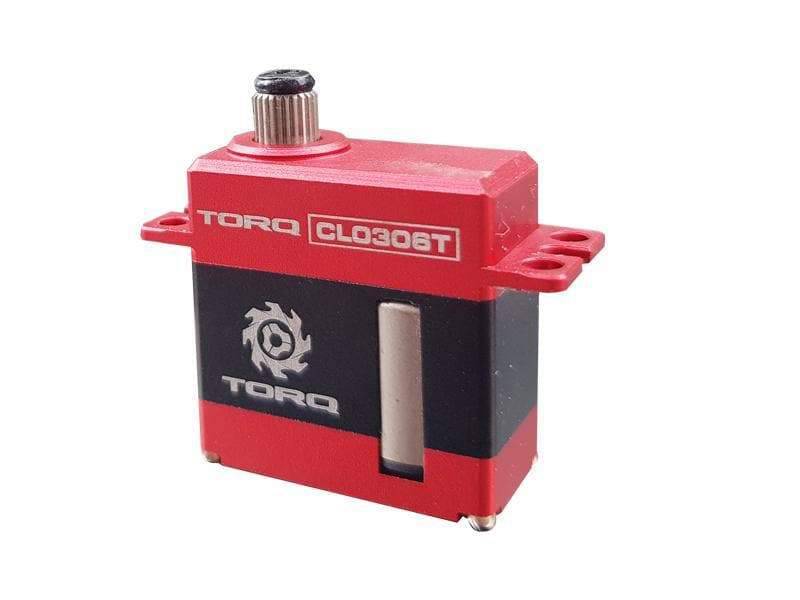

TORQ CL0306T Micro HV Rudder Helicopter Servo
TORQ CL0306T Micro HV Rudder Helicopter Servo
TORQ CL0306T Micro HV Rudder Helicopter Servo - Unworldly Precision & Control.
Explore new worlds of precision & control with the TORQ CL0306T Micro HV Rudder Helicopter Servo. Specifically designed for the intense demand of helicopter rudder control, the TORQ CL0306T has been optimized for incredible levels of precision and resolution, with massively rapid 0.04 transit speeds at 7.4V of power. This speed and precision equates to ultimate levels of rudder authority, providing crisp control under the harshest of 3D demands.
Encased within a aluminum 6061 heat dissipating CNC case, the TORQ CL0306T utilizes a 12mm exposed coreless motor for epic levels of high torque demand. Perfectly suited for an array of high performance micro helicopter applications, the CL0306T has been purposefully designed to thrive within the most hostile 3D flight regimes, offering superior levels of tactile control that can be seen and felt throughout the flight.
Designed to absorb up to 7.4V of power, the TORQ CL0306T Micro HV Rudder Helicopter Servo utilizes a dedicated 760us / 560Hz working frequency for the most agile level of response, and incorporates a steel gear train for maximum levels of abuse. Paired with a dual ball bearing layout for butter smooth operation, TORQ CL0306T Micro HV Rudder Helicopter Servo provides unparalleled levels of finite control, offering next level precision with every flight you take.
Step up to epic levels of high performance rudder capability with the TORQ CL0306T Micro HV Rudder Helicopter Servo. Micro sized, with massive levels of precision and control.
Features:- Dedicated Helicopter Rudder Servo
- Incredible Levels of Speed & Performance
- Ultra Precise, High Resolution Control
- Coreless Motor Design for Peak Torque Demand
- Fully Replaceable Steel Gear Train for Maximum Strength
- Excellent Thermal Dissipation via 6061 Aluminum Case
- 7.4V High Voltage Ready
- Optimized for High Demand Rudder Control
- Dual Ball Bearing Construction
Speed:0.04 sec / 60° @ 7.4V
0.06 sec / 60° @ 6.5V
Torque:3.60Kg.cm / 49.99 oz in. @ 7.4V
3.00Kg.cm / 41.66 oz. in @ 6.5V
Specifications:
Motor Type: 12mm Exposed Coreless Motor
Servo Arm Type: Futaba
Working Pulse Width / Frequency: 760us / 560Hz
Weight: 21g
Dimensions: 22.90mm x 12.27mm x 24.50mm (LxWxH)
Usage Note:
For helicopter rudder usage only. Please note that the TORQ CL0306T Micro HV Rudder Helicopter Servo servo must be connected to a flybarless flight controller that is set at a 760us pulse width setting for proper functionality. Due to the 760us pulse width, if the servo is connected to a receiver or servo tester, the servo will not properly function due to these applications that use a 1520us pulse width.
| Type: | |
|---|---|
| Vendor: | |
| SKU: |
CL0306T |
| Weight: |
50 g |
Product Spare Parts
Customer Reviews
I was looking for a Servo for my 450 size helicopter was expecting to pay at least $60. I found this little gem for $40 it has been working great.
I have used TORQ servos on all my helis and all work great. No problem at all.
I installed these servos on all the cyclics for the head and the rudder, through a Spektrum AR7200BX receiver with BeastX Flybarless control system.
I needed to change the 760us to 1520us for the cyclics. The rudder is set for the 760us, once I changed that, everything worked great!
These servos from TORQ are my go to servos, I've got the T-Box from TORQ so I was able to make the changes that were needed.
Good servos with the ability to change the settings are a great help when setting up your heli.
Perfect for my 470L.
Perfect for my 470L, looks and work very Good!
I needed to replace my spektrum servos on my Blade 330s. I gave the clo508 and clo306t servos a shot! So far I’m impressed with the servos hopefully I don’t have to see how they hold up in a crash :)
1st time using TORQ. I love it so far
Great fast service from Heli Direct
Purchased this as a tail rotor servo for a project I'm working on. Works perfectly. I will be purchasing more like it in the future.
This was used to replace stock spektrum tail servo. Quiet and precise, unlike stock which was twitchy and noisy.
Replaced all the servos on my Trex 470 -- much more responsive now!
