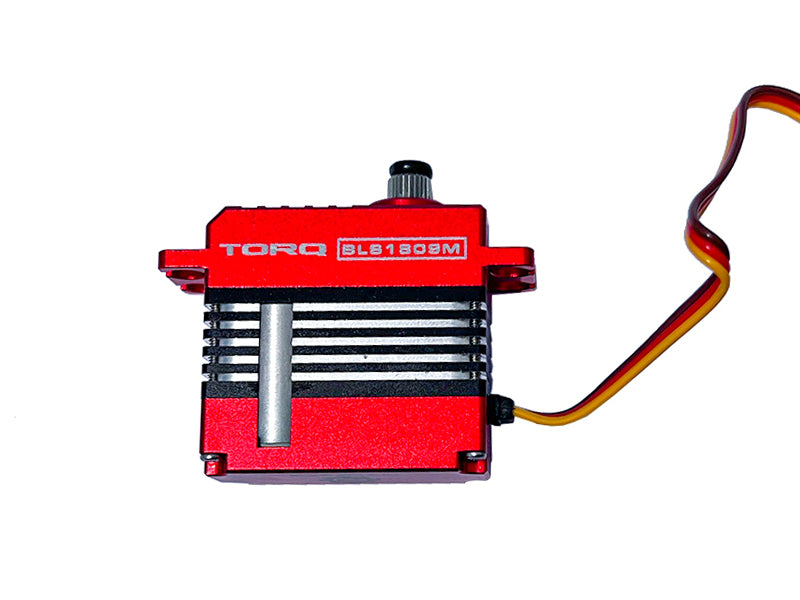

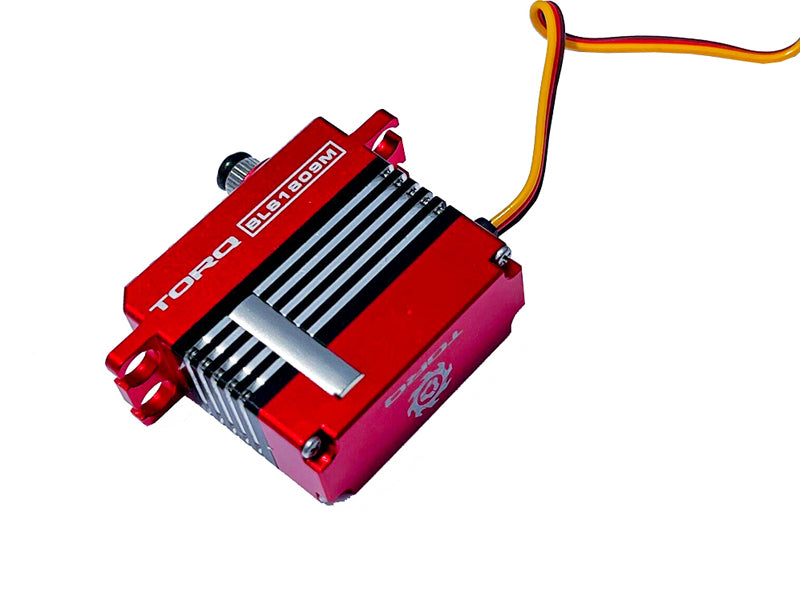

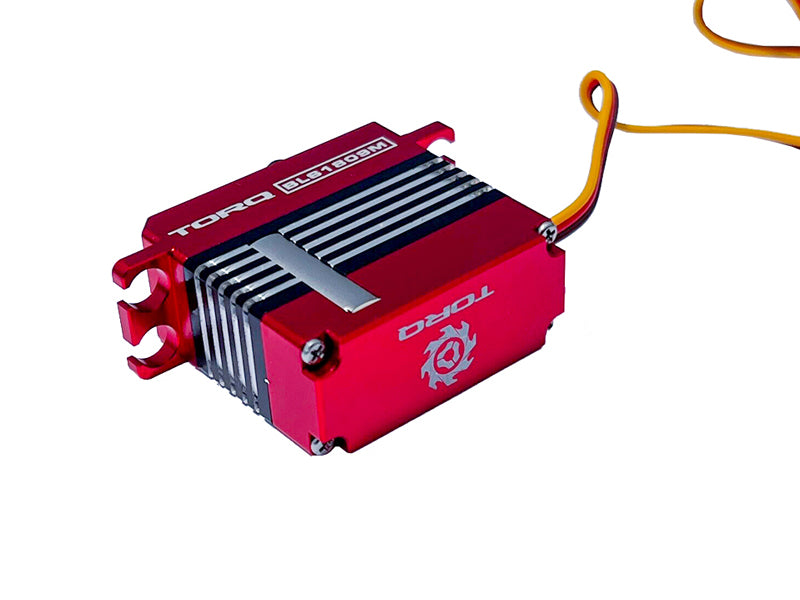

TORQ BLS1809M Mini HV Brushless Servo

TORQ Servos
|
BLS1809M
You will earn 95 points for buying this product
Price Match Guarantee
$95.00 $0.00( / )
Features:- Brushless Motor Technology for the Ultimate Power & Control- Incredible Levels of Speed & Performance- Ultra Precise, High Resolution Control- Fully Replaceable Steel Gear Train for Maximum Strength- Excellent Thermal Dissipation via Finned 6061 Aluminum Case- 8.4V High Voltage Ready- Optimized for Heli, Airplane & Jet Aircraft- Dual Ball...

Features:
- Brushless Motor Technology for the Ultimate Power & Control
- Incredible Levels of Speed & Performance
- Ultra Precise, High Resolution Control
- Fully Replaceable Steel Gear Train for Maximum Strength
- Excellent Thermal Dissipation via Finned 6061 Aluminum Case
- 8.4V High Voltage Ready
- Optimized for Heli, Airplane & Jet Aircraft
- Dual Ball Bearing Construction


Speed:
0.07 sec / 60° @ 8.4V
0.08 sec / 60° @ 7.4V
0.09 sec / 60° @ 6.0V


Torque:
24Kg.cm / 333.29 oz in. @ 8.4V
22Kg.cm / 305.52 oz in. @ 7.4V
18Kg.cm / 249.97 oz. in. @ 6.0V


Specifications:
Motor Type: Brushless
Servo Arm Type: Futaba
Working Frequency: 1520us / 333Hz  or  760us / 560Hz (need the TBOX Program Card)
Weight: 45g
Dimensions: 35.5mm x 15mm x 35.5mm (LxWxH)
Voltage Range: 6.0V - 8.4V

Usage Note:

Servo Grommet is suggested use if you use our servo on Nitro Heli.

Type:

Heli Servo

Vendor:

TORQ Servos

SKU:

BLS1809M

Weight:

0.5 lb


Product Spare Parts

Customer Reviews

Based on 6 reviews
100%
(6)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
J
Jeff R.
Great Servos!

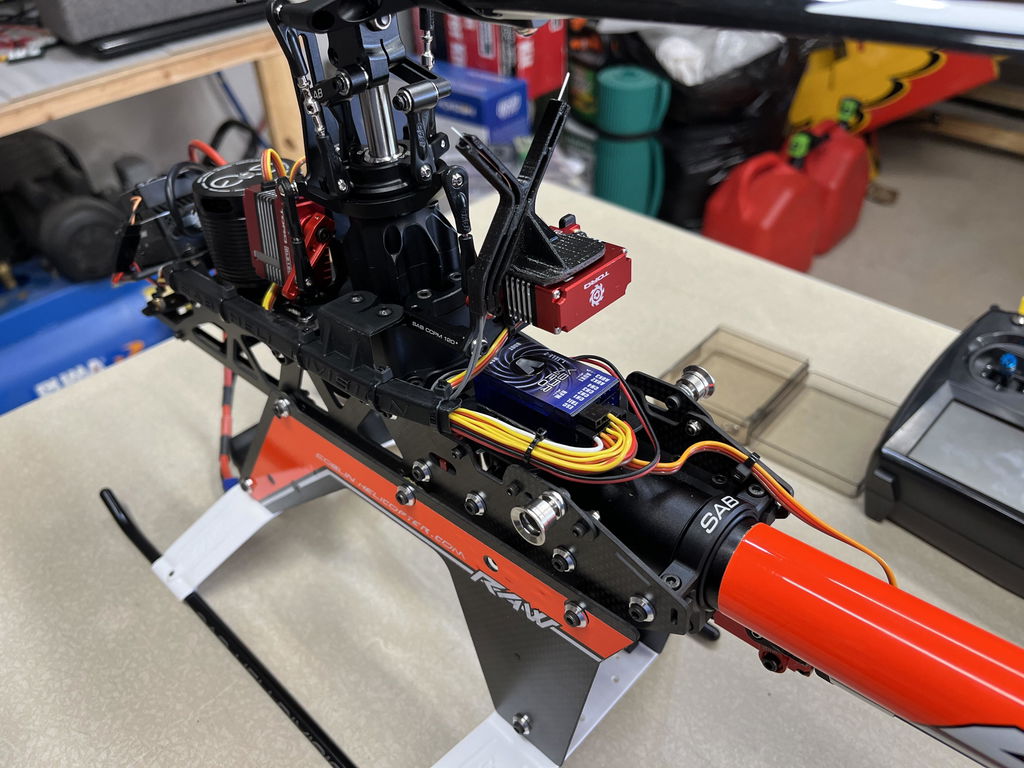

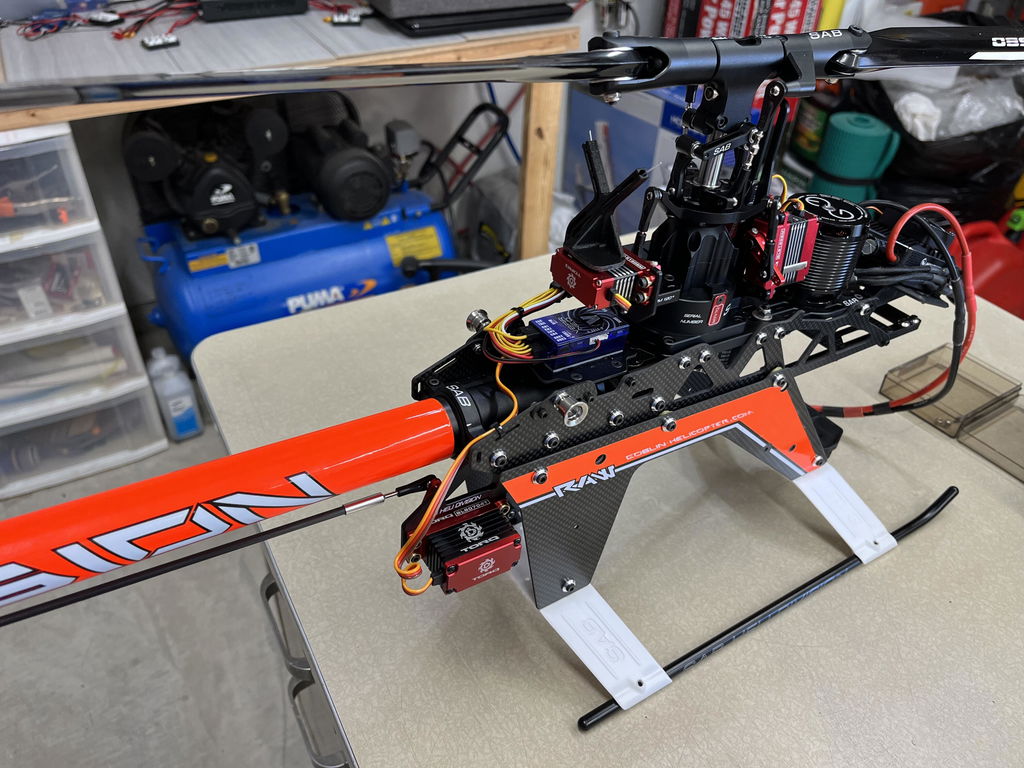

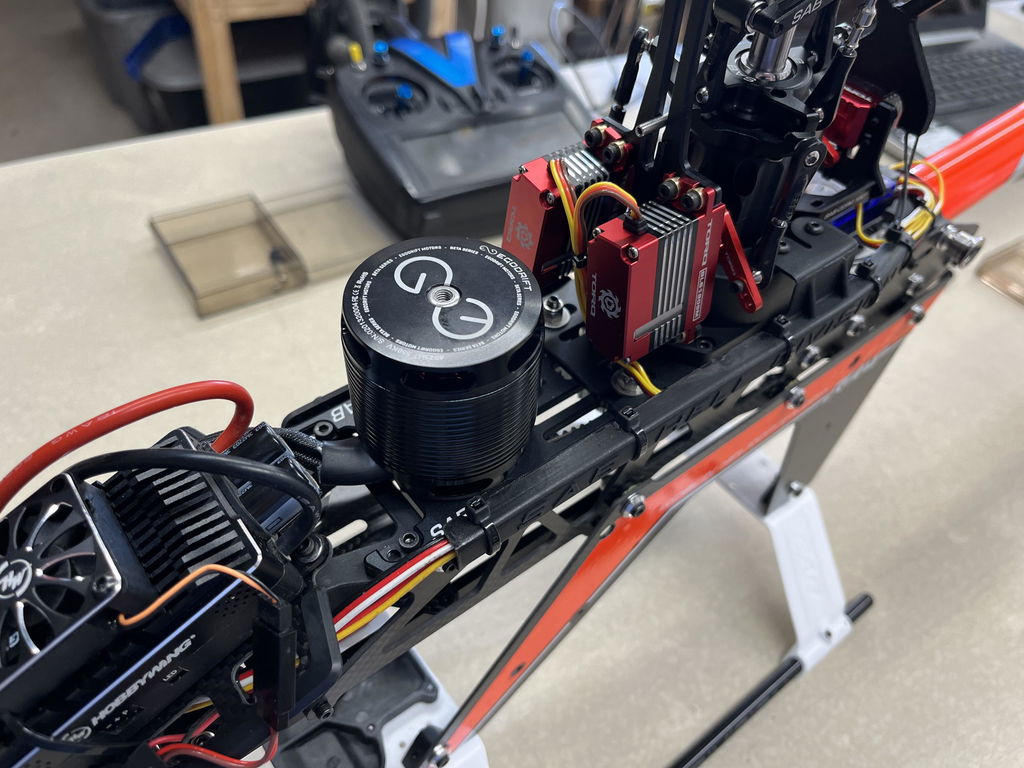

Bought these servos for a Raw 500 build and they have been working great so far!!

R
Rick S.
Solid servos

Used them on a Raw 580. Maiden was rock steady and servos were very precise. I like the feature where the servo frequency and centering can be set with the program box.

M
Michael P.
Good Servos!

I got these for my Kraken 580. I have to say they are good servos, strong, and fast. Seem to be holding up well.

R
Richard B.
Servos

There are very good mini servos

R
Rrok A.
Torq servo

Haven’t tried these yet.

G
George
Not mini power

Installed in 580 SAB I’m impressed with these they are excellent servos
