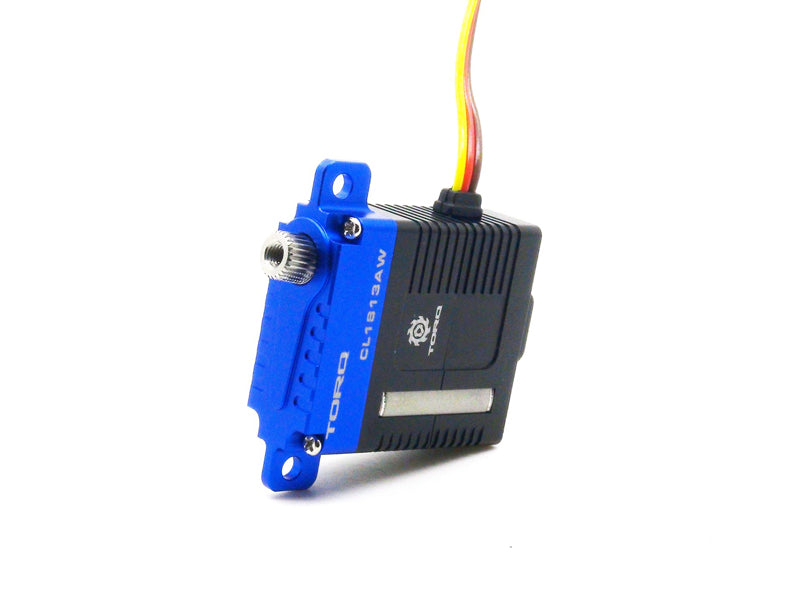

TORQ CL1813AW High Torque 12mm Digital Servo

TORQ Servos
|
CL1813AW
You will earn 79 points for buying this product
Price Match Guarantee
$79.00 $0.00( / )
Specifications: Rated Voltage: DC7.4VVoltage Range: DC6.0V-8.4VTorque: 16Kg.cm@6.0V / 18Kg.cm@7.4V / 20Kg.cm@8.4VSpeed: 0.15sec/60°@6.0V / 0.13sec/60°@7.4V / 0.12sec/60°@8.4VWorking Frequency: 1520us/333HzDefault Travel Angle: ±60° = 120° TotalTemperature Range: -10℃……+60℃Soft Start: YesProgramable: YesCase Material: Aluminum AlloyMotor Type: 7 Phases Coreless DC MotorGear Set Material: Hardened SteelPosition Sensor: Contactless(Magnetic Hall Sensor)Ball Bearing: 2BBCase Dimensions: 30mm*12mm*35.5mmWeight:...

Specifications:

Rated Voltage: DC7.4V
Voltage Range: DC6.0V-8.4V
Torque: 16Kg.cm@6.0V / 18Kg.cm@7.4V / 20Kg.cm@8.4V
Speed: 0.15sec/60°@6.0V / 0.13sec/60°@7.4V / 0.12sec/60°@8.4V
Working Frequency: 1520us/333Hz
Default Travel Angle: ±60° = 120° Total
Temperature Range: -10℃……+60℃
Soft Start: Yes
Programable: Yes
Case Material: Aluminum Alloy
Motor Type: 7 Phases Coreless DC Motor
Gear Set Material: Hardened Steel
Position Sensor: Contactless(Magnetic Hall Sensor)
Ball Bearing: 2BB
Case Dimensions: 30mm*12mm*35.5mm
Weight: 32g

Package Included:

1 x TORQ CL1813AW Digital Servo
1 x TORQ Aluminum Arm

Type:

Plane Electronics

Vendor:

TORQ Servos

SKU:

CL1813AW

Weight:

0.25 lb
