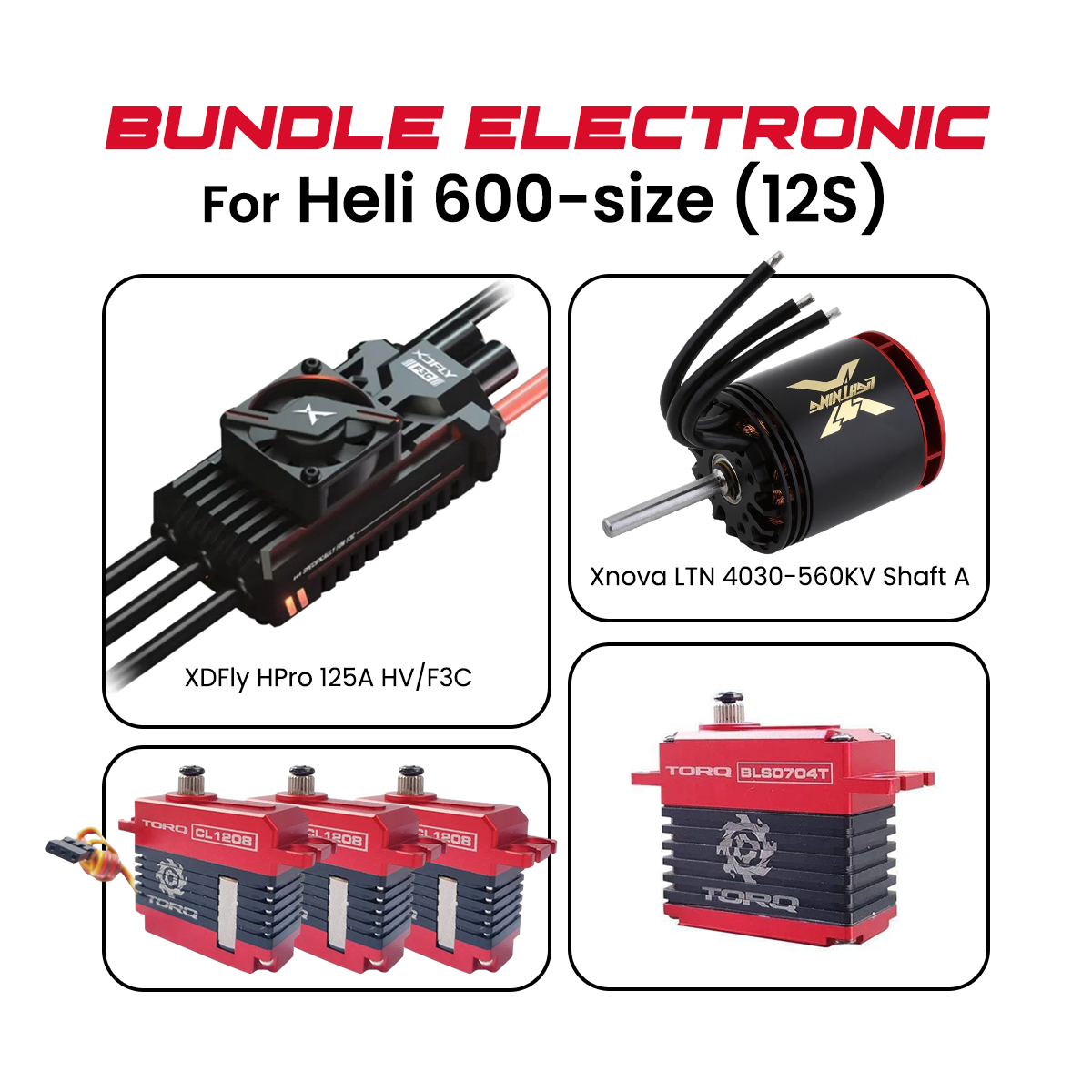

*** Package Includes:
Xnova Lightning Motor 4030-560KV For RC Helicopter Shaft A * 1pcs
XDFly HPro 125A HV 6-14S SBEC ESC (F3C Edition) * 1pcs
TORQ CL1208 Mini HV Coreless Servo * 3pcs
TORQ BLS0704T Full Size HV Brushless Rudder Helicopter Servo * 1pcs
I. Xnova Lightning Motor 4030-560KV For RC Helicopter Shaft A:
We have spent hours of testing to improve the very well established 4030 series. The result is an even better overall performing motor with extreme low cogging torque and increased efficiency. This all will provide you a cooler running motor and also more consistent power delivery over the full flight. The Xnova V3 lightning series is the highest level of motor performance money can buy nowadays.
Xnova brushless high performance outrunner motor for 570-630 size helicopters for hard 3d flying on 10-12s. Peak efficiency occurs at ~65A on 10s. For sport flying or longer flight times, the 3y is more suited.
1. Improved higher efficiency with thinner stator lamination, resulting in lower temperature.
2. Optimized and unique design, hand wound to perfection
3. Smooth running, low cogging torque.
4. New type of higher degree magnets.
5. All other features same as performance series.
II. XDFly HPro 125A HV 6-14S SBEC ESC (F3C Edition):
Specifications:
|
Model
|
HPRO 125A HV SBEC
|
|
Continuous Current(A)
|
125A/170A
|
| Input Voltage |
6-14S Lipo Battery |
|
BEC Output
|
6-12V Adjustable; Current Cont.10A, Peak 30A
|
|
Size
|
90x43x25mm
|
|
Weight
|
166g
|
|
Programming Way
|
XDFly Android&iOS APP/VBCT/E/RF2/Jeti
|
|
Telemetry
|
Mikado VBCT/E/RF2/Futaba SBUS2/Jeti/MSH Brain/iKon
|
|
Applications
|
FC3 module & 600-700 class electric helicopters or fixed-wing aircraft
|
III. TORQ CL1208 Mini HV Coreless Servo:
1. Features:
- Engineered for High Performance Aircraft Extremes
- Specifically Designed for Helicopter, Airplane or Jet Based Applications
- Massive Levels of Torque & Speed
- Ultra Precise, High Resolution Precision
- Coreless Motor Design for Optimized High Torque Output
- Fully Replaceable Steel Gear Train for Maximum Strength
- Excellent Thermal Dissipation via 6061 Aircraft Aluminum Case
- 8.4V High Voltage Ready
- Dual Ball Bearing Design
Torque:
13.5Kg.cm / 187.47 oz. in @ 8.4V
12.0Kg.cm / 166.64 oz. in. @ 7.4V
9.8Kg.cm / 136.09 oz. in. @ 6.0V
Transit Speed:
0.07 sec. @ 8.4V
0.08 sec. @ 7.4V
0.10 sec. @ 6.0V
2. Specifications:
- Motor Type: Coreless Motor
- Servo Arm Type: Futaba
- Weight: 40g
- Operating Voltage: 6.0V - 8.4V DC
- Working Pulse Width / Frequency: 1520us / 333Hz or 760us / 560Hz (need the TBOX Program Card)
- Dimensions: 35.5mm x 15mm x 32.5mm (LxWxH)
Usage Note: Servo Grommet is suggested use if you use our servo on Nitro Heli.
IV. TORQ BLS0704T Full Size HV Brushless Rudder Helicopter Servo:
1. Features:
- Brushless Motor Technology for the Ultimate Power & Control
- Blistering 0.035 Second Transit Speed
- Dedicated Helicopter Rudder Servo
- Incredible Levels of Speed & Performance
- Ultra Precise, High Resolution Control
- Fully Replaceable Steel Gear Train for Maximum Strength
- Excellent Thermal Dissipation via Finned 6061 Aluminum Case
- 8.4V High Voltage Ready
- Optimized for High Demand Rudder Control
- Dual Ball Bearing Construction
Speed: 0.035 sec / 60° @ 8.4V
0.040 sec / 60° @ 7.4V
0.045 sec / 60° @ 6.0V
Torque: 8.0Kg.cm / 111.09 oz. in. @ 8.4V
7.0Kg.cm / 97.21 oz. in. @ 7.4V
6.0Kg.cm / 83.32 oz. in. @ 6.0V
2. Specifications:
- Motor Type: Brushless
- Servo Arm Type: Futaba
- Working Pulse Width / Frequency: 760us / 560Hz
- Weight: 78g
- Dimensions: 40.5mm x 20mm x 37mm (LxWxH)
- Voltage Range: 6.0V - 8.4V
Usage Note:
· For helicopter rudder usage only. Please note that the TORQ BLS0704T must be connected to a flybarless flight controller that is set at a 760us pulse width setting for proper functionality. Due to the 760us pulse width, if the servo is connected to a receiver or servo tester, the servo will not properly function due to these applications that use a 1520us pulse width.
· Servo Grommet is suggested use if you use our servo on Nitro Heli.
