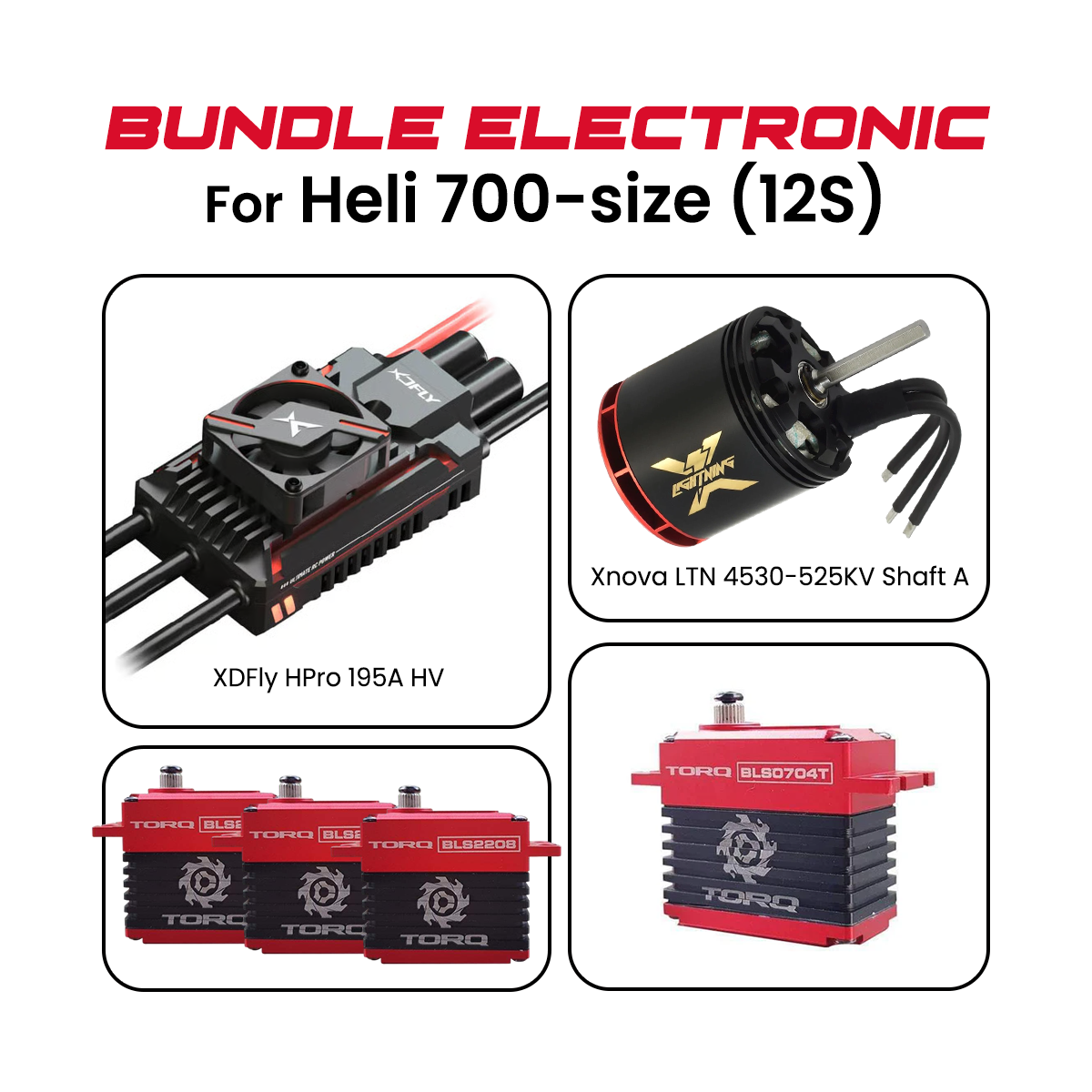

*** Package Includes:
Xnova Lightning Outrunner Motor 4530 - 525KV For RC Helicopter Shaft A * 1pcs
XDFly HPro 195A 6-14S SBEC ESC * 1pcs
TORQ BLS2208 Full Size HV Brushless Servo * 3pcs
TORQ BLS0704T Full Size HV Brushless Rudder Helicopter Servo * 1pcs
I. Xnova Lightning Outrunner Motor 4530 - 525KV For RC Helicopter Shaft A:
Xnova 4530-525kv
We have spent hours of testing to improve the very well established 4530 series. The result is an even better overall performing motor and increased efficiency. This all will provide you a cooler running motor and also more consistent power delivery over the full flight. The Xnova V3 lightning series is the highest level of motor performance money can buy nowadays.
Xnova brushless high performance outrunner motor designed for extrem 3D flying in 690-770mm helicopter where highest power to weight ratio is important. Recommended for specially 12S.
- Improved higher efficiency with thinner stator lamination, designed with integrated cooling system resulting in lower temperature.
- Increased power output by the use of thicker hand wound YY single strand copper wires, heat resistant up to 300 degrees C.
- High-performance neodymium magnets, heat resistant up to 180 degrees C.
- All other features same as XTS series.
Xnova LIGHTNING 4530 series ( thick Wire)
Designed for extrem 3D flying with 690-770mm helicopter where highest power to weight ratio is important. From 10S up to 14S ( KV related )
II. XDFly HPro 195A 6-14S SBEC ESC:
1. Description:
We(XDFly) have released HPRO 195A ESC HV 6-14S Built-in SBEC 6-12V Adjustable Speed Control For RC Airplane Aircraft 600-700 Class Helicopter.
2. Key Features:
- Equipped with high-performance 32-bit G4 processor with operating frequency of up to 170MHz.
- Adopting new generation of power MOSFET, it features low heat generation, high instantaneous current endurance and high reliability.
- Self-check function: After power-on, the ESC will automatically self-check for power supply short circuit, motor phase loss, throttle zeroing, and voltage range.
- The special and unique case design greatly increase the heat dissipation area and significantly enhance the heat dissipation performance of the ESC.
- The smart temperature controlled fan will only start when the temperature exceeds 40 degrees, ensuring a quiet environment during the adjustment.
- With helicopter speed governor function, the constant speed sensitivity can be adjusted and is easy to operate.
- Equipped with the time selection function for stall landing, it can be manually adjustable within the time set to avoid a crash due to handling errors.
- The ESC has an independent programming interface, it supports parameter adjustment via Phone APP/Mikado VBCT/E/Rotorflight2/Jeti remote control devices.
- With telemetry function for Mikado VBCT/E, Rotorflight2, Futaba SBUS2, Jeti, MSH Brain, and iKon, allowing users to check data in real time.
- Equipped with colorful LED lights including five optional colors for users: red, green, blue, yellow, and white, which indicate the ESC status through flashing modes.
- Multiple protections: abnormal power-on voltage, start-up, temperature, throttle signal loss, over-load, low-voltage, over-current.
3. Specification:
|
Model
|
HPRO 195A HV SBEC
|
|
Continuous Current(A)
|
195A
|
|
Burst Current(A)
|
260A
|
|
Input Voltage
|
6-14S Lipo
|
|
BEC Output
|
6-12V Adjustable; Current Cont.10A, Peak 35A
|
|
Size
|
103.5x48x25mm(Without fan); 103.5x48x37mm(With fan)
|
|
Weight
|
223g
|
|
Power Wire
|
8 Gauge 208mm Red/Black
|
|
Motor Wire
|
10 Gauge 152mm Black
|
|
Programming Way
|
XDFly Android&iOS APP/VBCT/E/RF2/Jeti
|
|
Telemetry
|
VBCT/E/RF2/Futaba SBUS2/Jeti/MSH Brain/iKon
|
|
Applications
|
600-700 Class electric helicopters or fixed-wing aircrafts
|
III. TORQ BLS2208 Full Size HV Brushless Servo:
1. Features:
- Brushless Motor Technology for the Ultimate Power & Control
- Incredible Levels of Speed & Performance
- Ultra Precise, High Resolution Control
- Fully Replaceable Steel Gear Train for Maximum Strength
- Excellent Thermal Dissipation via Finned 6061 Aluminum Case
- 8.4V High Voltage Ready
- Optimized for Heli, Airplane & Jet Aircraft
- Dual Ball Bearing Construction
Torque:
25Kg.cm / 347.18 oz in. @ 8.4V
22Kg.cm / 305.52 oz in. @ 7.4V
18Kg.cm / 249.97 oz. in. @ 6.0V
Transit Speed:
0.07 sec / 60° @ 8.4V
0.08 sec / 60° @ 7.4V
0.09 sec / 60° @ 6.0V
2. Specifications:
- Motor Type: Brushless
- Servo Arm Type: Futaba
- Working Frequency: 1520us / 333Hz or 760us / 560Hz (need the TBOX Program Card)
- Weight: 78g
- Dimensions: 40.5mm x 20mm x 38mm (LxWxH)
- Voltage Range: 6.0V - 8.4V
Usage Note: Servo Grommet is suggested use if you use our servo on Nitro Heli.
IV. TORQ BLS0704T Full Size HV Brushless Rudder Helicopter Servo:
1. Features:
- Brushless Motor Technology for the Ultimate Power & Control
- Blistering 0.035 Second Transit Speed
- Dedicated Helicopter Rudder Servo
- Incredible Levels of Speed & Performance
- Ultra Precise, High Resolution Control
- Fully Replaceable Steel Gear Train for Maximum Strength
- Excellent Thermal Dissipation via Finned 6061 Aluminum Case
- 8.4V High Voltage Ready
- Optimized for High Demand Rudder Control
- Dual Ball Bearing Construction
Speed: 0.035 sec / 60° @ 8.4V
0.040 sec / 60° @ 7.4V
0.045 sec / 60° @ 6.0V
Torque: 8.0Kg.cm / 111.09 oz. in. @ 8.4V
7.0Kg.cm / 97.21 oz. in. @ 7.4V
6.0Kg.cm / 83.32 oz. in. @ 6.0V
2. Specifications:
- Motor Type: Brushless
- Servo Arm Type: Futaba
- Working Pulse Width / Frequency: 760us / 560Hz
- Weight: 78g
- Dimensions: 40.5mm x 20mm x 37mm (LxWxH)
- Voltage Range: 6.0V - 8.4V
Usage Note:
· For helicopter rudder usage only. Please note that the TORQ BLS0704T must be connected to a flybarless flight controller that is set at a 760us pulse width setting for proper functionality. Due to the 760us pulse width, if the servo is connected to a receiver or servo tester, the servo will not properly function due to these applications that use a 1520us pulse width.
· Servo Grommet is suggested use if you use our servo on Nitro Heli.
