NOTE:
1. For Spektrum transmitter user: You will need an DSMX satellite with 2 antennas come out (SKU: SPM9645) for binding with your radio. Make sure your radio Frame Rate is set as 11ms before you binding. If you use the DSMX with 1 antennas come out (SKU: SPM9745), it will not bind. We addressed this problem with our manufacture and app developer. They will update and fix it soon.
2. For Futaba transmitter user: Before you binding your radio to the helicopter, please go to setting and update receiver boards. Make sure your radio protocol set as S-FHSS.
3. For the JR sat (JR DMSS RA 01L), you have to rewire the cable to match with the sat output from the board. If you still can't bind with the T15, you can bind it from the separate receiver before you plug it in the T15.
Focus Shots
Standard equipment
●T15 Main Blades x 1 set●15M Main Motor(1500KV/2405) x 1
●15MT Tail Motor(8000KV/1103) x 1
●T15 Digital Servo x 2
●T15T Digital Servo x 1
●T15 Tail Blades x 1 set
●Remote Extension x 1
●Li-Po Battery 2S 380mAh 50C x 1

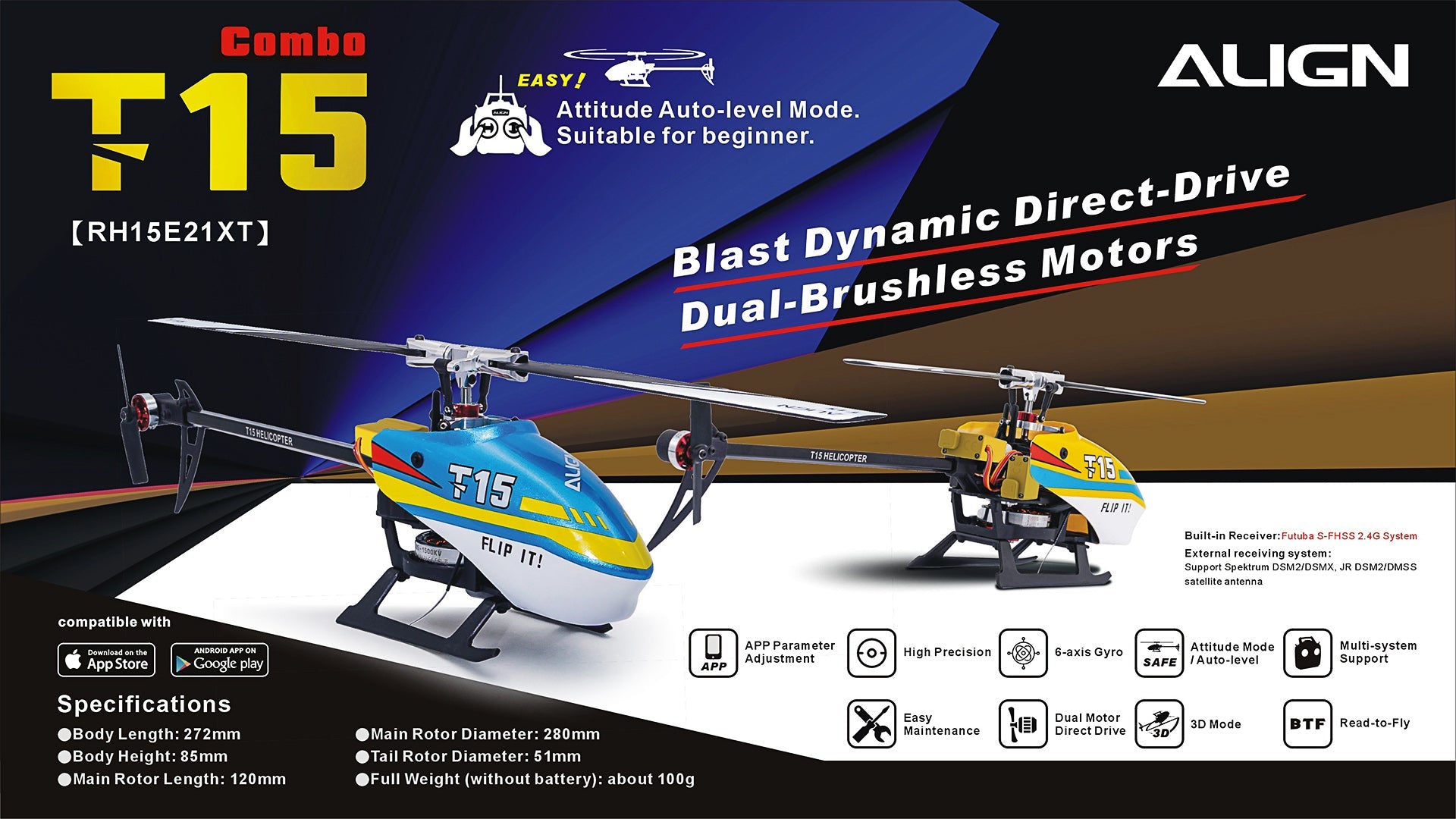

T15 Specification
● Length: 272mm● Height: 85mm
● Main Blade Length: 120mm
● Main Rotor Diameter: 280mm
● Tail Rotor Diameter: 51mm
● Weight(Without Battery): 100g
Accessories
●T15 Kit x 1●T15 Main Blades x 1 set
●T15 Tail Blades x 1 set
●15M Main Motor(1500KV/2405) x 1
●15MT Tail Motor(8000KV/1103) x 1
●T15 Digital Servo x 2
●T15T Digital Servo x 1
●Remote Extension x 1
●Li-Po Battery 2S 380mAh 50C x 1
●T15 Carry Box x 1
●1.3mm Hexagon screw driver(Blue/8.2g) x 1
●0.9mm Hexagon screw driver(Red/8g) x 1
●Feathering Shaft Wrench x 1
●Parts box x 1
DOWNLOAD T-15 iOS/Android app here-
Self-provided Equipment
ALIGN T6 or Futaba S-FHSS 2.4G Transmitter. For the use of JR and Spektrum system, require JR DSM2/DMSS, Spektrum DSM2/DSMX 2.4GHz Transmitter and Satellite.| Vendor: | Align |
| SKU: | RH15E22XT |
| Barcode: | 4713413726769 |
| Availability: | In Stock |
| Product Type: | Helicopter Kit |
| Weight: | 2.2 lb |
-
T15 Carbon Fiber Main Blades
SKU : HD120BTSuitable for T15. Adopted with high strength and high rigidity industrial carbon fiber composite material, which is high strength, durable, and resistant to deformation. A metal collar is added to the locking hole to effectively enhance high-speed stability, tensile strength, and noise reduction. Low...- $12.99
- $12.99
- Unit price
- per
-
T15 Landing Skid
SKU : H15F006XXTSuitable for T15. Package included: Landing Skid x 2.- $8.99
- $8.99
- Unit price
- per
-
Align T15 - 26 Tail Blade
SKU : HQ0263ATSuitable for T15. The extended tail rotor is locked in during general or violent 3D flight for excellent tail performance. Specification: Length:51 mm Weight:Approx 0.46g/single Package included: Tail Blade x 4- $6.99
- $6.99
- Unit price
- per
-
T15 Tail Boom
SKU : H15T011XXTSuitable for T15. A6063 Aluminum alloy material. Package included: T15 tail boom (4.5x6x150mm) x 2 Socket button head self screw (T2x5mm) x 4- $6.99
- $6.99
- Unit price
- per
-
T15 Feathering Shaft
SKU : H15H023XXTSuitable for T15. High-strength Medium carbon steel material. Package included: T15 Feathering shaft (Φ2.5x25mm) x 3 Socket Button Head Screw (#0-80x4mm) x 6 Washer (Φ1.6x3.2x0.2mm) x 6- $7.99
- $7.99
- Unit price
- per
-
T15 2S Charge Cable
SKU : HEP15011Suitable for T15. Package included: T15 2S Charge Cable x 1- $3.99
- $3.99
- Unit price
- per
-
T15 Linkage Rod Set
SKU : H15H027XXTSuitable for T15. Package included: T15 Main Rotor Control Link x 4 Collar (Φ1.6xΦ2.5x4.35mm) × 4 Spacer (Φ1.6x3.2x0.2mm) × 4 Socket Button Head Screw (#0-80x8mm) × 4 T15 Ball link A (Φ20.3x3.7x3.7mm) x 4 T15 Ball link B(Φ14.4x3.7x2mm) x 2 T15 Linkage Ball B (#80 Φ2.5x4.35mm)...- $10.99
- $10.99
- Unit price
- per
-
T15 Main Shaft
SKU : H15H025XXTSuitable for T15. High-strength Medium carbon steel material Package included: Main Shaft (Φ3x63.6mm) x 2 Socket button head screw (#0-80x6.2mm) x 2- $9.99
- $9.99
- Unit price
- per
-
T15 Screw Parts
SKU : H15Z006XXTSuitable for T15. Package included: Socket Button Head Coller Screw (#0-80x6.2mm) x 2 Socket button head screw (#0-80x4mm) x 7 Socket button head screw (#0-80x8mm) x 4 Socket button head screw (#0-80x5mm) x 2 Socket button head self tapping screw (T2x5mm) x 3 Socket button head self tapping...- $2.99
- $2.99
- Unit price
- per
-
T15 Tail Motor Mount
SKU : H15T012XXT●Suitable for T15. ●The tail motor base and the extended tail rotor are integrally formed, whether it is normal or violent 3D flying , it can provide better tail locking effect. Package included: ●T15 Tail Motor Mount x 2 ●Socket Button Head Self Tapping...- $6.99
- $6.99
- Unit price
- per
-
15MT Tail Motor Assembly (8000KV/1103)
SKU : HML15M12TSuitable for T15. 1103 Brushless tail motor, high temperature resistance, durable, high-speed operation, excellent tail locking ability. Specification: Input voltage: 2S KV value: 8000KV Stator Dimension:1103 Stator Arms: 9 Magnet Poles: 6 Dimension: 2.6x13.8x17.7mm Weight: 6.4g Package included: 15MT Tail Motor x 1- $24.99
- $24.99
- Unit price
- per
-
T15 150 Swashplate Leveler
SKU : H15H010XXTProduct: Product: Illustratio: Package: Instruction: Specification: ●Specifically designed for 150 class helicopters, this swashplate leveler allows for precise swashplate level adjustment, improving helicopter hover stability and flight performance. ●Tailored specifically for Align swashplate designs, utilizing CNC alloy metal for pleasing aesthetic and functionality. ●Suitable...- $6.99
- $6.99
- Unit price
- per
