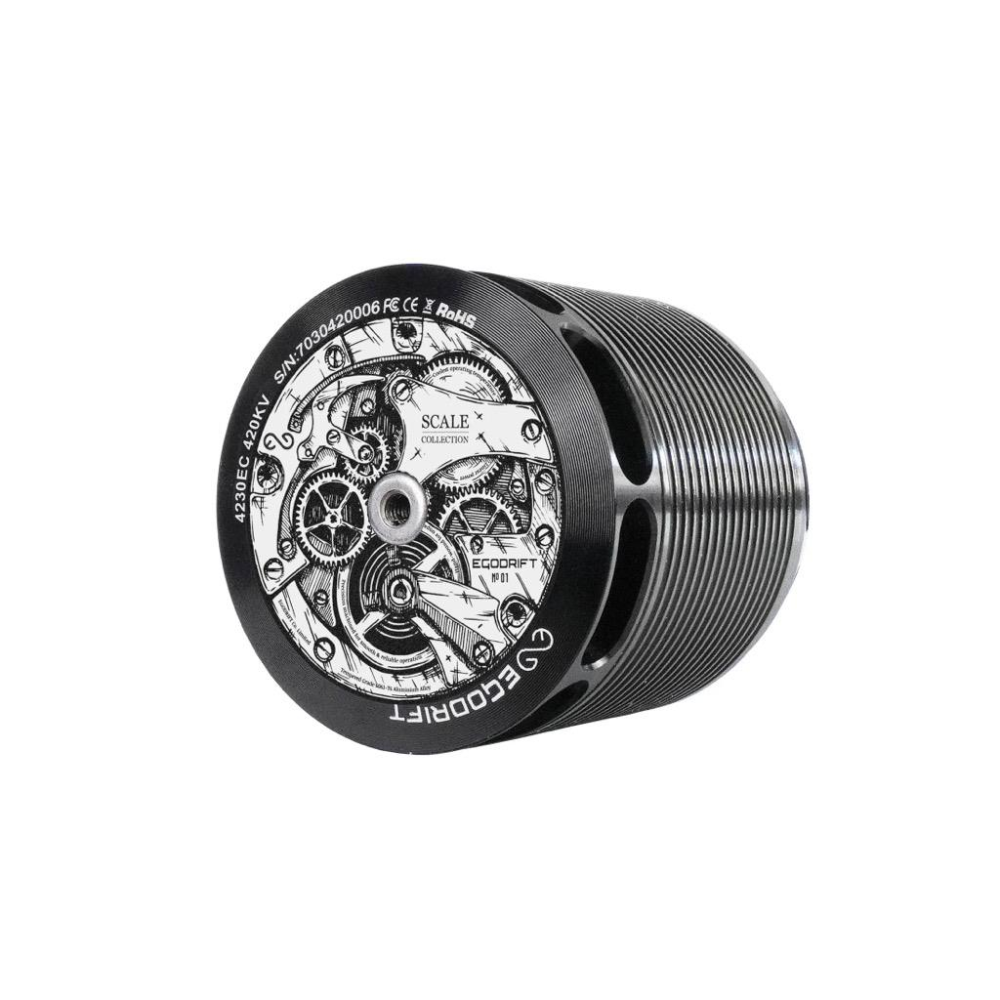

Egodrift Scale Collection 4230EC / 350Kv (6x36mm) shaft

Egodrift Scale Collection 4230EC / 350Kv (6x36mm) shaft

EGODRIFT Scale Collection 4230EC Eclipse 350Kv : 12005

The often closed fuselage of scale builds makes operating temperature a key concern for scale builders. With the development of our new EGODRIFT custom stator for the 42mm size, we managed to unlock the famously low operating temperature of our 4525 and 4530 motors (often used in larger scale projects) for builds within the 700-800 size.

Stable and smooth, efficient operation make the Scale Collection 4230EC Eclipse motors a perfect choice for your next scale project.

Users of the HSM-800 mechanics will appreciate the 4xM4(30) mounting hole pattern for the tripod bearing support and the reduced can width of the 4230, allowing installation without any need for modifications.

ESC recommendation
While the size of esc you are going to need will (of course) vary depending on your voltage and application, we do recommend to use a 130/135A esc or higher for most scenarios.

Specification

• Manufacturer : EGODRIFT
• Stator size : 4230
• Motor configuration : 12N10P (10-pole)
• Motor Kv : 350KV
• Mounting hole pattern : 4xM4(30)
• Laser Design : Scale Collection
• Stator diameter : 42mm
• Stator height : 30mm
• Stator lamination : 0.15 (+)
• Body length : 59.3mm
• Body width : 52.5mm
• Shaft diameter (external): 6mm
• Shaft length (external) : 36mm

WHAT'S IN THE BOX

• Scale Collection 4230EC Eclipse motor with 350Kv
• 3x Male/Female Gold-plated bullet connectors (Amass)
• Mounting screws (please ensure they fit your model)
• 2x EGODRIFT decal sheets
• Certificate of Authenticity
