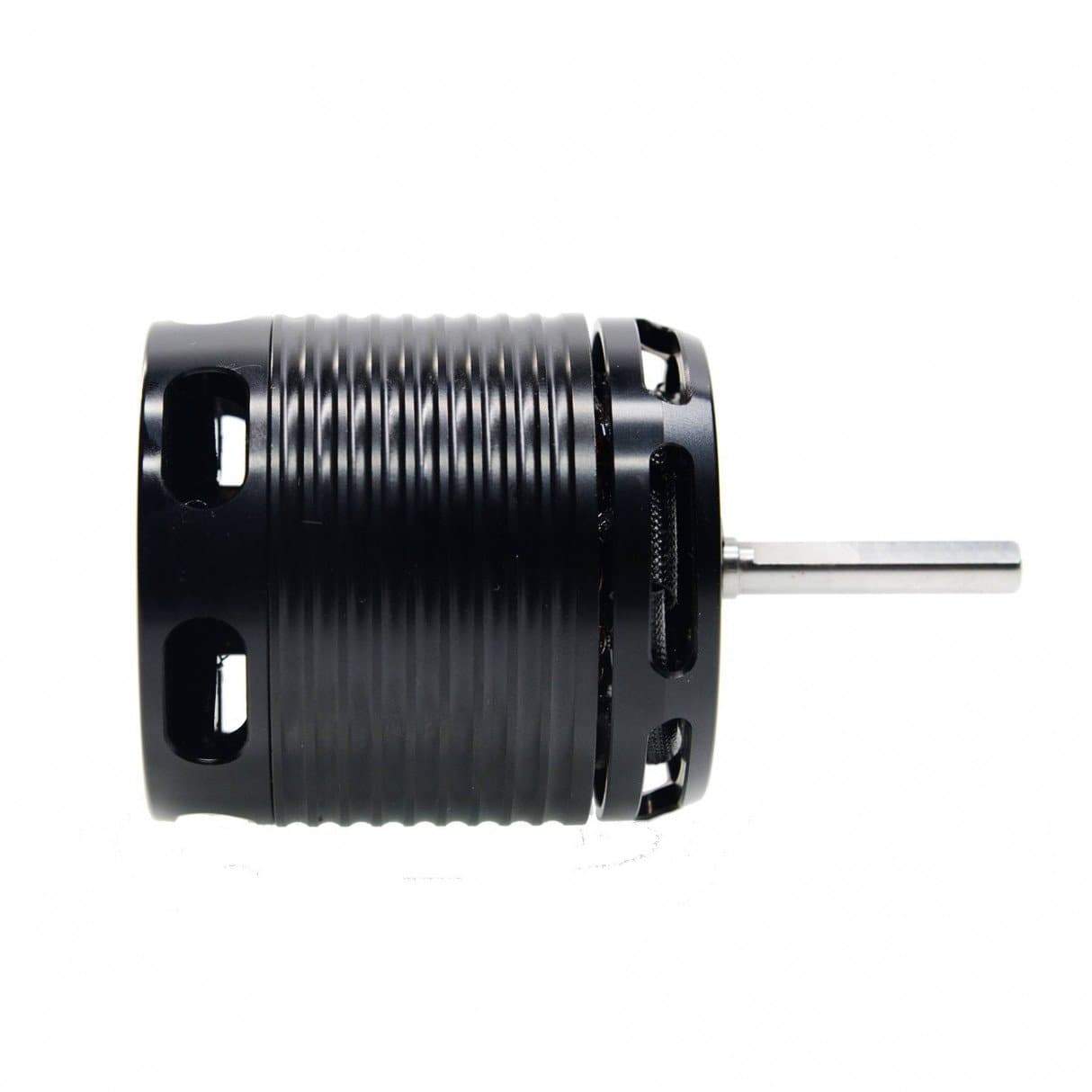

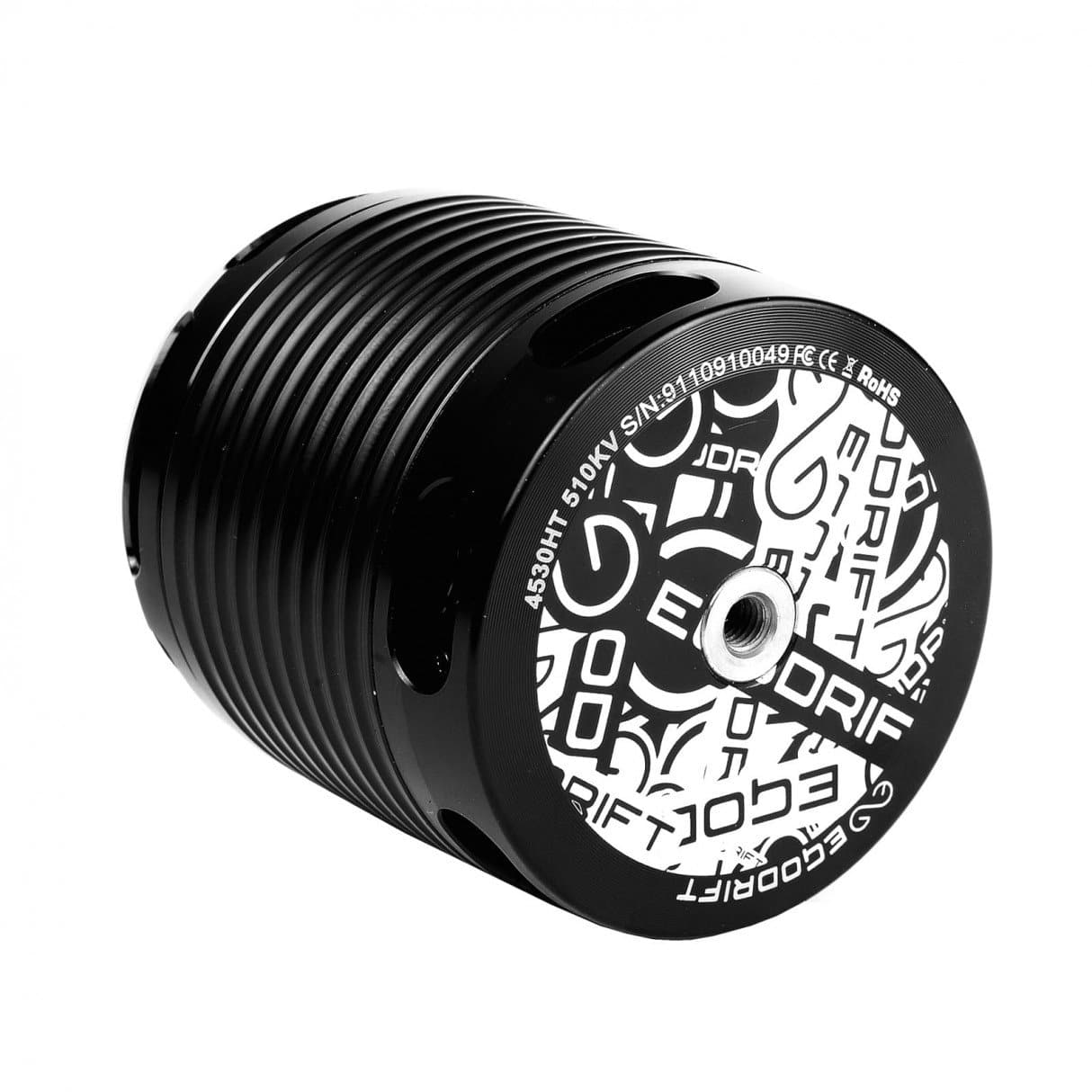

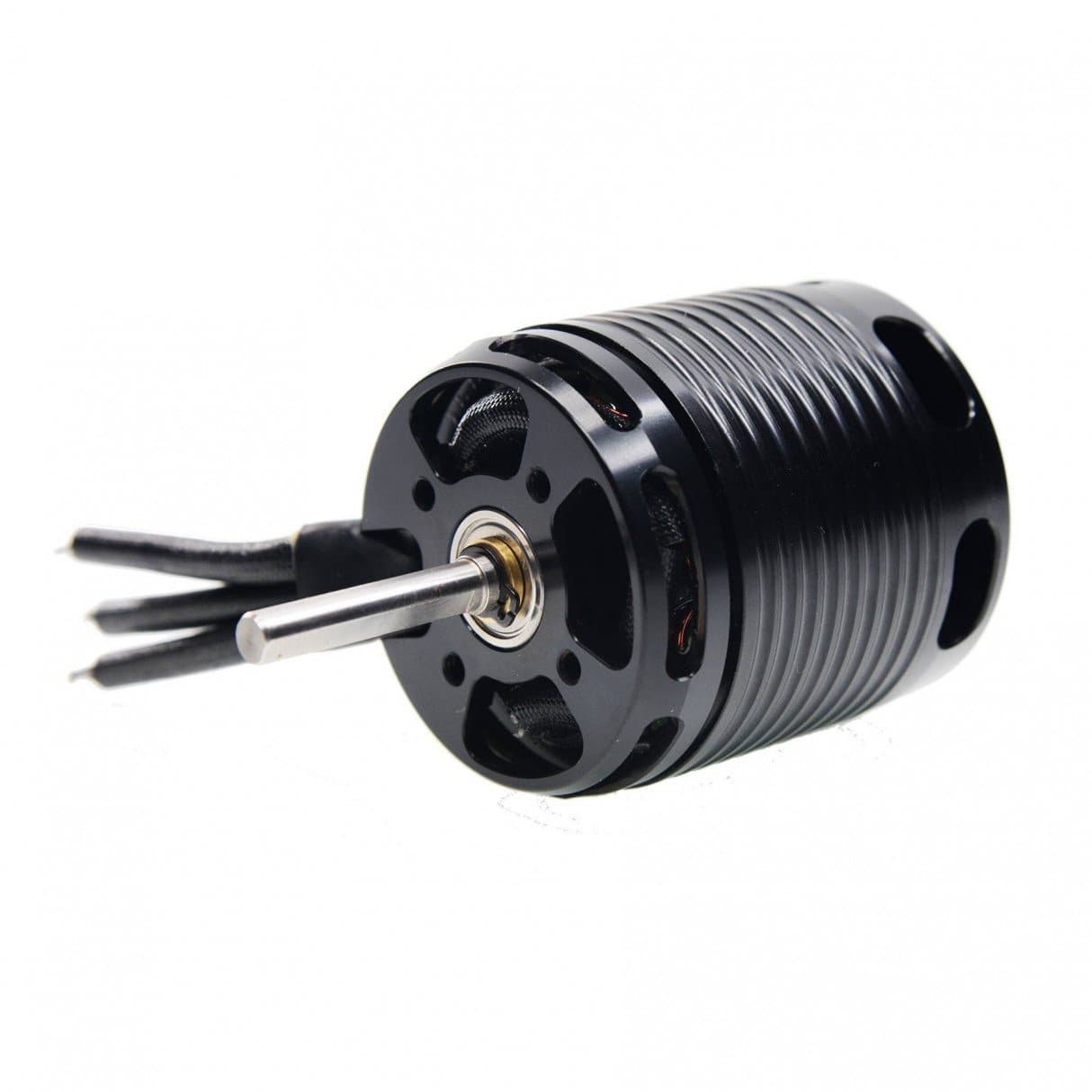

Egodrift Tengu 4530HT / 510kV Motor (55mm shaft)

Egodrift
|
11769
You will earn 399.99 points for buying this product
Price Match Guarantee
$399.99 $0.00( / )
EGODRIFT Tengu high-performance brushless motor for RC Heli are the result of one year of development and testing. The 4530HT Tengu comes with a kV rating of 510kV and fits all 700-800mm class helicopters, such as the XLPower Spectre 700, SAB Goblin 700-770, Quest Impaction, Align T-Rex 700-800, Mikado 700...

EGODRIFT Tengu high-performance brushless motor for RC Heli are the result of one year of development and testing. The 4530HT Tengu comes with a kV rating of 510kV and fits all 700-800mm class helicopters, such as the XLPower Spectre 700, SAB Goblin 700-770, Quest Impaction, Align T-Rex 700-800, Mikado 700 or Gaui 700 (and various other models).

All CNC parts are processed in our EGODRIFT factory on our Japanese Tsugami precision CNC machines for the utmost in precision and quality. We apply the same high standards to all other components used in the making of this motor, so it features EZO bearings, a custom made stator and special high temperature copper wire.

External length of the shaft: 35mm or 55mm (please choose)SPECIFICATIONS

  • Manufacturer: EGODRIFT
  • Stator size: 4530
  • Motor configuration: 12N10P
  • Motor weight: 525g (18.52oz)
  • Base Colour: Black
  • Wire colour: Copper
  • Motor wire type: High temperature copper wire
  • Motor wire: 1.3mm
  • Motor shaft: Hardened Steel
  • Shaft diameter: 6.0 mm
  • LiPo cells: 12S, 14S
  • Motor kV: 510 kV
  • Stator diameter: 45 mm
  • Stator height: 30 mm
  • Stator lamination: 0.15 mm (+)
  • Body Length: 60.58mm (2.39 inch)
  • Diameter: 56.40 mm (2.22 inch)
  • Screw hole diameter: 4,0 mm
  • Motor hole pattern: 30mm
  • Idle current: 3.9A
  • Maximum Current: 135A (Peak: 255A / 2 seconds)
  • Maximum Power: 6480W (Peak: 12240W / 2 seconds)
  • Internal resistance: 12 mOhm
  • Connection: Wire / Gold plated plugs
  • Designer: Yutao Zou



Type:

Heli Motors

Vendor:

Egodrift

SKU:

11769

Weight:

2.0 lb


Product Spare Parts

Customer Reviews

Based on 2 reviews
100%
(2)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
A
Alex I.
Egodrift Tengu 4530HT / 510kV Motor (55mm shaft)

I love this motor. I got one on my GOBLIN 770, and now in to my TRex-800 DFC Pro. It runs way cooler than the motor that came with the TRex-800.
I'll probably buying two more of this in the future for my VELOS-880.

J
Jeff
Excellent motor choice!

I came from a non lightning xnova motor. It was running on the hotter side in my Kraken and I honestly thought it needed just a bit more power. Look no further with this Egodrift option!. It has excellent cooling. (I live in a hot tropical environment) and the power is just ridiculous. In a very good way lol. I think anyone that flys helis will appreciate the quality and sheer performance this series of motors has to offer at an excellent price to boot. Just try it and the motor speaks for itself
