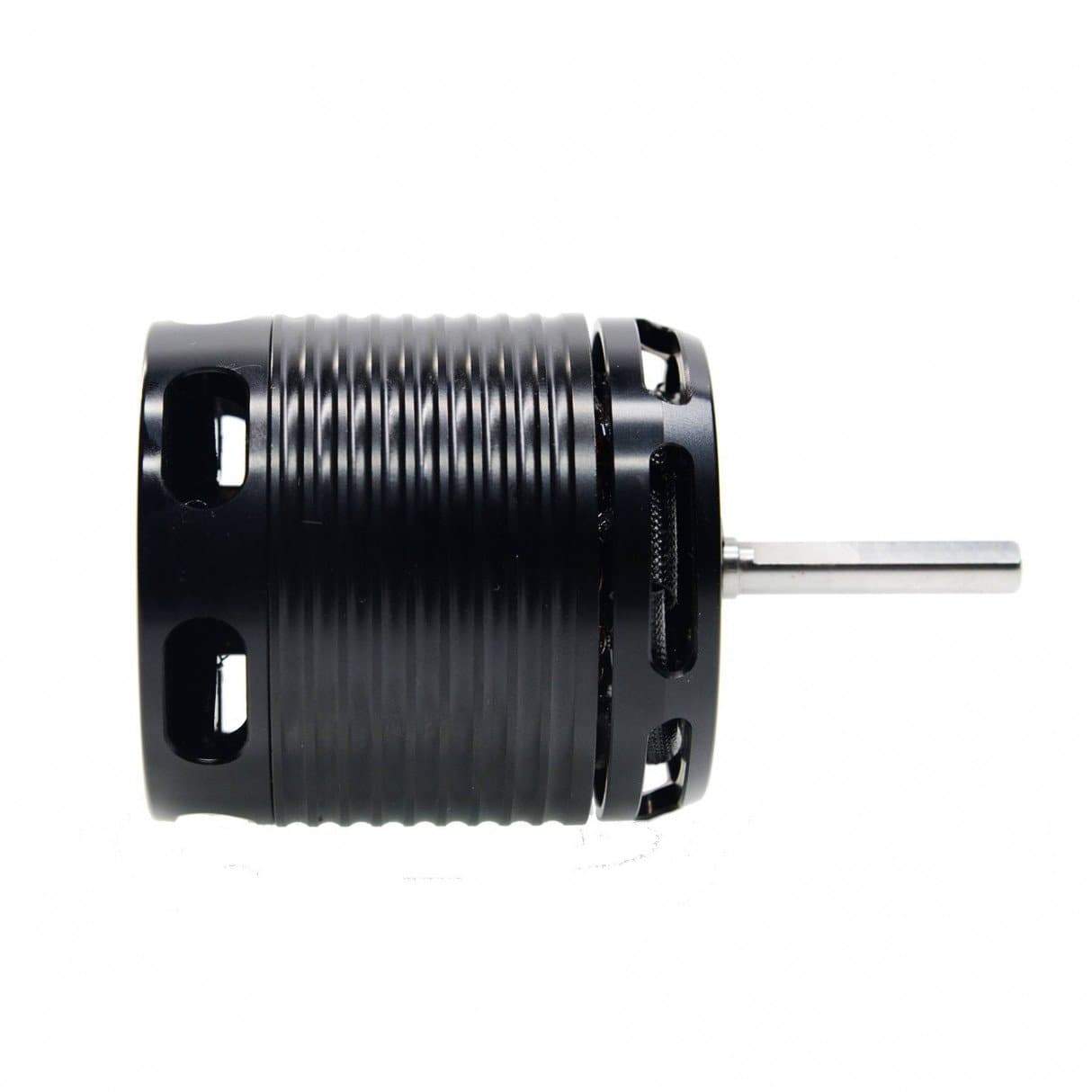

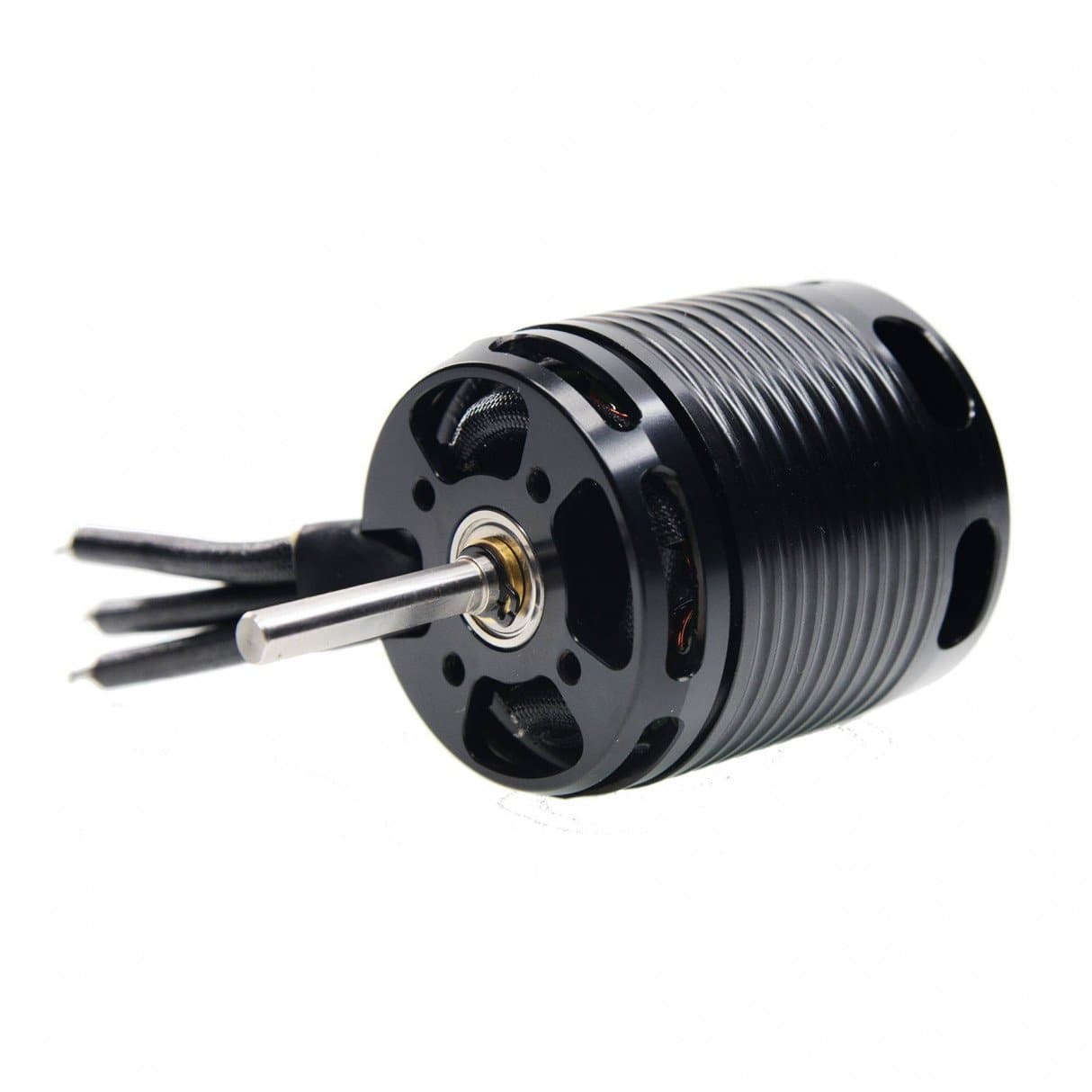

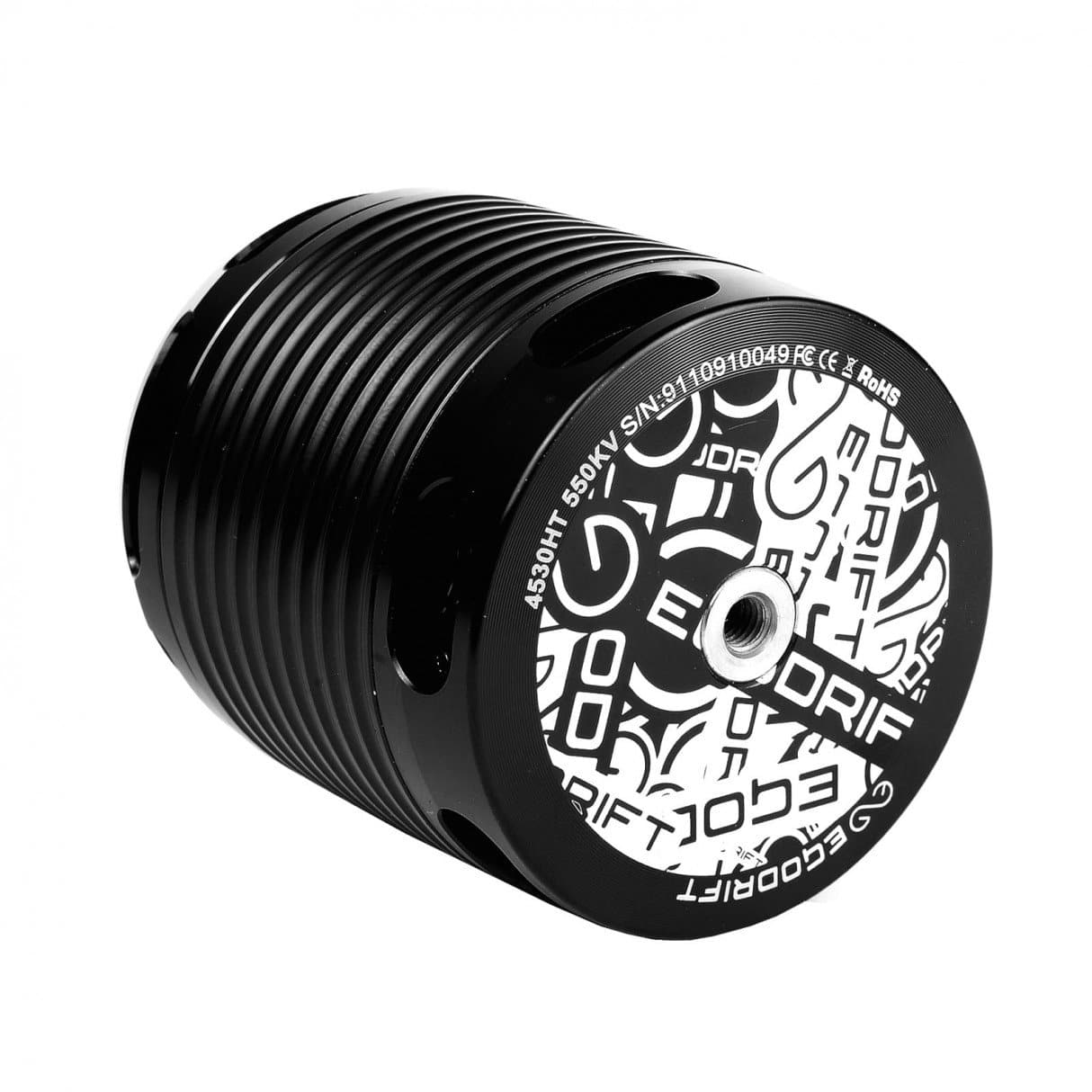

Egodrift Tengu 4530HT / 550kV Motor (55mm shaft)
){kind=link}
EGODRIFT Tengu high-performance brushless motor for RC Heli are the result of one year of development and testing. The 4530HT Tengu comes with a kV rating of 550kV and fits all 700mm class helicopters, such as the XLPower Spectre 700, SAB Goblin 700-770, Quest Impaction, Align T-Rex 700-800, Mikado 700 or Gaui 700 (and various other models).
All CNC parts are processed in our EGODRIFT factory on our Japanese Tsugami precision CNC machines for the utmost in precision and quality. We apply the same high standards to all other components used in the making of this motor, so it features EZO bearings, a custom made stator and special high temperature copper wire.
External length of the shaft: 35mm or 55mm (please choose)
SPECIFICATIONS
- Manufacturer: EGODRIFT
- Stator size: 4530
- Motor configuration: 12N10P
- Motor weight: 532g (18.77oz)
- Base Colour: Black
- Wire colour: Copper
- Motor wire type: High temperature copper wire
- Motor wire: 1.4mm
- Motor shaft: Hardened Steel
- Shaft diameter: 6.0 mm
- LiPo cells: 12S, 14S
- Motor kV: 550 kV
- Stator diameter: 45 mm
- Stator height: 30 mm
- Stator lamination: 0.15 mm (+)
- Body Length: 60.58mm (2.39 inch)
- Diameter: 56.40 mm (2.22 inch)
- Screw hole diameter: 4,0 mm
- Motor hole pattern: 30mm
- Idle current: 4.8A
- Maximum Current: 145A (Peak: 265A / 2 seconds)
- Maximum Power: 6960W (Peak: 13300W / 2 seconds)
- Internal resistance: 9.9 mOhm
- Connection: Wire / Gold plated plugs
- Designer: Yutao Zou
| Type: | |
|---|---|
| Vendor: | |
| SKU: |
11771 |
| Weight: |
2.0 lb |
Product Spare Parts
Customer Reviews
Smooth powerful motor!
GRETA MOTOR
this is the second one i purchased it works so good in my soxos 7.1 i bought one for my kraken 700
VERY POWERFUL MOTOR
VERY POWERFUL MOTOR

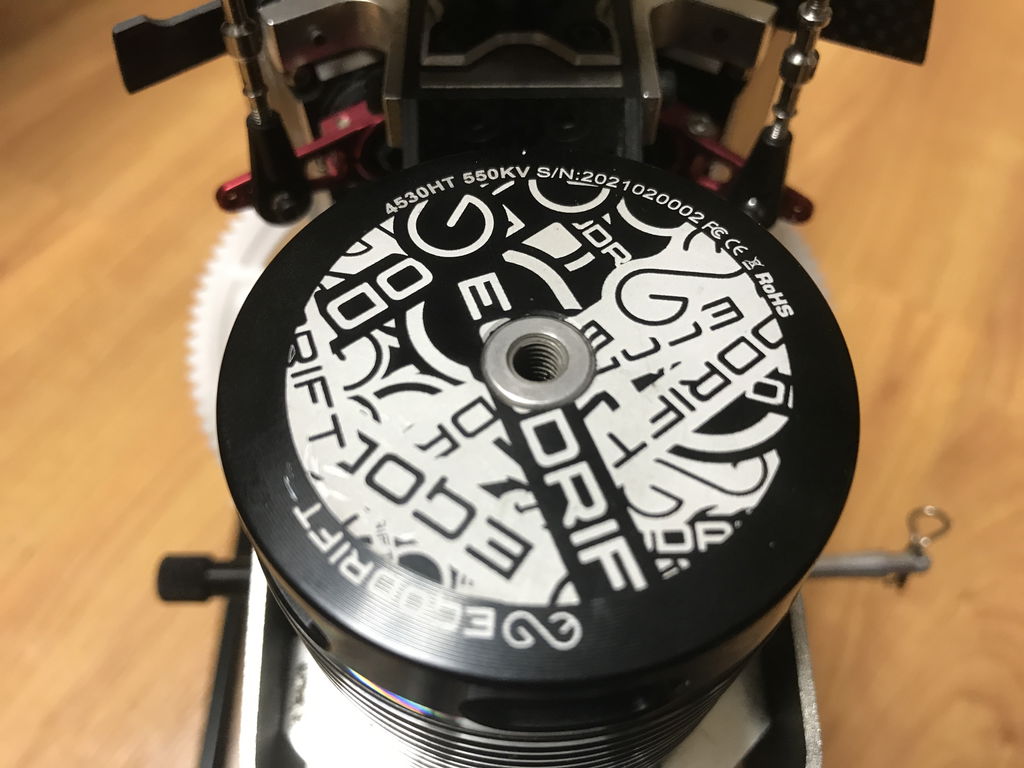

I installed this motor in my soXox strike 7.1 and it made a world of difference
i had a scorpion 4025 520kv this motor has so much more power
i'm very happy
Very nice motor…lots of hp and torque.
Very smooth power espevially under a load.
Live it!!!
Loving this new motor my first try with Egodrift, motor runs cool, strong and efficient. All the torque I was looking for !
Egodrift motors are strong, cool running, and efficient. I run them on all my helis. I keep finding myself surprise on how strong these motors are.
This motor is a great choice for the 3-blade Kraken 700. It does not overheat and does the job well.
