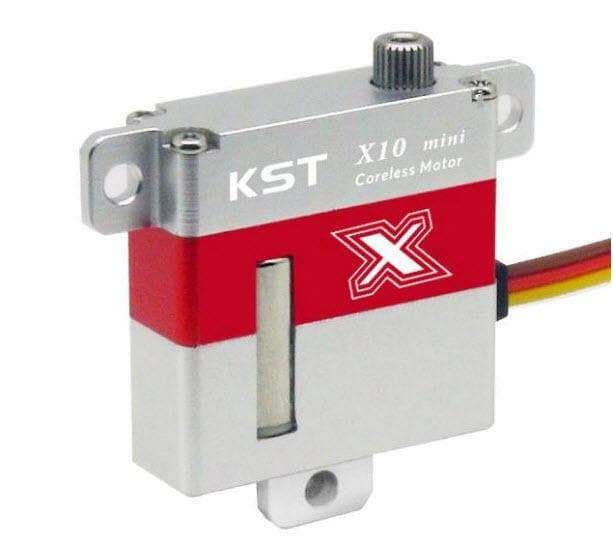

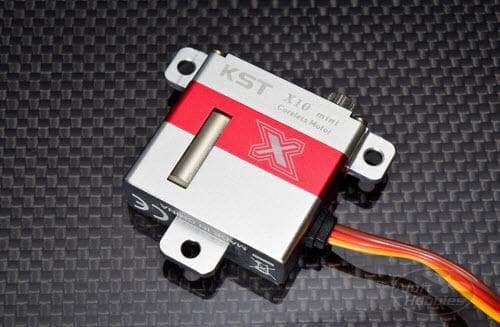

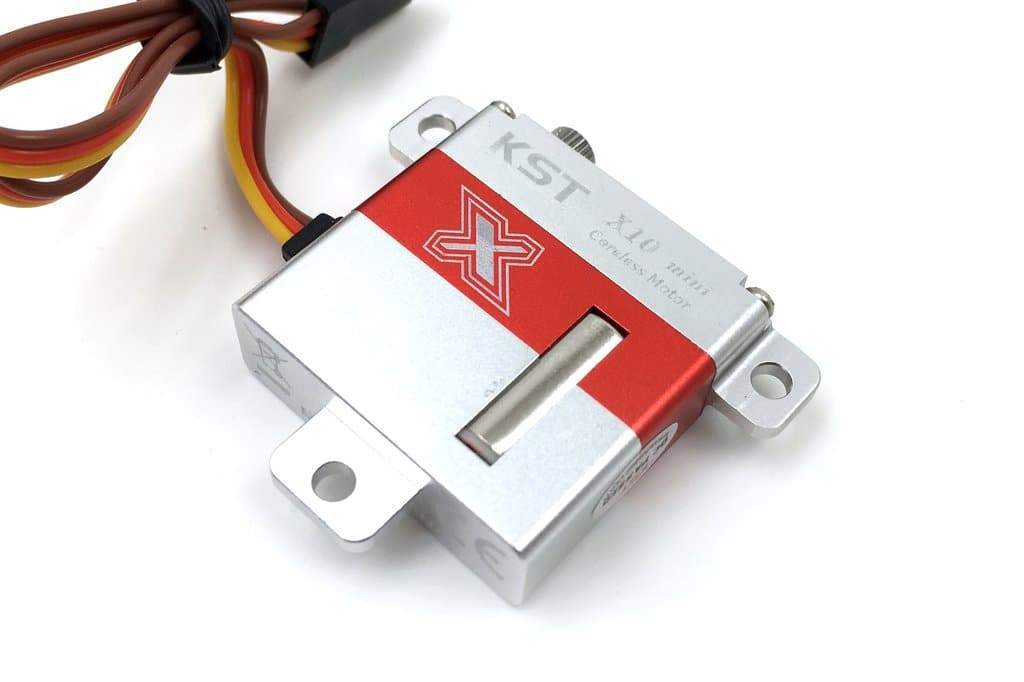

KST X10 Mini Wing Servo

KST Servo
|
X10-MINI
You will earn 45 points for buying this product
Price Match Guarantee
$38.25 $45.00( / )
KST X10 Mini Thin Wing ServoA perfect fit for aircraft like the SAB Avio KR84 Tortuga, the KST X10 Mini servo utilizes an improved motor controller that drives a coreless motor, which in turn rotates a minimal backlash hardened steel dual ball bearing gear train encased within a heat dissipating...

KST X10 Mini Thin Wing Servo


A perfect fit for aircraft like the SAB Avio KR84 Tortuga, the KST X10 Mini servo utilizes an improved motor controller that drives a coreless motor, which in turn rotates a minimal backlash hardened steel dual ball bearing gear train encased within a heat dissipating 7075 aluminum CNC machined enclosure for maximum levels of servo performance.

Digital, high torque, ultra fast and HV ready, the KST Mini is the perfect thin wing servo for multitudes of fixed wing applications with KST quality that is proven and ready for high performance flight.

Features:

- Digital Servo
- High Torque Coreless Motor
- Excellent Torque & Speed
- HV 8.4V Ready w/ Wide 6V - 8.4V Voltage Range
- Ultra Thin Profile
- CNC Machined 7075 Aluminum Case
- Designed for Thermal Dissipation via Aluminum Case
- Hardened Steel Ultra Strong Servo Gears

Specifications:

- Servo Type: Digital
- Gear Type: Hardened Steel
- Stall Torque: 5.5Kg.cm (76.38 oz. in) @ 6.0V / 6.8Kg.cm (94.43 oz. in) @ 7.4V / 7.5Kg.cm (104.16 oz. in.) @ 8.4V
- Speed: .13 sec / 60 Degrees @ 6.0V / .11 sec / 60 Degrees @ 7.4V / .09 sec / 60 Degrees @ 8.4V
- Dimensions: 30mm x 10mm x 30mm (W x L x H)
- Weight: 23g
- Operating Voltage: 6.0V - 8.4V

Type:

Plane Electronics

Vendor:

KST Servo

SKU:

X10-MINI

Weight:

0.3 lb


Product Spare Parts

Customer Reviews

Based on 6 reviews
83%
(5)
17%
(1)
0%
(0)
0%
(0)
0%
(0)
J
Jonathan M.
Awesome fast shipping

As discribe awesome servoss

R
Rendy C.
Quality wing servo

This is an extremely high quality servo. I wish i found this one sooner.

S
Steve L.
Nice Wing Servo

These servos work extremely well. They have lots of torque, center very well and are reasonably priced. You can't go wrong with these.

C
Chris G.
Lizard Approved

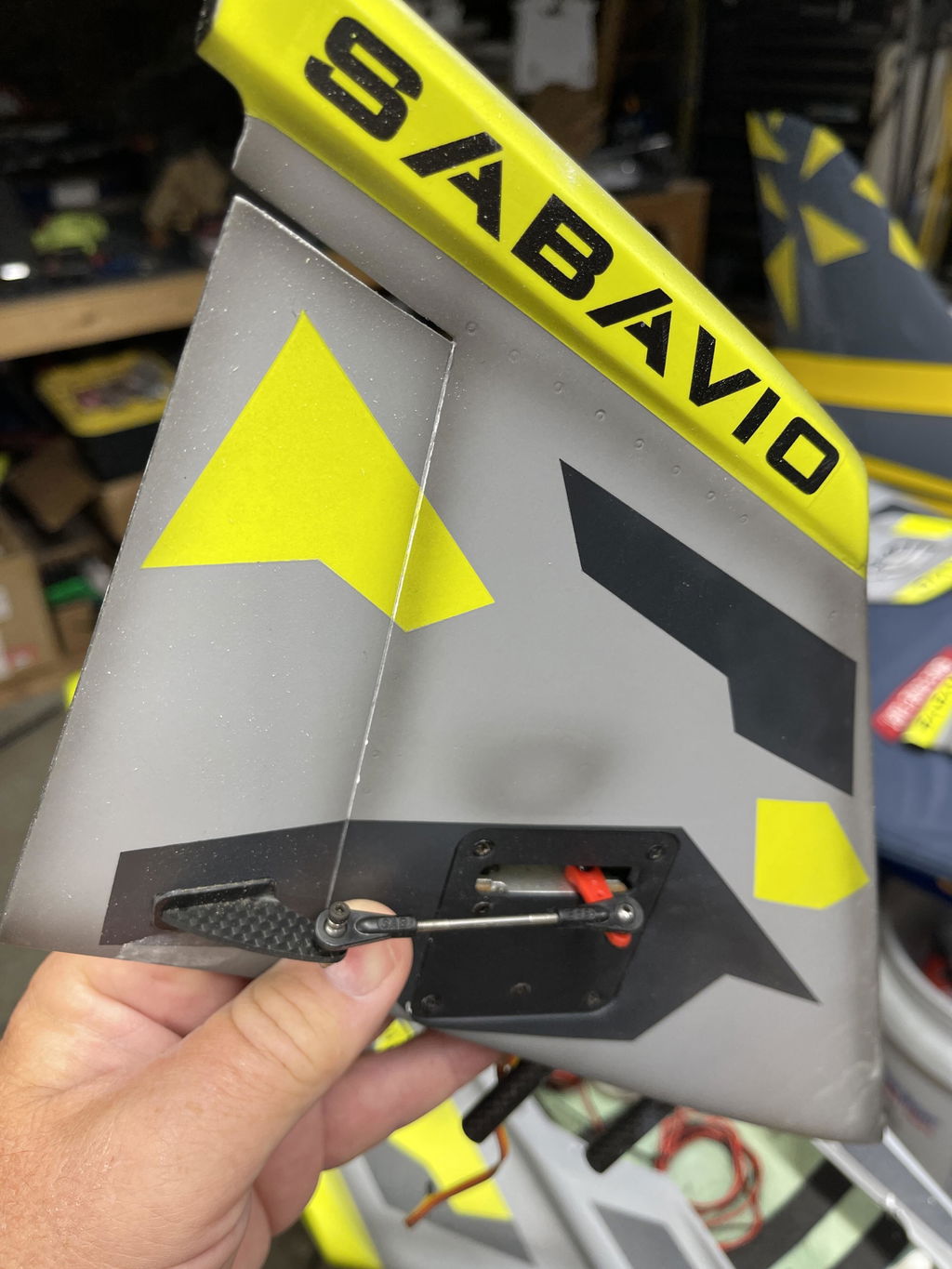

I bought these for my SAB Lizard rudders, and they are perfect! They’re fast and don’t make any unnecessary noises. Highly recommended.
