MEUS Racing Brushless Motor for 1/18 TRX4M 1/24 SCX24 1/30 SCX30 RC Crawlers

MEUS Racing 1621 2850KV Brushless Motor for 1/18 TRX4M, 1621 3400KV Brushless Motor for 1/30 SCX30, 1621 3400KV Brushless Motor and 1806 2600KV Brushless Motor for 1/24 SCX24.

Key Features:

• 1. High-efficiency output and stronger power

• 2. Quieter than a brushed system, with less noise

• 3. Offering precise low-speed crawling performance while maintaining smooth, consistent power delivery.

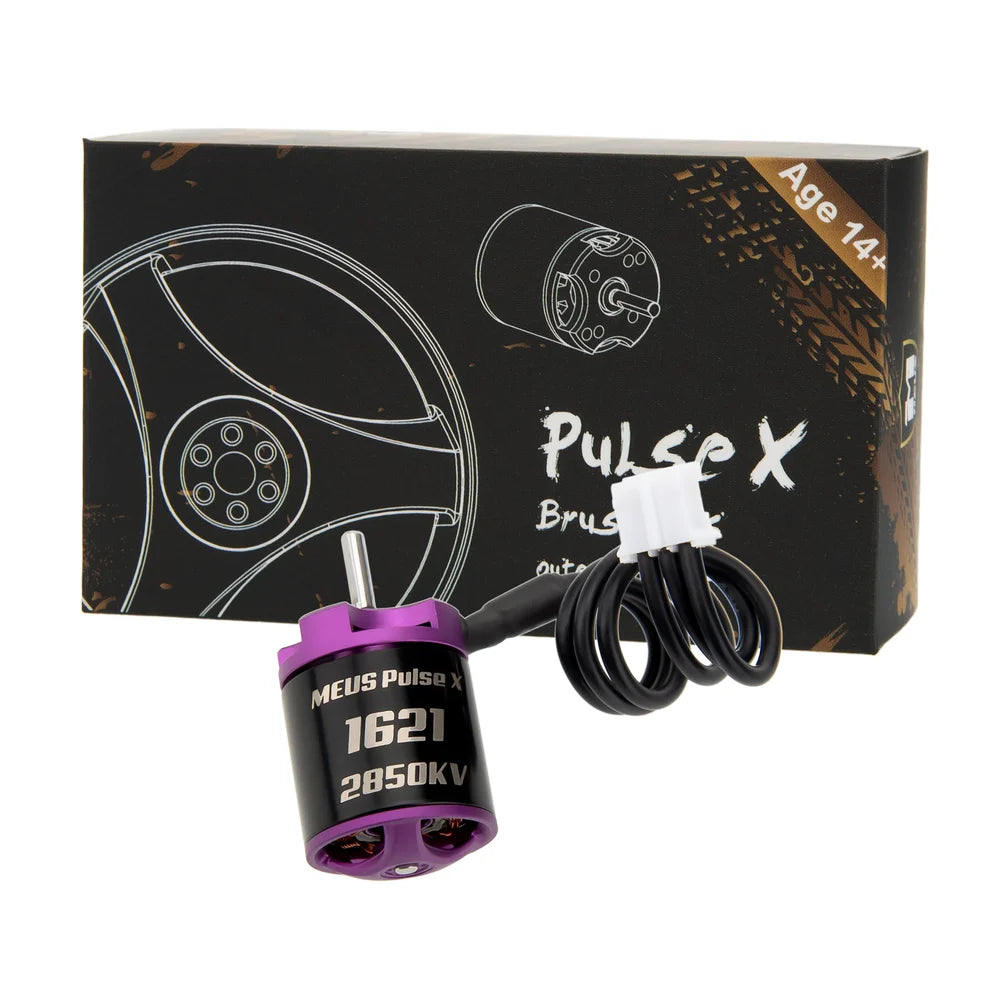

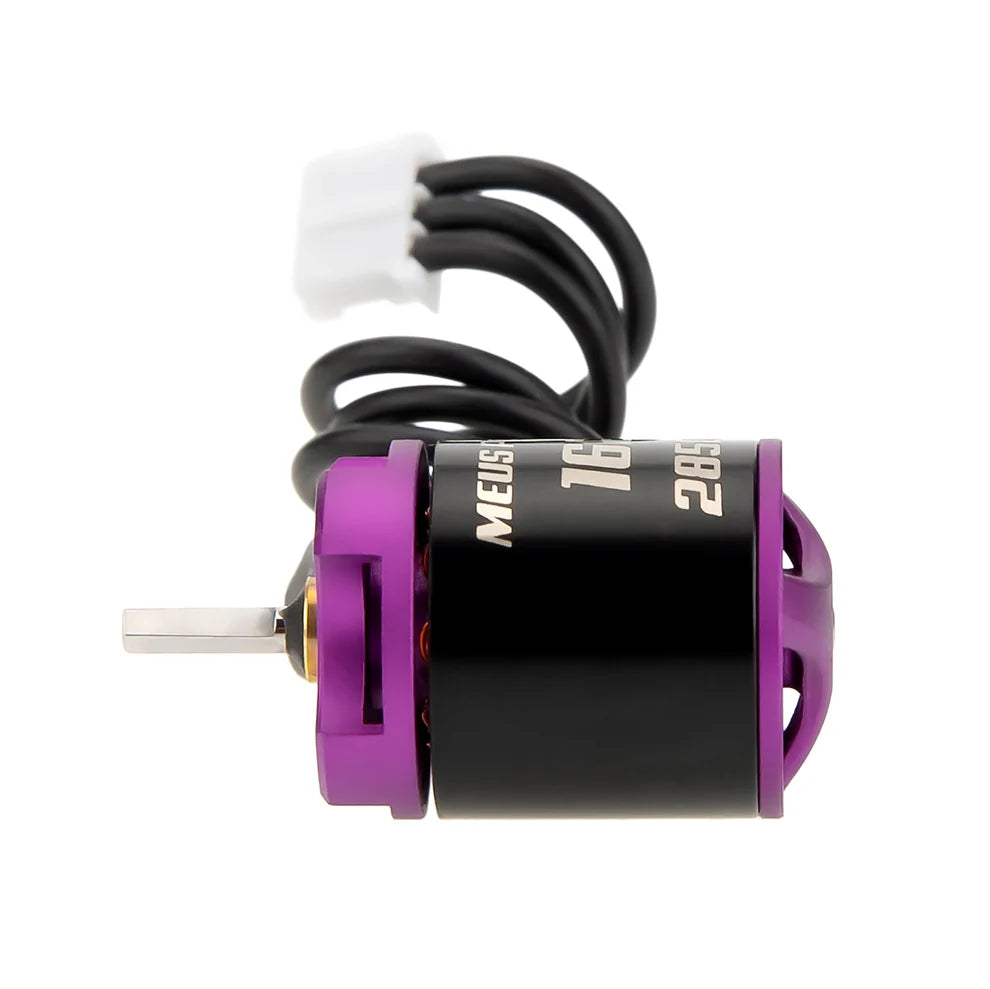

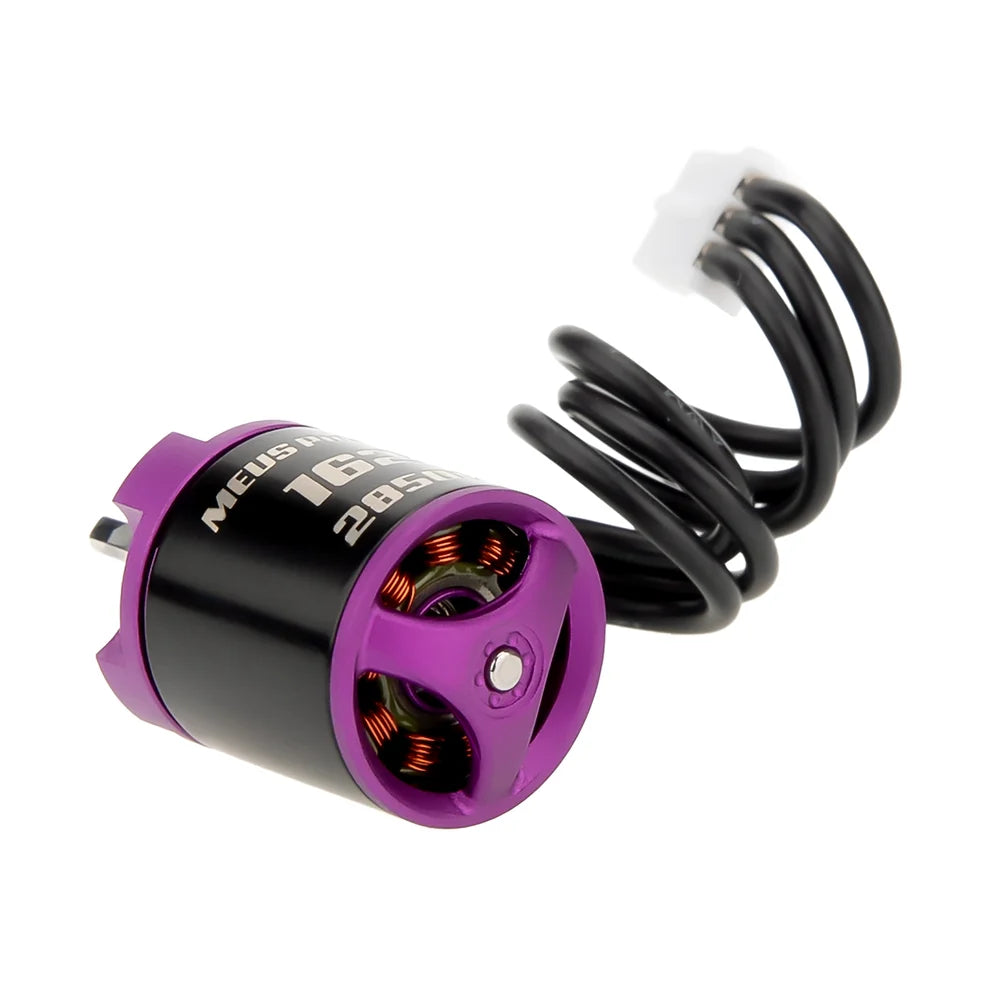

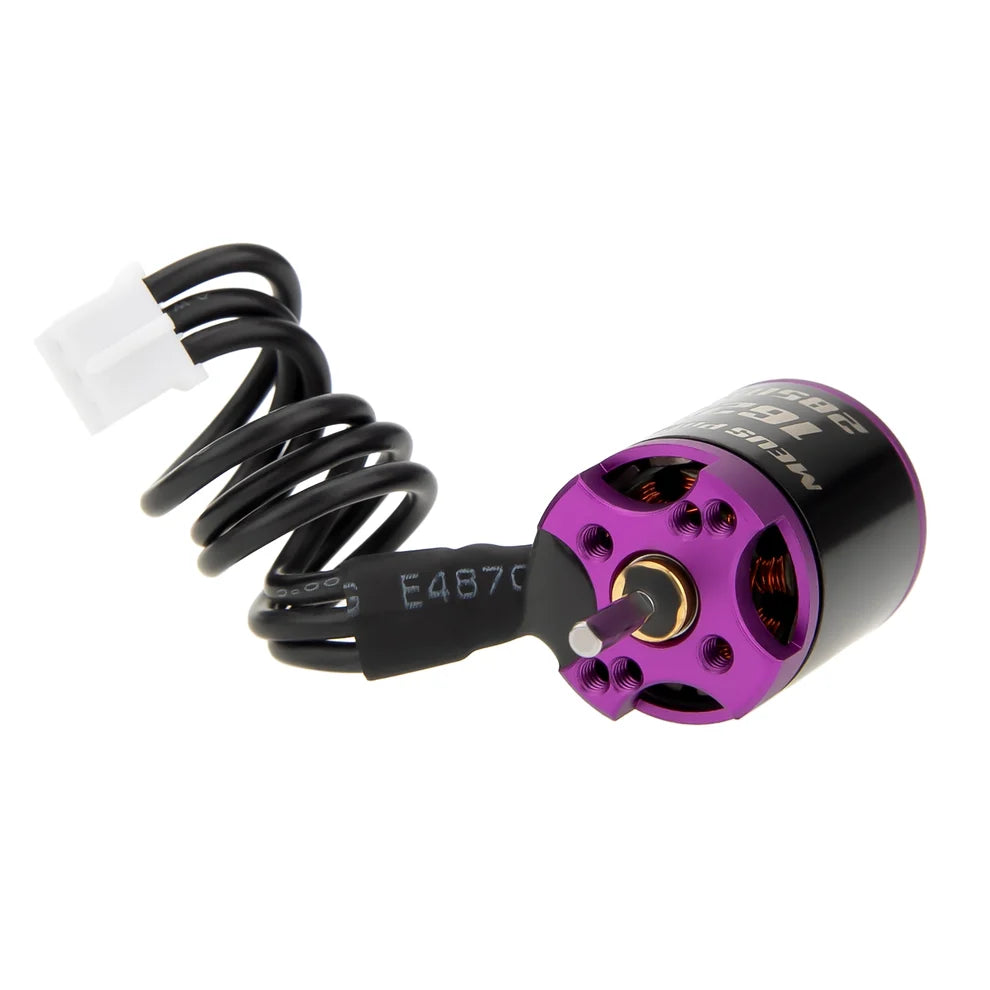

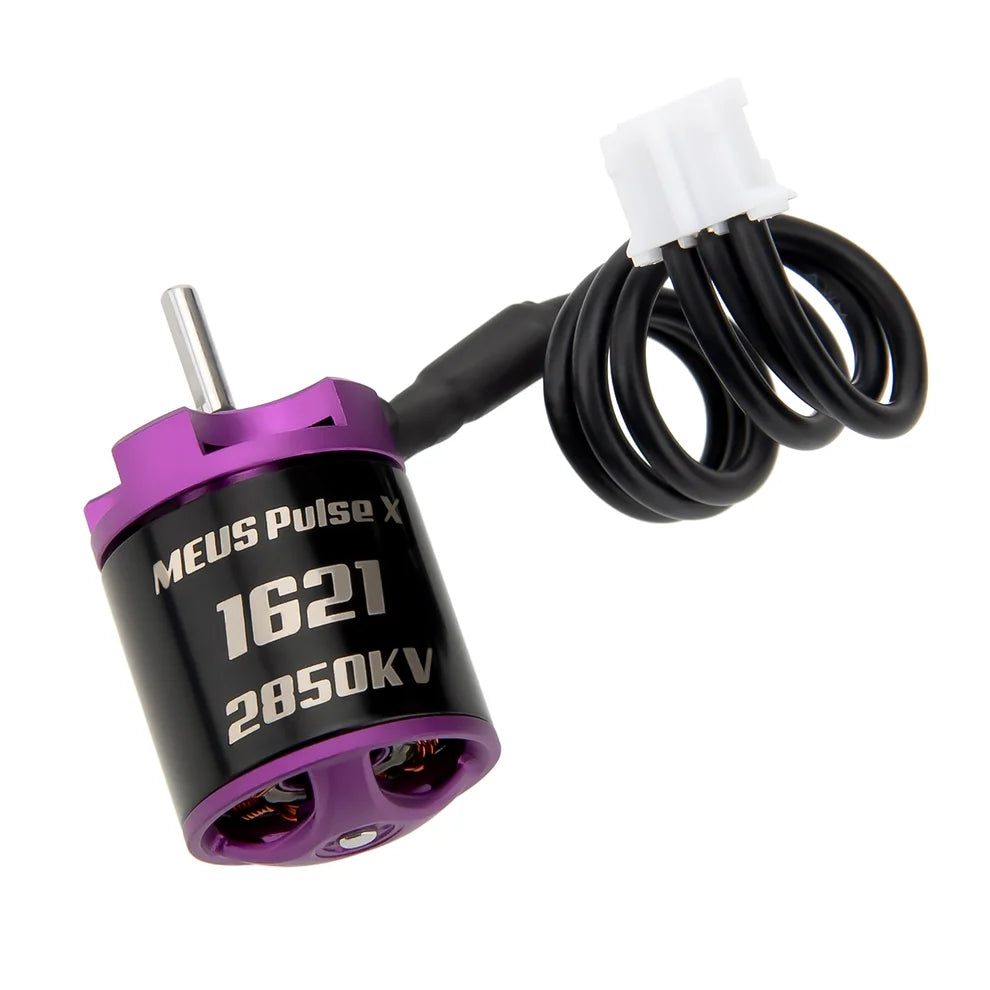

1621 2850KV Brushless Motor For TRX4M:

• RPM/Volt: 2850KV
• Motor Output Shaft: diameter 2 mm, length 8.5 mm
• Weight: 16g
• Dimensions: Φ16*21.5mm
• Working voltage: 7.4-12.6V(2-3S)
• Motor Connectors: PH2.0 3-Pin
• No-Load Current: 0.7A

• Max Peak Current: 18A

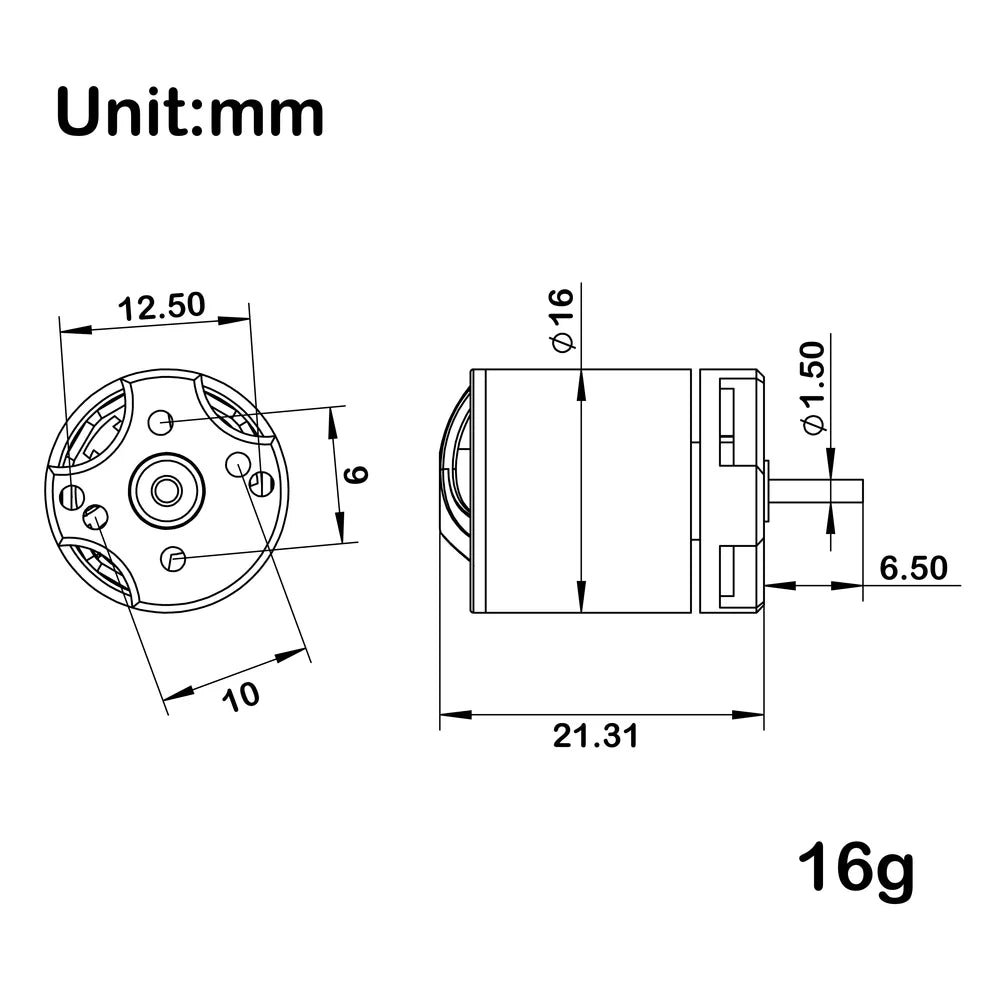

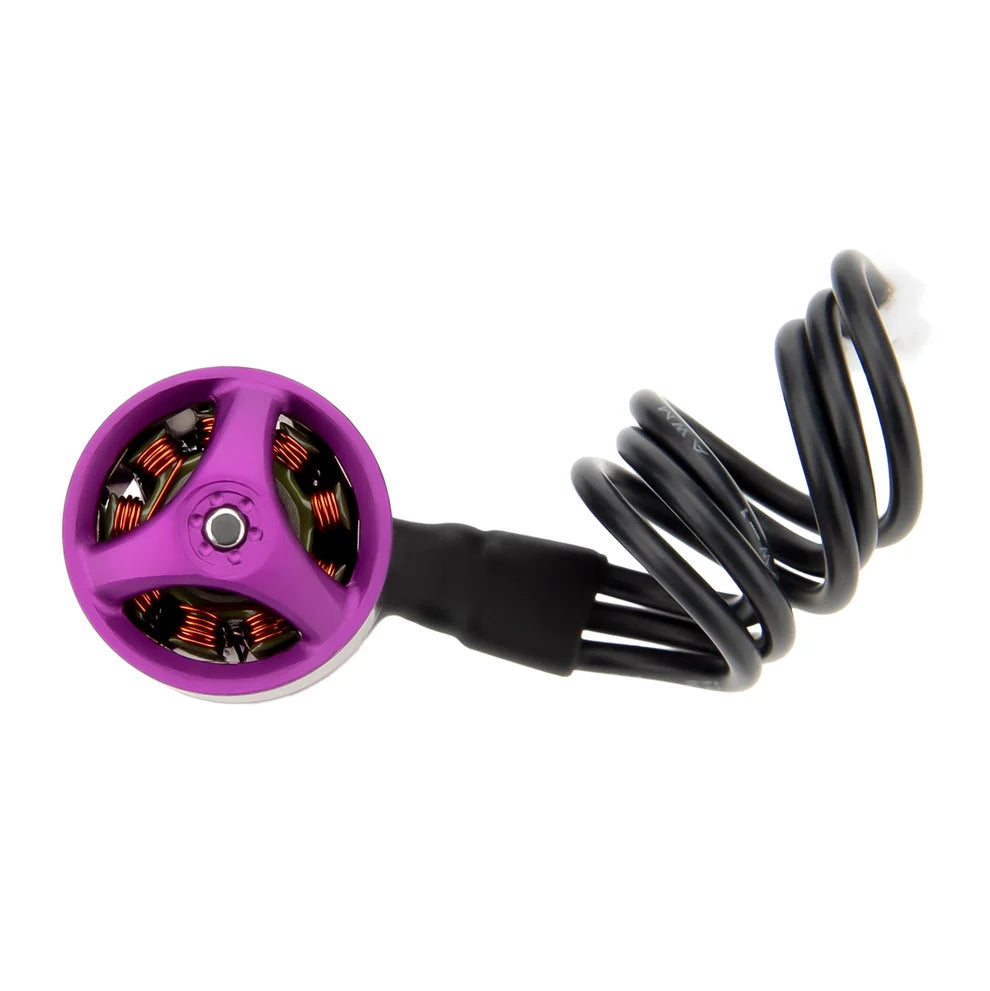

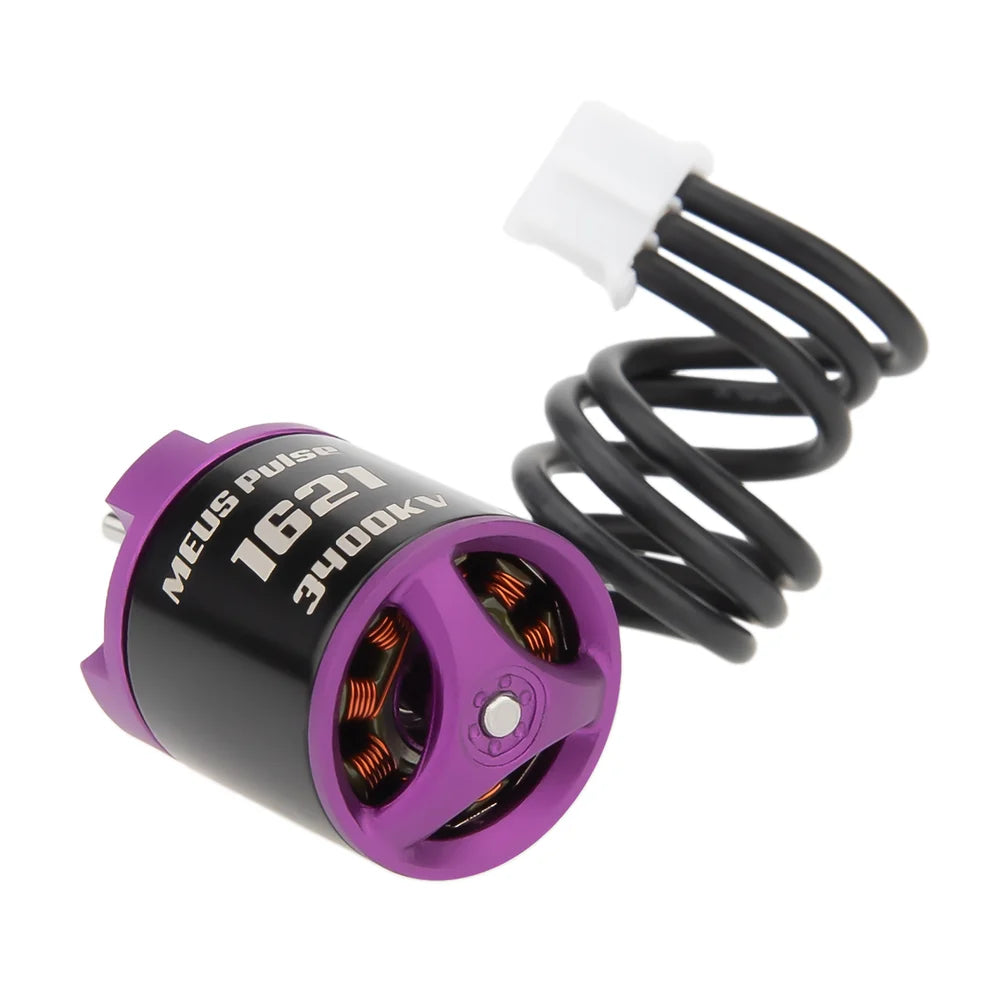

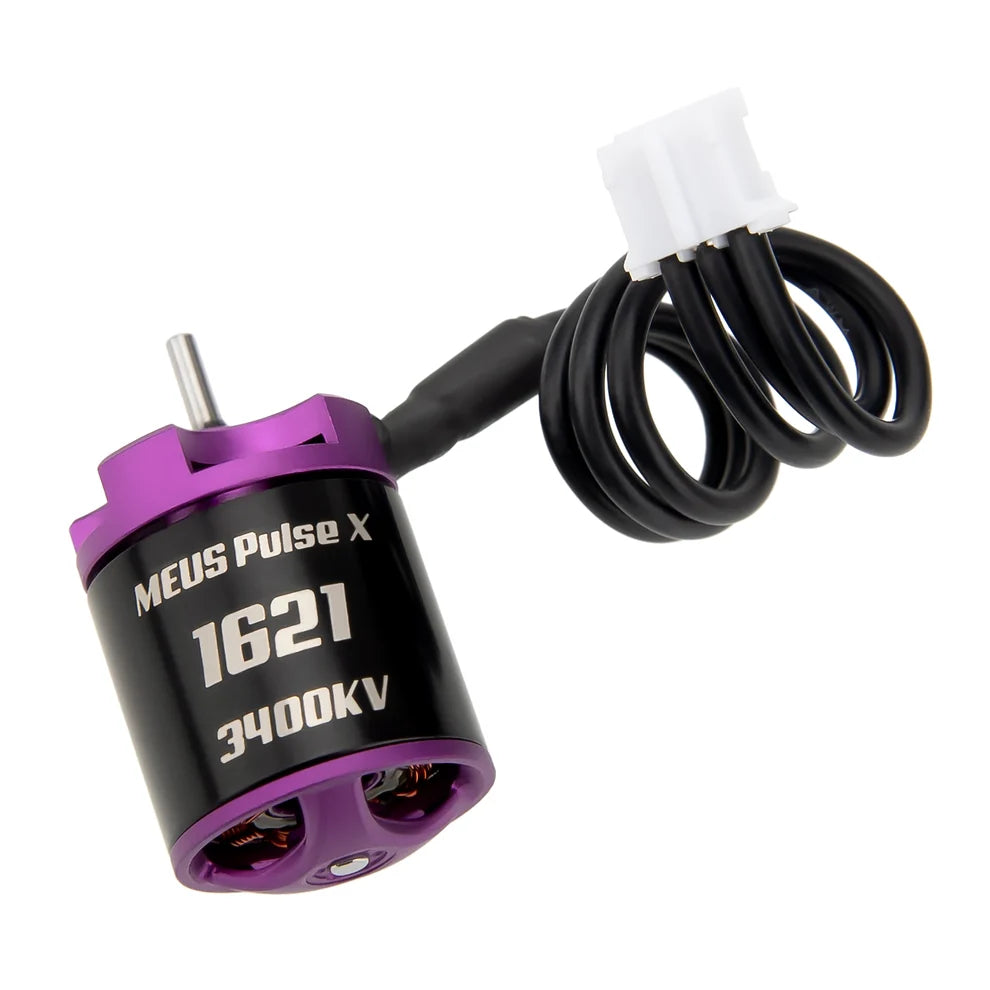

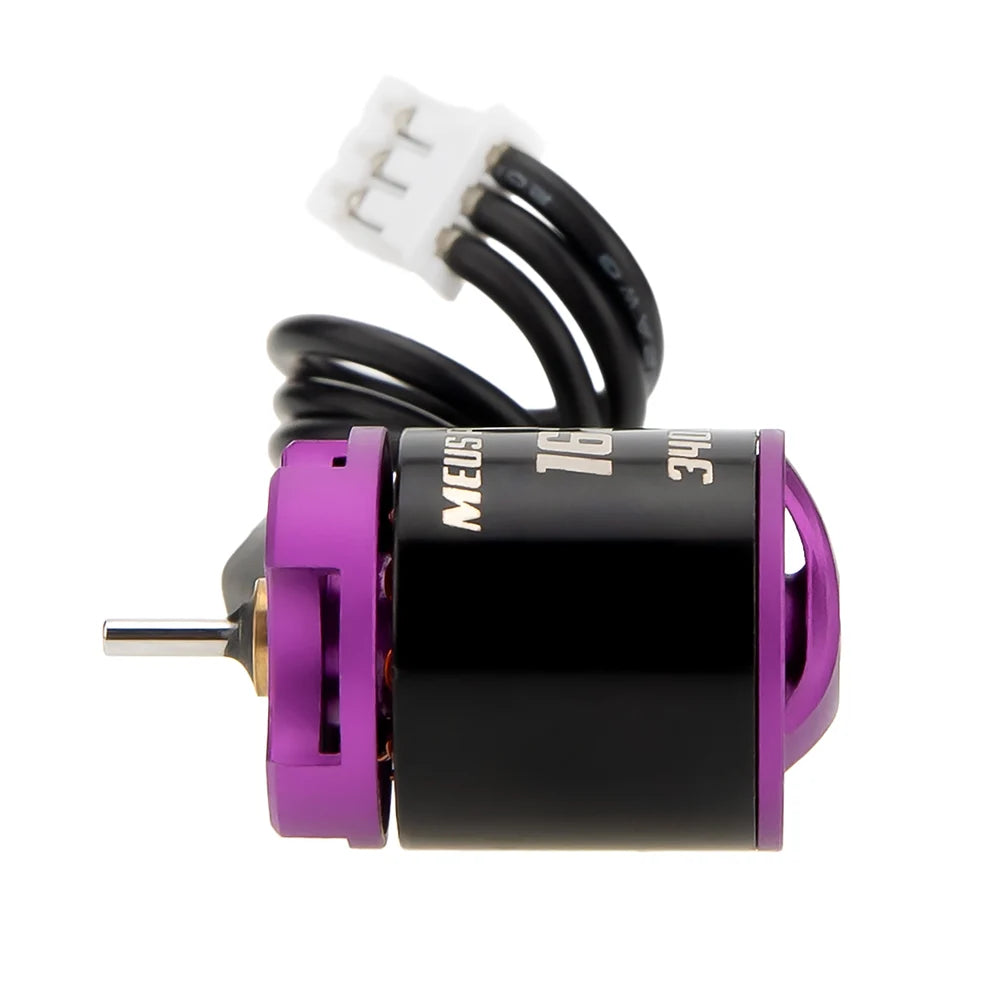

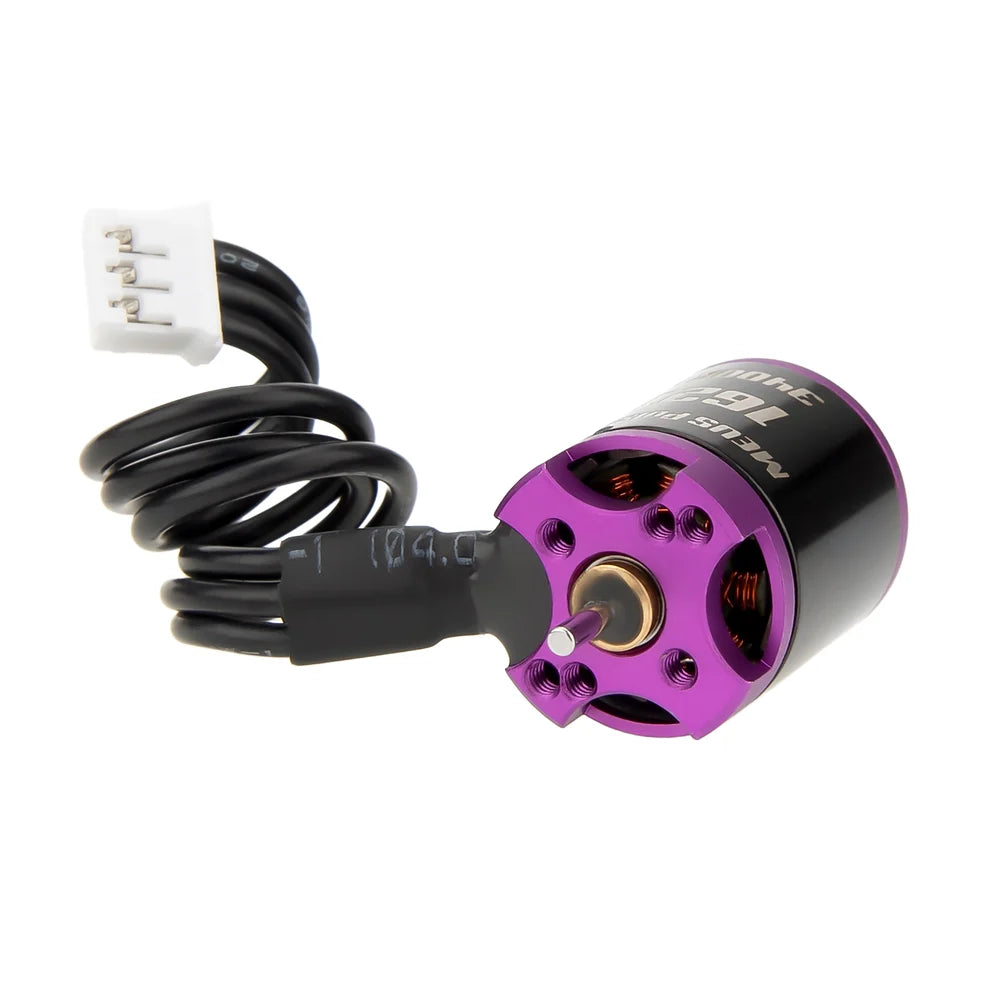

1621 3400KV Brushless Motor for SCX30:

• RPM/Volt: 3400KV
• Motor Output Shaft: diameter 1.5 mm, length 6.5 mm
• Weight: 16g
• Dimensions: Φ16*21.5mm
• Working voltage: 7.4-12.6V(2-3S)
• Motor Poles: 12
• Motor Connectors: PH2.0 3-Pin
• No-Load Current: 0.7A

• Max Peak Current: 18A

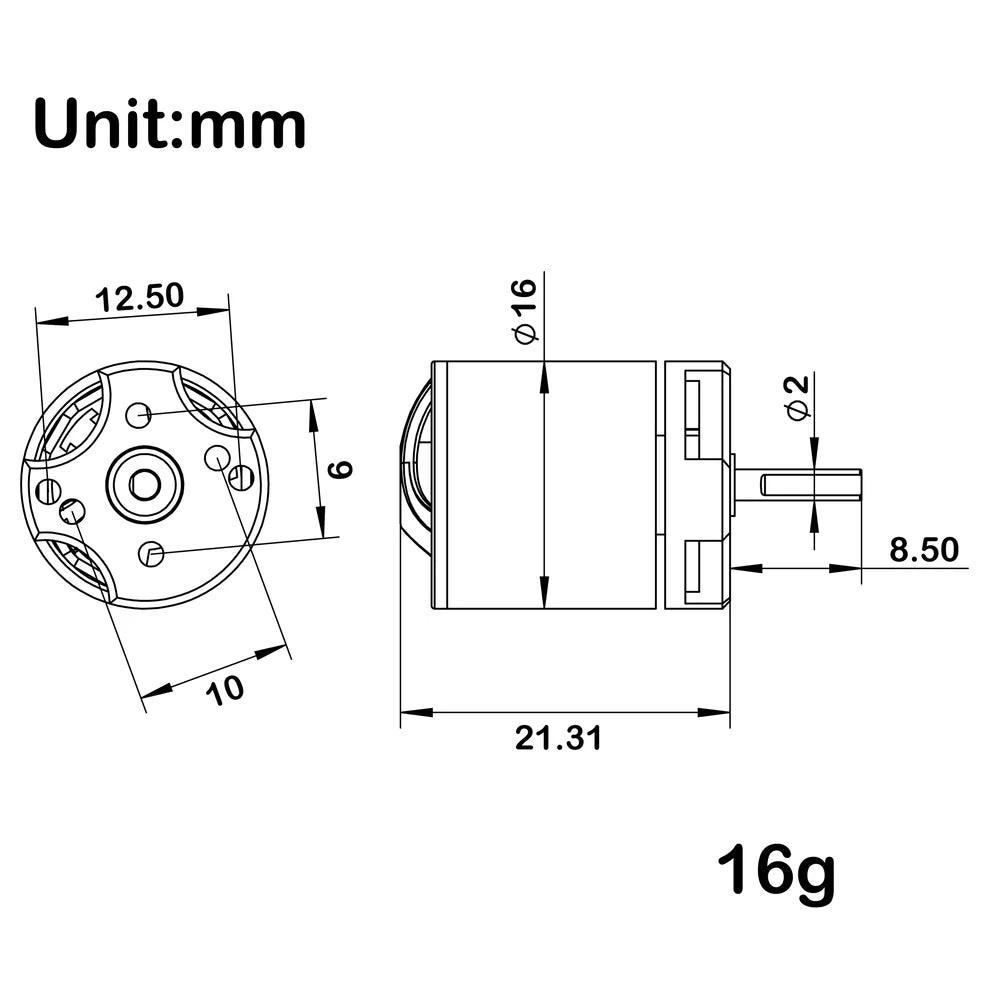

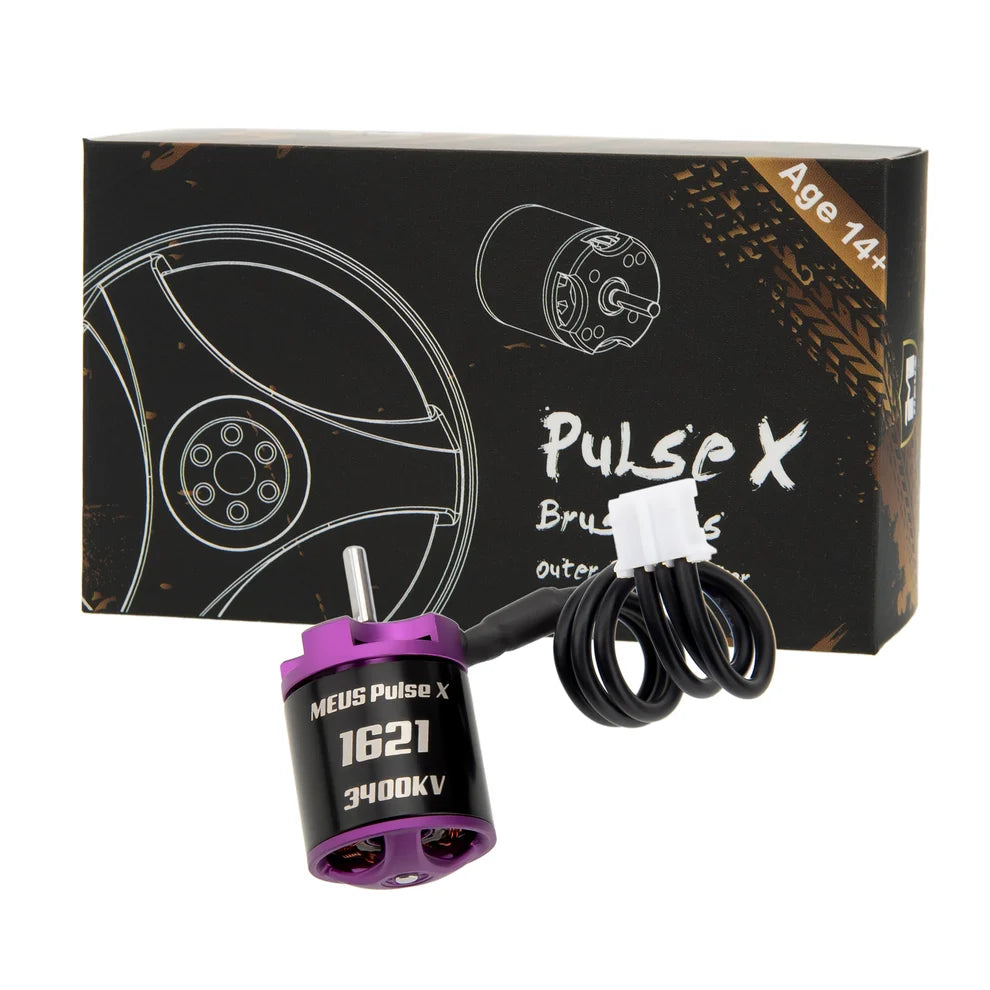

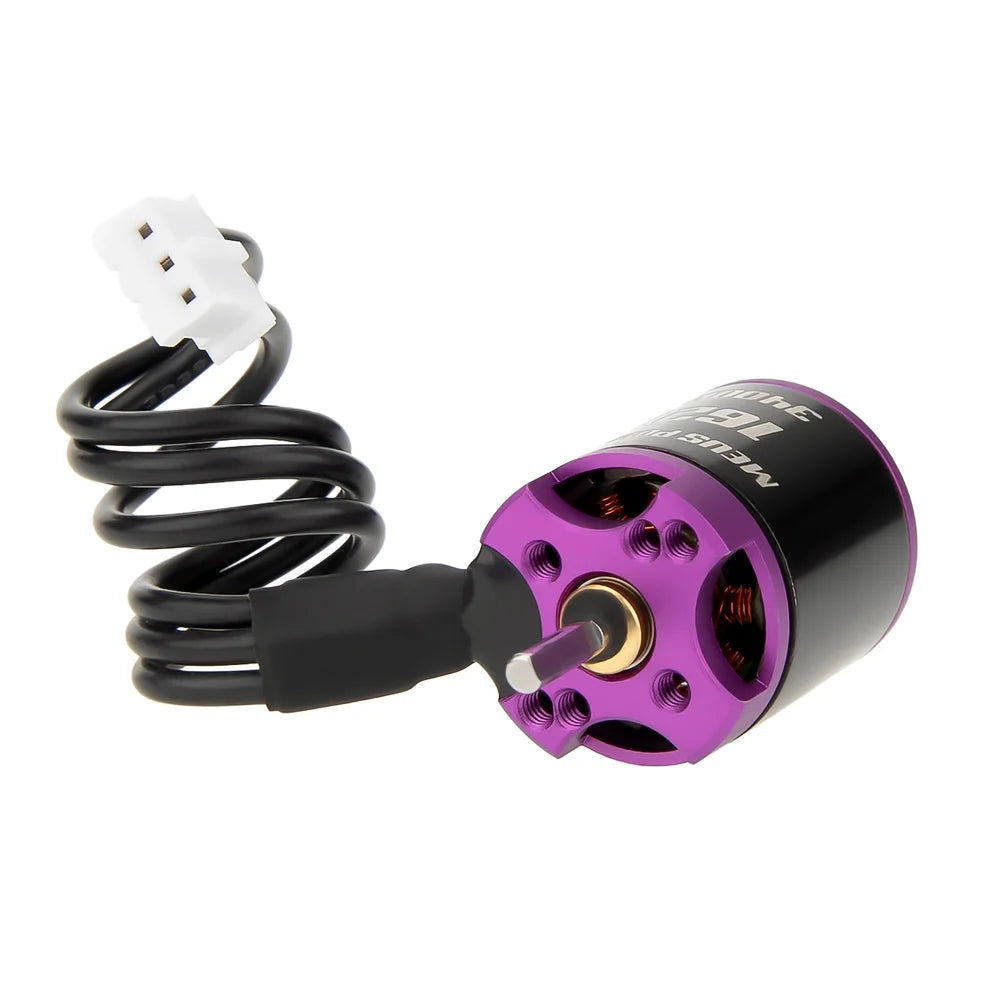

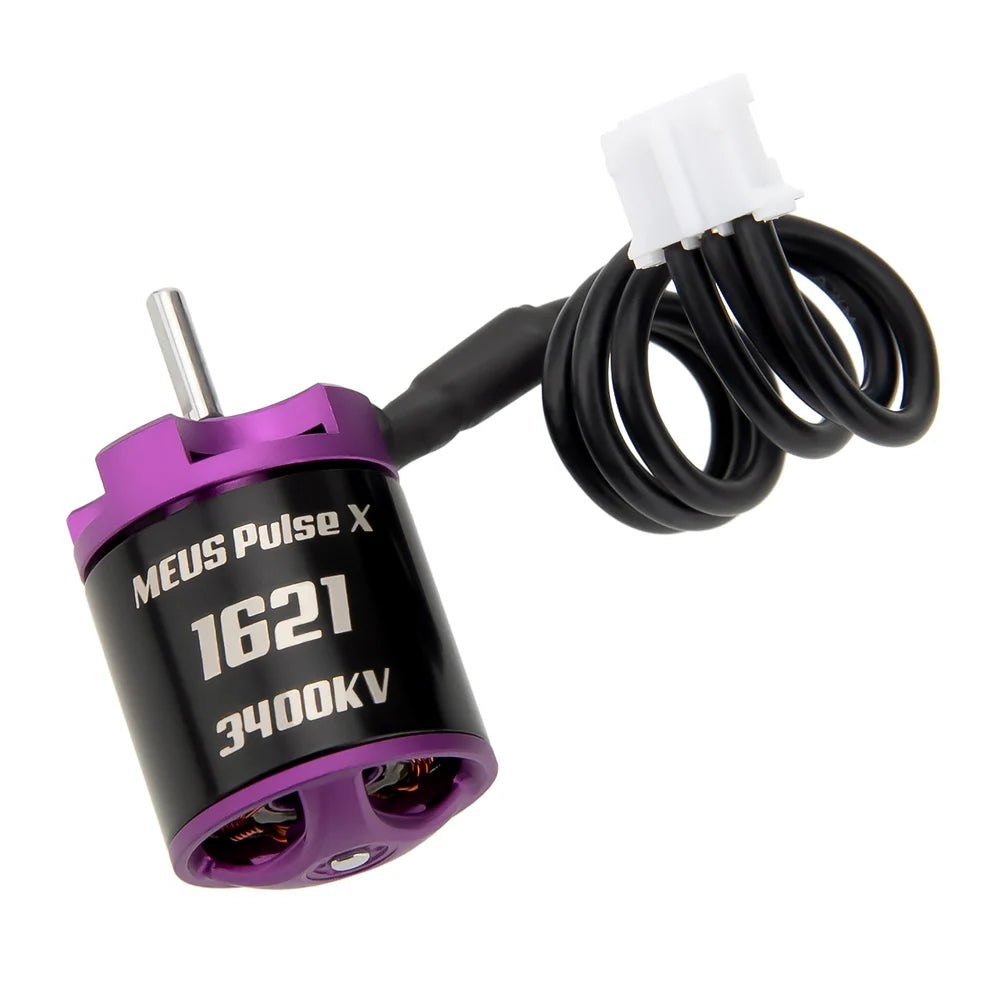

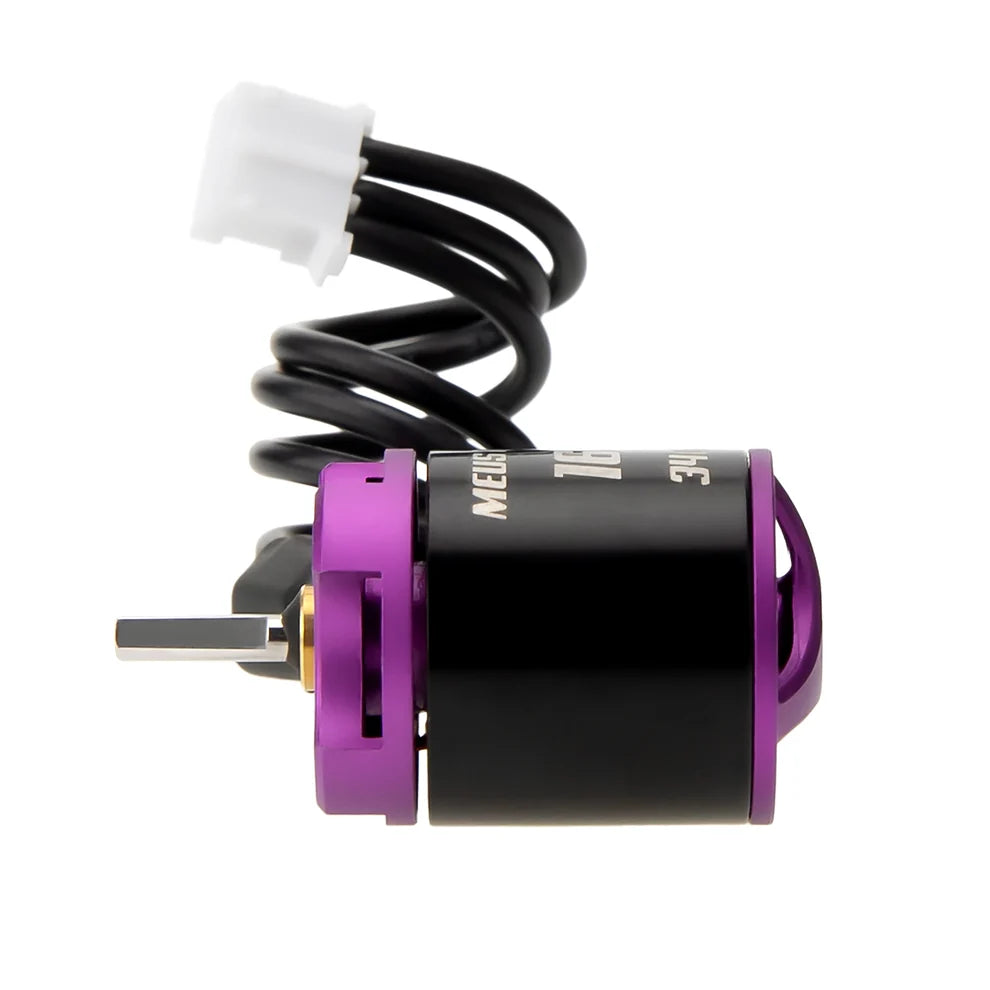

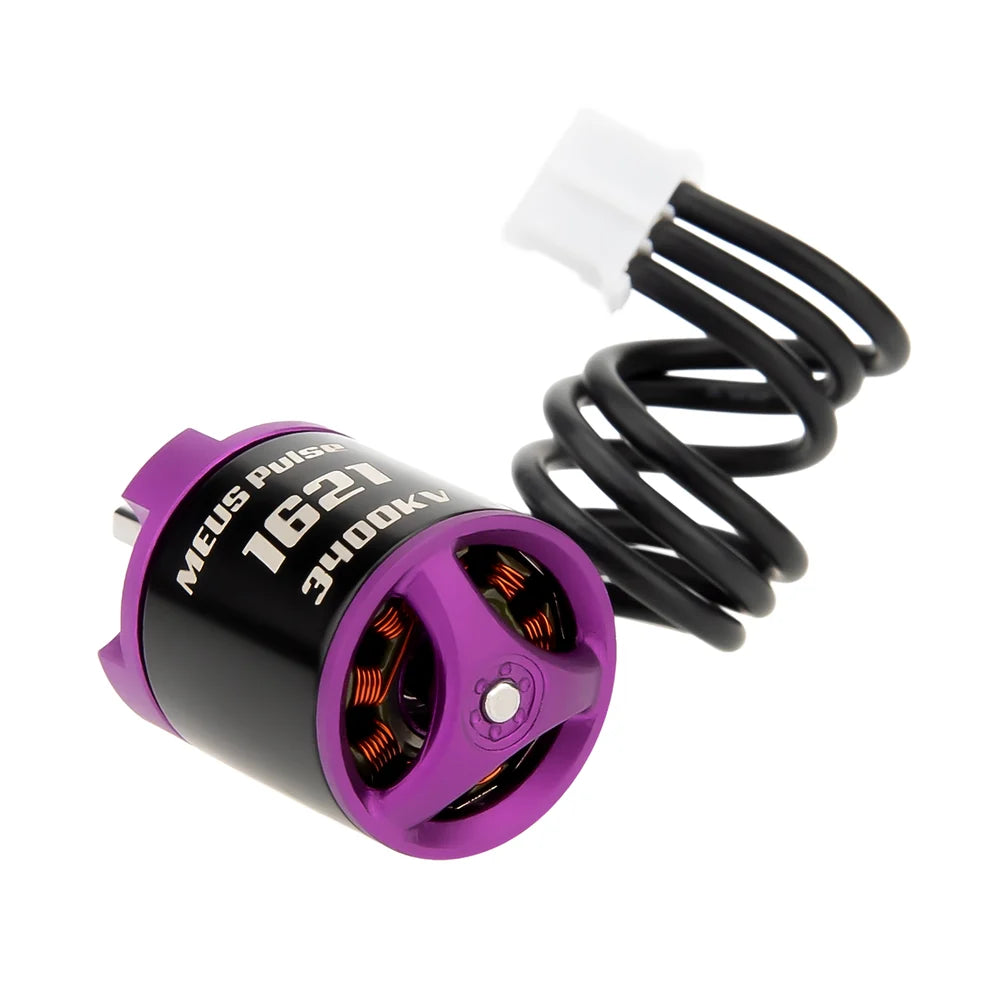

1621 3400KV Brushless Motor for SCX24:

• RPM/Volt: 3400KV
• Motor Output Shaft: diameter 2 mm, length 8.5 mm
• Weight: 16g
• Dimensions: Φ16*21.5mm
• Working voltage: 7.4-12.6V(2-3S)
• Motor Poles: 12
• Motor Connectors: PH2.0 3-pin
• No-Load Current: 0.7A

• Max Peak Current: 18A

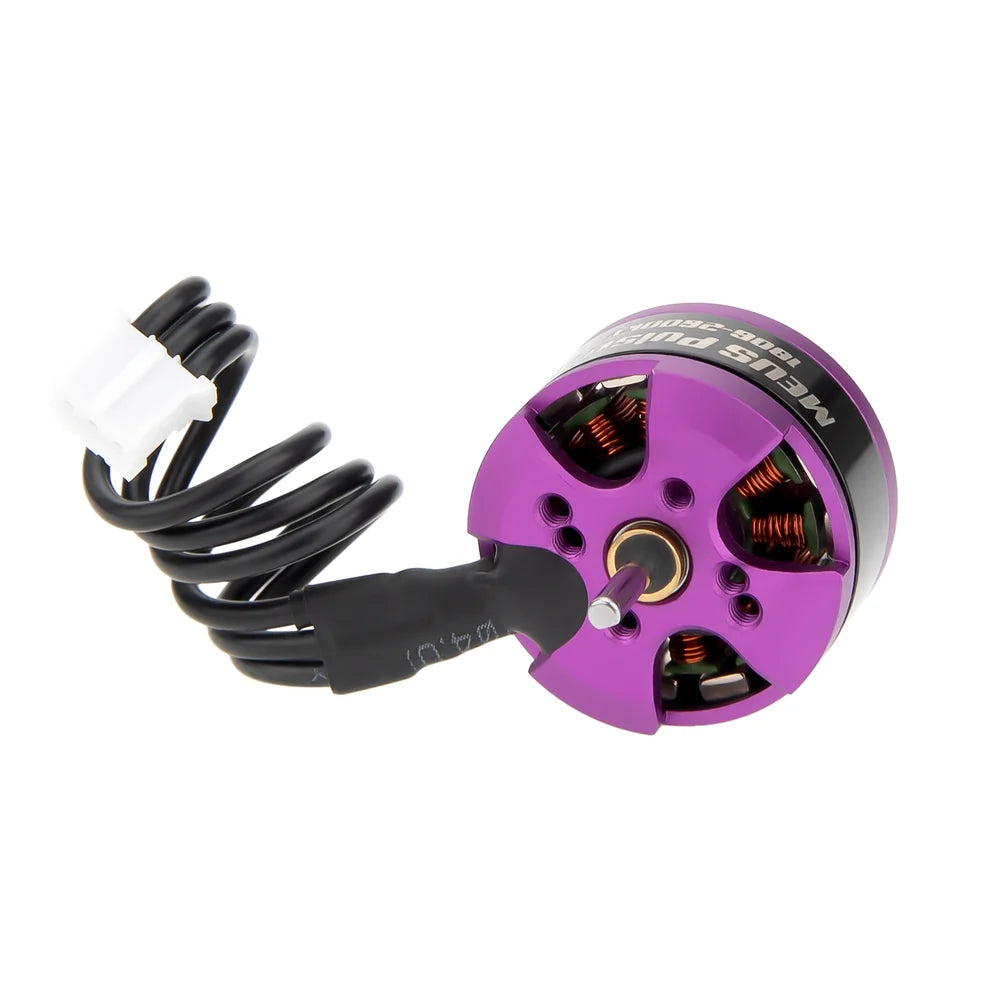

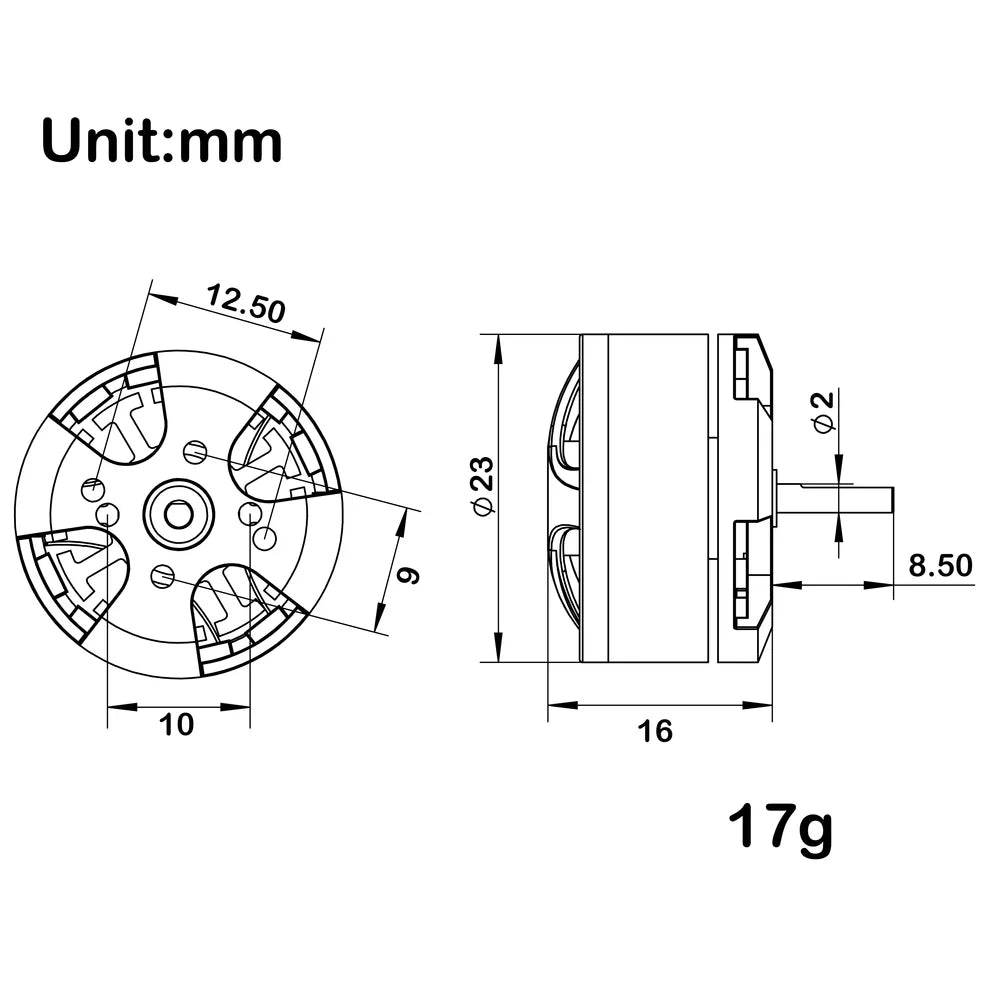

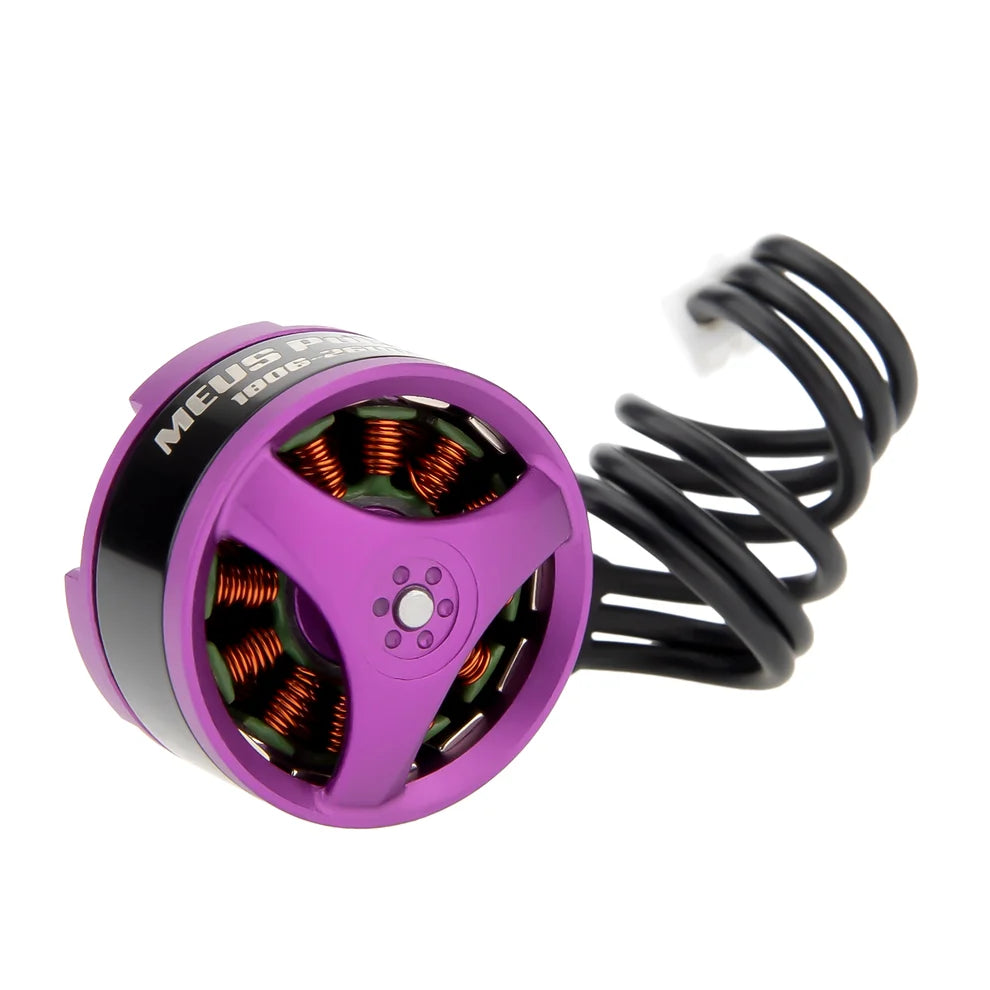

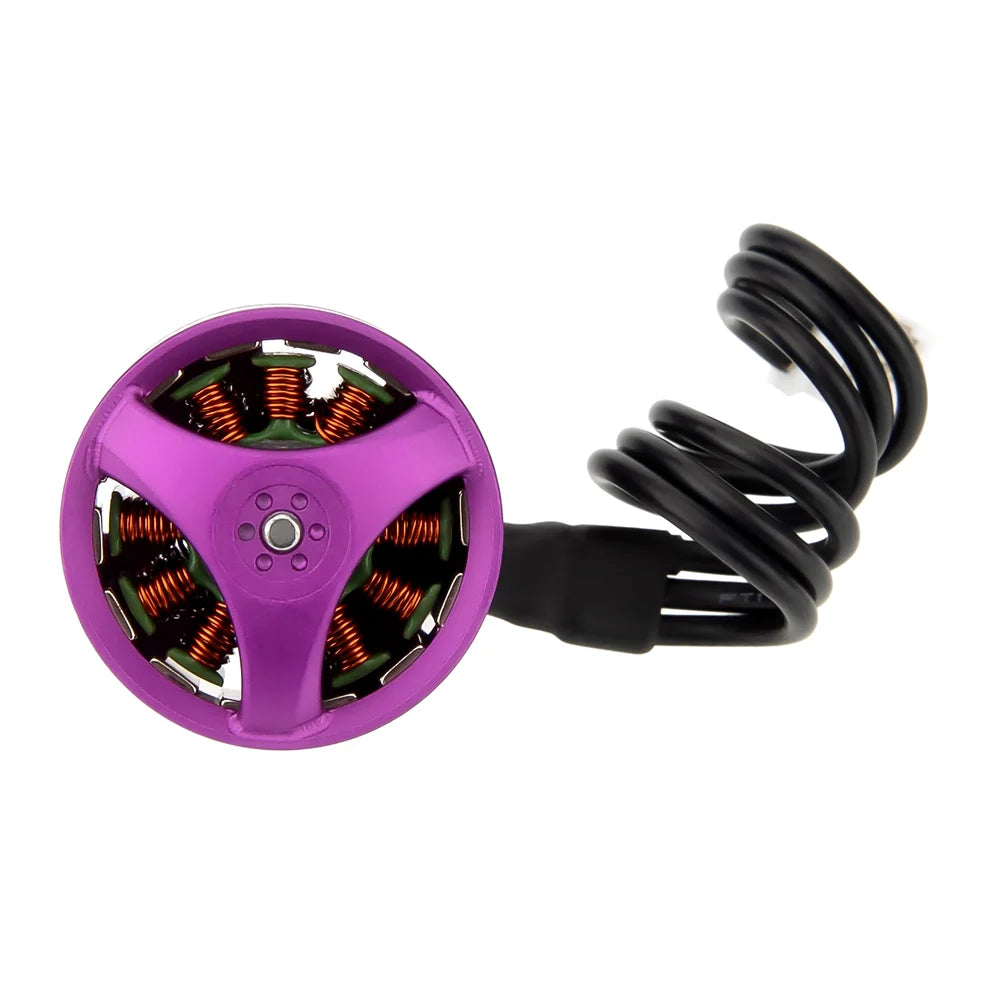

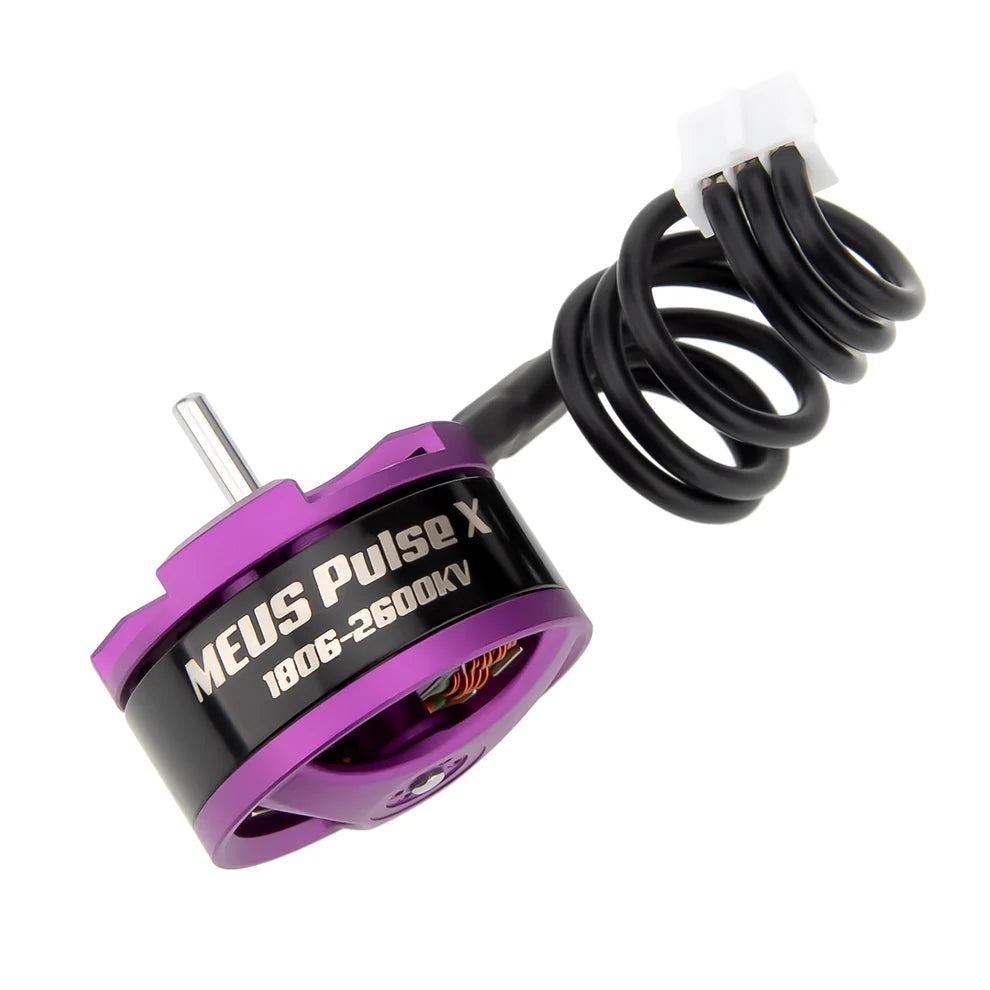

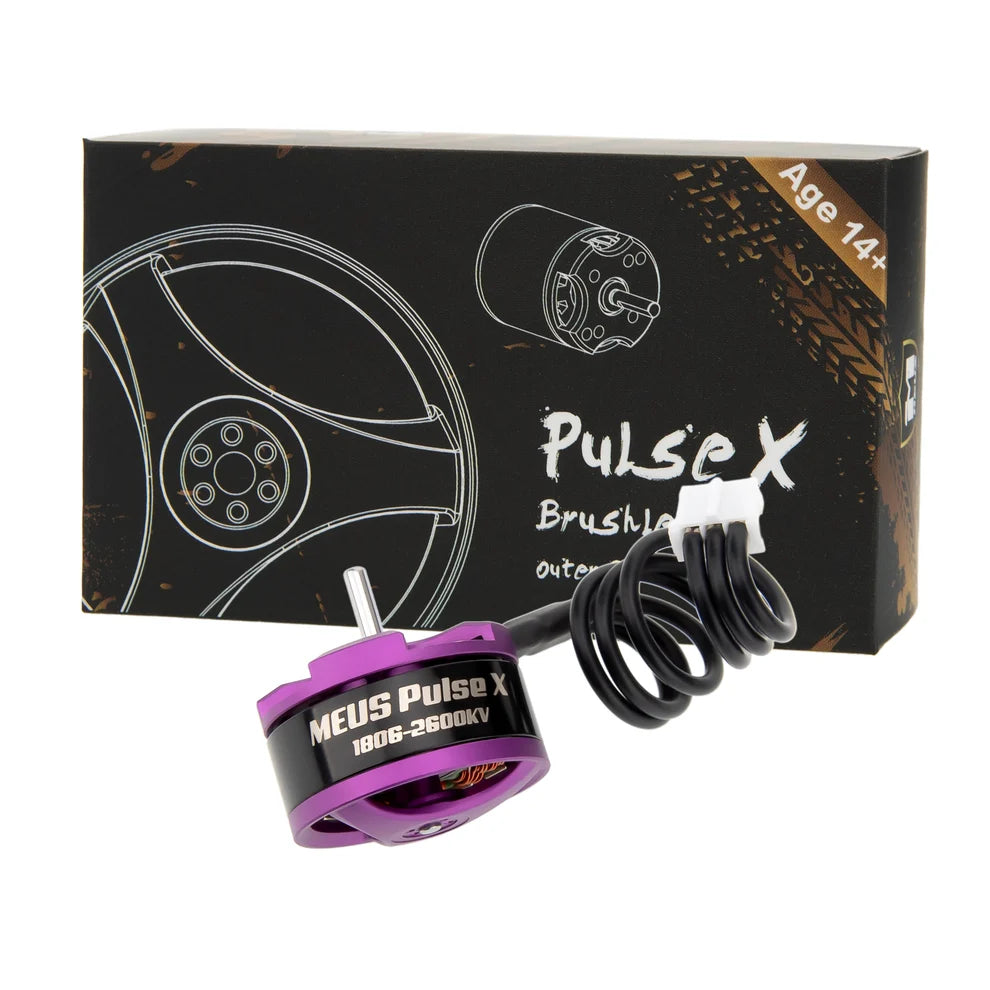

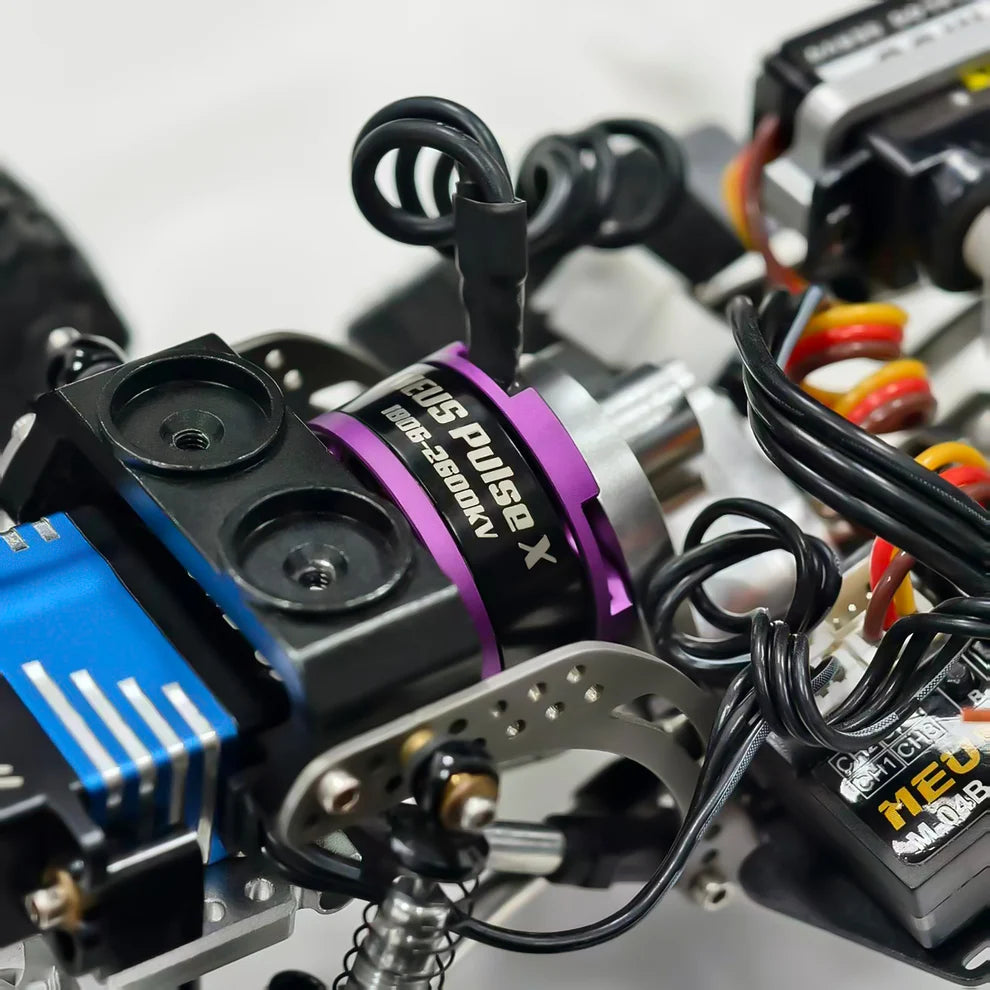

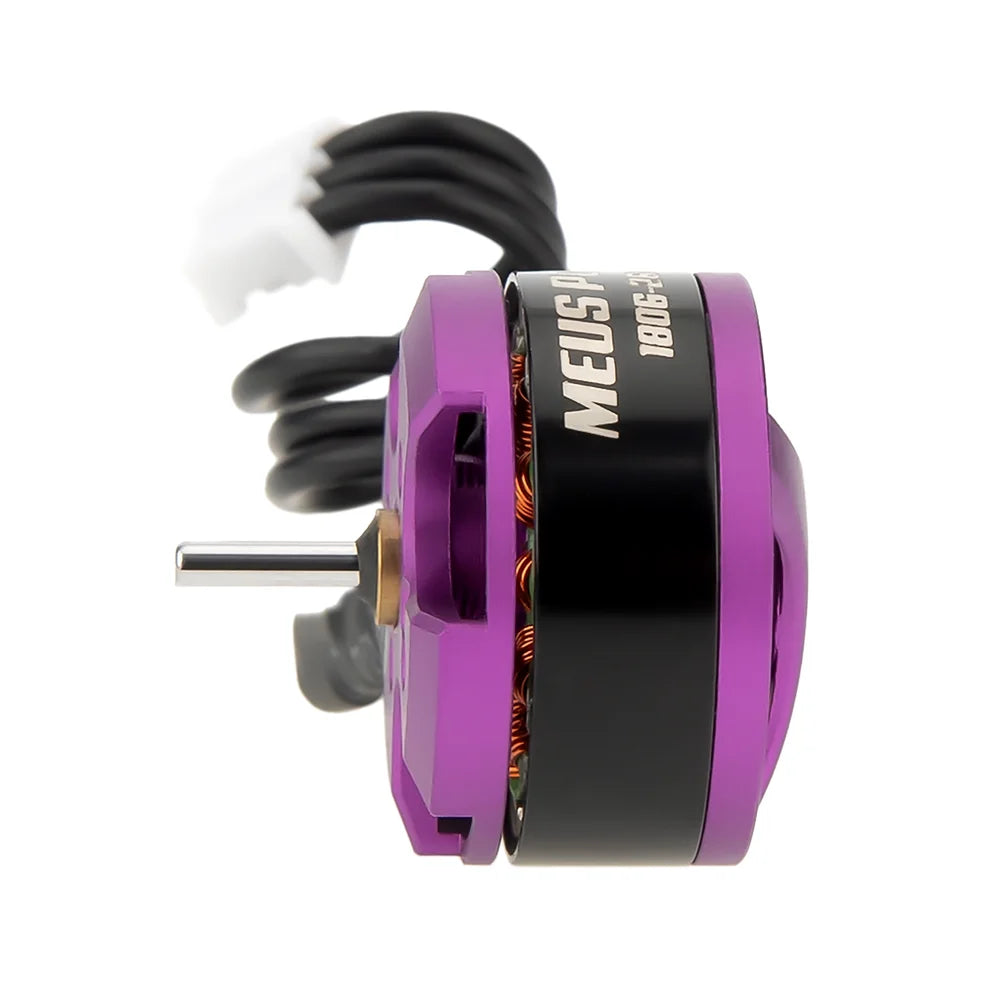

1806 2600KV Brushless Motor for SCX24:

• RPM/Volt: 3400KV
• Motor Output Shaft: diameter 2 mm, length 8.5 mm
• Weight: 17g
• Dimensions: Φ23*16mm
• Working voltage: 7.4-16.8V(2-4S)
• Motor Poles: 14
• Motor Connectors: PH2.0 3-pin
• No-Load Current: 0.7A

• Max Peak Current: 24A

Package List：

1 × Brushless Motor
