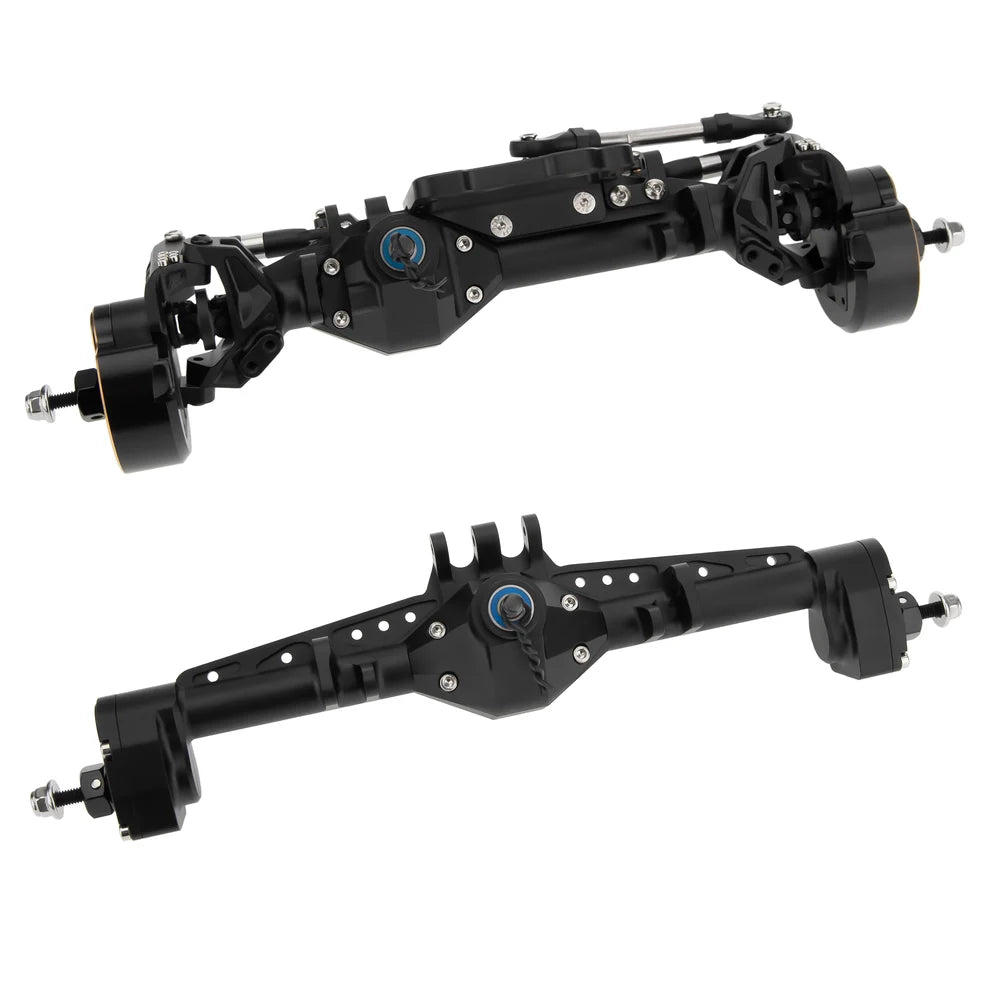

MEUS Racing CHEAT CODE V2 Capra 1.9 Isokinetic Portal Axles for 1/10 Axial Capra 1.9 & DIY SCX10 SCX10 II SCX10 III SCX10 Pro

MEUS Racing CHEAT CODE V2 Capra 1.9 Isokinetic Portal Axles for 1/10 Axial Capra 1.9 & DIY SCX10 & SCX10 II, SCX10 III, SCX10 Pro Upgrades.

Key Fearures:

• 1. This Cheat code V2 version is designed for the Capra 1.9 and DIY SCX10 / SCX10 II chassis

• 2. Pin-to-pin wheel distance: front axle 214mm; rear axle 209mm. Compared to the regular version, the front axle is 5mm narrower, and the rear axle is 10mm narrower, making it easier to pass through some narrower places to win points!

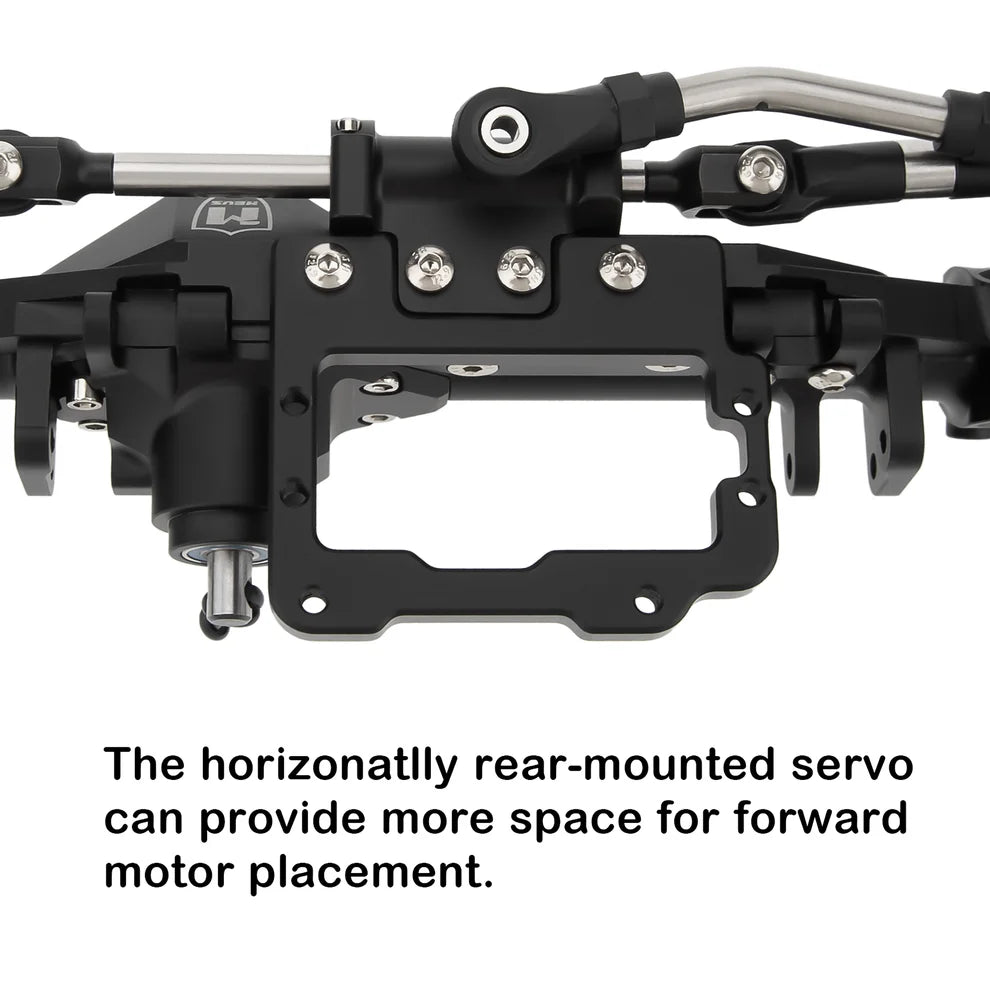

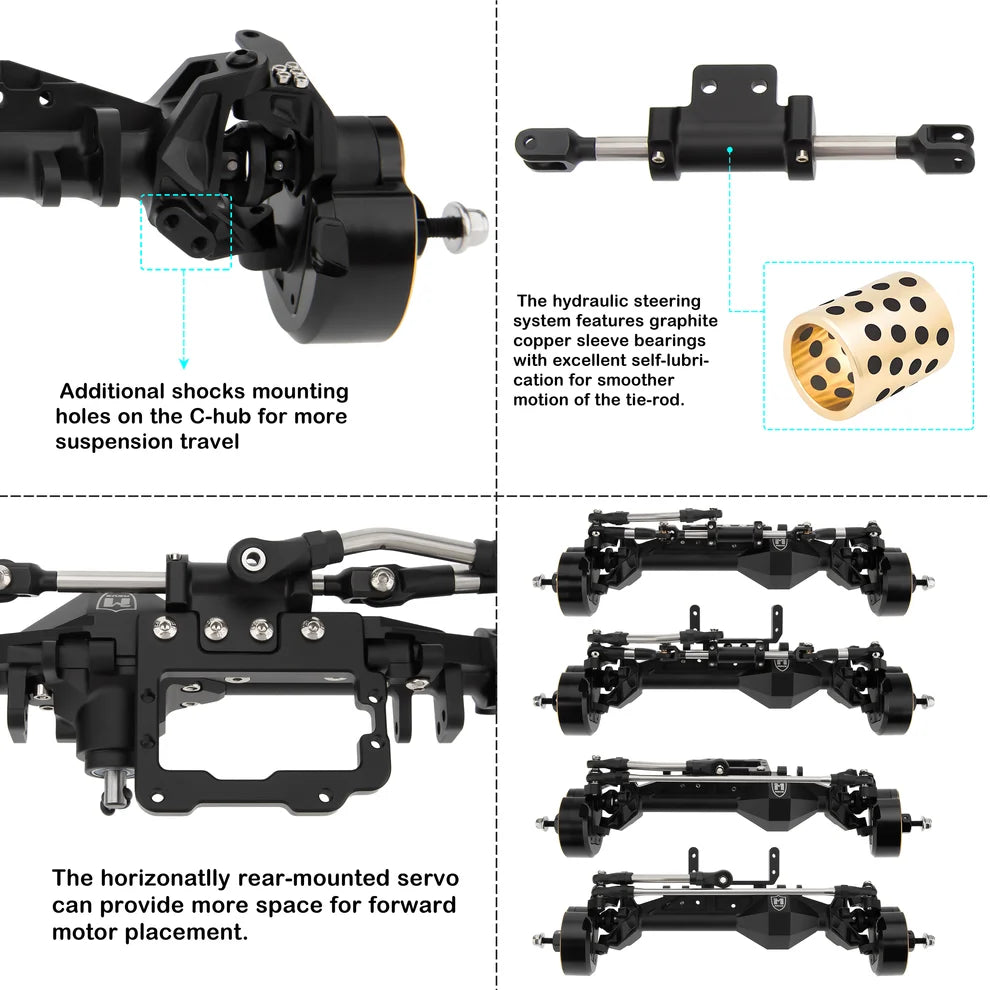

• 3. The front axle features a caster angle of 22° and a kingpin angle of 12° for more flexible steering; two servo mounting options are available(SOA and BTA). The horizontally rear-mounted servo can provide more space for forward motor placement.

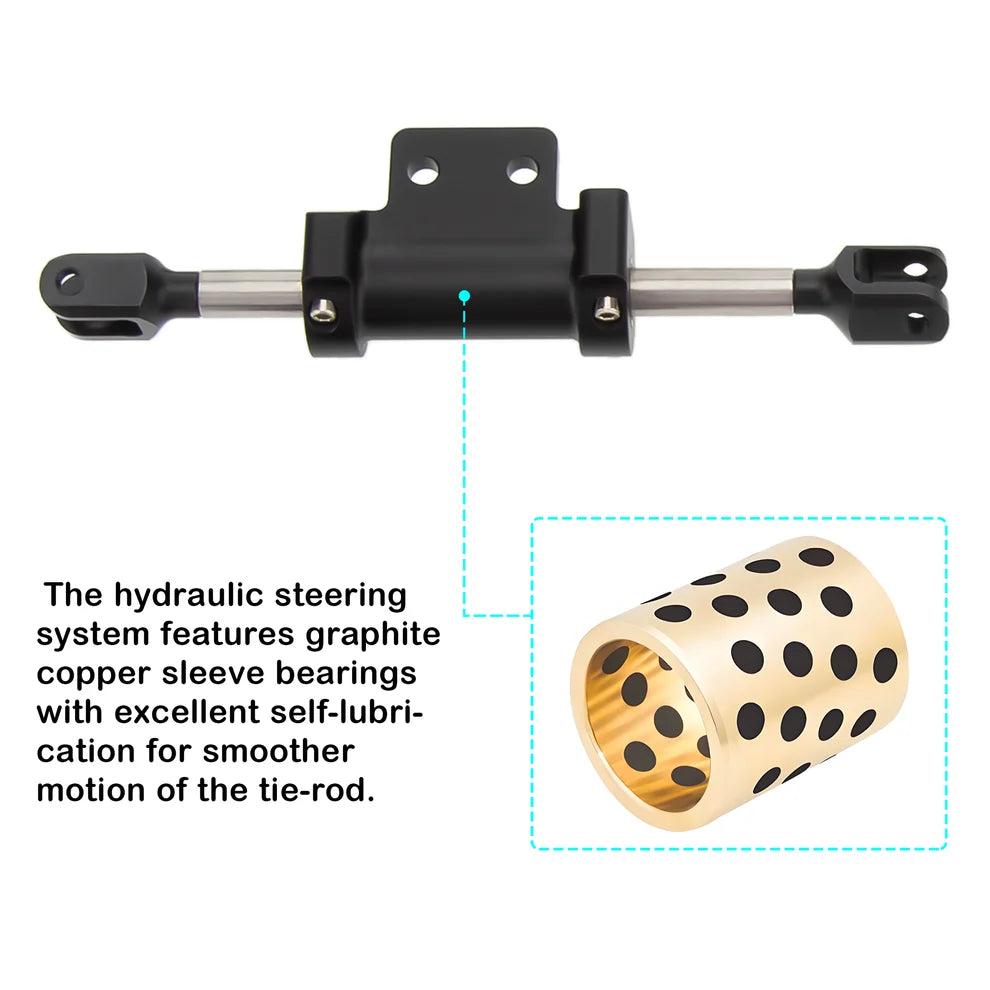

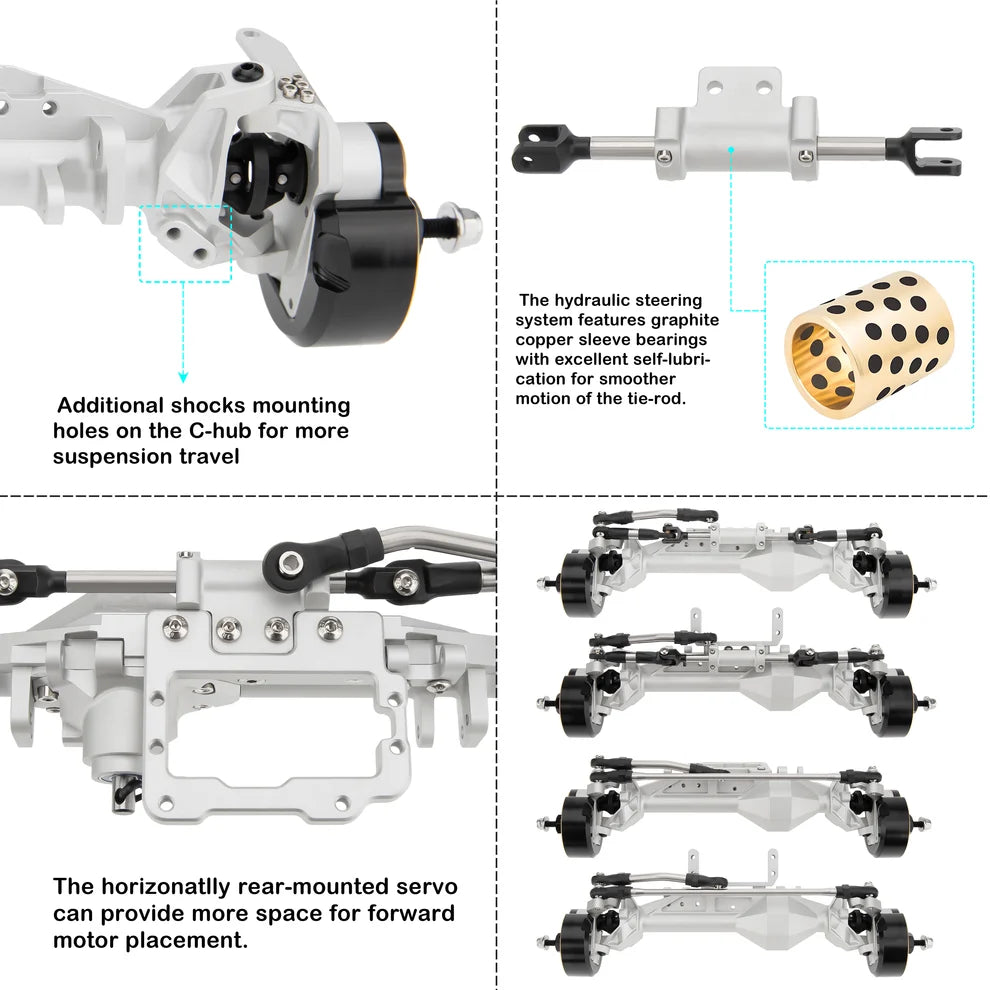

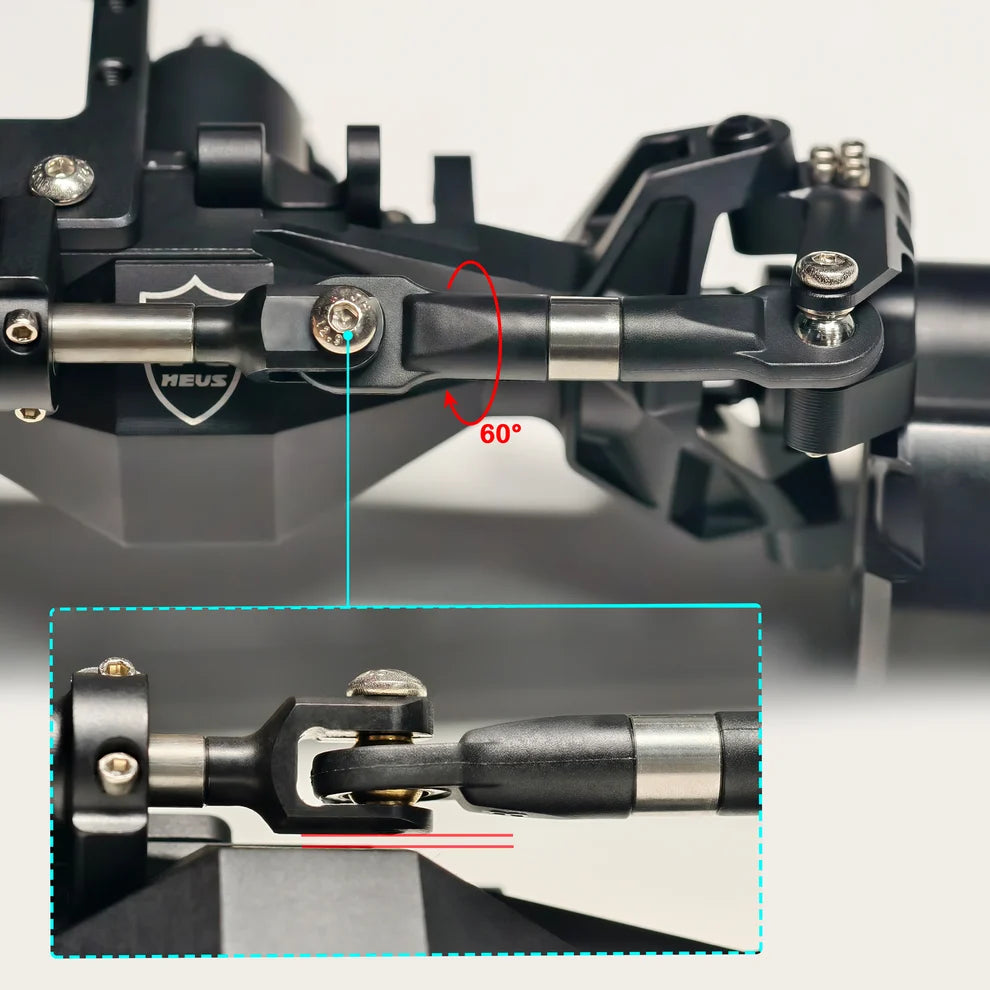

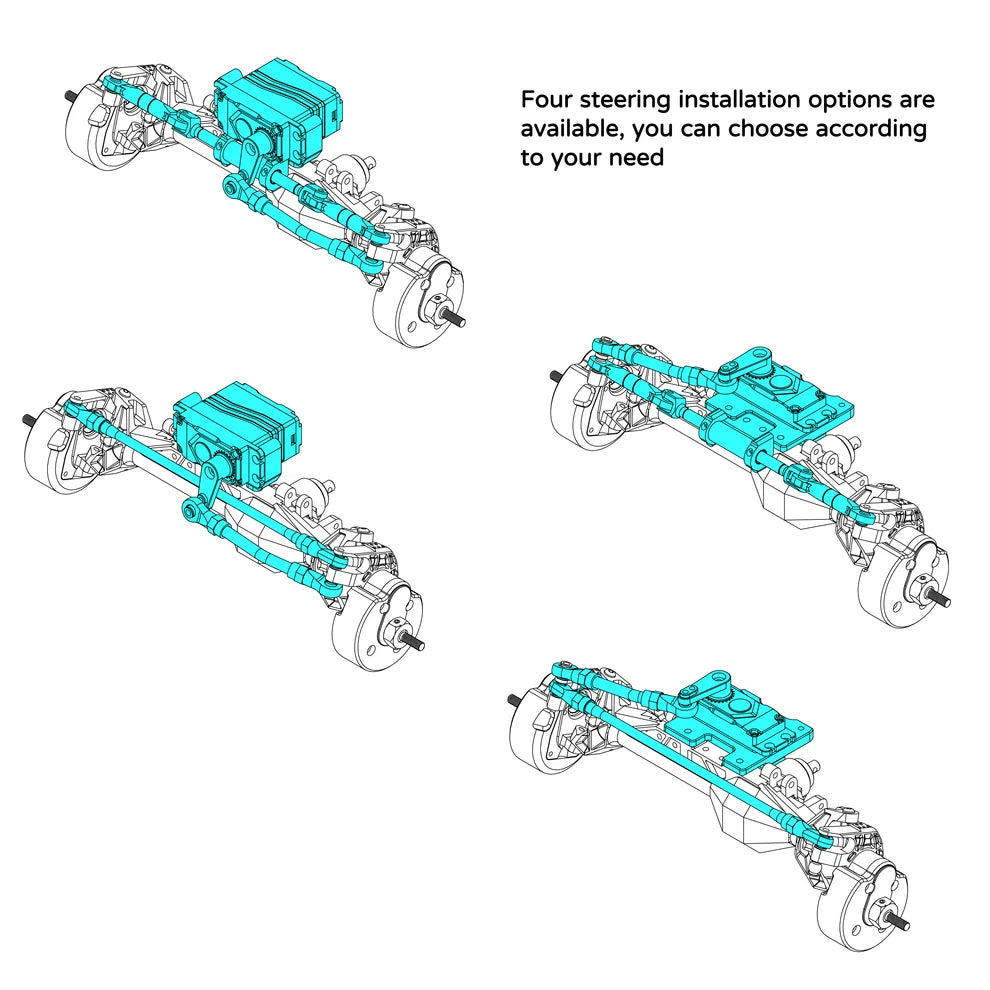

• 4. Available in two steering configurations: a hydraulic steering structure and a traditional steering links structure. The hydraulic steering system features graphite copper sleeve bearings for smoother motion.

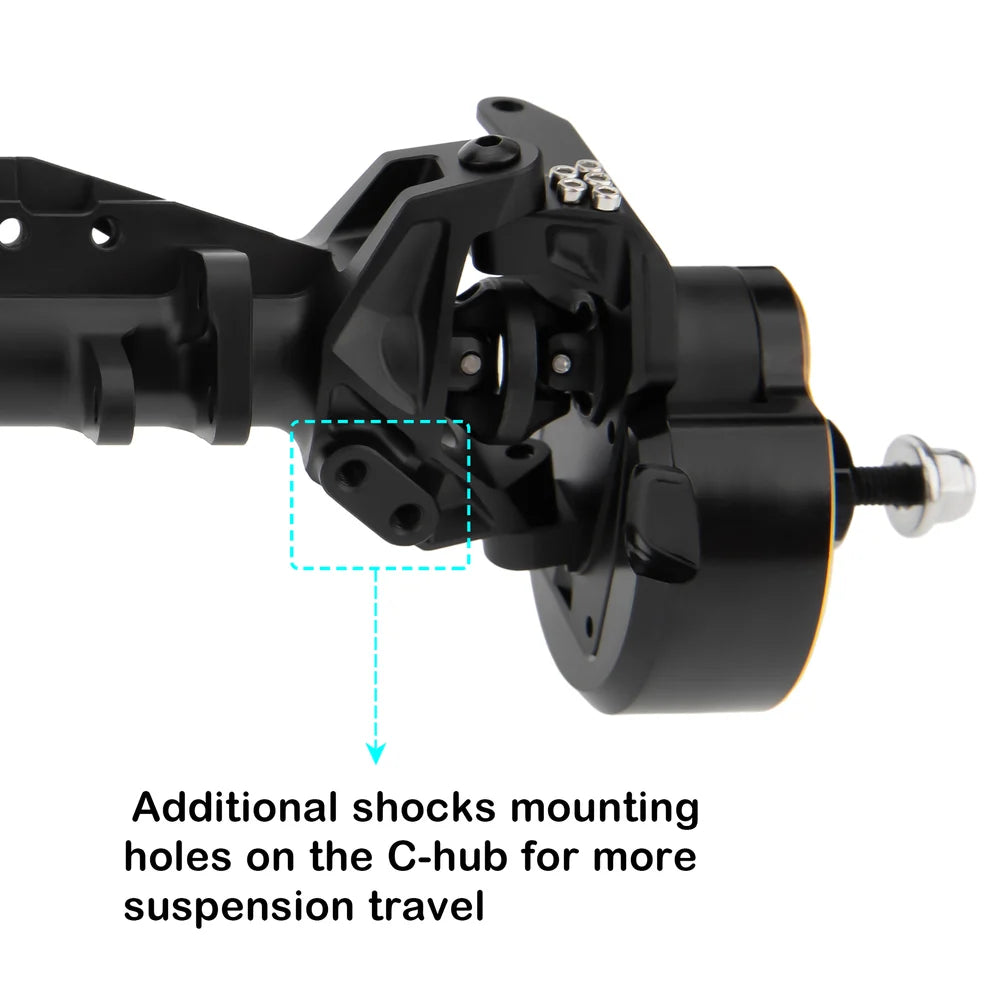

• 5. Additional shock mounting holes are added on the C-hub, allowing greater suspension travel, especially for cage structure cars.

• 6. The 3-section CVD ensures smooth operation without binding or jolting, even at extreme steering angles(max. of 52°). It is equipped with a 40CR 6mm output shaft (longer than the original 5mm shaft, secured with an M4 nut).
• 7. The shock absorber for this axle can be installed near the standard link mount; the shock mount at the C-hub is merely an additional option.

Note:
The CVDs, steering knuckles, portal covers, diff covers, and steering links of the Cheat Code V2 are not compatible with the V1 version; only the differential gears and portal gears are shared with the V1.

Specifications:

• Axle housing material: Aluminum alloy

• Steering knuckle material: Brass

• Gear Cover: Brass

• Gear material: 20Cr Alloy Steel

• CVD shaft material: 40Cr alloy steel

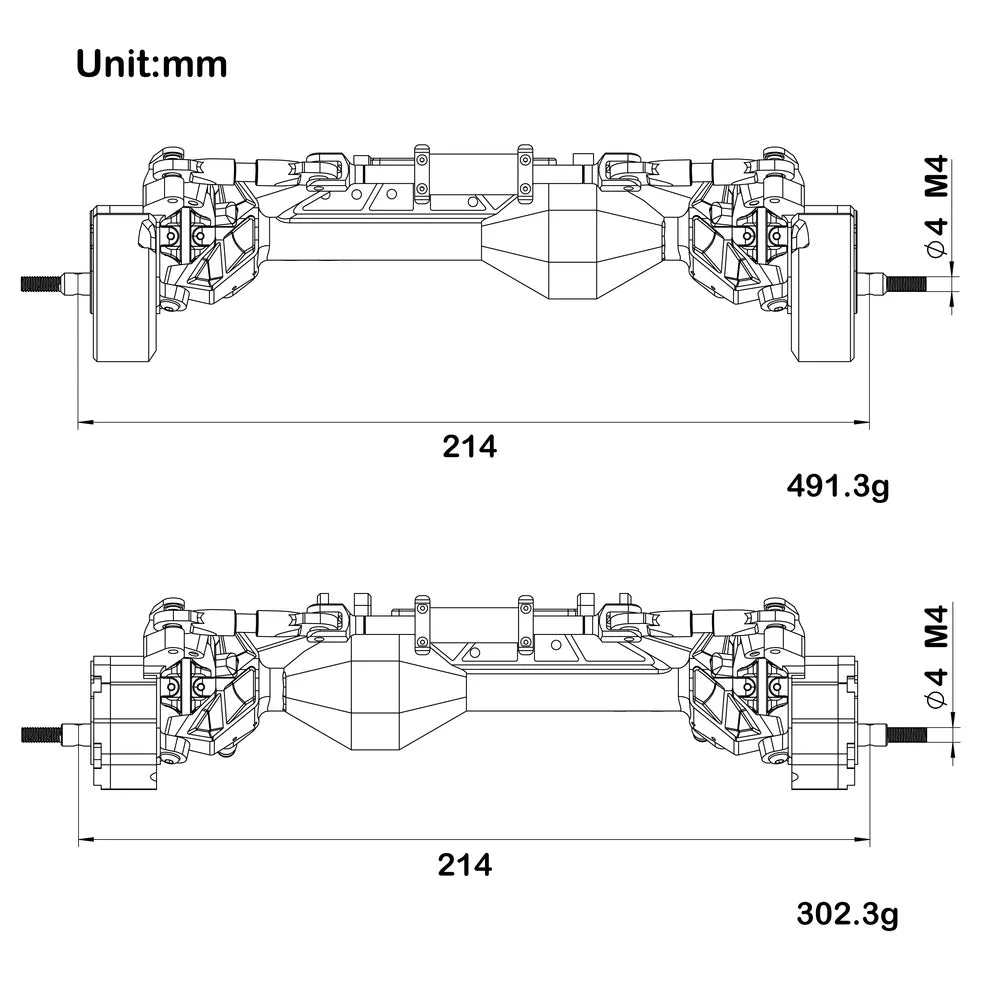

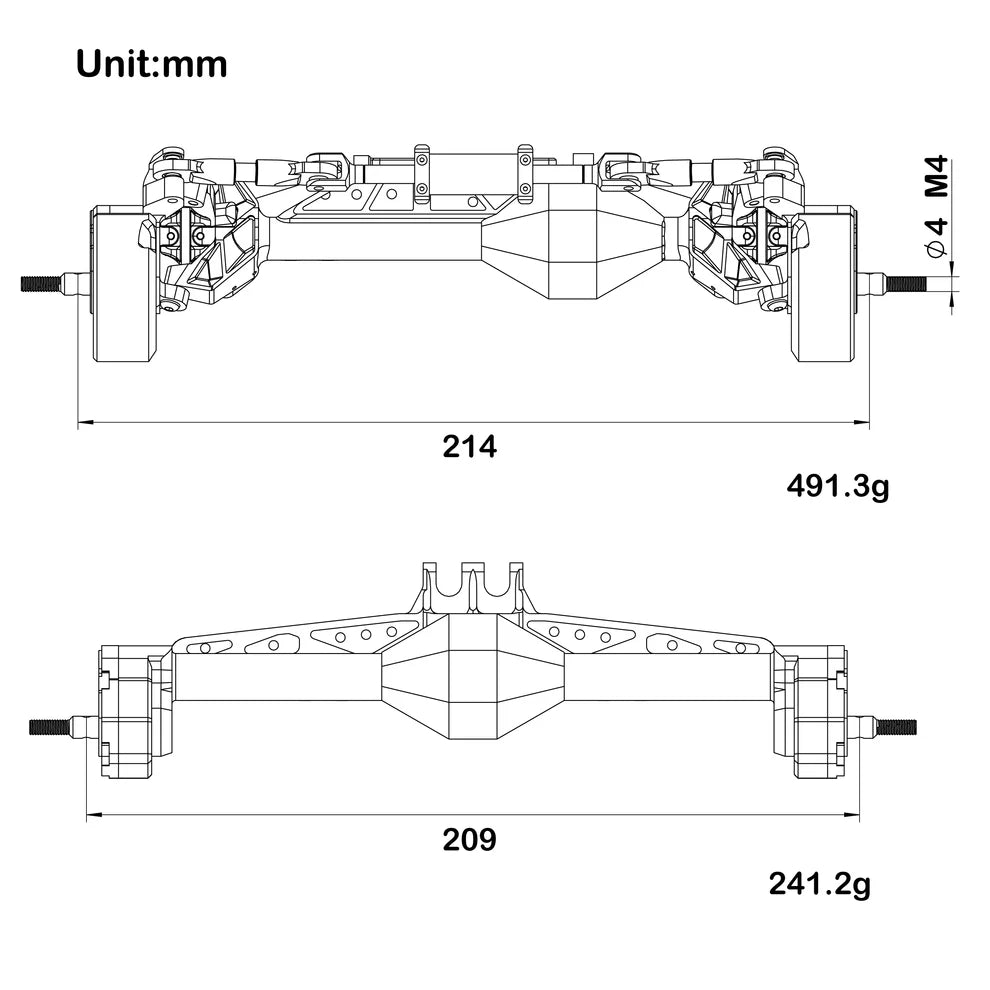

• Front axle total length: 214mm(8.42 in)

• Rear axle total length: 209mm(8.23 in)

• Front axle weight: 491.3g

• Rear axle weight: 241.2g

• Rear steering axle weight: 302.3g

• Wheel hex adapter size: 6mm

• The front and rear axle portal gear ratio is: 23T/12T
• Gear ratio: 8/30T (front and rear axles set)
• 4WS axles gear ratio: front axle is 8-24T, rear steering axle is 8-30T
• Works with Yipin Servo X80 Water Ghost servo.

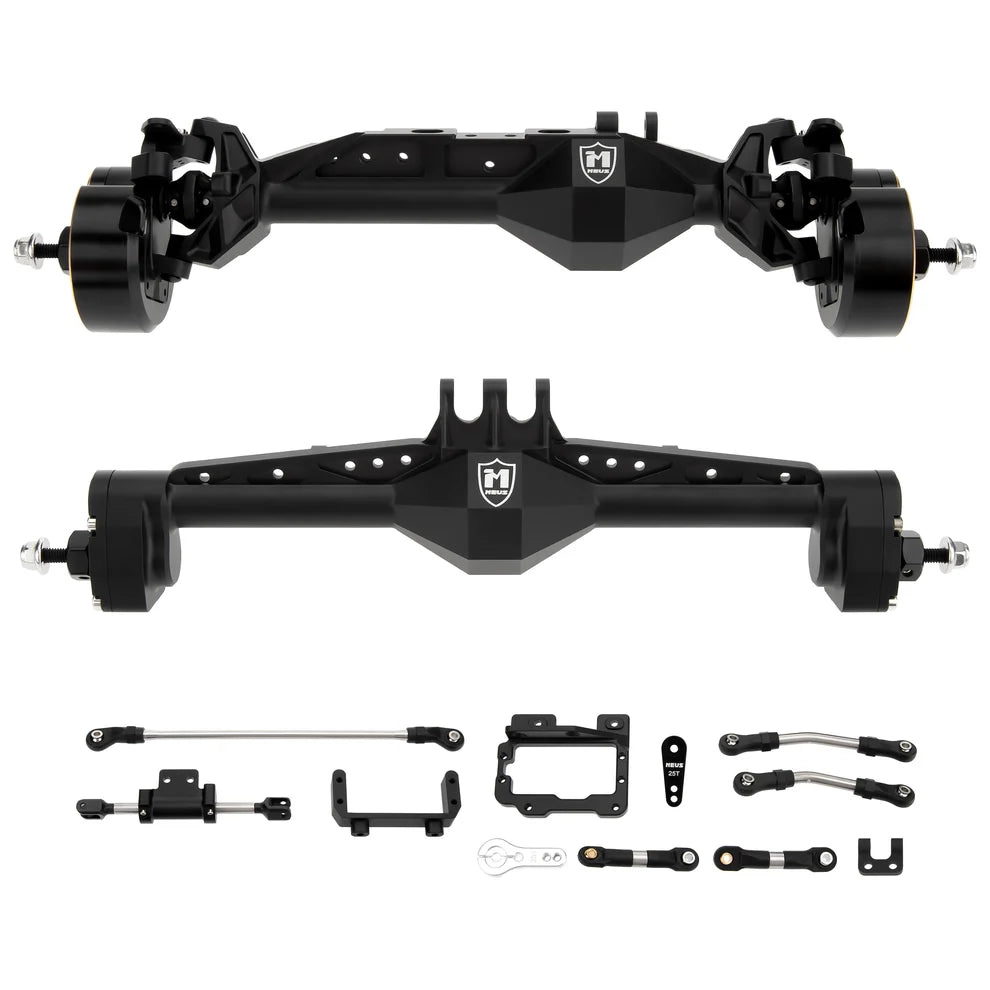

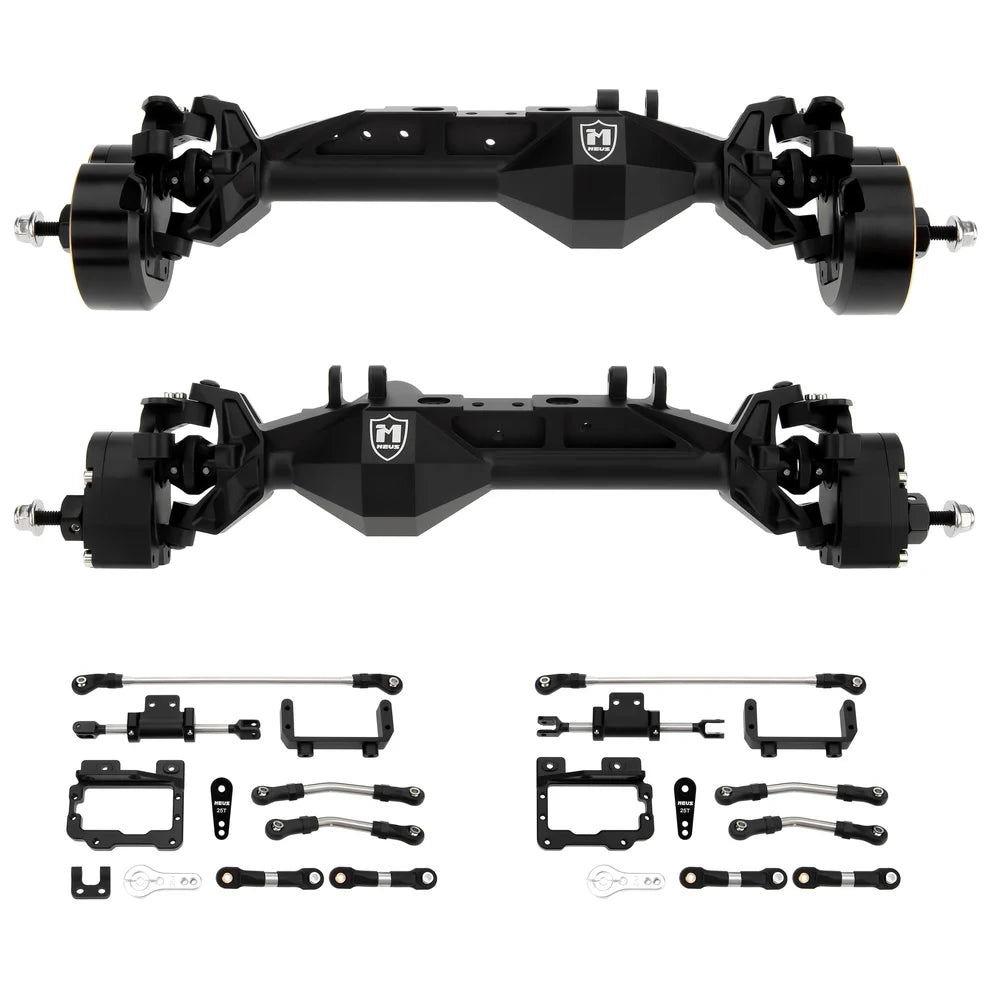

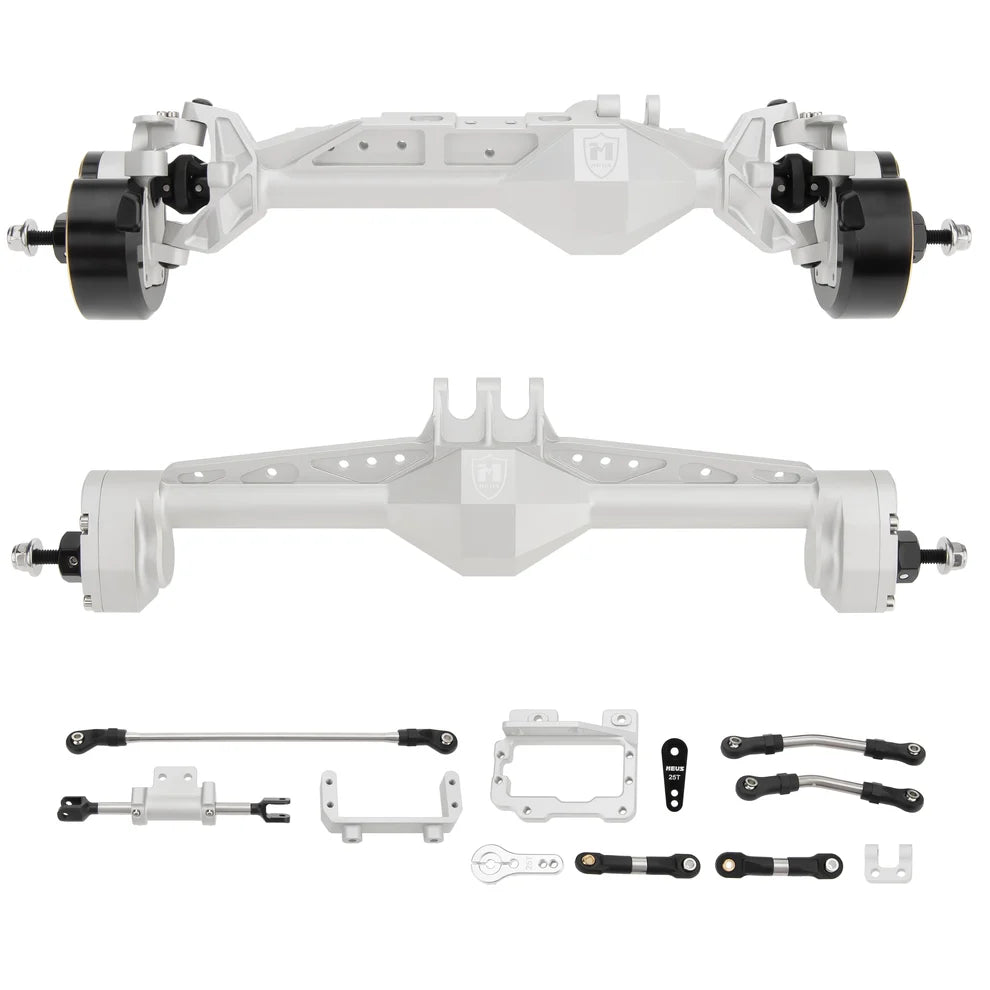

Package List:

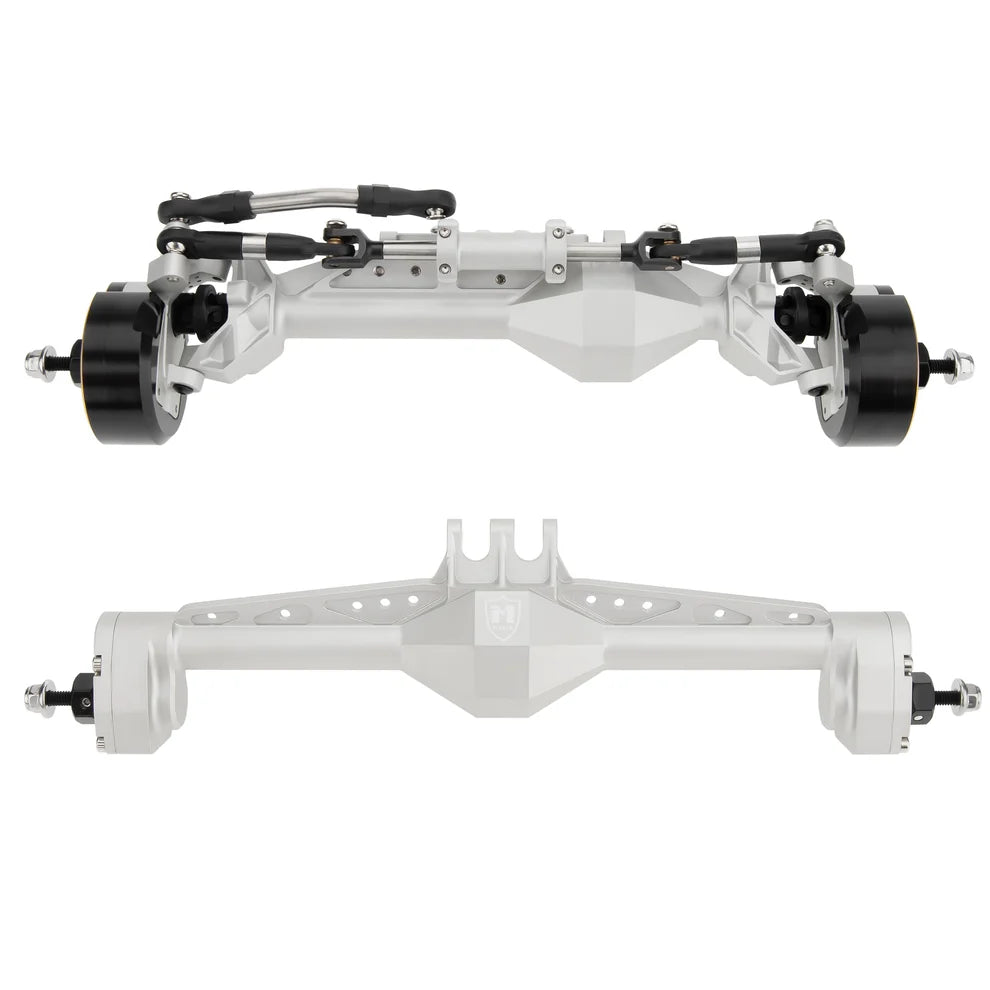

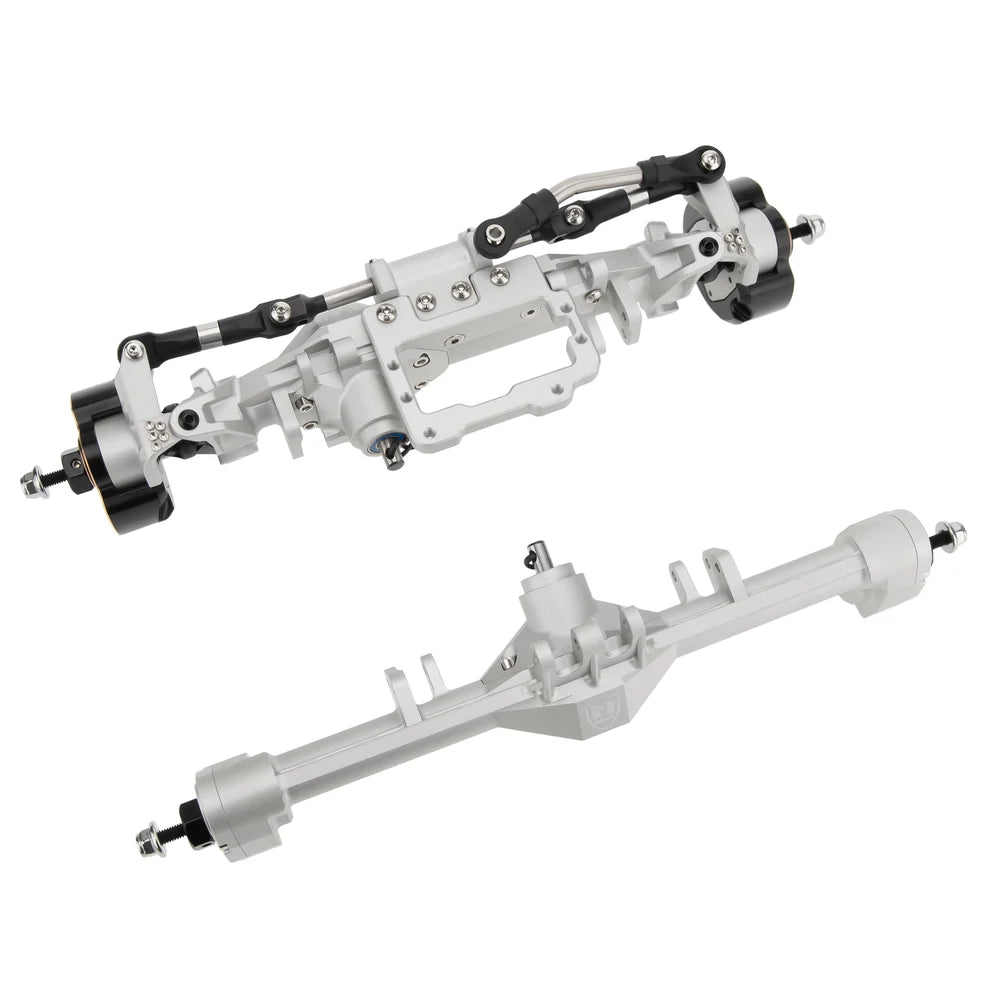

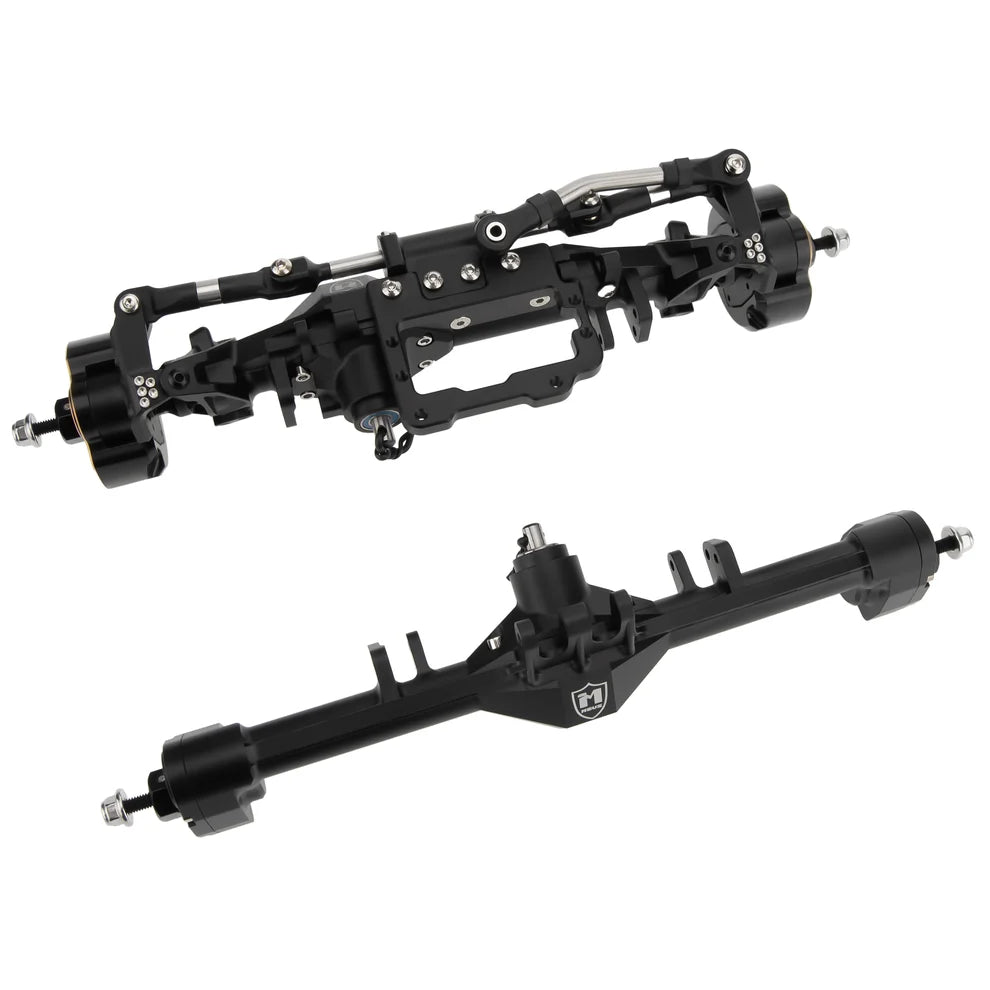

Front & rear axles

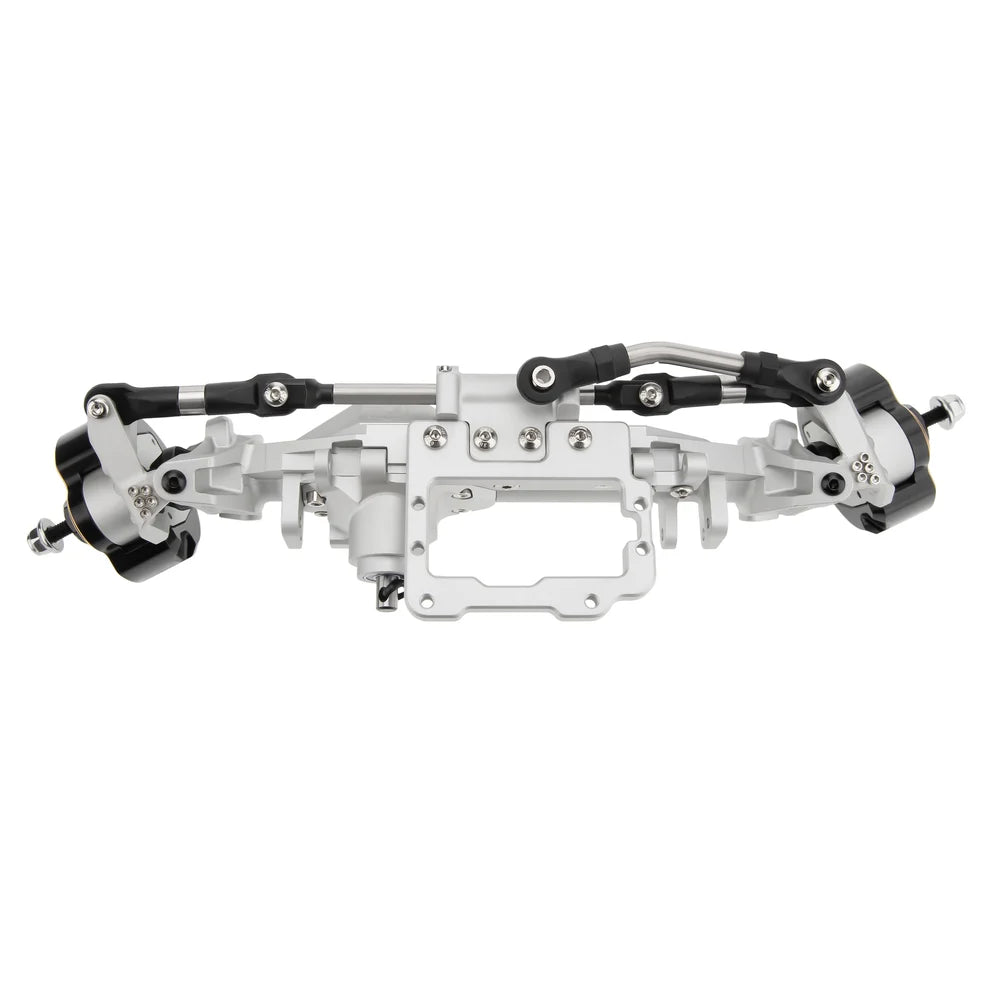

1 × CHEAT CODE V2 Capra 1.9 Isokinetic front axle
1 × CHEAT CODE V2 Capra 1.9 rear axle
1 set  × Steering Links
1 × Horizontal Servo Mount
1 × Vertical Servo Mount.
1× 25T Servo horns.

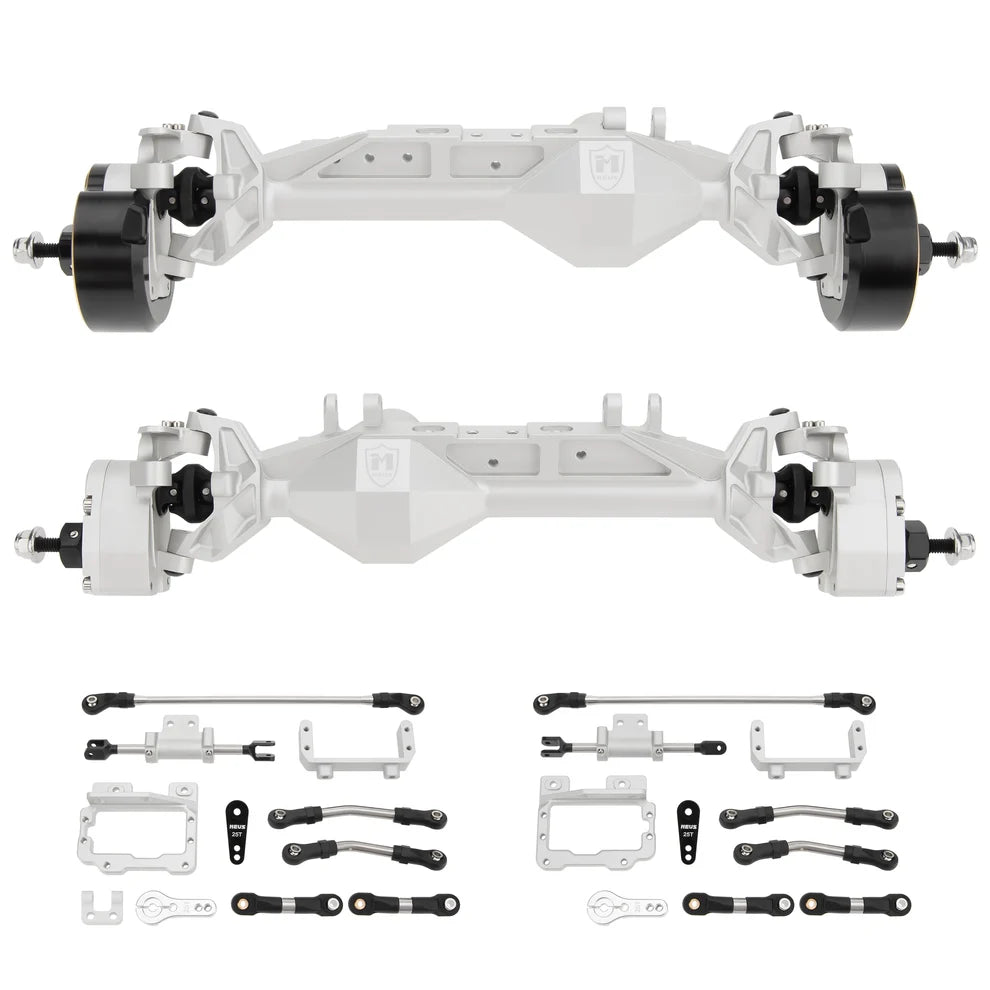

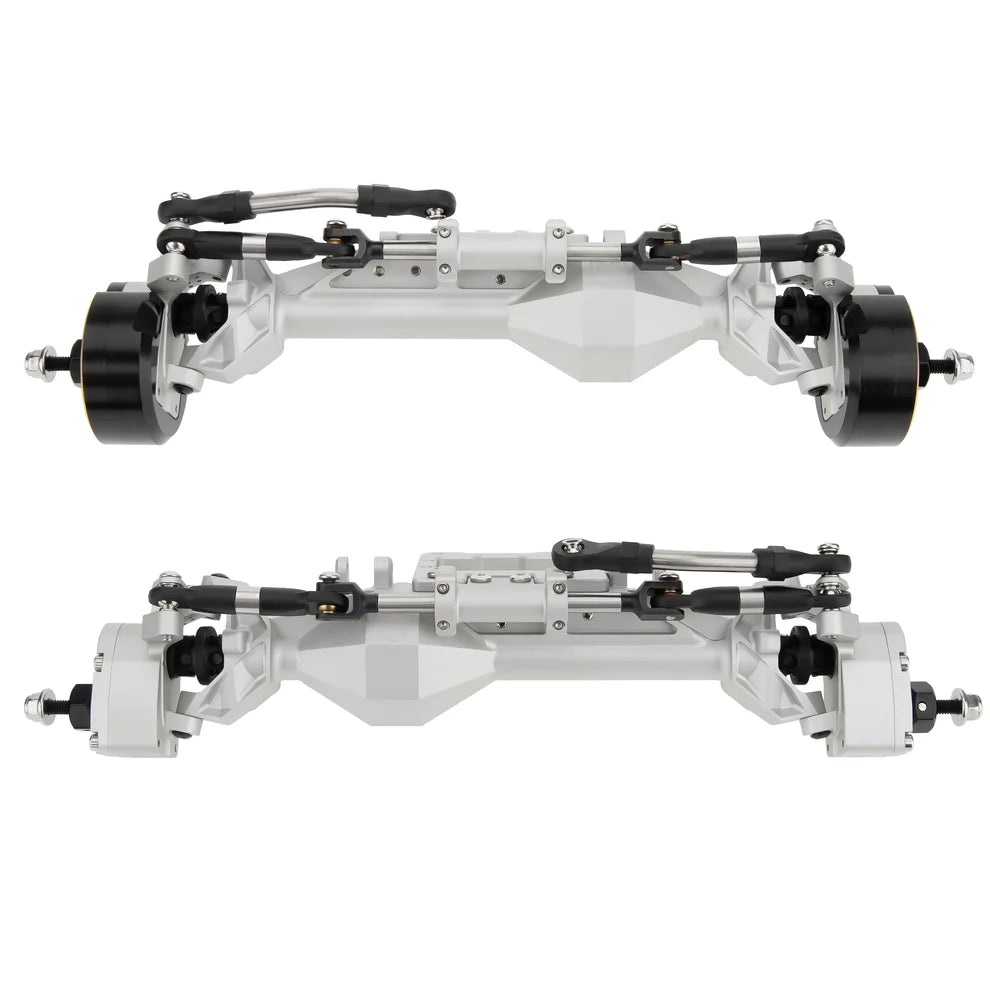

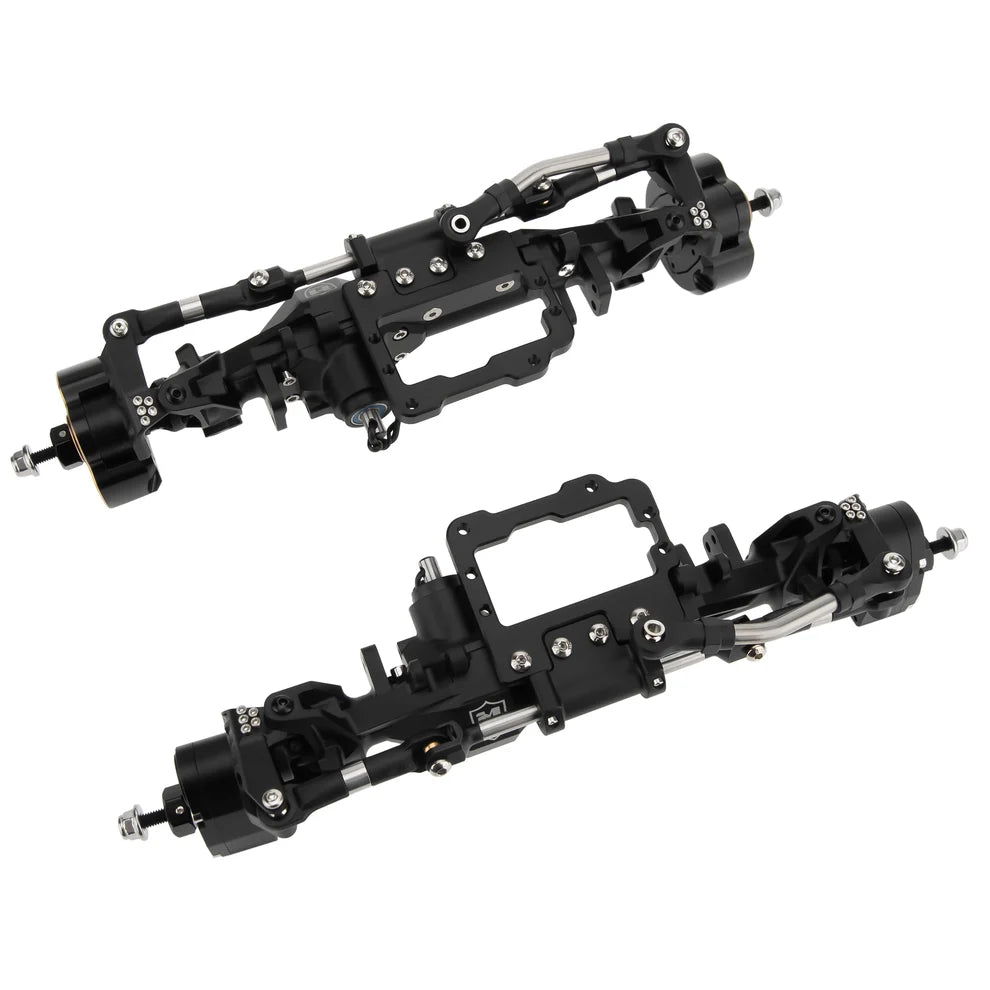

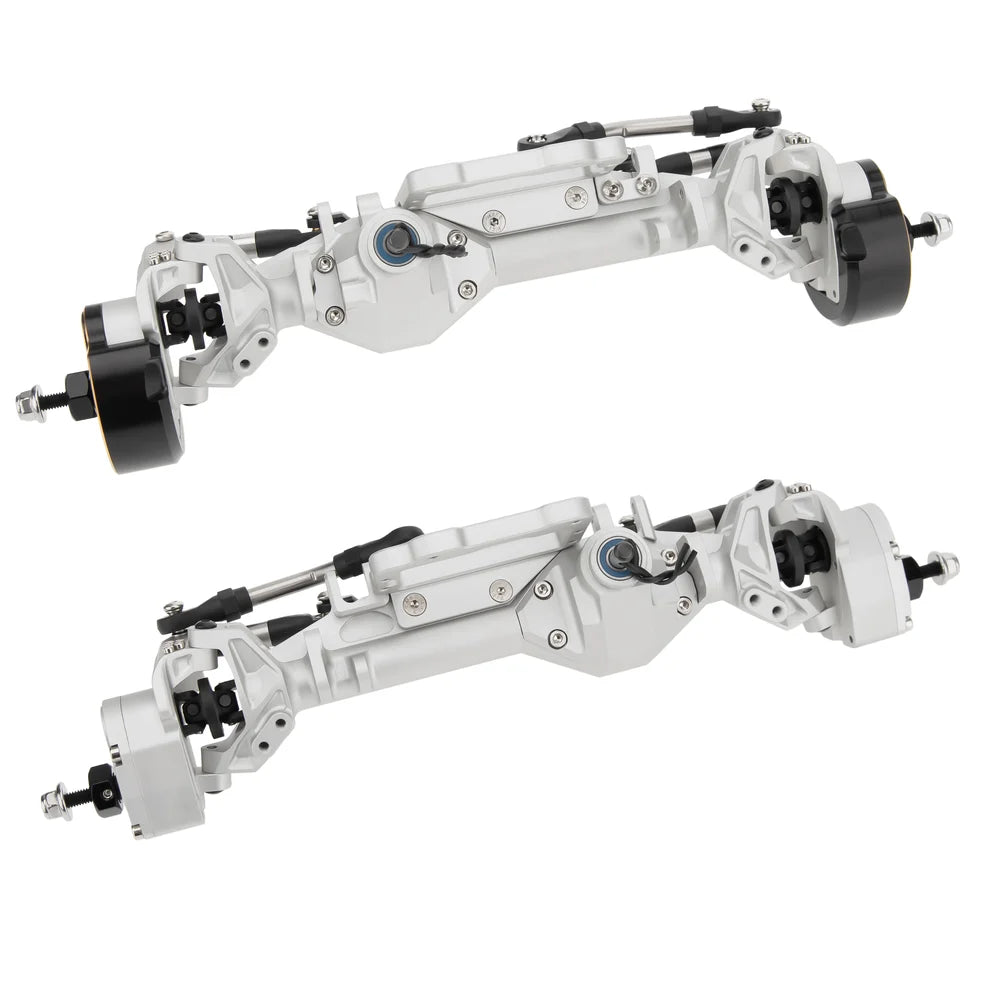

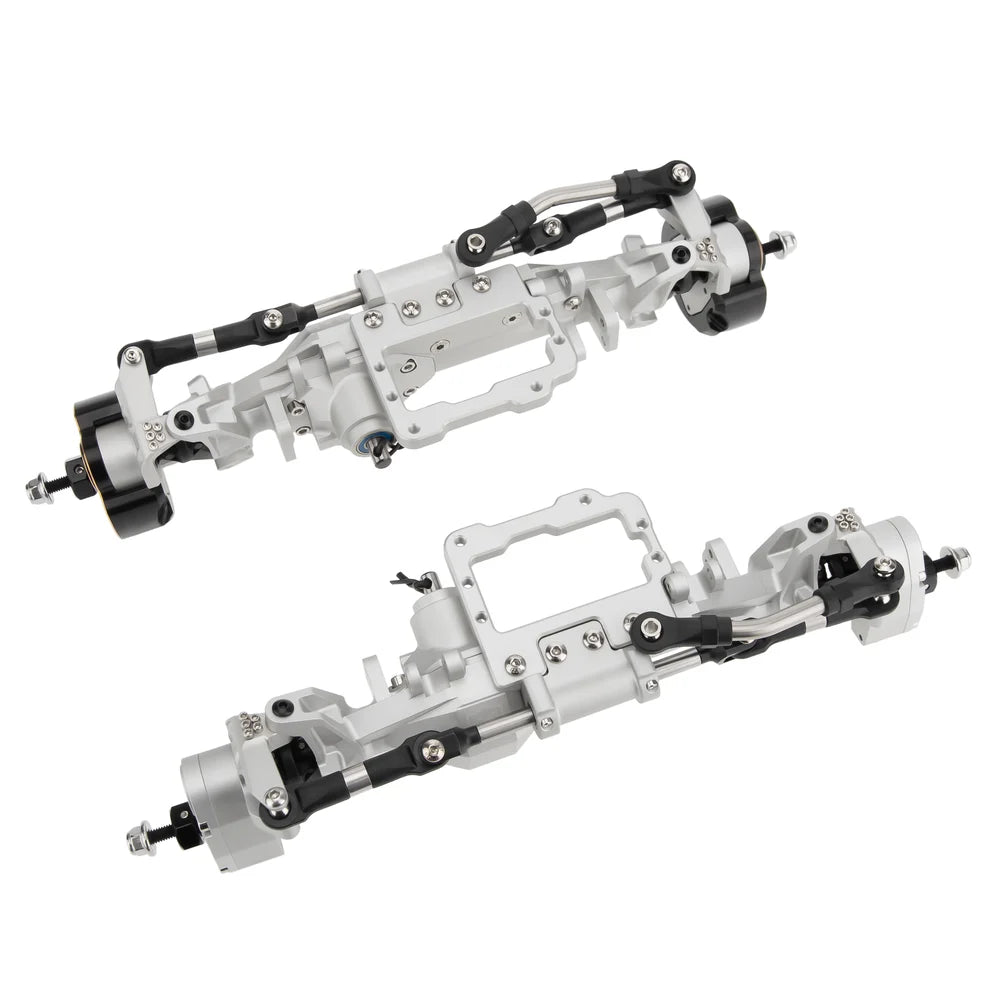

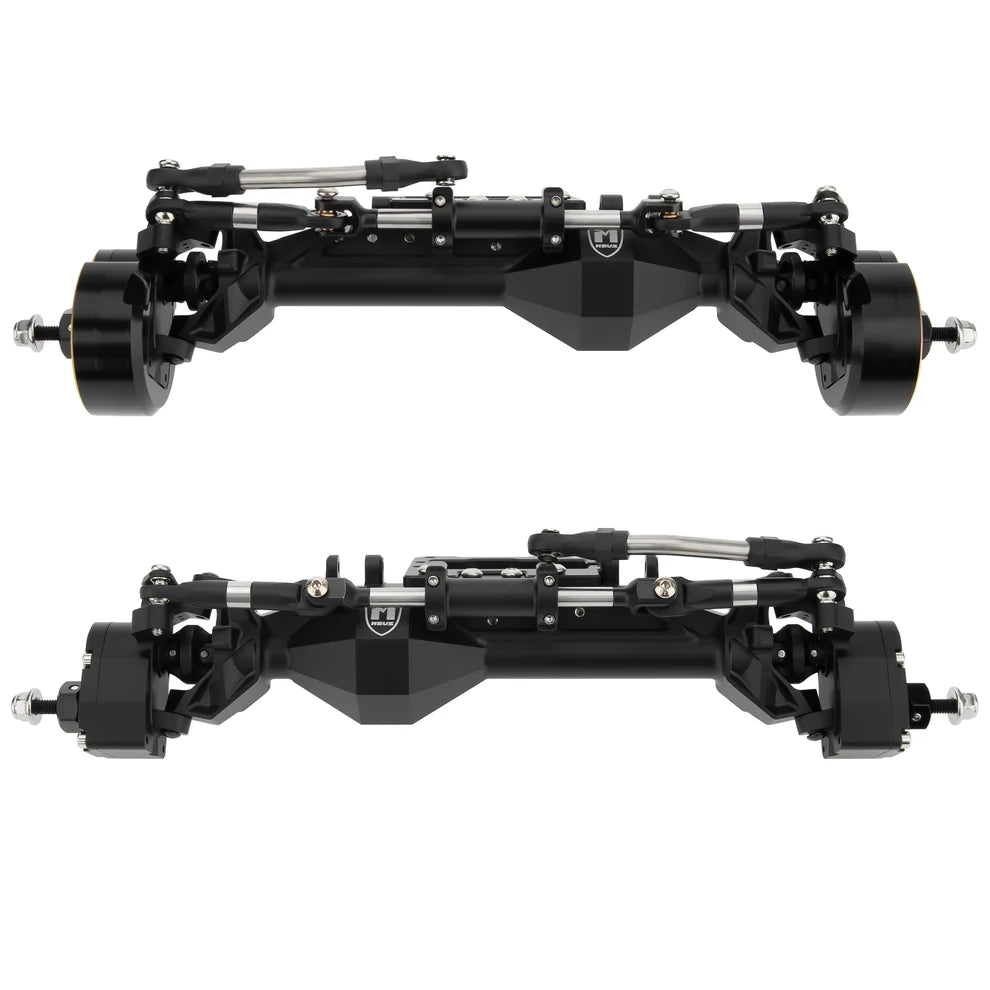

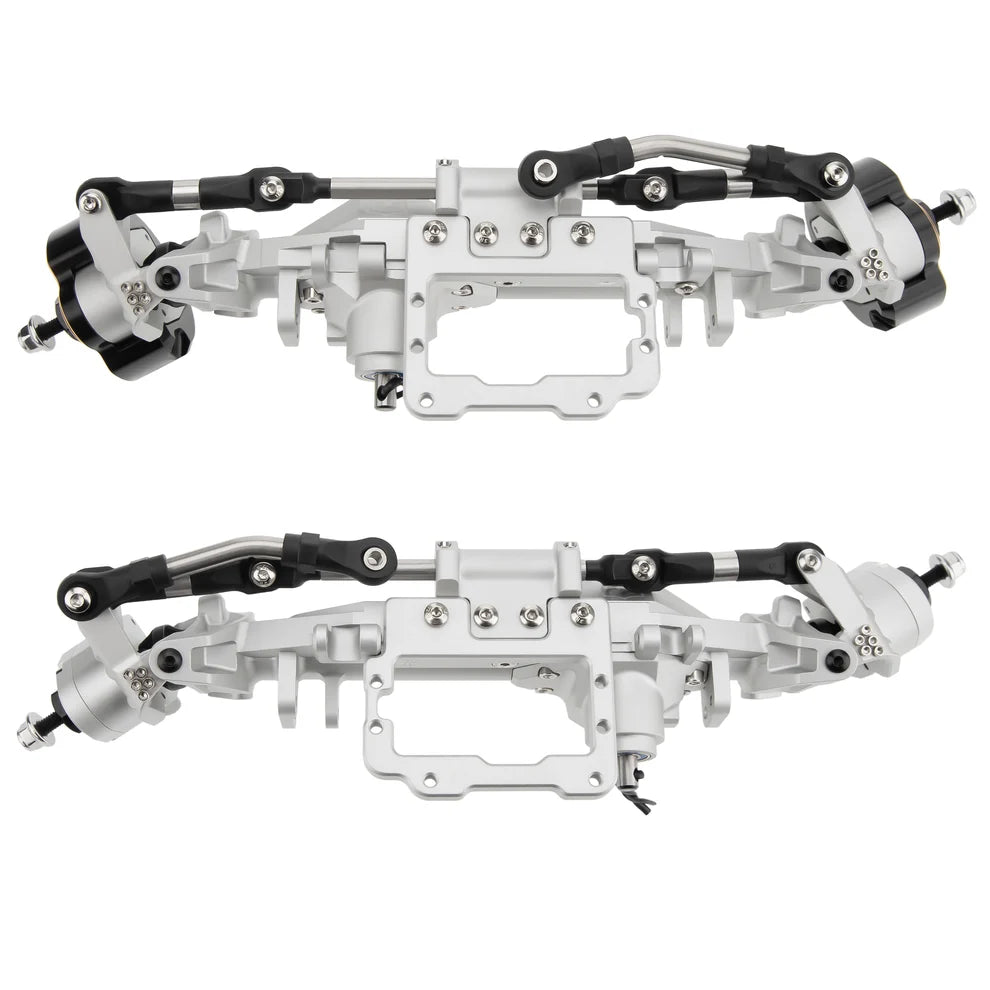

4WS axles(Option)

1 × CHEAT CODE V2 Capra 1.9 Isokinetic front  axle
1 × CHEAT CODE V2 Capra 1.9 rear steering axle
2 set  × Steering Links
2 × Horizontal Servo Mount
2 × Vertical Servo Mount
2× 25T Servo horns
