MEUS Racing ME32 Brushless ESC & Brushless Motor for 1/18 TRX4M 1/24 SCX24 1/30 SCX30

MEUS Racing  ME32 Brushless ESC & 1621 2850KV Brushless Motor for 1/18 TRX4M, ME32 Brushless ESC & 1621 3400KV Brushless Motor for 1/30 SCX30, ME32 Brushless ESC & 1621 3400KV Brushless Motor and 1806 2600KV Brushless Motor for 1/24 SCX24.

Key Features:

• 1. Supports 2-3S LiPo batteries; not compatible with most 2-in-1 ESC receivers, unless an additional CH2 throttle channel is available.

• 2. This brushless ESC and motor set is specially designed for micro RC crawlers, supporting APP programming via a Wi-Fi module.

• 3. 6V/7.4V/8.4V adjustable BEC voltage with 3A continuous current, suitable for most high-torque aftermarket servos.

• 4. Waterproof design for complex terrains such as mud, sand, ice, snow, and puddles.

• 5. Multiple built-in protections, including low-voltage protection, overheating protection, throttle signal loss protection, BEC over-current protection, and short-circuit protection.

• 6. High-efficiency output and stronger power; Quieter than a brushed system, with less noise.

• 7. Offering precise low-speed crawling performance while maintaining smooth, consistent power delivery.

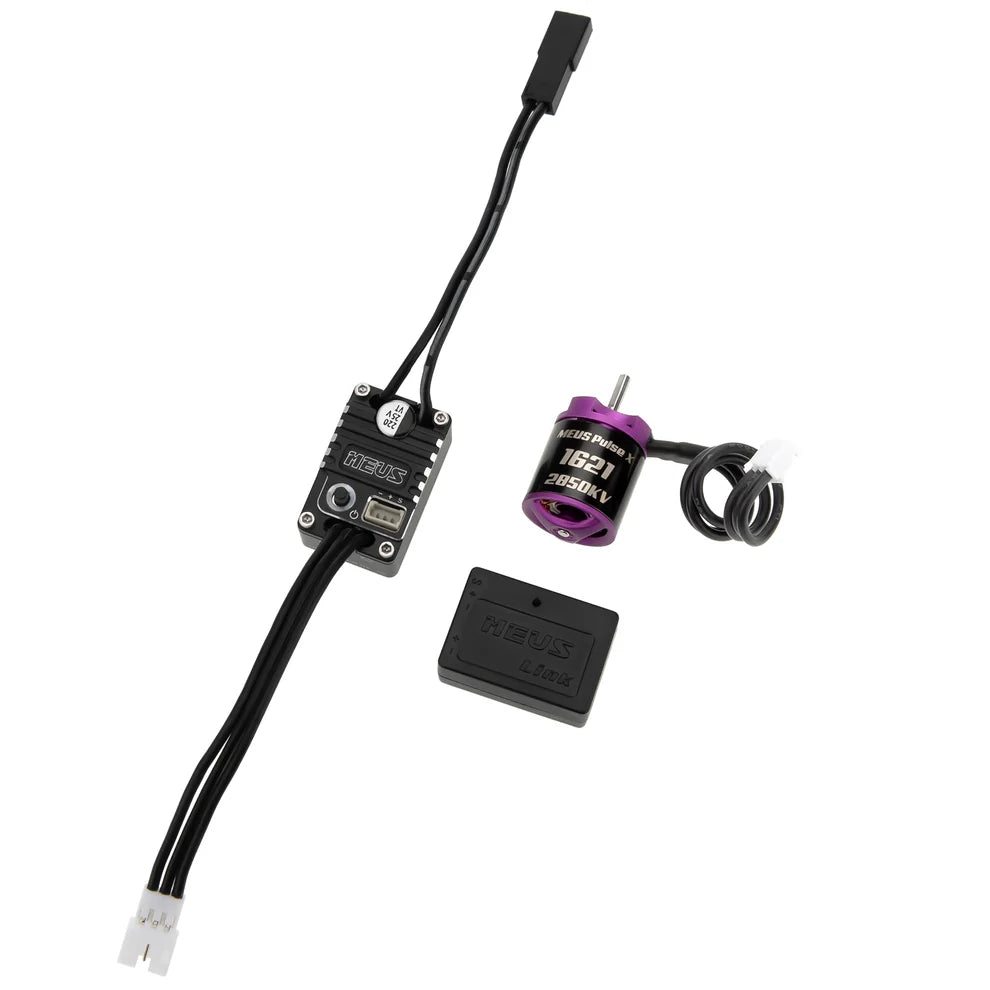

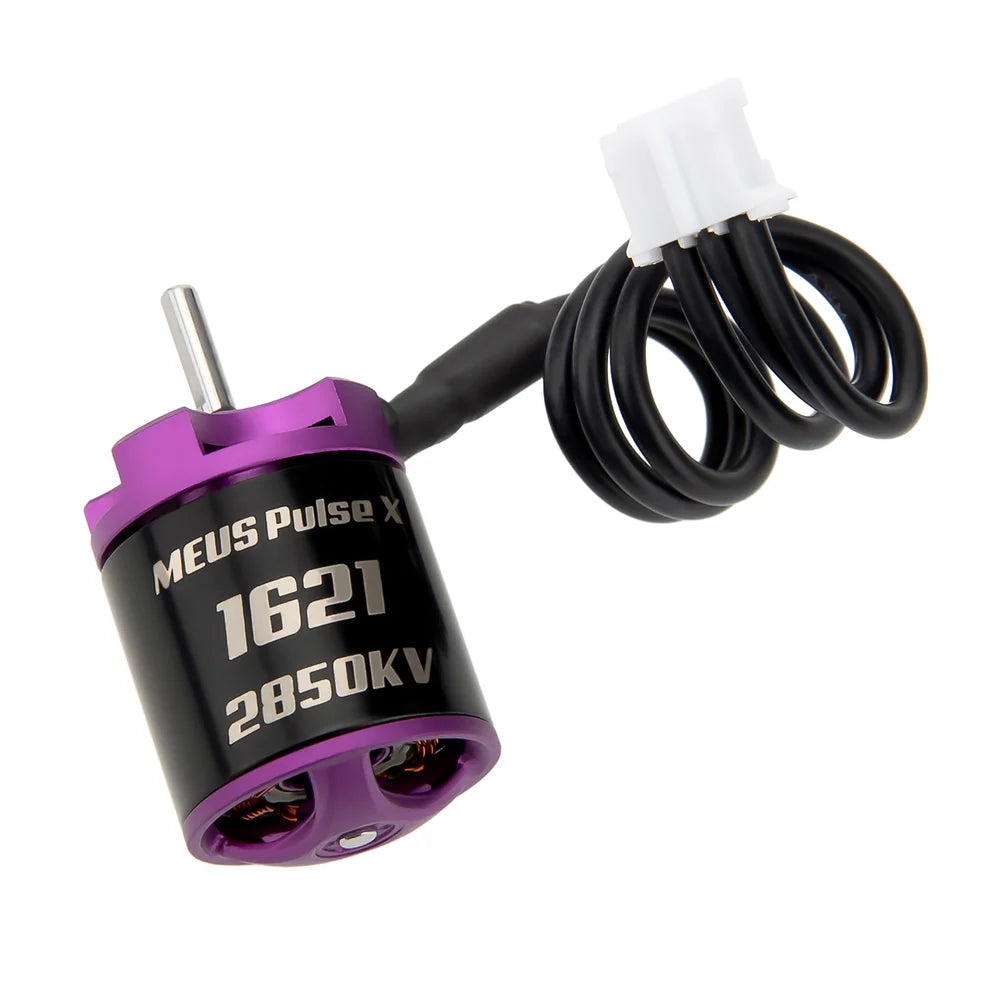

1621 2850KV Brushless Motor For TRX4M:

• RPM/Volt: 2850KV
• Motor Output Shaft: diameter 2 mm, length 8.5 mm
• Weight: 16g
• Dimensions: Φ16*21.5mm
• Working voltage: 7.4-12.6V(2-3S)
• Motor Connectors: PH2.0 3-Pin
• No-Load Current: 0.7A

• Max Peak Current: 18A

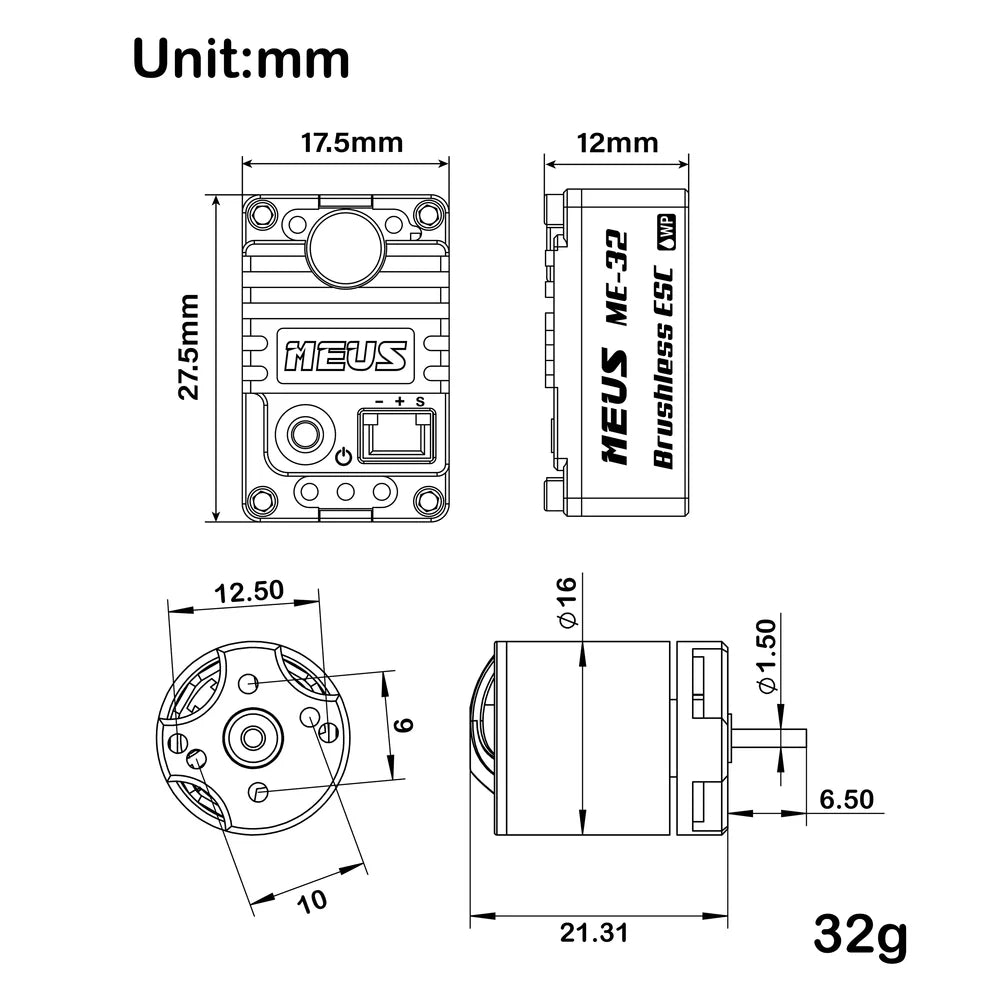

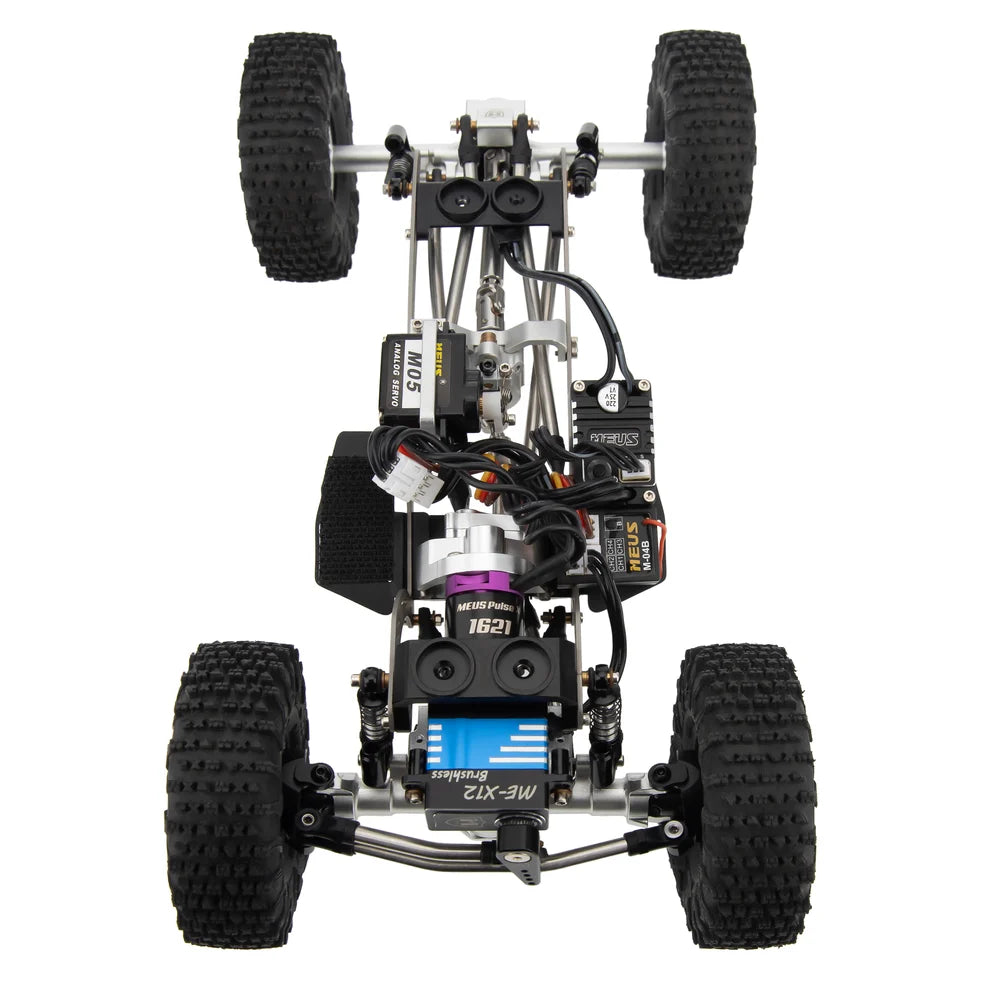

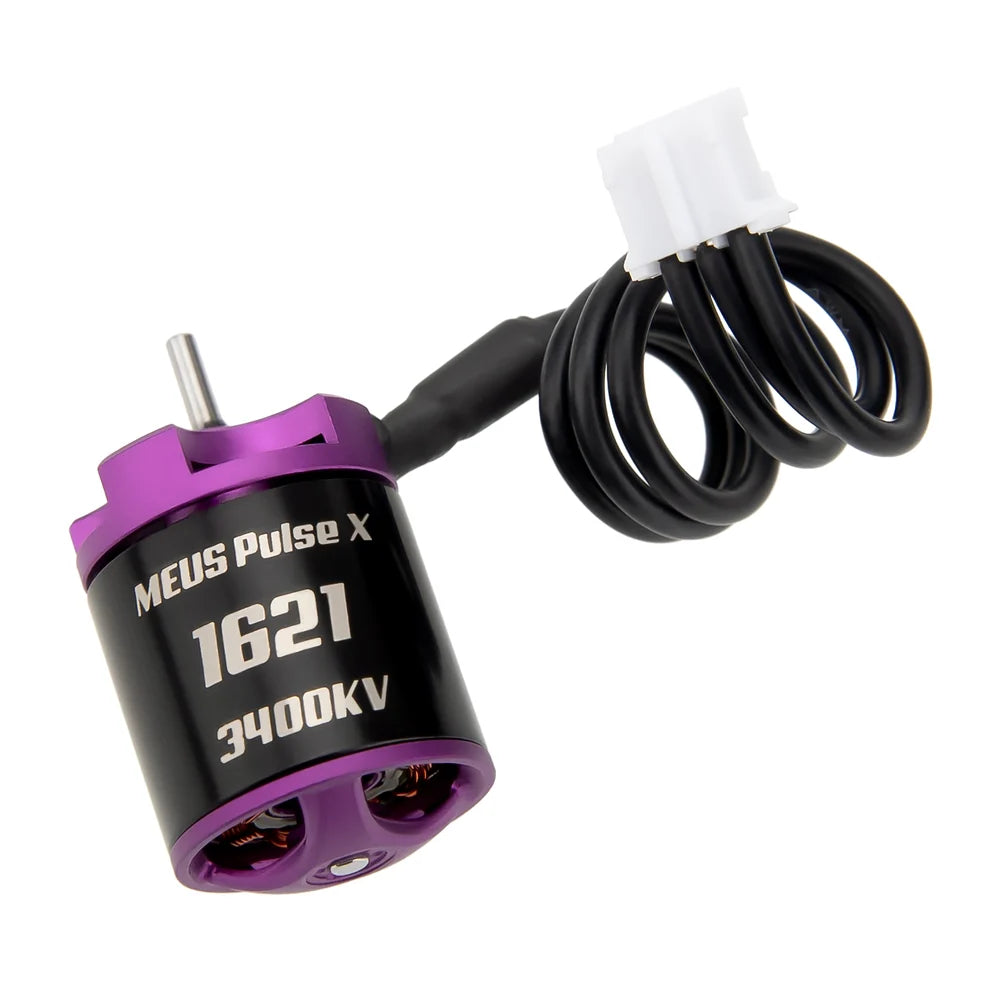

1621 3400KV Brushless Motor for SCX30:

• RPM/Volt: 3400KV
• Motor Output Shaft: diameter 1.5 mm, length 6.5 mm
• Weight: 16g
• Dimensions: Φ16*21.5mm
• Working voltage: 7.4-12.6V(2-3S)
• Motor Poles: 12
• Motor Connectors: PH2.0 3-Pin
• No-Load Current: 0.7A

• Max Peak Current: 18A

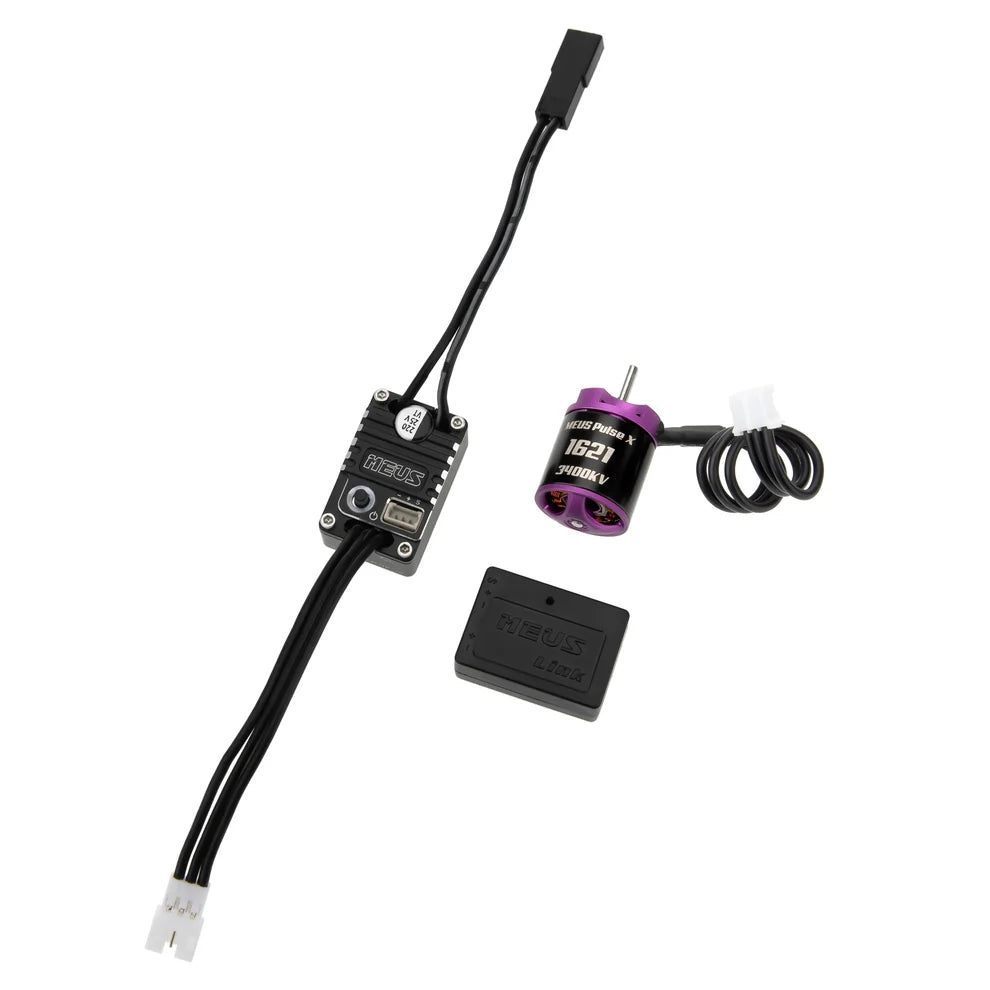

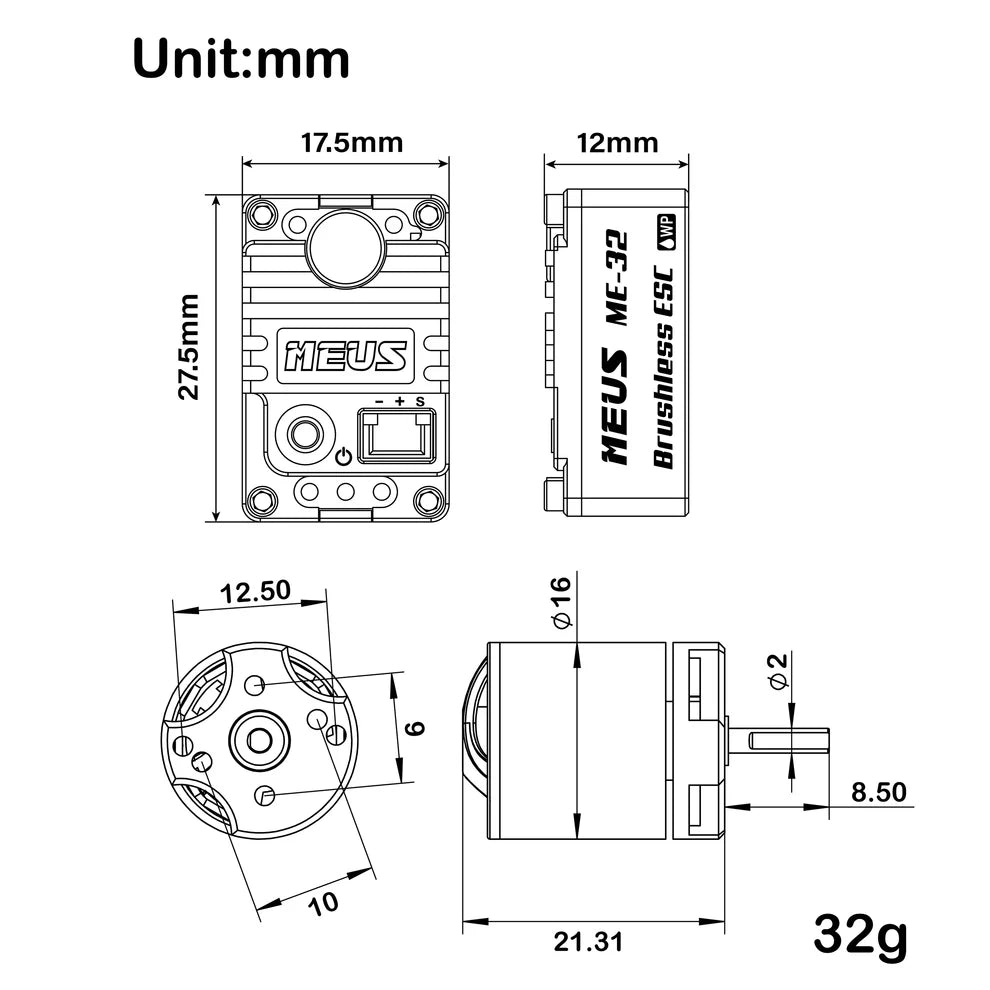

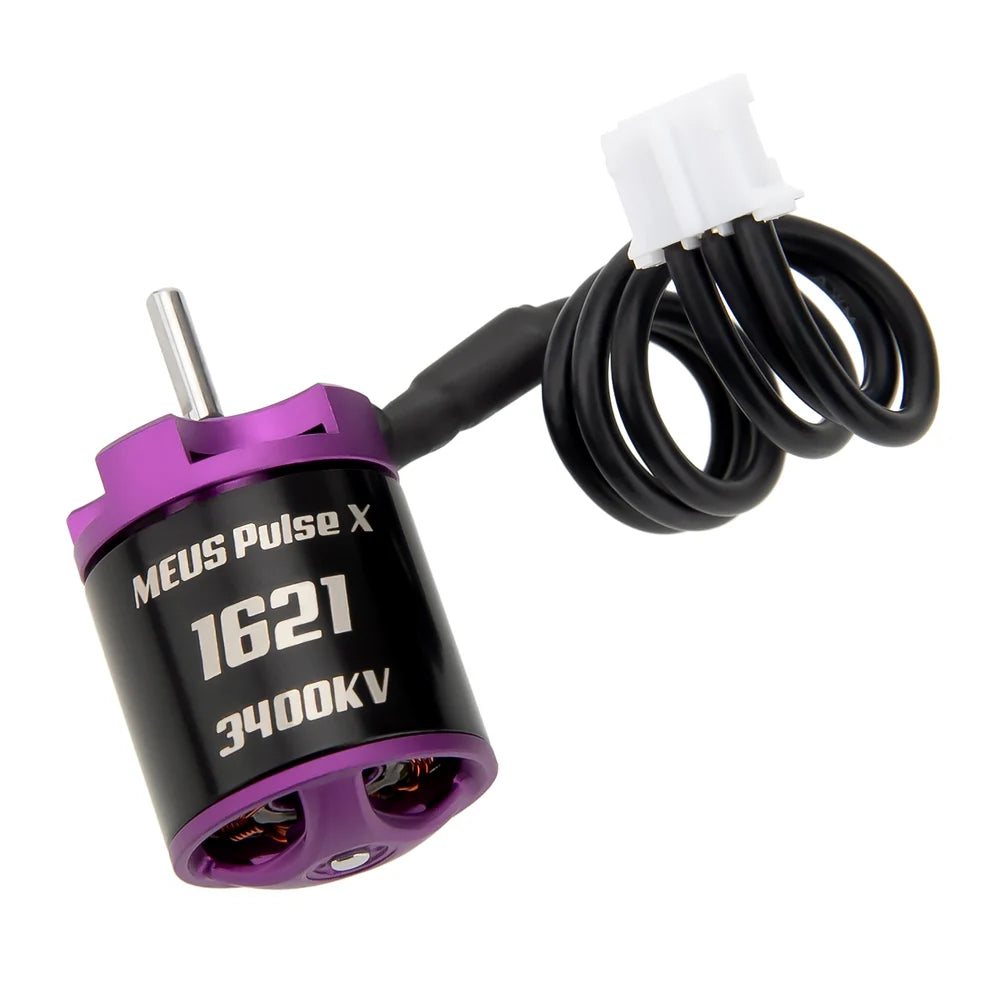

1621 3400KV Brushless Motor for SCX24:

• RPM/Volt: 3400KV
• Motor Output Shaft: diameter 2 mm, length 8.5 mm
• Weight: 16g
• Dimensions: Φ16*21.5mm
• Working voltage: 7.4-12.6V(2-3S)
• Motor Poles: 12
• Motor Connectors: PH2.0 3-pin
• No-Load Current: 0.7A

• Max Peak Current: 18A

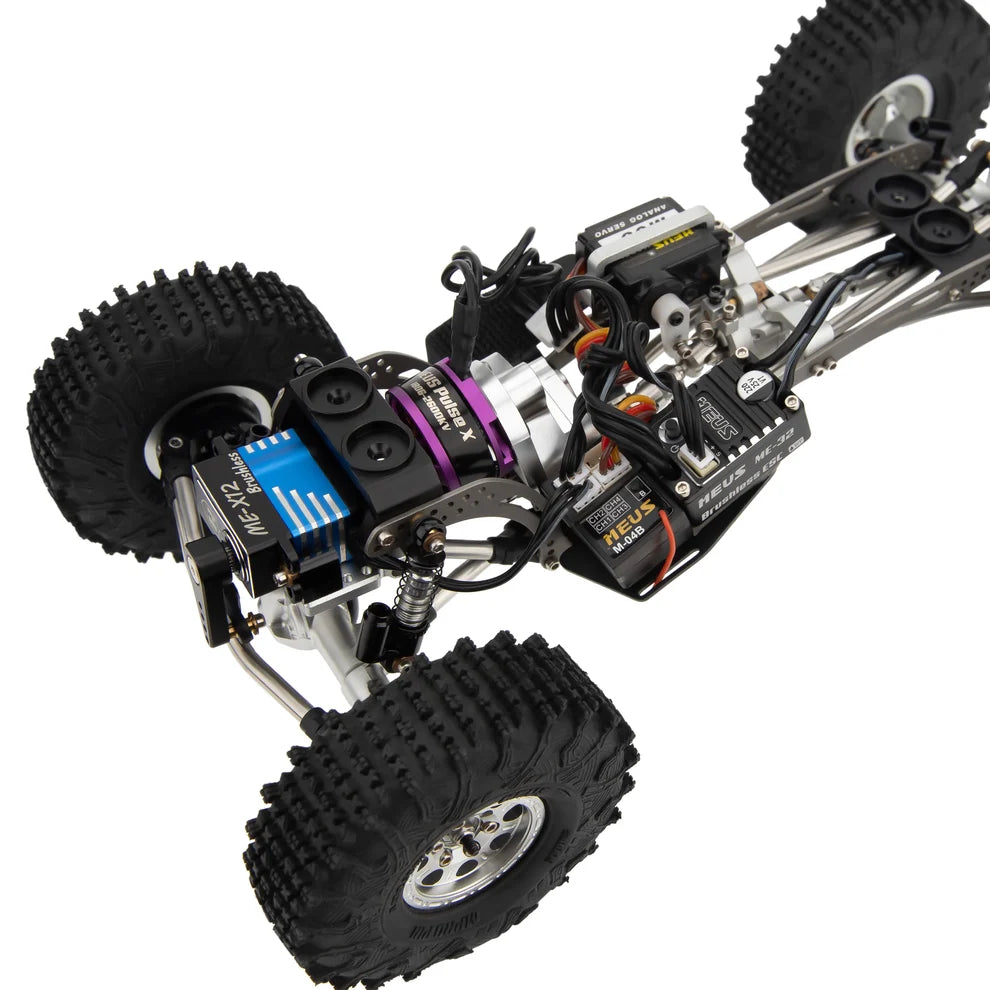

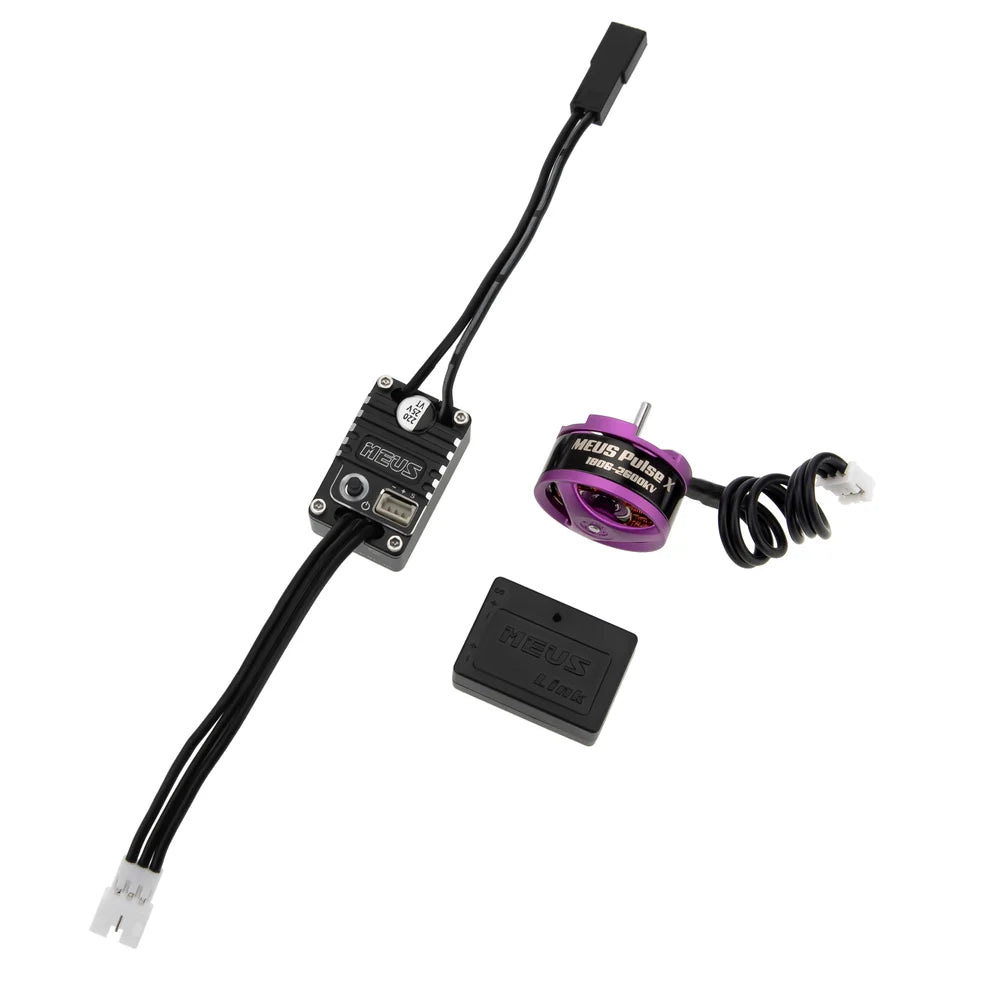

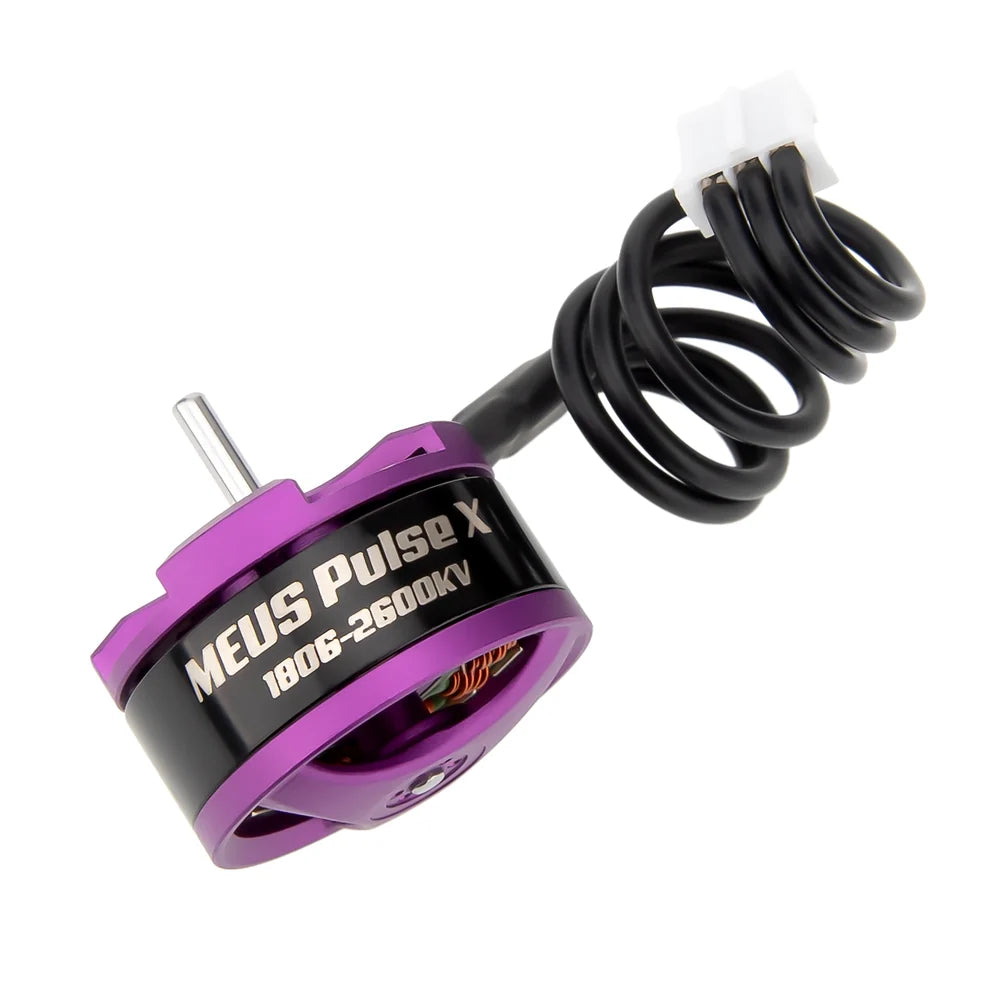

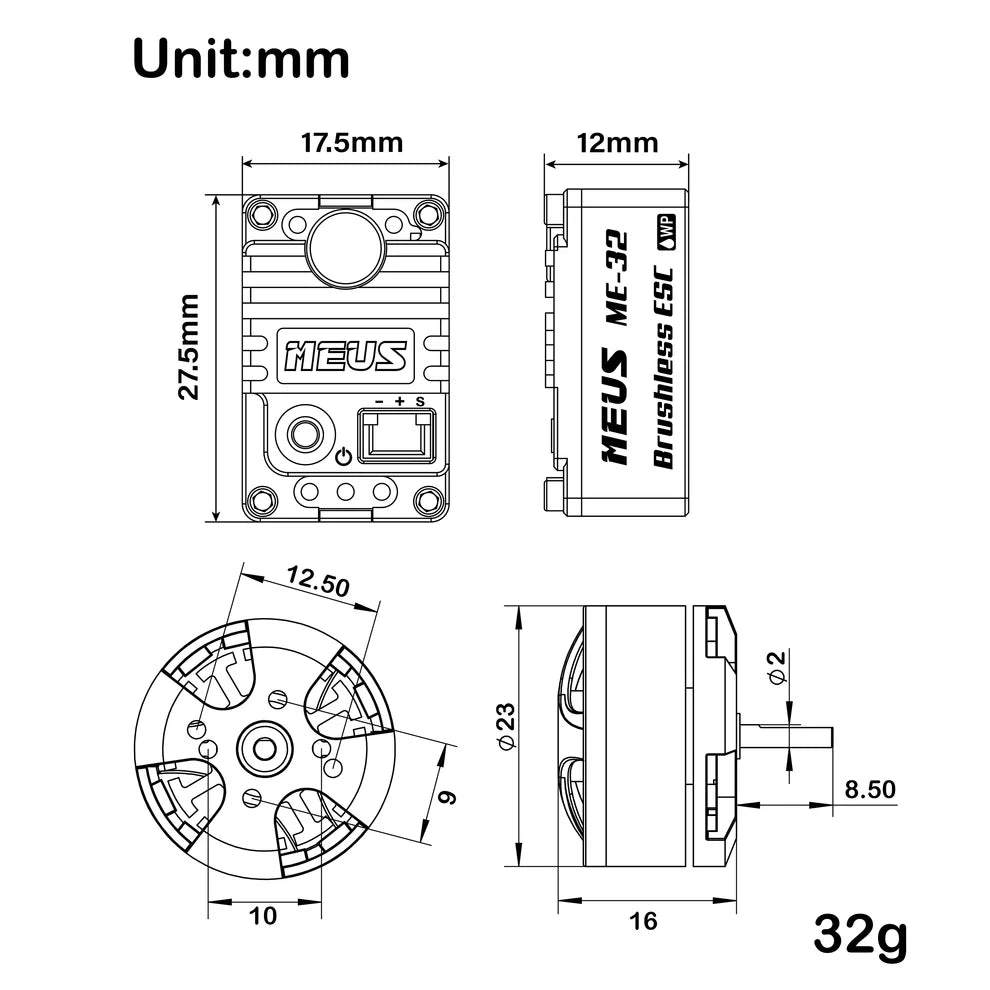

1806 2600KV Brushless Motor for SCX24:

• RPM/Volt: 3400KV
• Motor Output Shaft: diameter 2 mm, length 8.5 mm
• Weight: 17g
• Dimensions: Φ23*16mm
• Working voltage: 7.4-16.8V(2-4S)
• Motor Poles: 14
• Motor Connectors: PH2.0 3-pin
• No-Load Current: 0.7A

• Max Peak Current: 24A

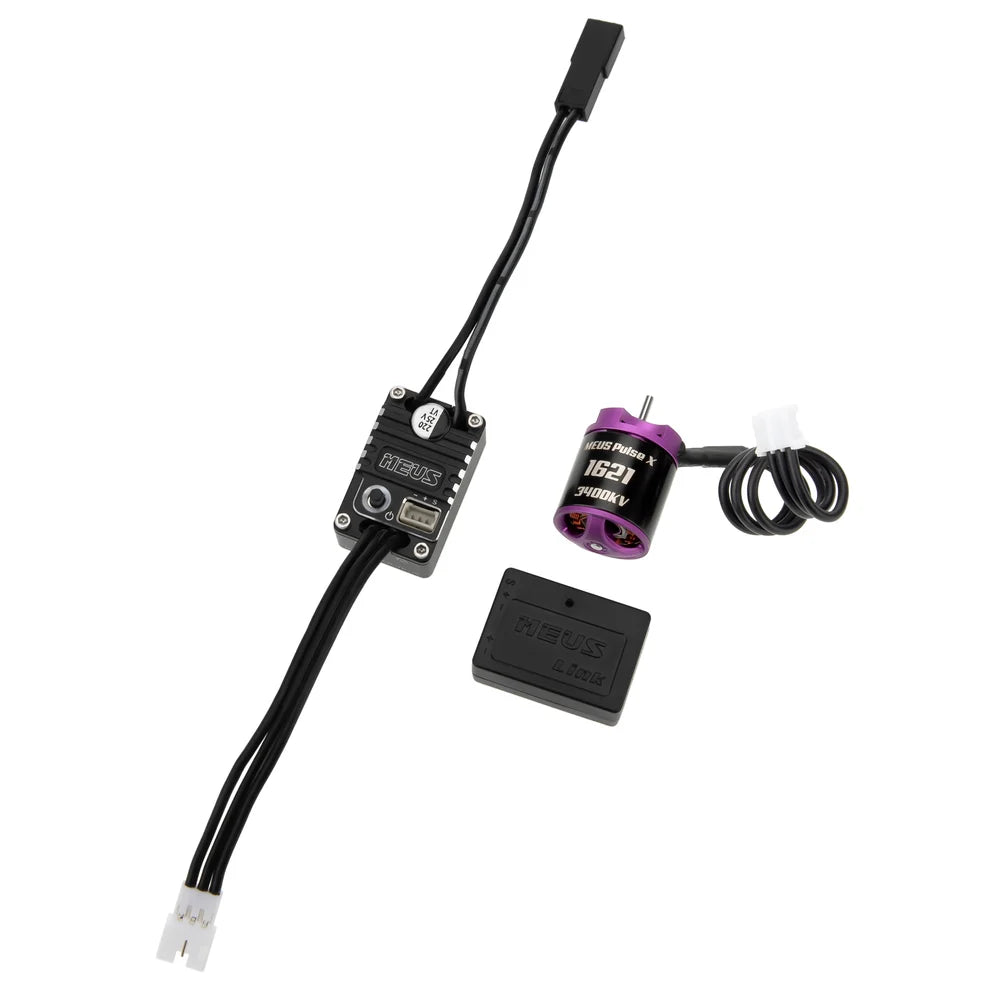

Package List:

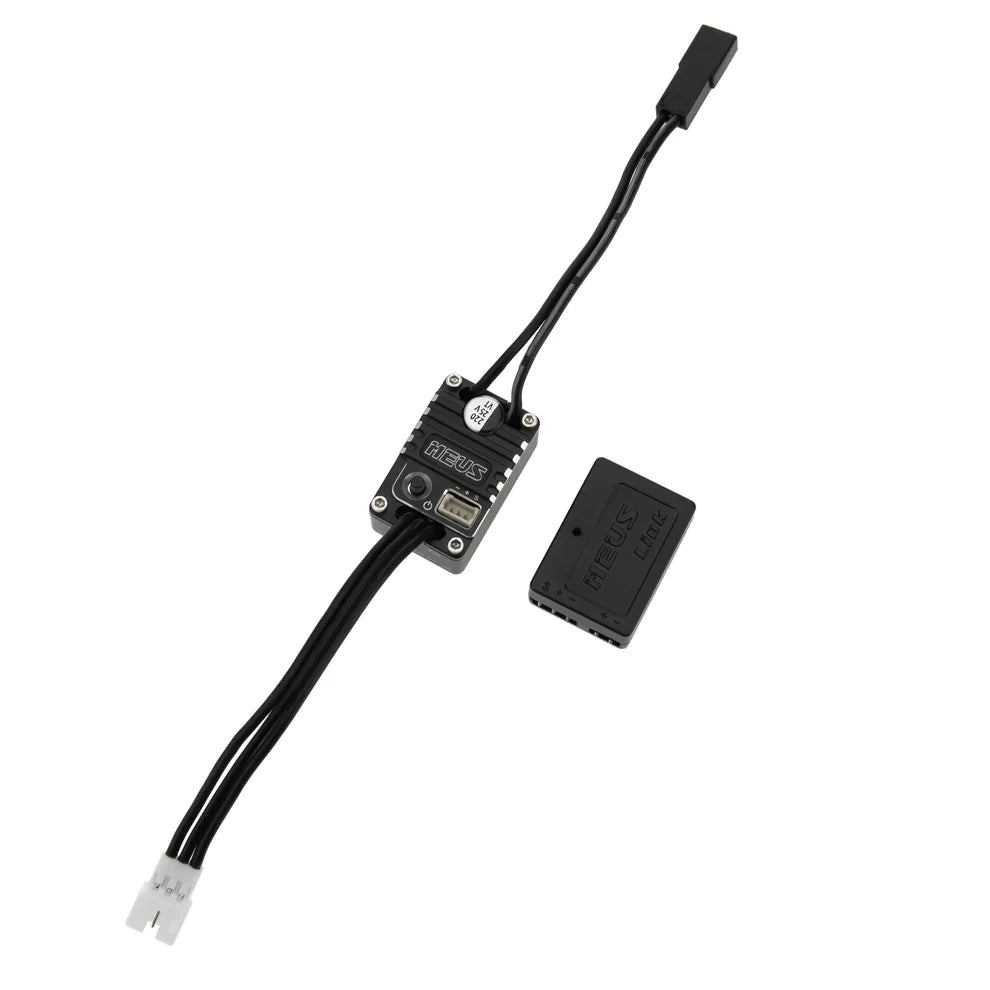

• 1 × ME32 Brushless ESC
• 1 × Programming Card
• 1 × Brushless Motor
