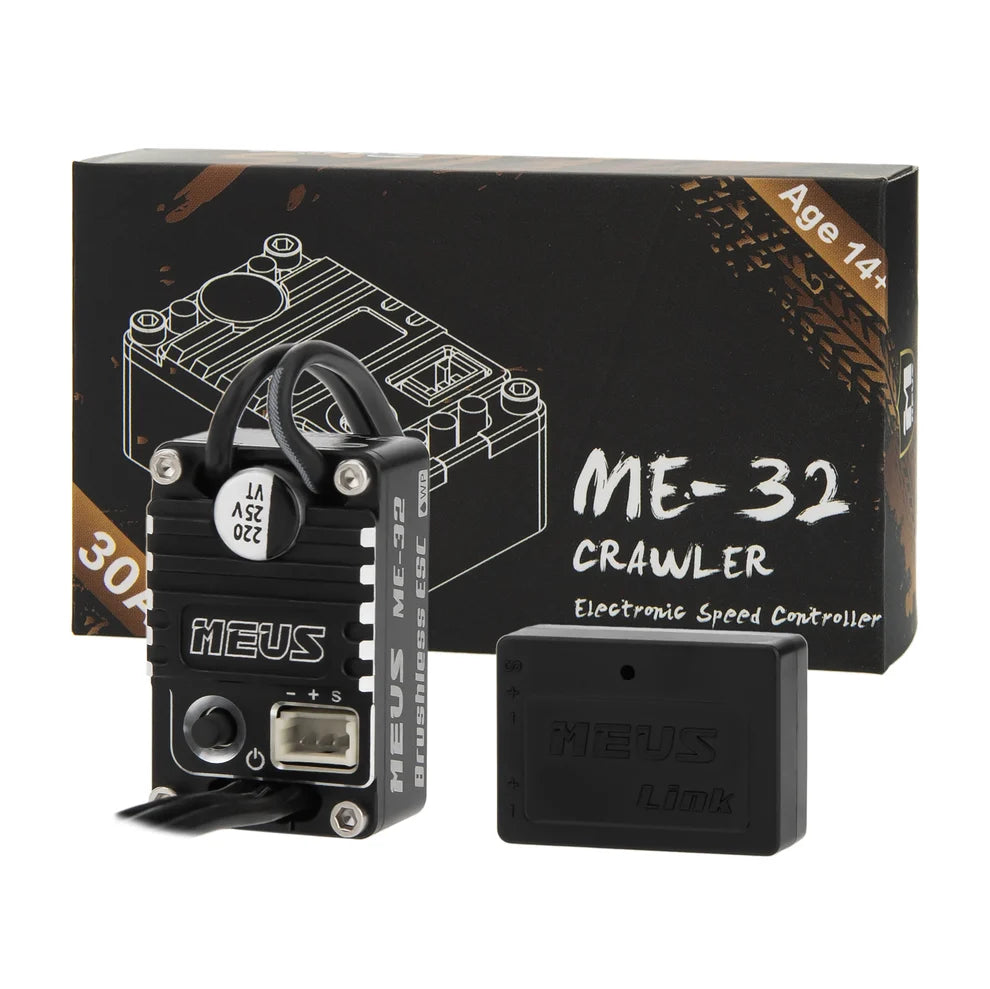

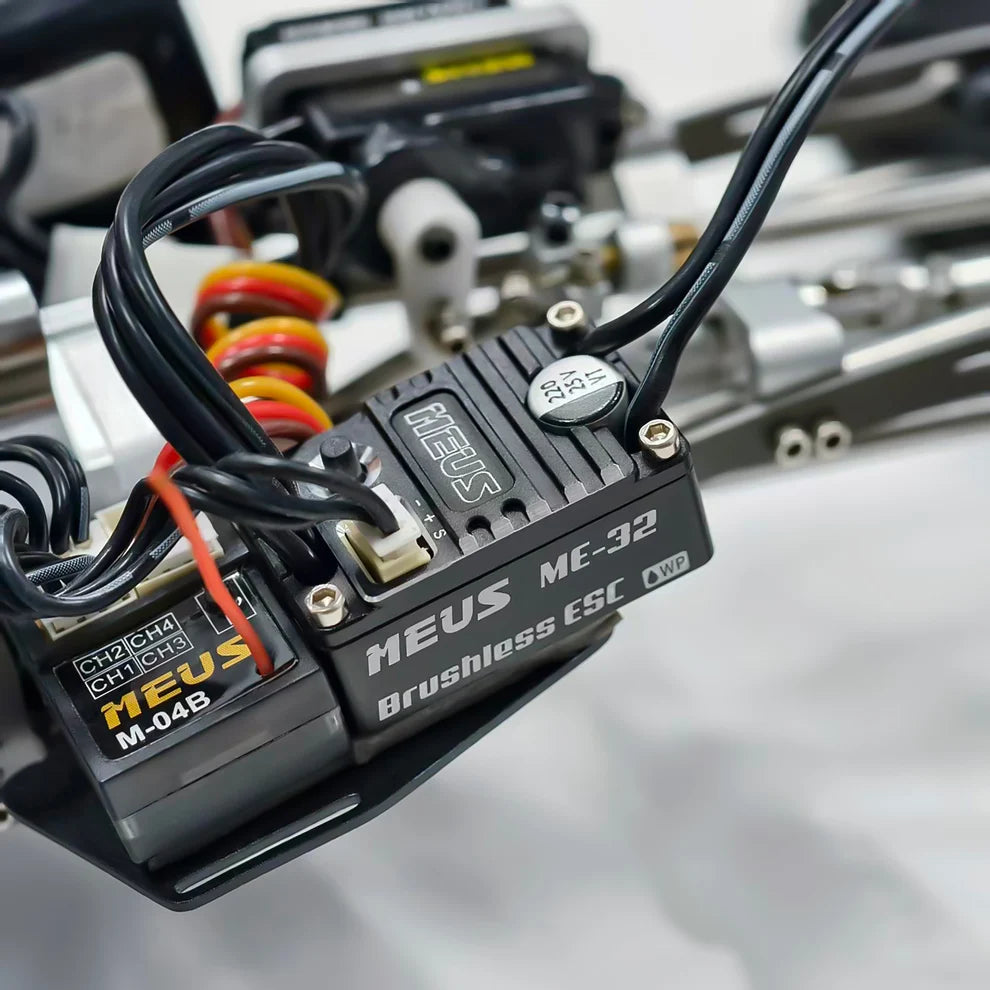

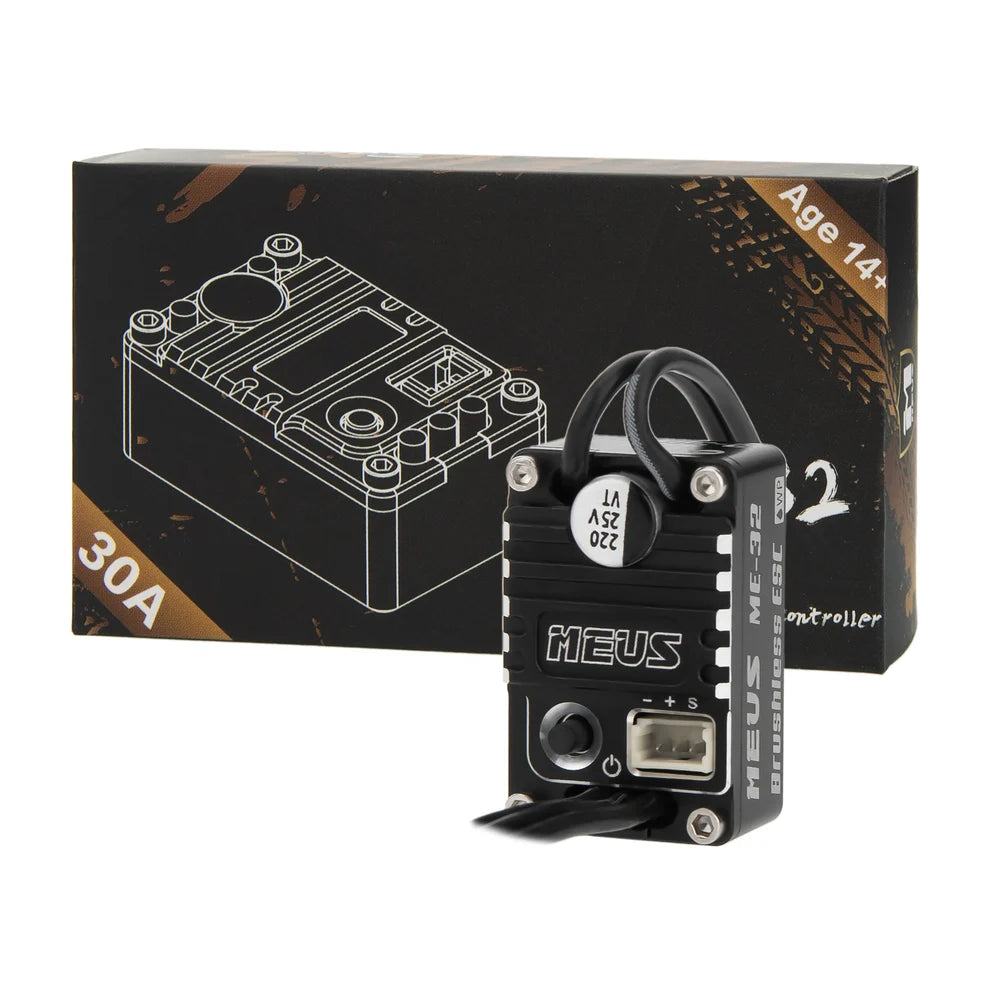

MEUS Racing ME32 Brushless ESC for 1/24 SCX24 1/18 TRX4M REDCAT ASCENT-18

MEUS Racing ME32 Brushless ESC for 1/24 Axial SCX24, 1/18 Traxxas TRX-4 M, and Redcat Ascent-18 RC Crawler.

Key Features:

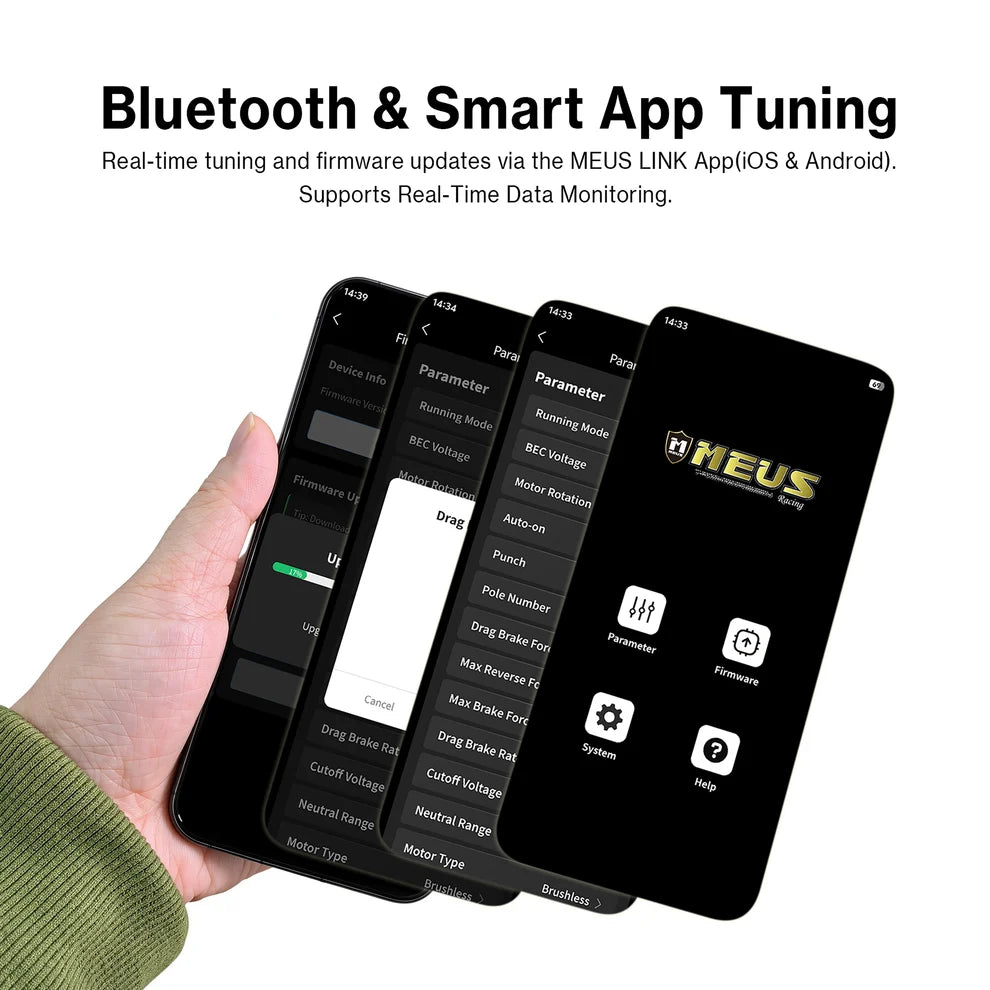

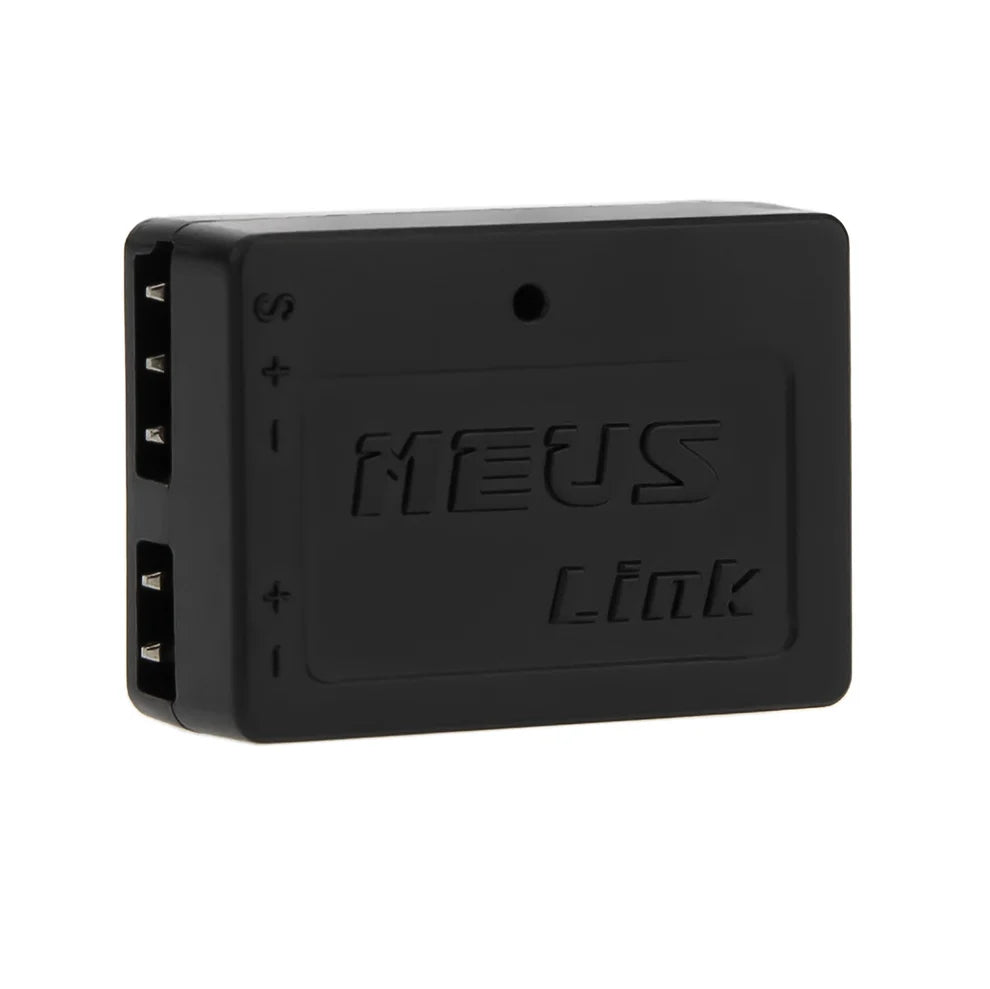

• 1. This ME32 brushless ESC is specially designed for micro RC crawlers, supporting app programming via a Wi-Fi module.

• 2. Smooth, linear, and Smooth, linear, and higher torque at low speeds.

• 3. 6V/7.4V/8.4V adjustable BEC voltage with 3A continuous current, suitable for most high-torque aftermarket servos.

• 4. Waterproof design for complex terrains such as mud, sand, ice, snow, and puddles.

• 5. Multiple built-in protections, including low-voltage protection, overheating protection, throttle signal loss protection, BEC over-current protection, and short-circuit protection.

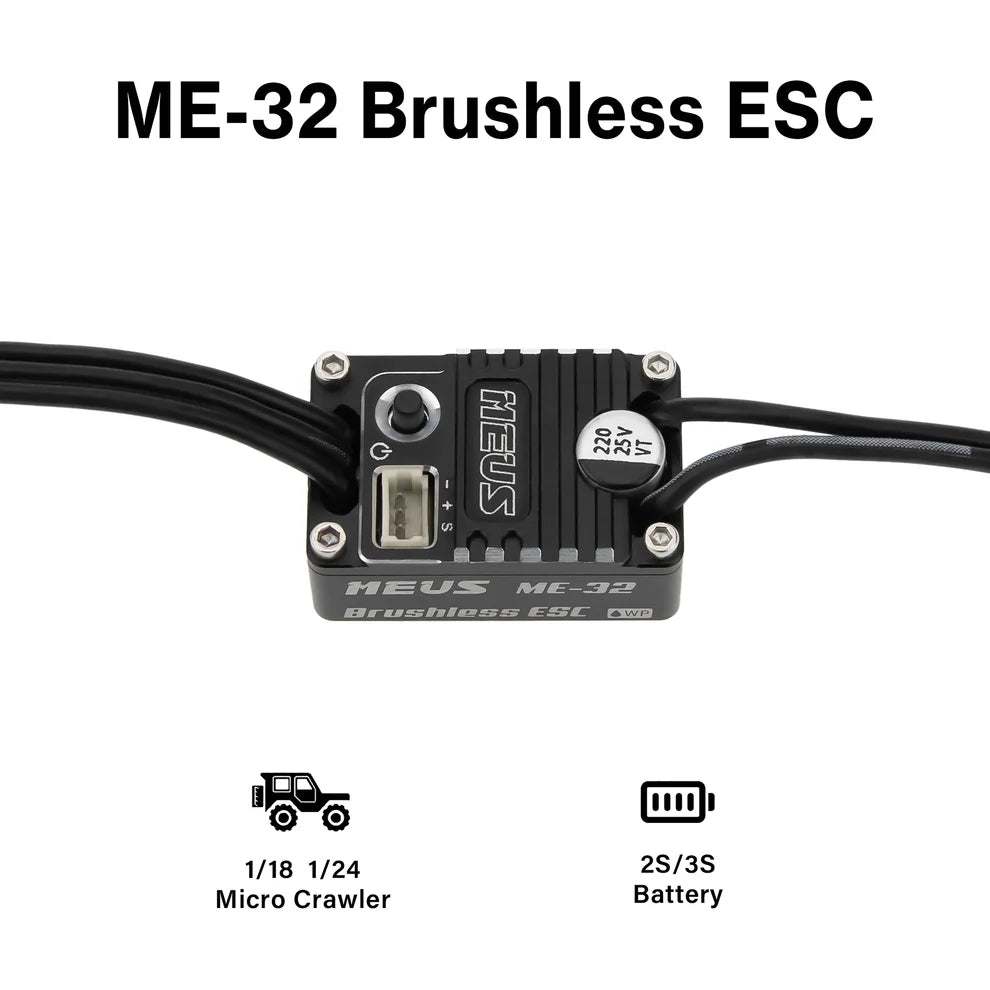

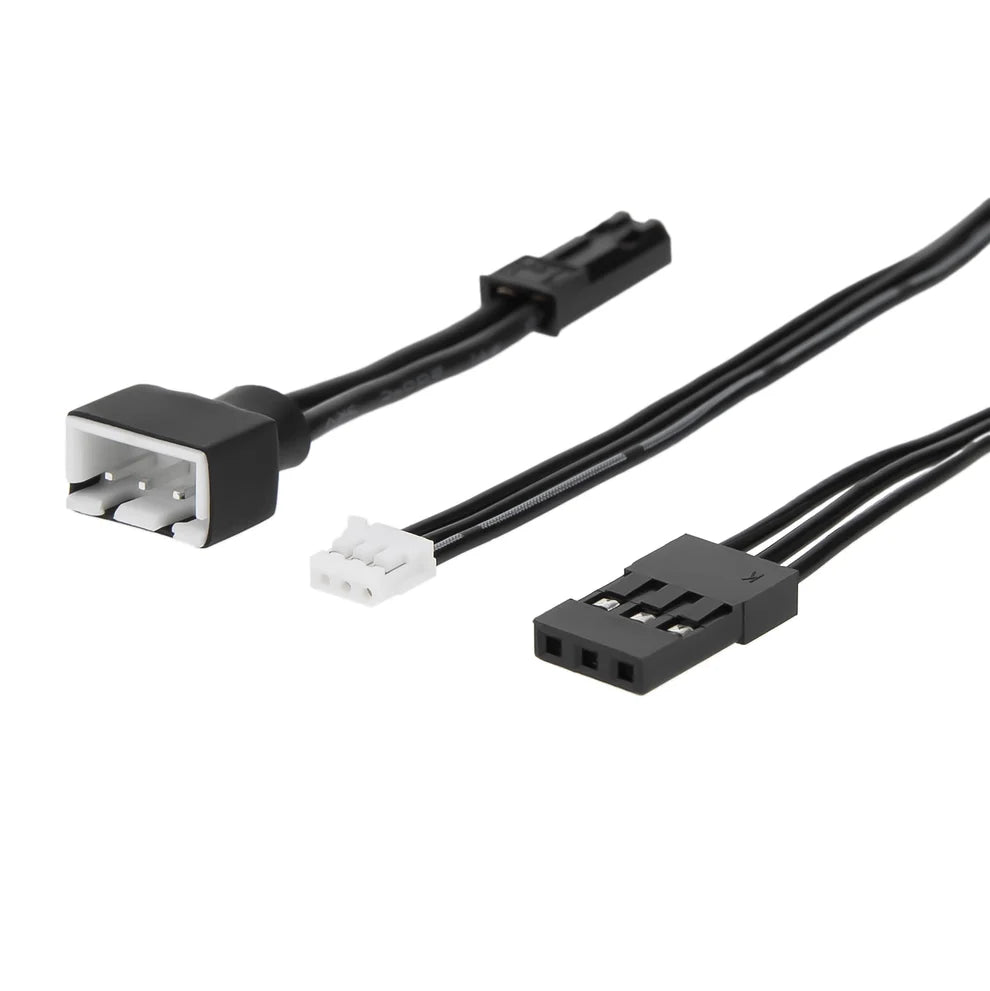

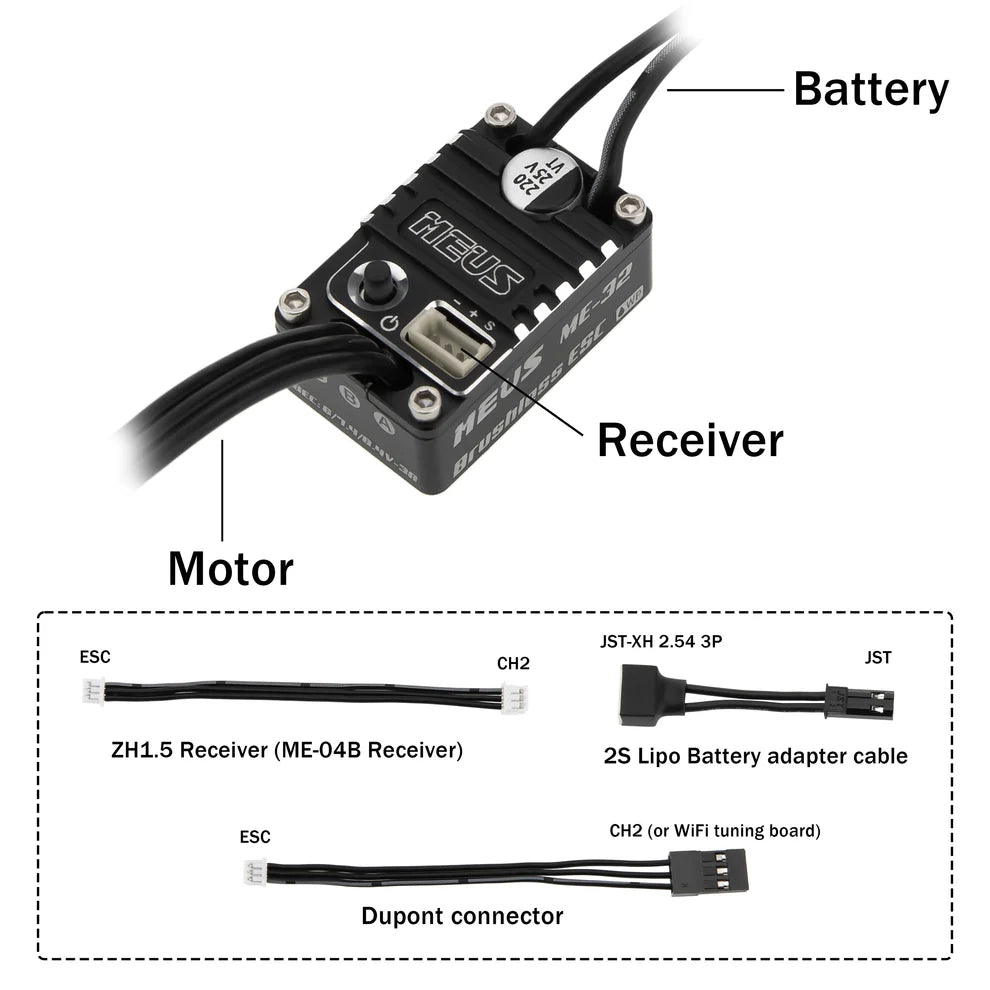

• 6. Supports 2-3S LiPo batteries. Comes with a battery adapter cable (JST XH2.54 3P to JST 2S LiPo).

• 7. Not compatible with most 2-in-1 ESC receivers unless an additional CH2 throttle channel is available.

Motor Compatibility:

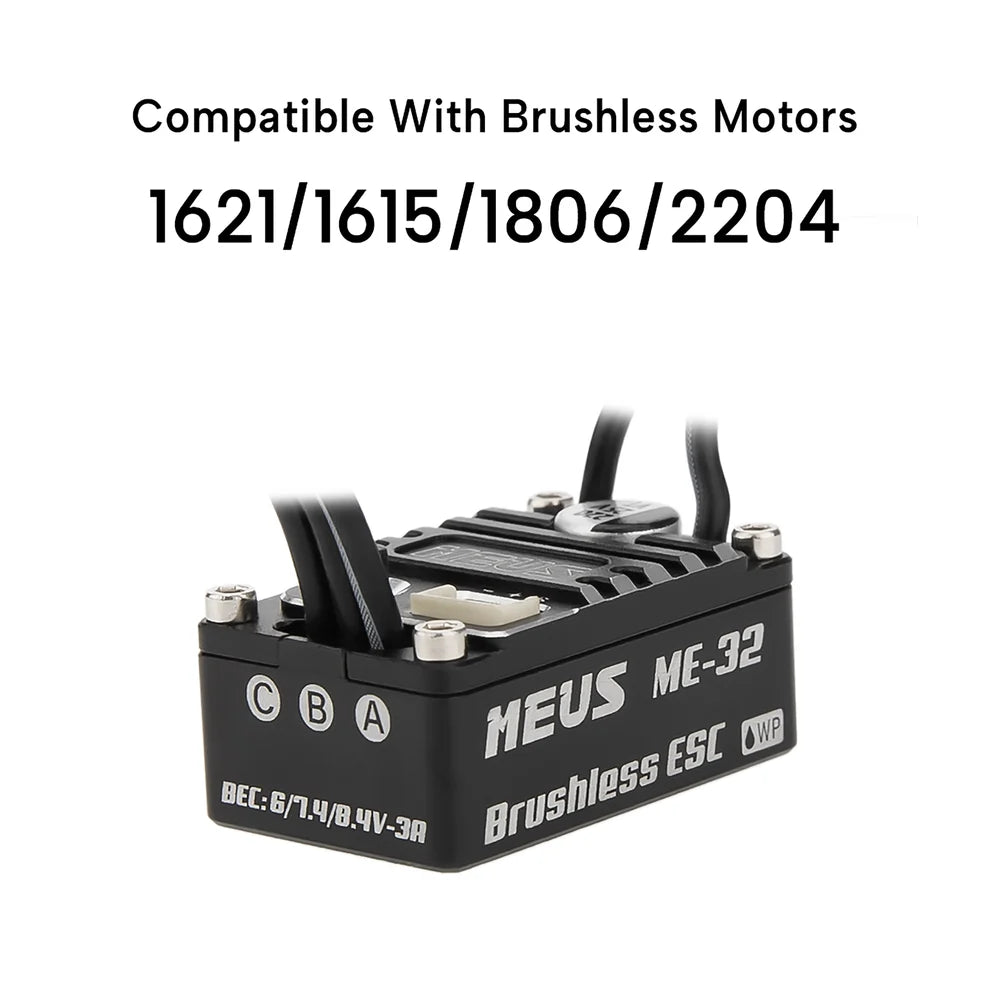

• Brushless: MEUS Pulse X (1615, 1621, 1806 brushless outrunner motors) and other brushless outrunner motors.

• Brushed: 030, 050, 180 brushed motors (Note: You must change the ESC mode before connecting and ensure correct polarity to avoid any risk of burnout.)

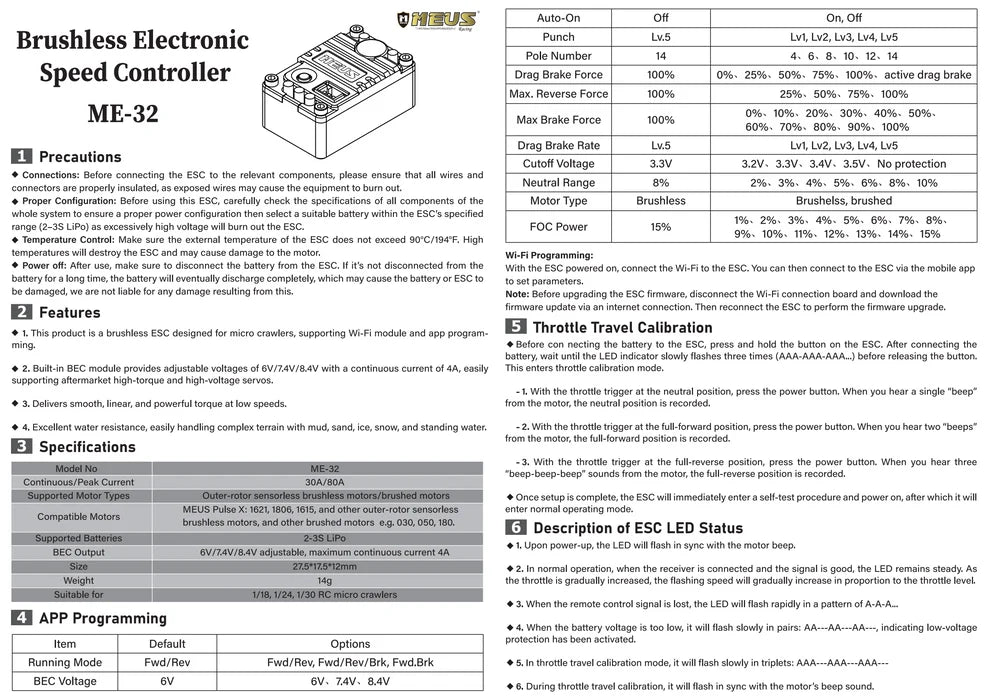

ME32 Brushless ESC Manual

Package List：

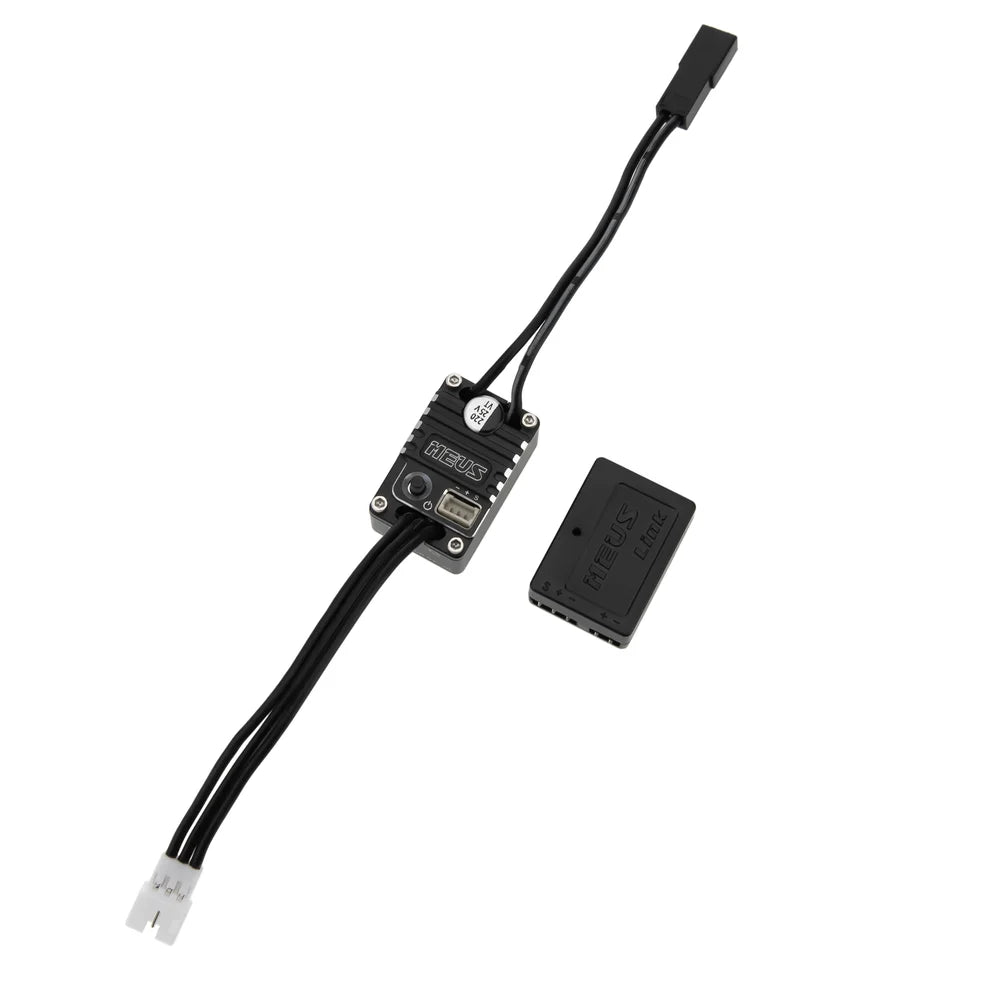

1 × ME32 Brushless ESC
