We introduce the fifth generation of Scorpion's renowned and award winning "HK - Series" motors. The Scorpion "HK5 - Series"
The HK5 Series lives up to and exceeds our standards of the most Powerful and Efficient motors, with market leading Torque per Amp capabilities. In addition, on the HK5 series we focused specifically on motor cooling and motor temperature. With an all new Internal Fan design, combined with our proven external centrifugal fan, we have nearly doubled the amount of airflow passing through the motor. The result is much improved cooling, and cooler operating temperatures.
The HK5-4225-825 kv is designed for very light and smooth flying 700 size helicopters or high power 600 size helicopters, running on 8ss lipo or other UAV application requiring up to 5100w of power!
Specifications
| Motor Kv | 825KV RPM/Volt |
| Weight | 411.4g Grams ( 14.51oz) |
| Motor Body Dimensions | 52.5mm x 56.9mm (2.07" x 2.24") |

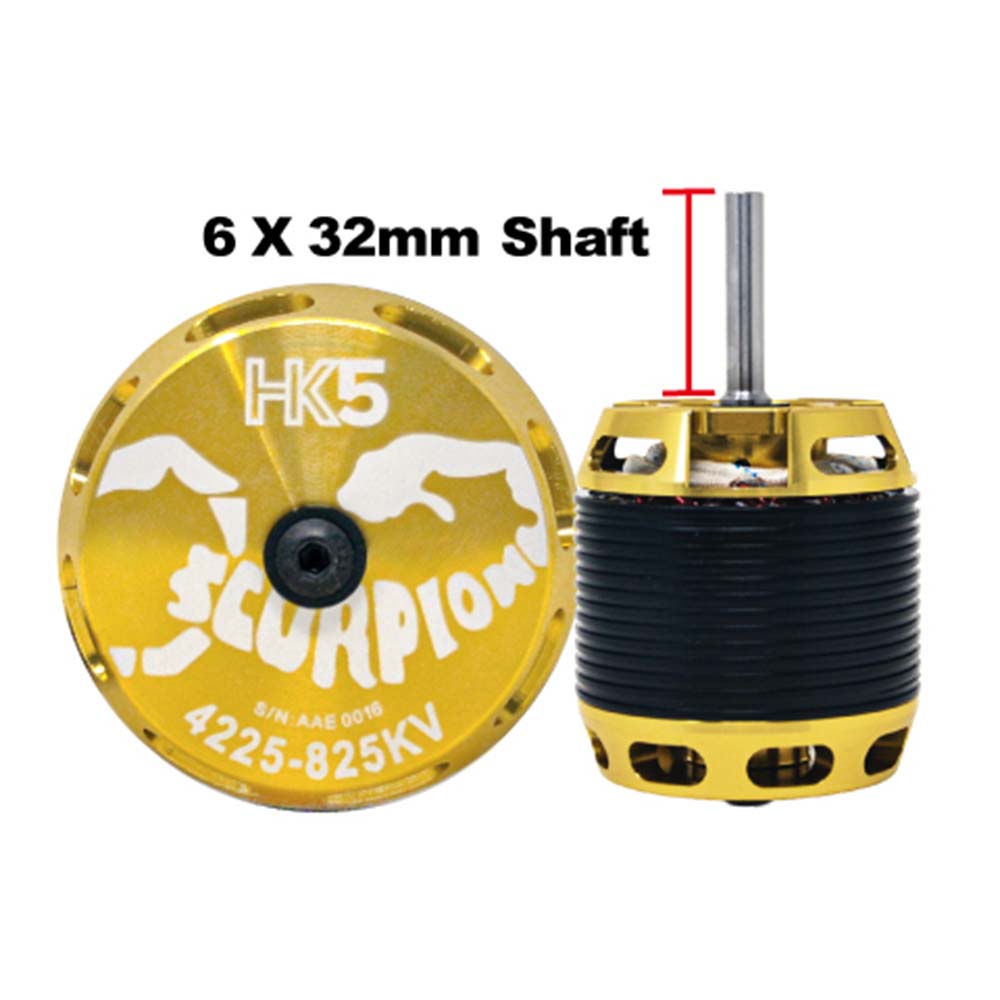

| External Shaft Dimensions | 5.98mm x 32mm (0.235" x 1.26") |
| Continuous Current | 115 Amps |
| Continuous Power | 3500 Watts |
| Peak Current | 170A (2 seconds) |
| Peak Power | 5100 Watts (2 seconds) |
| Max Lipo Cell* | 8s |
| Stator Diameter | 42 mm (1.65 in) |
| Stator Thickness | 25 mm (0.98 in) |
| No. of Stator Arms | 12 |
| No. of Stator Poles | 10 |
| Motor Wind | 3+4T Delta |
| Motor Wire | 1-Strand x 1.6mm |
| Vendor: | Scorpion Power Systems |
| SKU: | HK5_4225_825_6_32 |
| Availability: | Out Of Stock |
| Product Type: | Heli Motors |
| Weight: | 1.0 lb |
