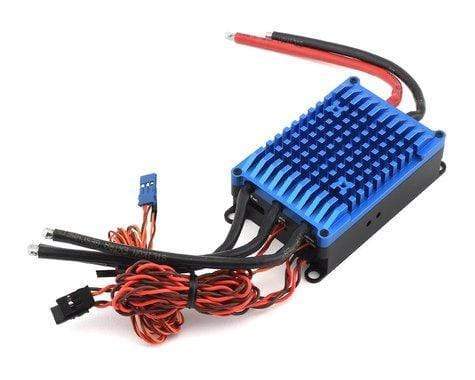

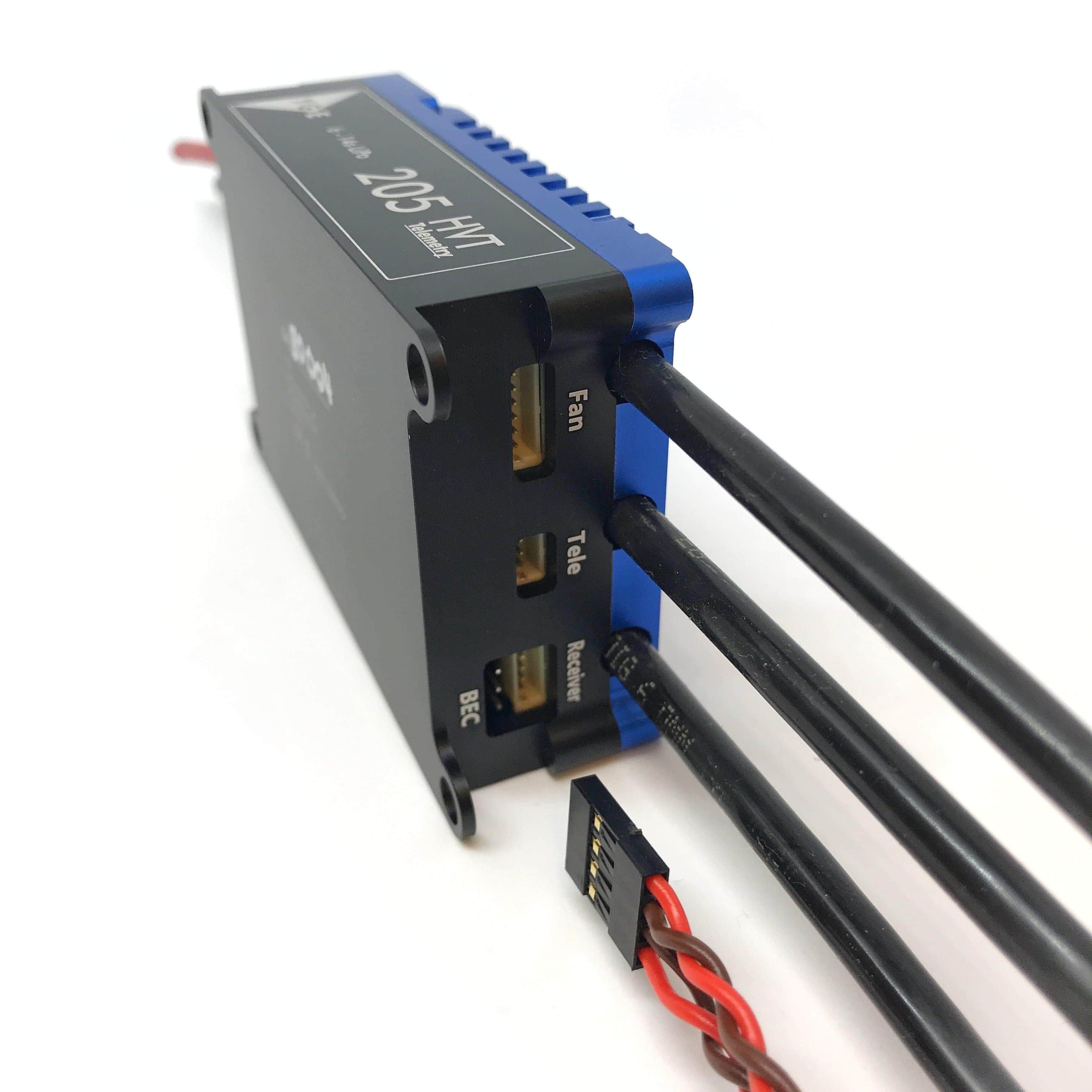

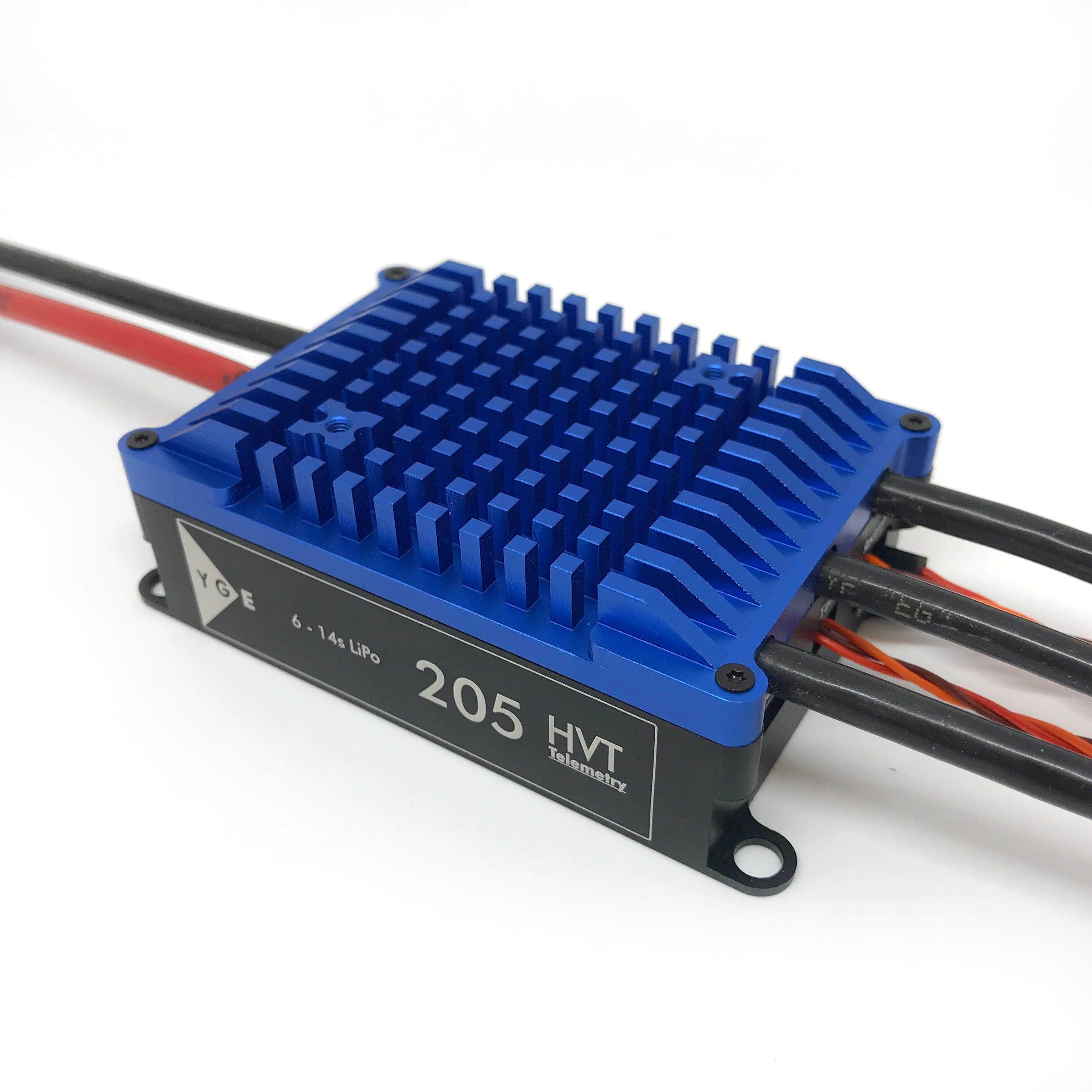

YGE 205A HV Telemetry ESC - BEC 12A / 30A

|
YGE-205HVT-BEC
You will earn 629.99 points for buying this product
Price Match Guarantee
$629.99 $0.00( / )
YGE ESC's have been known to provide reliable performance in the most demanding electric applications in sailplanes, airplanes, and helicopters. As telemetry support continues to improve within the R/C industry, YGE now has implemented on-board Telemetry items for radios which support it.  Built on a proven design, and offering the latest...

YGE ESC's have been known to provide reliable performance in the most demanding electric applications in sailplanes, airplanes, and helicopters. As telemetry support continues to improve within the R/C industry, YGE now has implemented on-board Telemetry items for radios which support it.

Built on a proven design, and offering the latest in demand tech all in one convenient package will be the standard for electronics moving forward. Utilizing onboard Telemetry features, the chances of external items failing is vastly reduced, and additionally reduces clutter on the model for wiring up external modules and sensors. Additionally compatible with TexY YGE Telemetry Unit.

Features:

  • The specified current is the maximum continuous full gas flow with good cooling
  • 6 to 14s LiPo, undervoltage reset or shutdown
  • Current limitation
  • Undervoltage detection can be switched off
  • Speed control (governor mode)
  • Soft start
  • Active freewheel, therefore unlimited part-load
  • Automatic timing, or adjustable in 6 levels
  • EMK brake adjustable
  • F3A / Acro brake (brake intensity steplessly adjustable in flight)
  • Min and Max values are logged and can be displayed in the optional PC tool after the flight (eg current)
  • Speed limit: 240,000 rpm (2-pole)
  • Overtemperature / overload warning
  • Anti-glare: reduces the start-up spark
  • Basic programming via mode setup
  • Fine adjustment and choice of telemetry protocol via PC setup, suitable USB adapter is optionally available
  • 12A Constant, 30A Peak built in BEC
Specifications:
Governor:
Internal/External
Continuous Current: 205A
Cell Count:
4-14s LiPo
BEC: YES - 12A Constant, 30A Peak
Case: Alu w/Heatsink
Programming:
Yes: USB Adapter for Telemetry ESC - SOLD SEPARATELY
Weight:
287g
Dimensions:
84x56x31mm
Spark-Proof:
Yes
    Type:

    Heli ESCs

    Vendor:

    Young Generation Electronics

    SKU:

    YGE-205HVT-BEC

    Weight:

    1.0 lb


    Product Spare Parts

    Customer Reviews

    Based on 4 reviews
    100%
    (4)
    0%
    (0)
    0%
    (0)
    0%
    (0)
    0%
    (0)
    J
    John H.(.W.
    Excellent ESC for 700+ size helicopters

    I now use this ESC on my three 700 size electric helicopters (Kraken, Tron 7.0, and XLP Specter 700 NME). This ESC is packed with neat and useful features. Telemetry data sensors are top quality. 2-way communication integration with VBC radios is excellent.

    D
    Daniel T.
    #goblue

    Amazing esc super easy setup using VTouch and neo! Will be buying again.

    b
    b k.
    The best ESC in this size! Integrates with Jeti and vcontrol! No special flunky fw to install.

    The price is a tad more than a HW200 but the ease of setup and performance will not compare. So easy to setup! Tell it what you want to do and go fly. It doesn't get any easier. I have this in 2 of my 700s.

    J
    Jason
    Outstanding esc!!! Integration with vcontrol touch Is excelent!!

    Easy to set up! Plug and play, high power, make sure you set timing to your motor specs. I have the 205 hvt, 135hvt, 65lvt, and 35lvt. All have been excellent. I just got a kontronic 160 to compare. I’m sure the yge is right up there with kontronic. I’m more of a blue guy than a red,hahaha

    Customer Reviews

    Based on 4 reviews
    100%
    (4)
    0%
    (0)
    0%
    (0)
    0%
    (0)
    0%
    (0)
    J
    John H.(.W.
    Excellent ESC for 700+ size helicopters

    I now use this ESC on my three 700 size electric helicopters (Kraken, Tron 7.0, and XLP Specter 700 NME). This ESC is packed with neat and useful features. Telemetry data sensors are top quality. 2-way communication integration with VBC radios is excellent.

    D
    Daniel T.
    #goblue

    Amazing esc super easy setup using VTouch and neo! Will be buying again.

    b
    b k.
    The best ESC in this size! Integrates with Jeti and vcontrol! No special flunky fw to install.

    The price is a tad more than a HW200 but the ease of setup and performance will not compare. So easy to setup! Tell it what you want to do and go fly. It doesn't get any easier. I have this in 2 of my 700s.

    J
    Jason
    Outstanding esc!!! Integration with vcontrol touch Is excelent!!

    Easy to set up! Plug and play, high power, make sure you set timing to your motor specs. I have the 205 hvt, 135hvt, 65lvt, and 35lvt. All have been excellent. I just got a kontronic 160 to compare. I’m sure the yge is right up there with kontronic. I’m more of a blue guy than a red,hahaha
