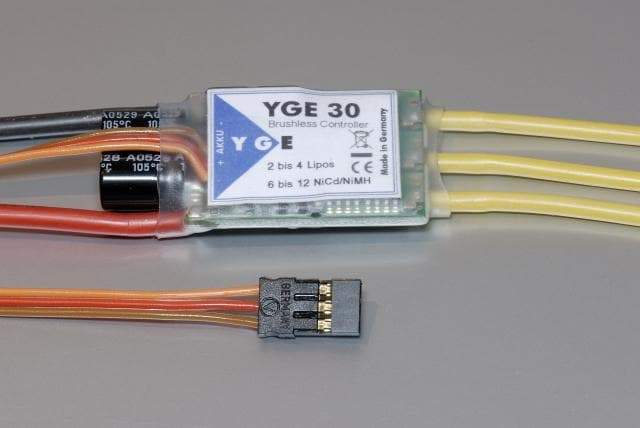

YGE 30 Electronic Speed Controller (ESC)
){kind=link}
Description:
The specified current is the maximum continuous full power current with adequate cooling.
- 2 to 4s LiPo, with under voltage protection by power reduction.
- 6 to 12 cells NiMH, with under voltage protection by power reduction.
- disconnectable under voltage detection.
- switching BEC: 5,5V, 2A continuous, 4A peak.
- Speed regulation (Governor mode).
- Soft start.
- Active free-wheel, allowing unlimited part load operation.*
- Automatic or 6 step adjustable timing.
- 5 steps adjustable regular back EMF brake.
- Switching rate: 8 to 16 kHz
- Speed limit: 240,000 RPM (2-Pole motors)
- Temperature and overload warning
- Overall dimensions: 42 x 24 x 6 mm
- Weight without wires 11g, with wires 21g.
- Programming with the ProgCard II
| Type: | |
|---|---|
| Vendor: | |
| SKU: |
YGE30 |
| Weight: |
0.13 lb |
