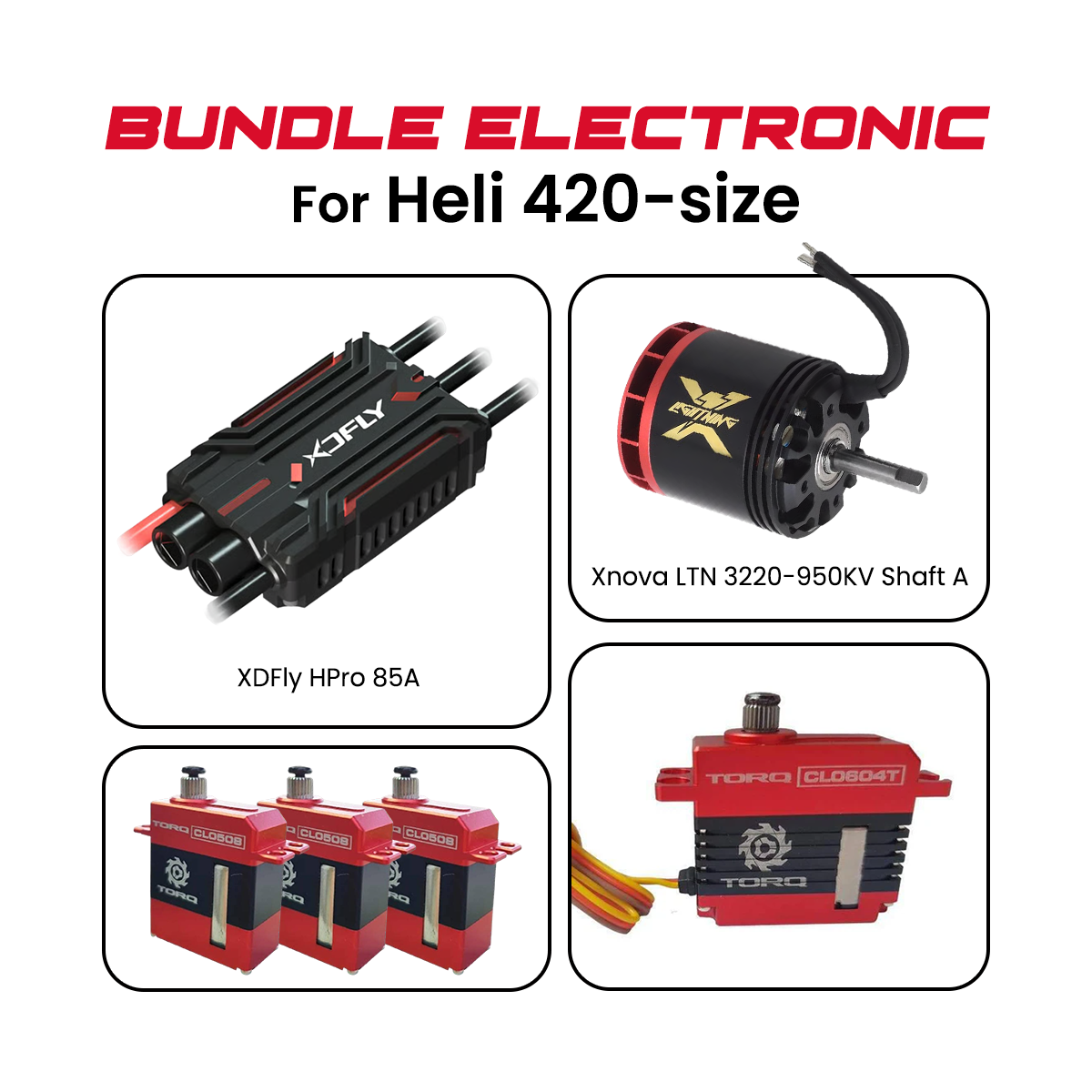

*** Package Includes:
Xnova Lightning 3220-950KV Shaft A * 1pcs
XDFly HPro 85A ESC 3-6S SBEC For RC Helicopter 380-420 Class * 1pcs
TORQ CL0508 Micro HV Servo * 3pcs
TORQ CL0604T Mini HV Rudder Helicopter Servo * 1pcs
I. Xnova Lightning 3220-950KV Shaft A:
The 3220 lightning is a brand new powerhouse. Any helicopter asking for insane power swinging 380-420mm blades will be supperhappy with this masterpiece. The Xnova lightning series is the highest level of motor performance money can buy nowadays.
Xnova brushless high performance outrunner motor designed for extreme hard 3D, running in 380-420mm bladesize helicopter where highest power to weight ratio is important.At the same time this motor is also extreme efficient!
· Improved higher efficiency with thinner stator lamination, designed with integrated cooling system resulting in lower temperature.
· Increased power output by use of thicker hand wound YY single strand copper wires, heat resistant up to 250 degrees C.
· New type of high-performance neodymium magnets, heat resistant up to 150 degrees C resulting in overall better performance.
· 100% handwound.
1. Specifications:
|
Slots & Poles
|
12n10p
|
|
Winding T
|
YY
|
|
rpm/V
|
950
|
|
Volt (V)
|
10 / 22.2
|
|
Io(A)
|
1.8 / 3.0
|
|
Rm (mohm)
|
18 / 18
|
|
Weight (without connector) (g)
|
200
|
|
Body Length (no shaft) mm
|
45
|
|
Diameter (mm)
|
40.5
|
|
Shaft Length (mm) (Details pictures)
|
22
|
|
Shaft Dia. (mm)
|
5
|
|
Mounting Holes CTC Distance (mm)
|
25
|
|
Mounting Screw
|
M3x0.5
|
|
Max Eff. Curr.
|
31.62 / 60.83
|
|
Max Eff.
|
88.62 / 90.14
|
|
Kt (Nm/A
|
0.0101
|
|
Km (Nm/sqrt(w))
|
0.0749
|
|
Max Continuous Power(Watts)
|
1450
|
|
Peak Continuous Power(Watts) (2 sec)
|
1900
|
|
Max Continuous Current(Amps)
|
66
|
II. XDFly HPro 85A ESC 3-6S SBEC For RC Helicopter 380-420 Class:
1. Description:
We(XDFly) have released HPRO 85A ESC 3-6S Built-in SBEC 6-12V Adjustable Speed Control For RC Airplane Aircraft F3A F3C 380-420 Helicopter.
2. Key Features:
- Equipped with high-performance 32-bit G4 processor with operating frequency of up to 170MHz.
- Adopting new generation of power MOSFET, it features low heat generation, high instantaneous current endurance and high reliability.
- Self-check function: After power-on, the ESC will automatically self-check for power supply short circuit, motor phase loss, throttle zeroing, and voltage range.
- The special and unique case design greatly increase the heat dissipation area and significantly enhance the heat dissipation performance of the ESC.
- With helicopter speed governor function, the constant speed sensitivity can be adjusted and is easy to operate.
- Equipped with the time selection function for stall landing, it can be manually adjustable within the time set to avoid a crash due to handling errors.
- The ESC has an independent programming interface, it supports parameter adjustment via Phone APP/Mikado VBCT/E/Rotorflight2/Jeti remote control devices.
- With telemetry function for Mikado VBCT/E, Rotorflight2, Futaba SBUS2, Jeti, MSH Brain, and iKon, allowing users to check data in real time.
- Multiple protections: abnormal power-on voltage, start-up, temperature, throttle signal loss, over-load, low-voltage, over-current.
3. Specification:
|
Model
|
HPRO 85A 3-6S SBEC
|
|
Continuous Current(A)
|
85A
|
|
Burst Current(A)
|
160A
|
|
Input Voltage
|
3-6S Lipo
|
|
BEC Output
|
6-12V Adjustable; Current Cont.10A, Peak 35A
|
|
Size
|
70x36x21mm
|
|
Weight
|
93g
|
|
Power Wire
|
12 Gauge 130mm Red/Black
|
|
Motor Wire
|
12 Gauge 92mm Black
|
|
Programming Way
|
XDFly Android&iOS APP/VBCT/E/RF2/Jeti
|
|
Telemetry
|
VBCT/E/RF2/Futaba SBUS2/Jeti/MSH Brain/iKon
|
|
Applications
|
380-420 ass electric helicopters or fixed-wing aircrafts
|
III. TORQ CL0508 Micro HV Servo:
1. Features:
- Engineered for High Performance Aircraft Extremes
- Specifically Designed for Helicopter, Airplane or Jet Based Applications
- Massive Levels of Torque & Speed
- Ultra Precise, High Resolution Precision
- Coreless Motor Design for Optimized High Torque Output
- Fully Replaceable Steel Gear Train for Maximum Strength
- Excellent Thermal Dissipation via 6061 Aircraft Aluminum Case
- 8.4V High Voltage Ready
- Dual Ball Bearing Design
Torque:
6.20Kg.cm (86.10 oz. in.) @ 8.4V
5.20Kg.cm (72.21 oz. in.) @ 7.4V
4.20Kg.cm (58.32 oz. in) @ 6.0V
Transit Speed:
0.07 sec. @ 8.4V
0.08 sec. @ 7.4V
0.09 sec. @ 6.0V
2. Specifications:
- Dimensions: 23x12x27.5mm (LxWxH)\
- Weight: 20g
- Operating Voltage: 4.8V - 8.4V DC
- Working Pulse Width / Frequency: 1520us / 333Hz or 760us / 560Hz (need the TBOX Program Card)
HIGH TORQUE POWER OUTPUT
The TORQ CL0508 Micro Servo has been optimized with coreless motor technology, providing epic levels of torque in order to meet the demands of any aircraft extreme. From 3D helicopters, aerobatic airplanes or high speed jets, the TORQ CL0508 Micro Servo is the perfect choice to exceed your aircraft limitations.
ULTRA FAST TRANSIT SPEEDS
Speed is life. Designed for ultra rapid transit speeds, the TORQ CL0508 offers incredible speeds for absolute levels of control, making your next flight truly epic in every possible way. No matter what you fly, the TORQ CL0508 is ready and waiting to provide the ultra fast inputs for crisp response & incredible control.
HIGH STRENGTH STEEL GEARS
Designed with strength in mind to harness the ultra high levels of torque available, the TORQ CL0508 is optimized with a full steel gear train to provide the best levels of overall strength. Utilizing high strength steel gears helps stand up to crash damage for the best overall functionality when under the greatest levels of stress.
INCREDIBLE PRECISION & RESOLUTION
Servos are your direct connection to your aircraft, and precision & resolution are paramount to flight. Offering incredibly high levels of precision, the TORQ CL0508 Micro Servos will provide an ultra smooth, "locked in" feel to your aircraft for maximum levels of aerobatic control.
EXCELLENT THERMAL DISSIPATION
Heat is the ultimate enemy, and getting rid of it is critical for maximum levels of aircraft performance. Enclosed within a 6061 anodized aluminum case, the TORQ CL0508 servos dissipate thermal heat under high energy demands, allowing this micro servo to perform under intense stress, without fail.
HIGH VOLTAGE READY
Designed to maximize the highest ratings of torque & speed, the TORQ CL0508 is rated to handle unregulated 2S 8.4V LiPo power, taking full advantage of HV input power via receiver battery or BEC. With a wide operating voltage from 4.8V to 8.4V, the TORQ CL0508 servos will provide the power you need - when you need it the most.
STEEL REPLACEMENT GEARS
Crashes happen, and even high strength gears can take a beating. No worries, though - with the TORQ CL0508, steel replacement gears are available, making it ultra easy to replace and maintain your servos, no matter what may happen in flight or on the ground.
IV. TORQ CL0604T Mini HV Rudder Helicopter Servo:
1. Features:
- Dedicated Helicopter Rudder Servo
- Incredible Levels of Speed & Performance
- Ultra Precise, High Resolution Control
- Coreless Motor Design for Peak Torque Demand
- Fully Replaceable Steel Gear Train for Maximum Strength
- Excellent Thermal Dissipation via 6061 Finned Aluminum Case
- 8.4V High Voltage Ready
- Optimized for High Demand Rudder Control
- Dual Ball Bearing Construction
Speed: 0.04 sec / 60° @ 8.4V
0.06 sec / 60° @ 6.0V
Torque: 6Kg.cm / 83.32 oz. in. @ 8.4V
4Kg.cm / 55.54 oz. in. @ 6.0V
2. Specifications:
- Motor Type: Coreless Motor
- Servo Arm Type: Futaba
- Working Pulse Width / Frequency: 760us / 560Hz
- Weight: 40g
- Dimensions: 35.5mm x 15mm x 32.7mm (LxWxH)
- Voltage Range: 6.0V - 8.4V
Usage Note:
· For helicopter rudder usage only. Please note that the TORQ CL0604T Mini HV Rudder Helicopter Servo servo must be connected to a flybarless flight controller that is set at a 760us pulse width setting for proper functionality. Due to the 760us pulse width, if the servo is connected to a receiver or servo tester, the servo will not properly function due to these applications that use a 1520us pulse width.
· Servo Grommet is suggested use if you use our servo on Nitro Heli.
