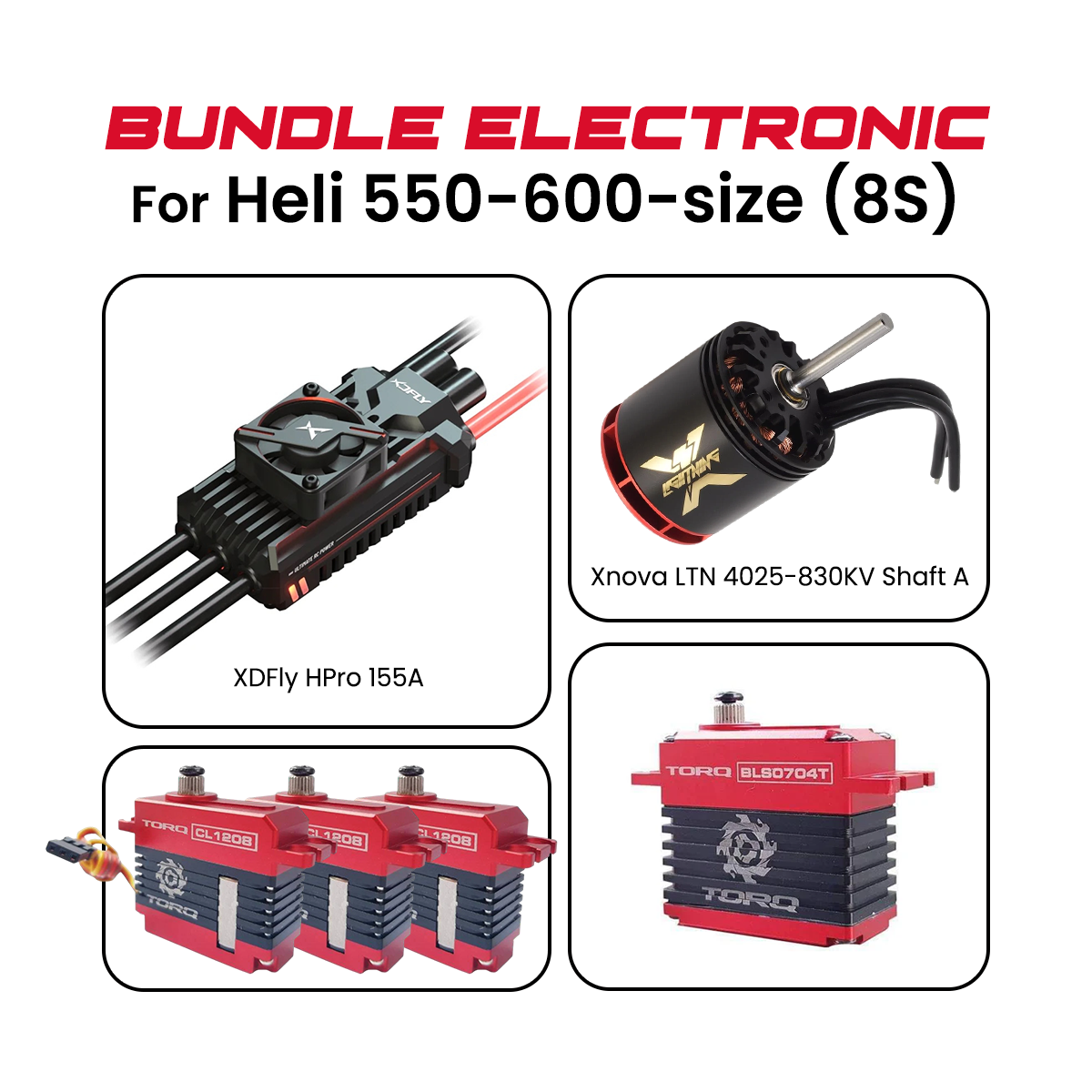

*** Package Includes:
Xnova Lightning 4025-830KV 2Y Brushless Motor with 6mm Shaft (Shaft A) * 1pcs
XDFly HPro 155A 3-8S SBEC ESC for RC Helicopter 550-580 Class * 1pcs
TORQ CL1208 Mini HV Coreless Servo * 3pcs
TORQ BLS0704T Full Size HV Brushless Rudder Helicopter Servo * 1pcs
I. Xnova Lightning 4025-830KV 2Y Brushless Motor with 6mm Shaft (Shaft A):
Xnova brushless high performance outrunner motor for 520-600 size helicopters for extremely hard 3d flying on 6-8s. For sport flying or longer flight times, the 2.5y or 3y is more suited. Extreme powerful motor for Goblin 570, Synergy E5 - E6, T-rex 600 or Logo 500 up to Logo 600.
1. Improved higher efficiency with thinner stator lamination, resulting in lower temperature.
2. Optimized and unique design, hand wound to perfection
3. Smooth running, low cogging torque.
4. New type of higher degree magnets.
5. All other features same as performance series.
II. XDFly HPro 155A 3-8S SBEC ESC for RC Helicopter 550-580 Class:
1. Description:
We(XDFly) have released HPRO 155A ESC 3-8S Built-in SBEC 6-12V Adjustable Speed Control For RC Airplane Aircraft F3A F3C 550-580 Helicopter.
2. Key Features:
- Equipped with high-performance 32-bit G4 processor with operating frequency of up to 170MHz.
- Adopting new generation of power MOSFET, it features low heat generation, high instantaneous current endurance and high reliability.
- Self-check function: After power-on, the ESC will automatically self-check for power supply short circuit, motor phase loss, throttle zeroing, and voltage range.
- The special and unique case design greatly increase the heat dissipation area and significantly enhance the heat dissipation performance of the ESC.
- The smart temperature controlled fan will only start when the temperature exceeds 40 degrees, ensuring a quiet environment during the adjustment.
- With helicopter speed governor function, the constant speed sensitivity can be adjusted and is easy to operate.
- Equipped with the time selection function for stall landing, it can be manually adjustable within the time set to avoid a crash due to handling errors.
- The ESC has an independent programming interface, it supports parameter adjustment via Phone APP/Mikado VBCT/E/Rotorflight2/Jeti remote control devices.
- With telemetry function for Mikado VBCT/E, Rotorflight2, Futaba SBUS2, Jeti, MSH Brain, and iKon, allowing users to check data in real time.
- Equipped with colorful LED lights including five optional colors for users: red, green, blue, yellow, and white, which indicate the ESC status through flashing modes.
- Multiple protections: abnormal power-on voltage, start-up, temperature, throttle signal loss, over-load, low-voltage, over-current.
3. Specification:
|
Model
|
HPRO 155A 3-8S SBEC
|
|
Continuous Current(A)
|
155A
|
|
Burst Current(A)
|
260A
|
|
Input Voltage
|
3-8S Lipo
|
|
BEC Output
|
6-12V Adjustable; Current Cont.10A, Peak 35A
|
|
Size
|
90x43x25mm
|
|
Weight
|
178g
|
|
Power Wire
|
10 Gauge 145mm Red/Black
|
|
Motor Wire
|
10 Gauge 150mm Black
|
|
Programming Way
|
XDFly Android&iOS APP/VBCT/E/RF2/Jeti
|
|
Telemetry
|
VBCT/E/RF2/Futaba SBUS2/Jeti/MSH Brain/iKon
|
|
Applications
|
550-580 Class electric helicopters or fixed-wing aircrafts
|
III. TORQ CL1208 Mini HV Coreless Servo:
1. Features:
- Engineered for High Performance Aircraft Extremes
- Specifically Designed for Helicopter, Airplane or Jet Based Applications
- Massive Levels of Torque & Speed
- Ultra Precise, High Resolution Precision
- Coreless Motor Design for Optimized High Torque Output
- Fully Replaceable Steel Gear Train for Maximum Strength
- Excellent Thermal Dissipation via 6061 Aircraft Aluminum Case
- 8.4V High Voltage Ready
- Dual Ball Bearing Design
Torque:
13.5Kg.cm / 187.47 oz. in @ 8.4V
12.0Kg.cm / 166.64 oz. in. @ 7.4V
9.8Kg.cm / 136.09 oz. in. @ 6.0V
Transit Speed:
0.07 sec. @ 8.4V
0.08 sec. @ 7.4V
0.10 sec. @ 6.0V
2. Specifications:
- Motor Type: Coreless Motor
- Servo Arm Type: Futaba
- Weight: 40g
- Operating Voltage: 6.0V - 8.4V DC
- Working Pulse Width / Frequency: 1520us / 333Hz or 760us / 560Hz (need the TBOX Program Card)
- Dimensions: 35.5mm x 15mm x 32.5mm (LxWxH)
Usage Note: Servo Grommet is suggested use if you use our servo on Nitro Heli.
IV. TORQ BLS0704T Full Size HV Brushless Rudder Helicopter Servo:
1. Features:
- Brushless Motor Technology for the Ultimate Power & Control
- Blistering 0.035 Second Transit Speed
- Dedicated Helicopter Rudder Servo
- Incredible Levels of Speed & Performance
- Ultra Precise, High Resolution Control
- Fully Replaceable Steel Gear Train for Maximum Strength
- Excellent Thermal Dissipation via Finned 6061 Aluminum Case
- 8.4V High Voltage Ready
- Optimized for High Demand Rudder Control
- Dual Ball Bearing Construction
Speed: 0.035 sec / 60° @ 8.4V
0.040 sec / 60° @ 7.4V
0.045 sec / 60° @ 6.0V
Torque: 8.0Kg.cm / 111.09 oz. in. @ 8.4V
7.0Kg.cm / 97.21 oz. in. @ 7.4V
6.0Kg.cm / 83.32 oz. in. @ 6.0V
2. Specifications:
- Motor Type: Brushless
- Servo Arm Type: Futaba
- Working Pulse Width / Frequency: 760us / 560Hz
- Weight: 78g
- Dimensions: 40.5mm x 20mm x 37mm (LxWxH)
- Voltage Range: 6.0V - 8.4V
Usage Note:
· For helicopter rudder usage only. Please note that the TORQ BLS0704T must be connected to a flybarless flight controller that is set at a 760us pulse width setting for proper functionality. Due to the 760us pulse width, if the servo is connected to a receiver or servo tester, the servo will not properly function due to these applications that use a 1520us pulse width.
· Servo Grommet is suggested use if you use our servo on Nitro Heli.
