Align 300MX Brushless Motor (3700KV/2216)

Align
|
HML30M01T
You will earn 45.99 points for buying this product
Price Match Guarantee
$45.99 $0.00( / )
Instructions: Specification: 1.Based on 3s voltage, the 300MX (3700KV) motor is tailor made for the T-Rex 300 DOMINATOR, featuring superior efficiency, high power output, extreme torque, and low current, low temperature.2.As a totem to the 850MX Dominator motor, The 300MX shares the same extraordinary pedigree.3.Even for the none 3D pilots,...

Instructions:Specification:
1.Based on 3s voltage, the 300MX (3700KV) motor is tailor made for the T-Rex 300 DOMINATOR, featuring superior efficiency, high power output, extreme torque, and low current, low temperature.
2.As a totem to the 850MX Dominator motor, The 300MX shares the same extraordinary pedigree.
3.Even for the none 3D pilots, 300MX 3S motor utilizes less than 5 amps at hover. Not only does this require smaller C-rating packs, the lower temperature extends the battery life at the same time. Charging time basically is cut in half. These advantages makes this an ideal motor for just about everyone.
4.The 300MX motor incorporates radial fan in its end bell, creating powerful airflow to dissipate heat. Tweaks to motor design and reduction in weight not only contributes to dramatic power increase, the high efficiency cooling system enables cooler operating temperature during and after flights when compared to motor of previous generation.
5.The 300MX motor armature had a special balance adjust to improve the serious shaking problem that other tiny motors have.
6.Maintenance free, high torque, high efficiency, low temperature variant, stable and quiet.
7.Japanese made high-speed ball bearings, powerful magnetic outrunner rotor.

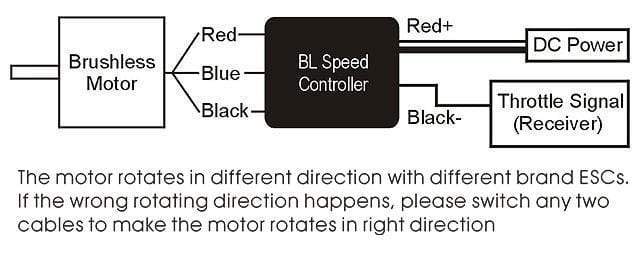

8.Suitable for T-REX 300 series,Must with RCE-BL25A Brushless ESC(HES02501).
9.Manual Download:


For more detailed information, please refer to the Power Tip
Lifetime Service
Effective immediately, the Align MX series motors have 40% off Lifetime service where your old motor can be exchanged for 40% off the retail pricing of a new equal spec motor. If needed, please contact to Align authorized distributors .
●Input voltage: 3S
●Max continuous current: 24A/36A(5sec)
●Max output power: Approx. 260w/400W(5sec)
●KV value: 3700KV
●Stator Dimension: 2216
●Stator Arms: 9
●Magnet Poles: 6

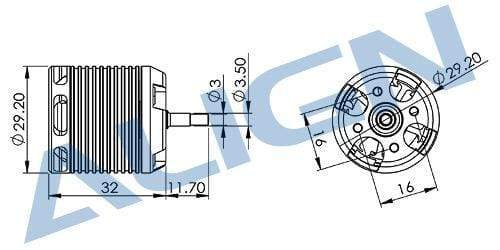

●Dimension: spindle 3.5x29.2x43.7mm
●Weight: Approx. 70g
Accessories:
●Socket Screw x 2 (M2.5x6mm)
●ALIGN standard 3.5mm gilt terminal x 3 set(Max current 50A)
Type:

Heli Motors

Vendor:

Align

SKU:

HML30M01T

Weight:

0.38 lb
