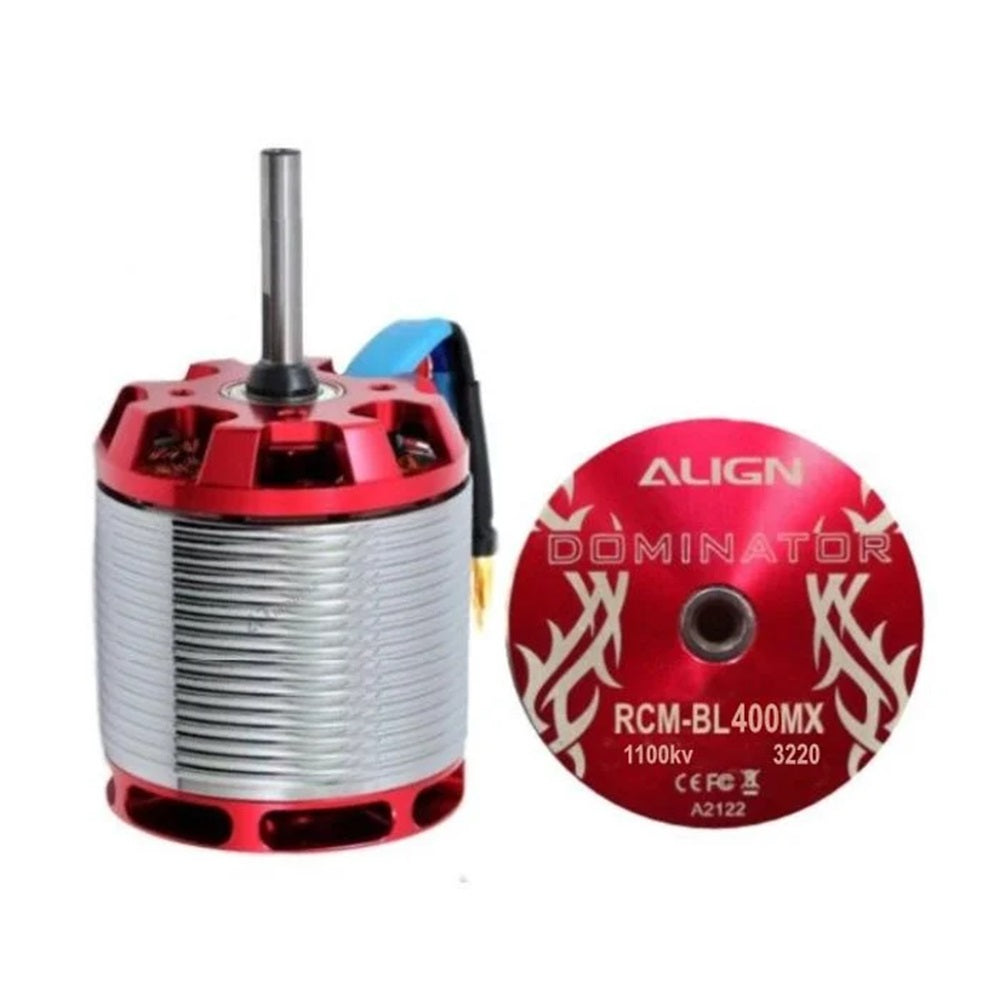

Align 400MX Brushless Motor (1100KV/3220)

Align
|
HML40M01T
You will earn 66.99 points for buying this product
Price Match Guarantee
$66.99 $0.00( / )
Product: Product: Specification Drawing: Wiring Schematic Drawing: Package: Instructions: Specification: ●400MX(1100KV) motor incorporates radial fan in its end bell, creating powerful airflow to dissipate heat. Tweaks to motor design and reduction in weight not only contributes to dramatic power increase, the high efficiency cooling system enables cooler operating temperature during...

Product:
Product:
Specification Drawing:
Wiring Schematic Drawing:
Package:
Instructions:Specification:
●400MX(1100KV) motor incorporates radial fan in its end bell, creating powerful airflow to dissipate heat. Tweaks to motor design and reduction in weight not only contributes to dramatic power increase, the high efficiency cooling system enables cooler operating temperature during and after flights when compared to motor of previous generation.
●The 400MX(1100KV) motor armature had a special balance adjust to improve the serious shaking problem that other tiny motors have.
●Maintenance free, high torque, high efficiency, stable and quiet.
●High-speed ball bearings, powerful magnetic outrunner rotor.
●Suitable for TB40 series,Must with RCE-BL40A Brushless ESC(Governer Mode)( HES06001 ).
Manual Download:


Effective immediately, the Align MX series motors have 40% off Lifetime service where your old motor can be exchanged for 40% off the retail pricing of a new equal spec motor. If needed, please contact to Align authorized distributors .
●Input voltage:6S
●Max continuous current:50A/75A(2sec)
●Max output power:Approx. 1110W/1660W(2sec)
●KV value:1100KV
●Stator Dimension:3220
●Stator Arms:9
●Magnet Poles:6
●Dimension:spindle 5x40.9x63.8mm
●Weight:Approx. 176g
Accessories:
●Socket Half Button Head Screw x 4(M3X6mm)
●Φ3mm Gilt Terminal x 3set





Type:

Heli Motors

Vendor:

Align

SKU:

HML40M01T

Weight:

0.75 lb
