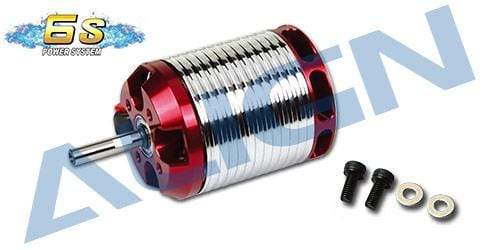

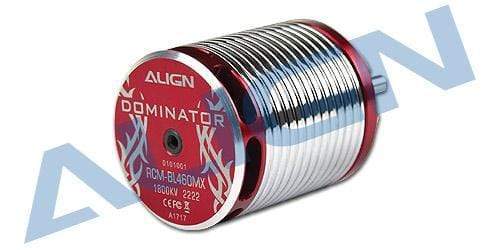

Align 460MX Brushless Motor (1800KV/2222)
| Instructions: | Specification: | ||||
| 1.Continuation of Align over 25 years motor core technical knowledge and craft, based on 6s voltage, the 460MX (1800KV) motor is tailor made for the T-Rex 450L DOMINATOR, featuring superior efficiency, high power output, extreme torque, and low current, low temperature. As a totem to the 850MX Dominator motor, The 460MX shares the same extraordinary pedigree. 2.As a totem to the 850MX Dominator motor, The 460MX shares the same extraordinary pedigree. 3.Even for the none 3D pilots, 460MX 6S motor utilizes less than 5 amps at hover. Not only does this require smaller C-rating packs, the lower temperature extends the battery life at the same time. Charging time basically is cut in half. These advantages makes this an ideal motor for just about everyone. 4.The 460MX motor incorporates radial fan in its end bell, creating powerful airflow to dissipate heat. Tweaks to motor design and reduction in weight not only contributes to dramatic power increase, the high efficiency cooling system enables cooler operating temperature during and after flights when compared to motor of previous generation. 5.The 460MX motor armature had a special balance adjust to improve the serious shaking problem that other tiny motors have. 6.Maintenance free, high torque, high efficiency, low temperature variant, stable and quiet. 7.Japanese made high-speed ball bearings, powerful magnetic outrunner rotor. 8.Suitable for T-REX 450E series,Must with RCE-BL45X Brushless ESC(Governer Mode)(HES45X01). 9.Manual Download：

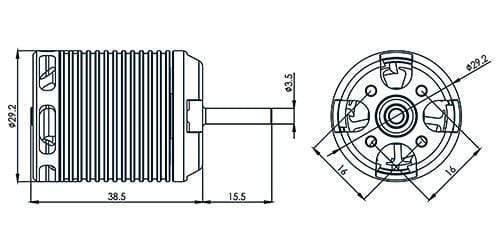

| ●Input voltage:6S ●Max continuous current:30A/45A(5sec) ●Max output power:Approx. 650w/970W(5sec) ●KV value:1800KV ●Stator Dimension:2222 ●Stator Arms:9 ●Magnet Poles:6 ●Dimension:spindle 3.5x29.2x38mm ●Weight:Approx. 87g | ||||
| Accessories: | |||||
| ●Socket button head screw(M2.5X6mm) x 2 ●Washer(Φ2.6XΦ5.8X0.6mm) x 2 ●ALIGN standard 3mm gilt terminal x 3set |
){kind=link}
| Type: | |
|---|---|
| Vendor: | |
| SKU: |
HML46M01T |
| Weight: |
0.38 lb |
Product Spare Parts
Customer Reviews
Works great in my 450L.
Upgraded my dusty Align 450L 3S to 6S by switching out the motor with this little guy. Really increased the performance. I had to swap out the pinion from the 12 to 11. Fun little helicopter especially with the added power.

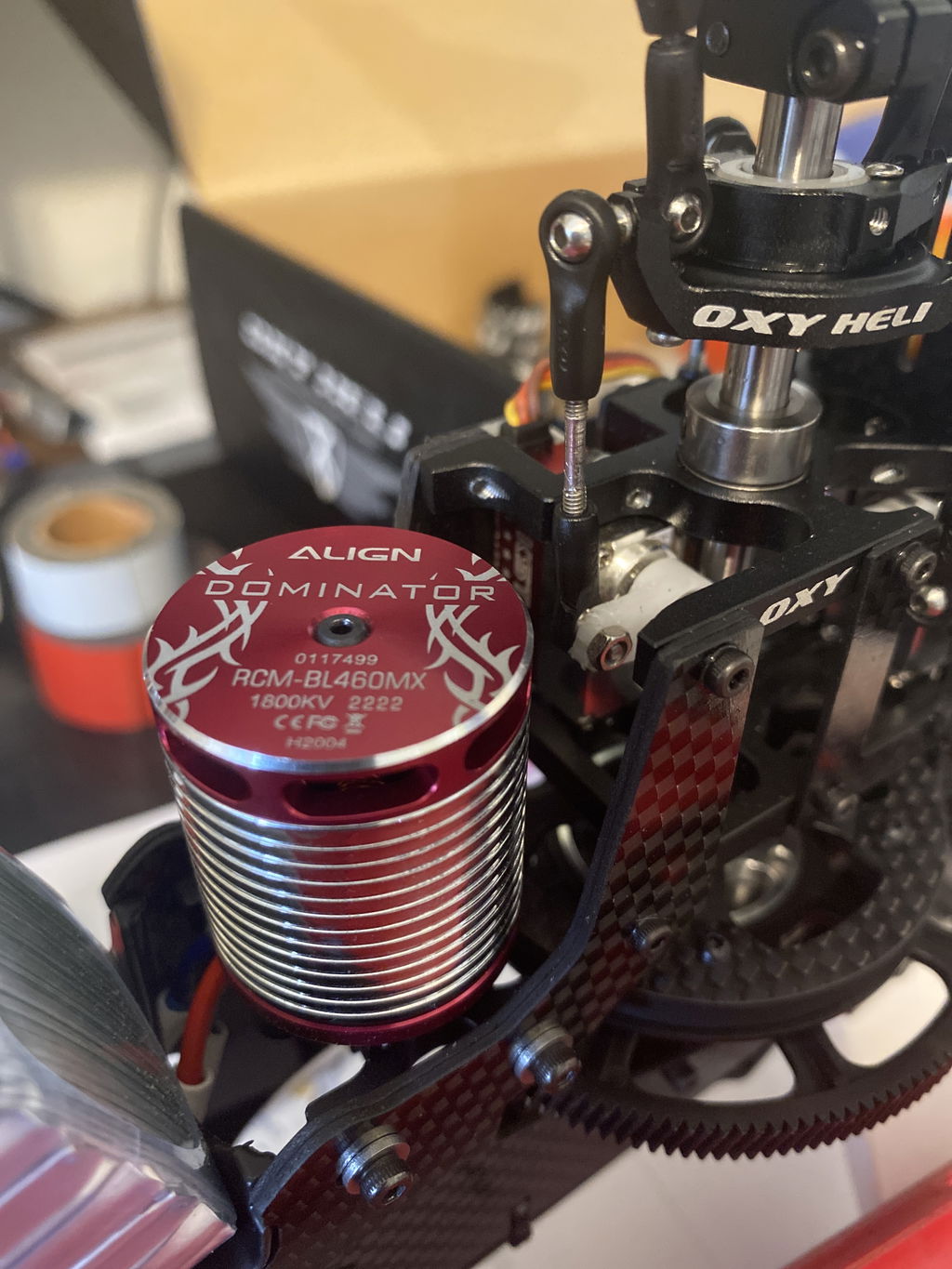

Bought this for budget build of oxy 4 sport running 6s.
So far works well. Word of note mounting holes 2.5 mm. Oxy provides 3mm and ones that came with motor are only 5 mm. So had to order some 2.5x8mm to mount it but it runs great
Have not used it yet but the specs is exactly what I was looking for. A109 with the worst landing gear ever, that's the hold up.
