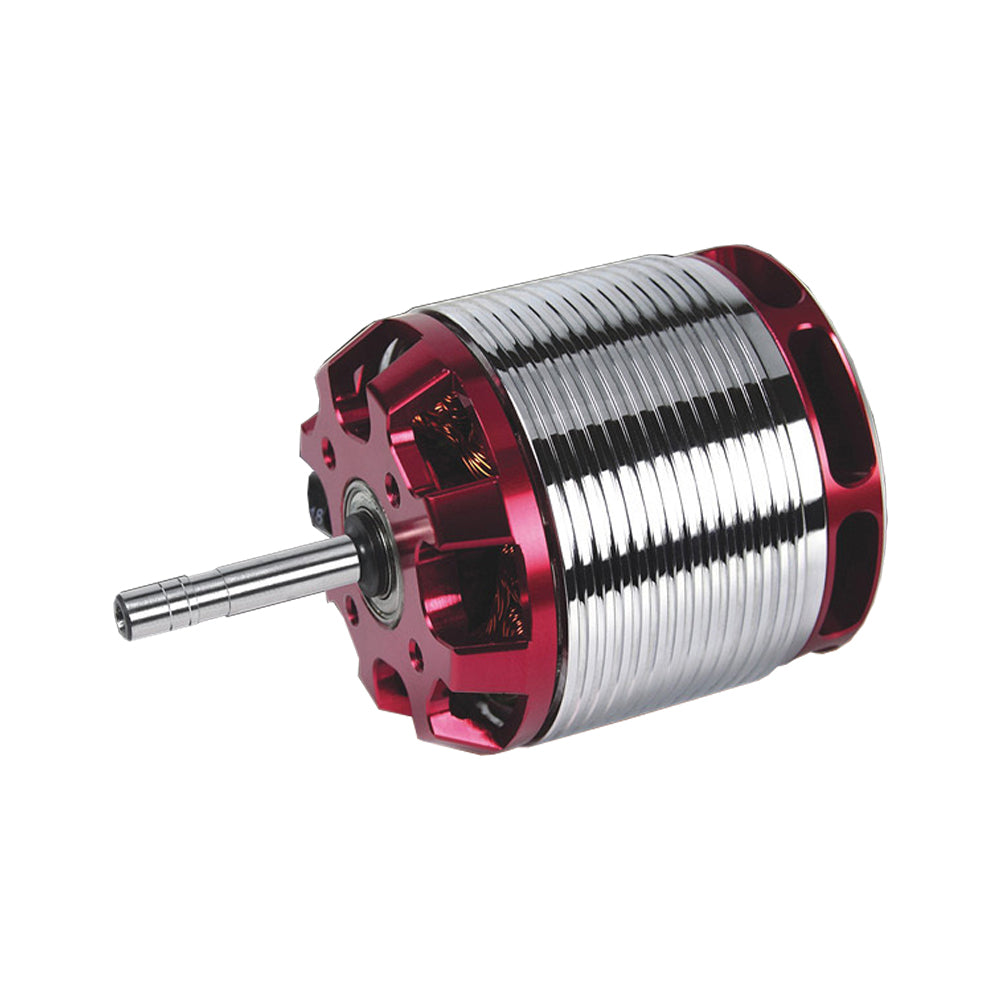

Align 800MX Brushless Motor (570KV/4530)
$216.99
$0.00( / )
Product: Product: Specification Drawing: Wiring Schematic Drawing: Instructions: Specification: ●800MX(570KV) motor incorporates radial fan in its end bell, creating powerful airflow to dissipate heat. Tweaks to motor design and reduction in weight not only contributes to dramatic power increase, the high efficiency cooling system enables cooler operating temperature during and...
| Product: | |
 | |
| Product: | |
 | |
| Specification Drawing: | |
 | |
| Wiring Schematic Drawing: | |
 | |
| Instructions: | Specification: |
●800MX(570KV) motor incorporates radial fan in its end bell, creating powerful airflow to dissipate heat. Tweaks to motor design and reduction in weight not only contributes to dramatic power increase, the high efficiency cooling system enables cooler operating temperature during and after flights when compared to motor of previous generation. Effective immediately, the Align MX series motors have 40% off Lifetime service where your old motor can be exchanged for 40% off the retail pricing of a new equal spec motor. If needed, please contact to Align authorized distributors .
| ●Input voltage: 12S ●Max continuous current: 115A/230A(5sec) ●Max output power: 5100W/10200W(2sec) ●KV value: 570KV ●Stator Dimension:4530 ●Stator Arms: 12 ●Magnet Poles: 10 ●Dimension: 6x56.7x92.5mm ●Weight: 525g |
| Accessories: | |
| ●Countersunk Hex Socket Screw x 4(M4X8mm) ●Φ5.5mm gilt terminal x 3 | |
){kind=link}
| Type: | |
|---|---|
| Vendor: | |
| SKU: |
HML80M14T |
| Weight: |
2.0 lb |
