Introduction:

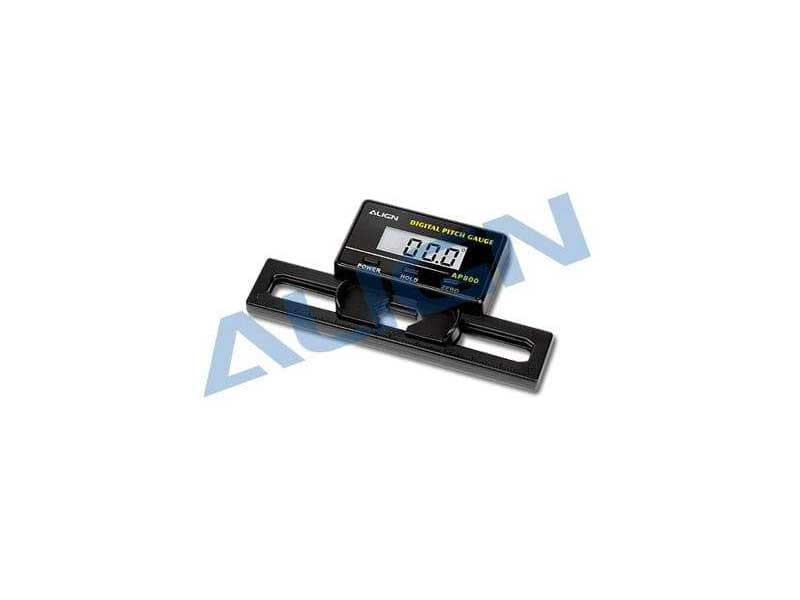

Developed by the R&D team in Align, the new AP800 digital pitch gauge is suitable for flybar and flybarless helicopters. Auto-detecting Horizontal level , with result displayed through high contrast LCD screen, providing a simple and precise way of measuring pitch angle.
Fatures:
Auto-detecting Horizontal level.
Uses backlighting LCD monitor.
Zero and Lock function.
Detectable pitch range: -90° ~ 90°.
Automatic screen rotation.
Suitable for 200~800mm main blades.
Build-in energy saving function. Power shuts down after 3 mins without any movement.
Specifications:
Body Dimension：108x53.9x16mm
Suitable blade width：20mm~74mm
Detectable pitch range: ±90°
Resolution: 0.1°
Battery: 2X CR 2032 Lithium
Weight:38g (including battery)
| Vendor: | Align |
| SKU: | HET80001T |
| Barcode: | 4713413968855 |
| Availability: | In Stock |
| Product Type: | Hand Tools |
| Weight: | 0.6 lb |
Excellent
A simple great tool for your measuring degrees need. Fits everything I have.
Digital pitch gauge works great. I love that it has a backlight on the screen.
Purchased with the RS4 Venom combo as my first heli build after flying Tempe S2 for a few weeks. Gauge worked great to get a perfect setup for maiden flight and beyond.
Great
I’ve use it several times now to either just check things out or adjust after parts swap. It’s been reliable with repeatable results. Great tool to have.
the gage worked as expected.
I’m totally new to the heli world this was suggested and wow my buddy was right. Works great and excellent quality made
Seems to be accurate
Cant find my old one, this seems to work nearly as good.
