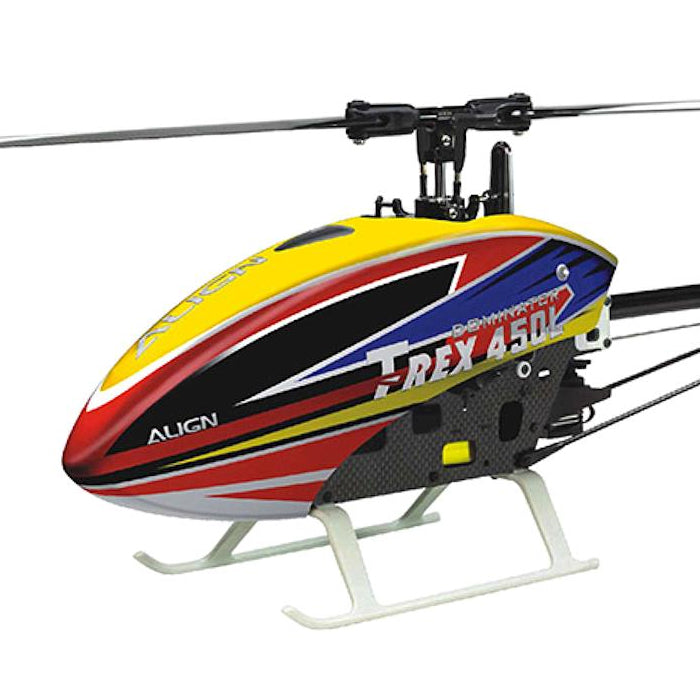

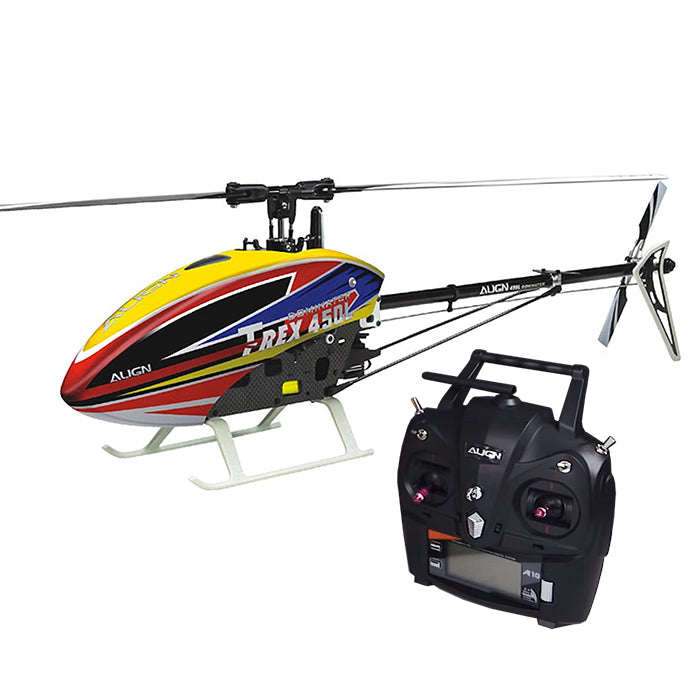

Align T-REX 450LP Dominator RTF (AC) - RH45E32XT
%20-%20RH45E32XT){kind=link}
T-REX 450 has been the ideal choice for entry level R/C helicopters. To cater to the beginner enthusiasts and solve the problem of assembly and adjustment, Align introduced T-REX 450LP ARTF (Almost Ready to Fly). Completed with Align A10 transmitter and newly released MiniGRS flybarless system, just easy to experience the fun fly enjoyment.
The helicopter utilizes DFC rotor, paired with MiniGRS flybarless system optimized for T-REX 450LP flight characteristics. Without any adjustment or tuning, this combo will be provided optimal stability suitable for pilot of all levels.
Equipped with newly digital high voltage servo DS450 and DS455, supports 8.4 high voltage to provide optimal speed and torque performance. Paired with newly RCE-BL45P ESC, supports adjustable 5~8.4V BEC function to highly improve flight performance.
ALIGN A10 is AFHDS (Automatic Frequency Hopping Digital System) 2.4GHz transmitter provided with 10 channels. The stick and holder are designed based on ergonomic bringing much smoother control. Completed function with the mode of helicopter / aircraft / multicopter. Logical and simple control interface, and easy to set up.
With the addition of the brand new A10 transmitter and MiniGRS, the T-REX 450LP ARTF pushes past the performance limitation of flybar helicopter, improving both stability and 3D performance, while maintaining a down to earth price level.
Focus Shots
Standard equipment
●A10 Transmitter x 1
●A6B Receiver x 1
●RCE-BL45P ESC x 1
●460MX Brushless motor(3200KV/2222) x 1
●DS450 Digital servo x 3
●DS455 Digital servo x 1
●MiniGRS Flybarless System x 1
●Balance Charger RCC-3SX x 1
●3S1P 11.1V 2250mAh/50C Battery x 1
T-REX 450LP Specification
●Length: 705mm
●Height: 205mm
●Width: 110mm
●Main Blade Lenght: 325mm
●Main Rotor Diameter: 734mm
●Tail Rotor Diameter: 171mm
●Motor Drive Gear: 11T
●Main Drive Gear: 121T
●Autorotation Tail Drive Gear: 106T
●Tail Drive Gear: 26T
●Drive Gear Ratio: 11:1:4.07
●Weight(w/o battery): 730g
Accessories
●T-REX 450LP Kit x 1 set
●MiniGRS Flybarless System x 1 set
●A10 Transmitter x 1
●A6B Receiver x 1
●325 Carbon Fiber Blades x 1 set
●RCE-BL45P ESC x 1
●460MX Brushless motor(3200KV/2222) x 1
●DS450 Digital servo x 3
●DS455 Digital servo x 1
●3S1P 11.1V 2250 mAh/50C Li-polymer Battery x 1
●Balance Charger RCC-3SX x 1 set
●1.5V AA Zinc-Carbon Battery x 4
Radio transmitter and electronic equipment required for assembly
●Dial Pitch Gauge or Digital Pitch Gauge
●Swashplate Leveler
A10 Specification
●Channel: 10-Channel
●Available Models: helicopter/airplane/multicopter
●Frequency range: 2.408 ~ 2.475 GHz
●Power: no higher than 20dBm(For EU)
●System Mode: 2.4G system AFHDS 2A
●Suitable Voltage Range: 4.0 ~ 6.0V DC
●Receiving Distance: the open ground no interference < 1000M
●Low Voltate Warning: Lower than 4.2V
●Weight: 485g (excluded battery)
●Size: 275x187x102mm
A6B Receiver Specification
●Channel: 14 channels
●RX Sensitivity: -105dBm
●RF Range: 2.408 ~ 2.475 GHz
●System Mode: 2.4G system AFHDS 2A
●Power: 4.0 ~ 8.4V
●Transmit Distance: In open space without interference <1000M
●Dimension: 46.7x25.5x13.6mm
MiniGRS Flybarless System Specification
●Operating voltage range: DC 3.5~8.4V
●Operating current consumption: <100mA @ 4.8V
●Rotational detection rate: ±300°/sec
●Rudder yaw detection rate: ±600°/sec
●Sensor resolution: 12 BIT
●Swashplate Support: 120° CCPM Swashplate
●Mode Support: T-REX250, T-REX450, T-REX470, T-REX500
●Receiver Support: ALIGN A10(A.BUS), Futaba S-FHSS, DSM2/DSMX
●Operating temperature: -20℃ ~ 65℃
●Operating humidity: 0% ~ 95%
●Comply with RoHS restrictions
●Size: 37.6x22.4x13mm
Balance Charger RCC-3SX Specification
●Input Voltage: AC 100V~240V(50/60Hz)
●Output Voltage: 2cell DC 7.4V / 3cell DC 11.1V
●Supported Battery Type: Li-polymer / Li-ion
●Charging Method: CC/CV
●Charging Current: 2A
●Size: 123x74.3x32mm
●Weight: 260g
Battery Specification
●Output: 11.1V 2250mAh 25Wh(3S1P)●Supports 5C charging
●Dimension: 106x33x21.8mm
●Weight: 173g
●14AWG heat-resistant silicone rubber wire. Heat resistance: 200 ° C / Current withstand: 70A
