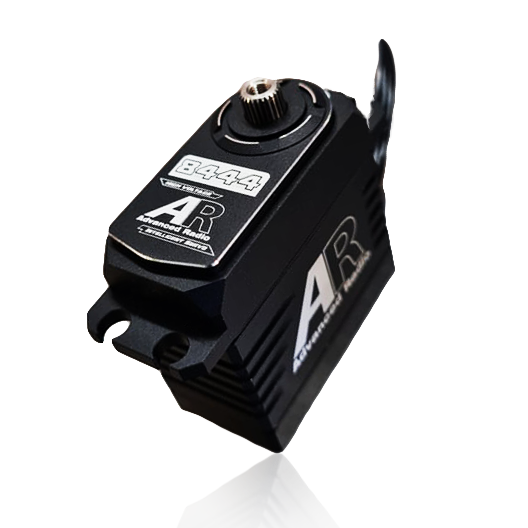

AR 8444S HV Soft Start High Torque Servo

BoomaRC
|
BRC425
You will earn 119 points for buying this product
Price Match Guarantee
$119.00 $0.00( / )
The AR8444 comes with a coreless motor and delievers an incredibly powerful and precise range of motion. The inner workings offer a titanium gear set and dual ball bearings giving a smooth range of motion. The AR 8444S has a full metal heatsink case making it a lightweight, high torque,...

The AR8444 comes with a coreless motor and delievers an incredibly powerful and precise range of motion. The inner workings offer a titanium gear set and dual ball bearings giving a smooth range of motion. The AR 8444S has a full metal heatsink case making it a lightweight, high torque, high voltage servo.

Delivering a massive 40Kgs at 8.4V these servos have been designed for 150-200cc models, 3D, turbines and giant scale.



Overload Protection

Another industry first. The AR8444 comes with built in overload protection giving you peace of mind.

Supplied with super soft rubber vibration isolaters, brass eyeles, abs plastic servos arms and mounting screws.



Specs:

Torque(6.0V)

25.0 kg-cm (347.1oz/in)

Torque(7.4V)

35.0 kg-cm (486.0oz/in)

Torque(8.4V)

40.0 kg-cm (555 oz/in)

Speed

0.14 sec (6.0V) │ 0.12 sec (7.4V)   | 0.10 sec (8.4)

Operating Voltage

6.0 ~ 8.4 DC Volts

Weight

80.0 g (2.26 oz)

Bearing Type

Ball Bearing x 2

Motor Type

Coreless Motor

Gear Type

Titanium and Steel

Operating Temperature

-20℃~60℃

Working frequency

1520μs / 333hz

Size:40.3x 20.2 x 37.2 mm ( 1.58 x 0.80 x 1.46 in)

40.3x 20. x 38.8 mm ( 1.57 x 0.79 x 1.53 in)


Type:

Plane Electronics

Vendor:

BoomaRC

SKU:

BRC425

Weight:

0.5 lb
