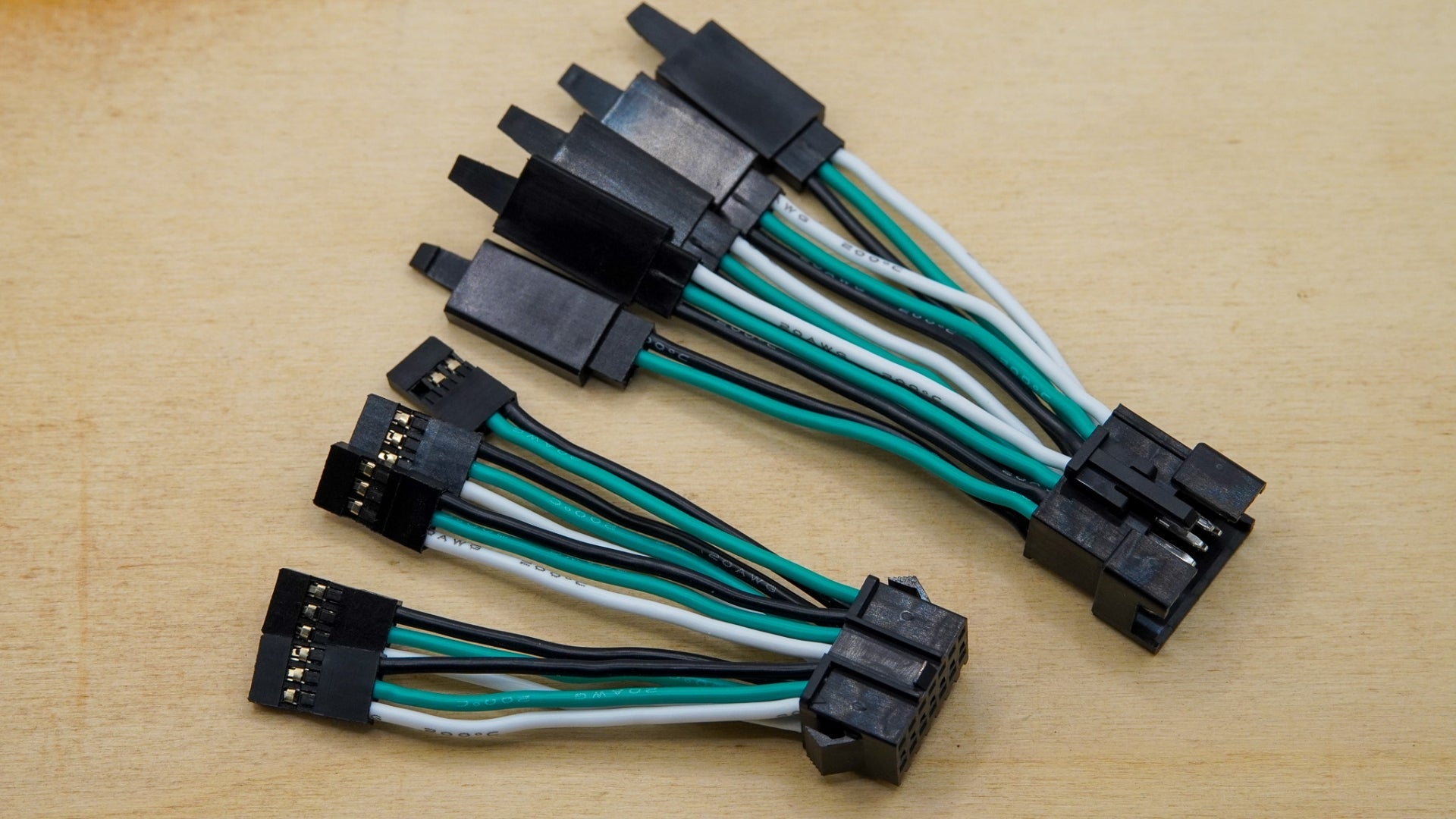

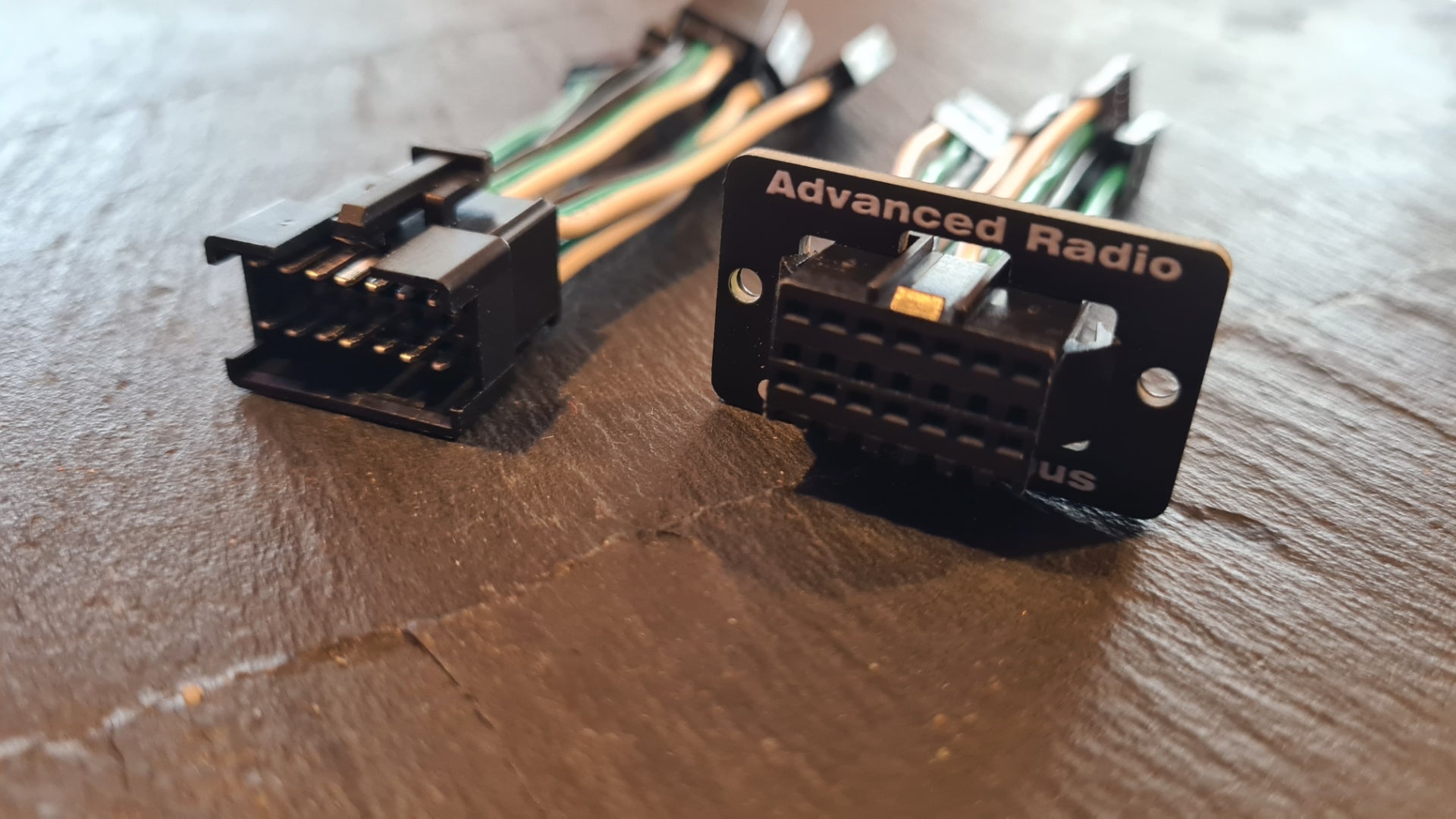

AR One Click Plus 4S1P

This is the update (by request) One Click Plus designed to cater for 4 servos and up to 1 power connectors.

Please Note: All One Click Plus servo ends are supplied with heavy duty 20AWG and can be use as power sources. For example: a 4 servo, 1 power combination could be used for 2 servos and 3 power circuits or 3 servos and 2 power circuits.

The AR one click makes putting your model together a breeze, with a simple and easy to use plug that connects inline with your existing servo leads, the One Click is a must for any giant scale models.

The AR one click comes standard with 6 Sets of independent 20AWG silicone wire and gold plated servo pins so you can connect completely different power systems together with one simple One Click + connector providing you with the best connection for your high powered models. And 20AWG silicon wire allowing for maximum current flow for high powered applications.

With our unique design and keyed locking plug, the AR one clicks are designed for over 10000 connects and disconnects. The added locking push clip give total peace of mind.

NO SOLDERING REQUIRED - Each One Click set comes ready-to-use out of the packet with 100mm of silicone cable pre-crimped for you allowing for easy installation in both the flying models or during the build phase.

Connects 4 independant servo and 1 power system with one connector.

Example: Connect Aileron, Flaps, Slats, Spoilers and 1 x lighting circuits with the AR One-Click Plus 4S1P .

Features

* 4 x independant servo connectors and 1 x independant power connectors. Othe combinations are possible
* One Click Connector Dimensions: 20mm(w) x 6.75mm(d)
* Cable tail length: 200mm (100mm male and 100mm female side)
* Wire: 20awg silicone high temp flexible wire.
* Positive locking multi connector.
* Completely independent power and signal pins.
* Simple-to-Use and easy to set up.
