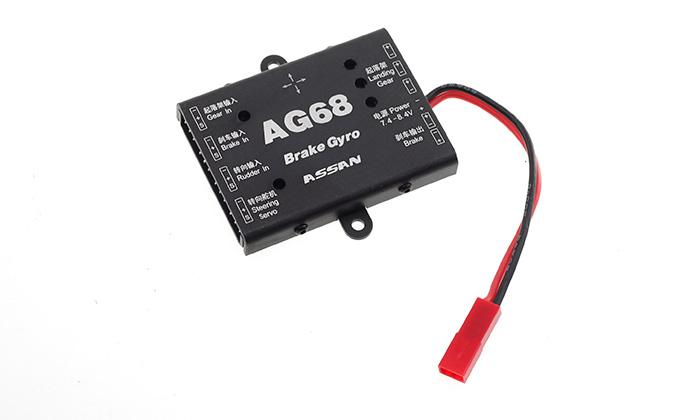

ASSAN AG68 MULTIFUNCTION ELECTRIC RETRACT CONTROLLER WITH ANTI-SIDESLIP BRAKE GYRO
The AG68 module integrates a taxiing and braking correction gyroscope, an electromagnetic brake controller and an electric landing gear controller ( Just for 2 wire electric retract landing gear ), which are applied to a fixed-wing model aircraft with the steering nose wheel.
The AG68 module can correct the deflective trend of model aircraft taxiing on the ground and respond accurately to the rudder stick.
The AG68 module can control the force of the electromagnetic brake to keep the model aircraft taxiing on the right way.
The AG68 module with electric landing gear controller ( Just for 2 wire electric retract landing gear ), simple and compact, easy to install.
The most important highlight of the AG68 module is that it uses intelligent adaptive algorithm, which eliminates the tedious operation such as setting
sensor direction and adjusting sensitivity of traditional model gyroscope products. It only needs to automatic direction adaptation once during installation,
and there is no need to adjust when using, so that its installation and use is very simple and convenient.

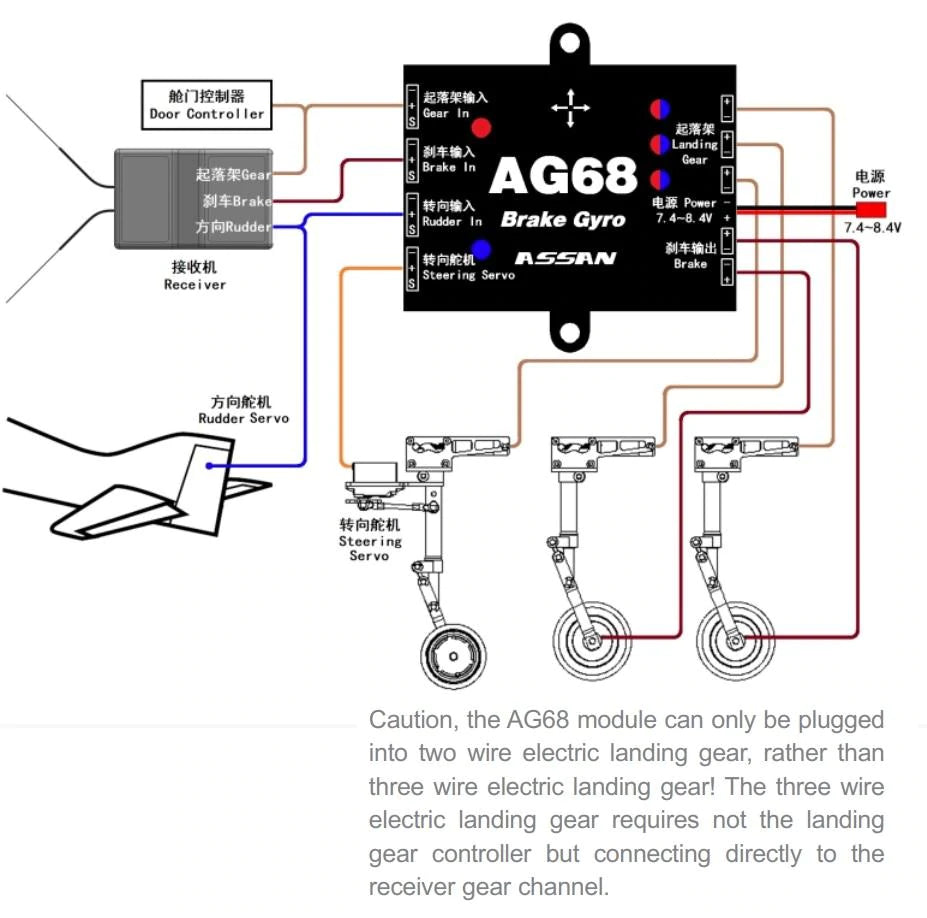

The electric landing gear controller of the AG68 module can also match various types of electric landing gear ( 2 wire type ) below 35kg class through very simple
adaptation operation.
The AG68 module has outstanding effects on taxiing correction and brake correction, and can be widely used in all kinds of model aircraft requiring long
distance taxiing take-off and landing, such as scale model aircraft using Electric Ducted Fan and JET power.
| Type: | |
|---|---|
| Vendor: | |
| SKU: |
AG68 |
| Weight: |
0.11 lb |
Product Spare Parts
Customer Reviews

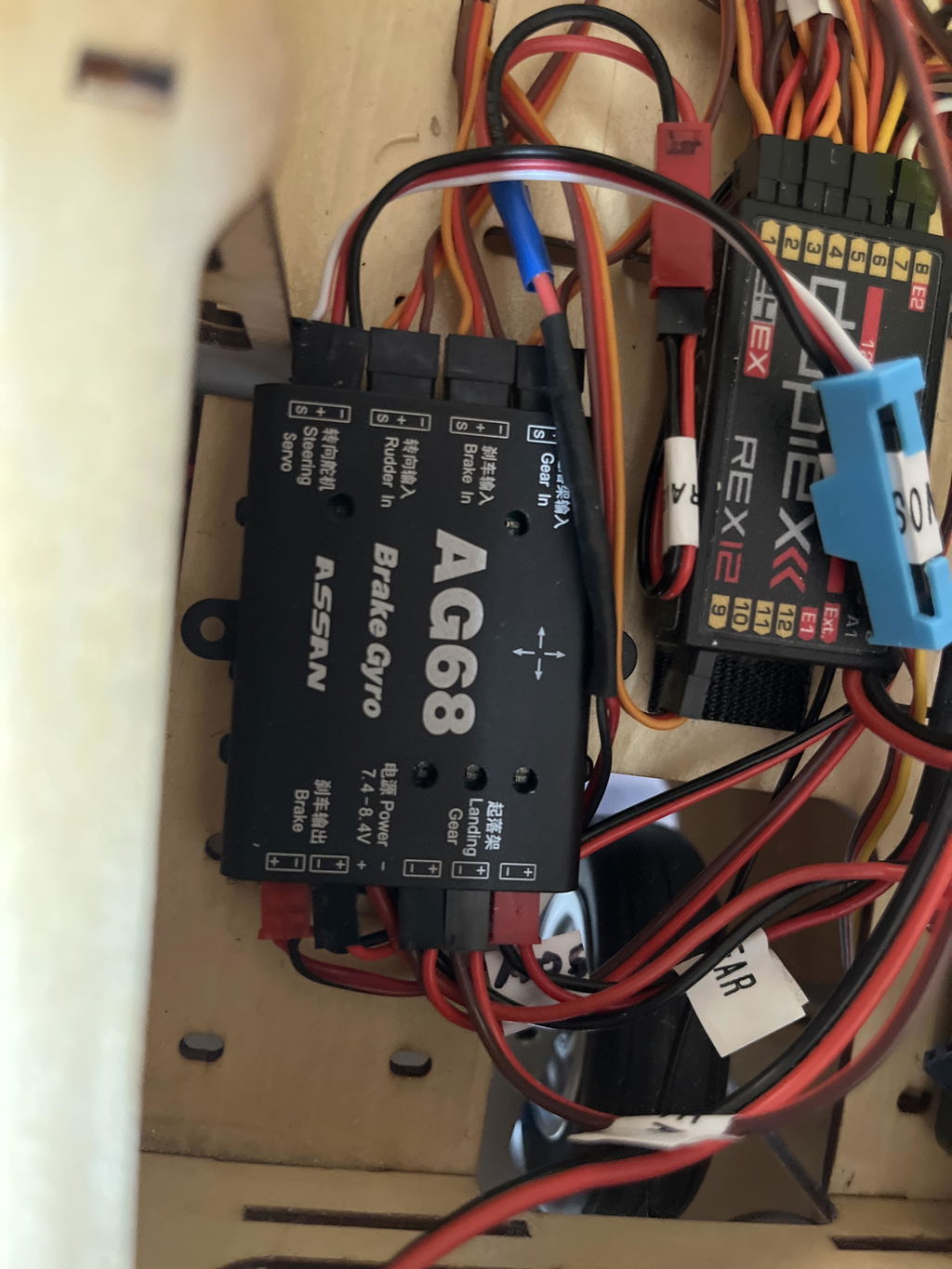

Currently have it in a Turbinator 2 using the stock Boomerang RC , aka JP ER-120 gear. The braking is proportional and works great and then having the added benefit of a gyro on steering is really felt on takeoff by holding the center line better when wind is quartering or cross. The instructions need a cleaner translation and finer points to help understand more clearly the setup and programming of the unit. There are several YouTube videos covering this and help greatly. If your looking for proportional braking and a gyro for steering, i would recommend this unit.
The initial set up was easy But had some difficulty getting the gyro to turn my steering with the gear down. However after trying a couple time got it to work. Haven’t flown the Sprint yet. Looking forward to see how well the steering and brakes perform. I would recommend this unit
Customer Reviews
Currently have it in a Turbinator 2 using the stock Boomerang RC , aka JP ER-120 gear. The braking is proportional and works great and then having the added benefit of a gyro on steering is really felt on takeoff by holding the center line better when wind is quartering or cross. The instructions need a cleaner translation and finer points to help understand more clearly the setup and programming of the unit. There are several YouTube videos covering this and help greatly. If your looking for proportional braking and a gyro for steering, i would recommend this unit.
The initial set up was easy But had some difficulty getting the gyro to turn my steering with the gear down. However after trying a couple time got it to work. Haven’t flown the Sprint yet. Looking forward to see how well the steering and brakes perform. I would recommend this unit
