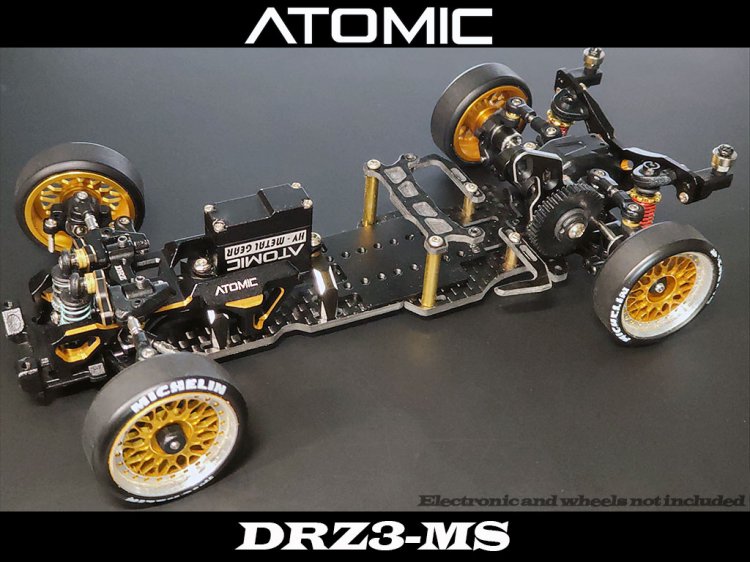

Atomic DRZ3 MS RWD Drift Chassis Kit (No Electronic)
$238.00
$0.00( / )
Here we present you the new Atomic DRZ3 MS.This professional drift chassis consists of various new features and design:- Front Shock Damper put to the middle of the front chassis, allow more space for the wheel. Thus, the maximum steering angle is significantly increased.- 1:24 and 1:28 wheels compatible- 90...
){kind=link}
Here we present you the new Atomic DRZ3 MS.
This professional drift chassis consists of various new features and design:
- Front Shock Damper put to the middle of the front chassis, allow more space for the wheel. Thus, the maximum steering angle is significantly increased.
- 1:24 and 1:28 wheels compatible
- 90 to 120mm wheelbase adjustment.
- Magnetic body mount
- Motor position is adjustable.
- Rear bulkhead can be installed in reverse, to allow motor at rear position. (RR Rear Motor – Rear Drive configuration)
- No-Top-Deck design, easier to install electronics and looks more tidy.
- Battery mount position, width, length and height is adjustable
- New design extreme low friction damper shocks
- Quick adjustment of Caster Angle (from 0 to 16 degree)
- Steering Ackerman can be easily adjusted by changing the position of the servo and steering crank.
- Aluminium Ball differential is included.
- Aluminium Rear Bulkhead
- Aluminium Front Bulkhead
- Aluminium Motor Mount.
- Aluminium Direct Drive Steering Crank
Please note that the steering crank only compatible with servo spline which is 3.5 to 3.9mm diameter.
such as:
-Atomic 1885
-Atomic 1820 series
-AGFRC A06CLS series
-OMG-MR-20CF
