Axial 1/24 SCX24 1967 CHEVROLET C10 4WD BRUSHED TRUCK RTR (BLACK) With TORQ MLS-1022 High Torque Micro Servo

• Detailed 1967 Chevrolet C10 polycarbonate body in two fresh color options
• Plush oil-filled shocks
• Realistic steel frame rails for added strength
• Spektrum SLT2 2.4GHz radio system
• Spektrum 350mAh LiPo battery and USB charger
• Two LED lights in the front bumper
• 080-size brushed motor
• True, full-time 4-wheel drive
• Metal worm drive gear on front and rear axles
• 3-Link front and 4-link rear suspension

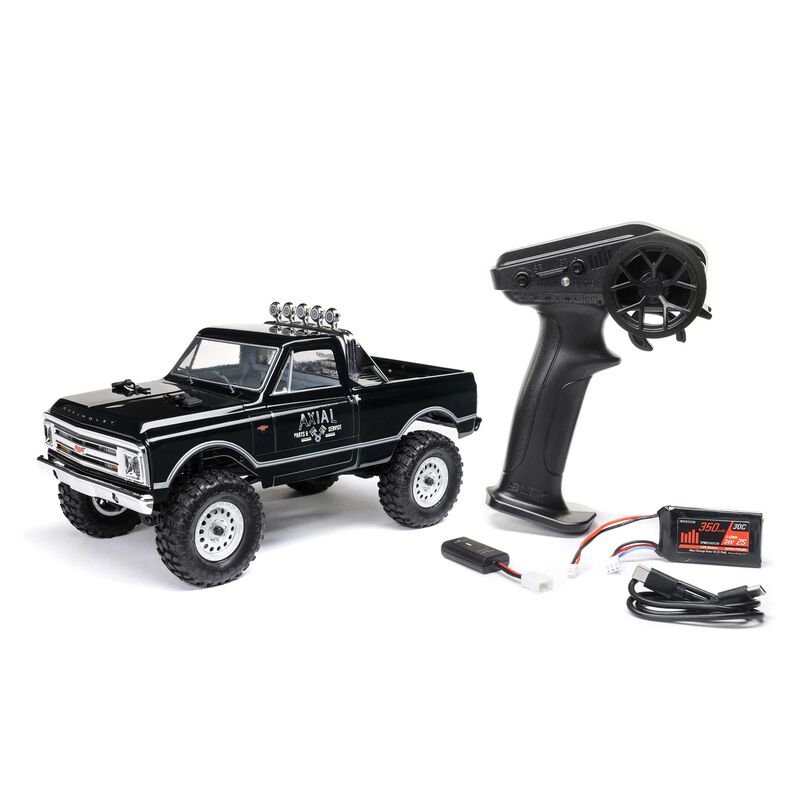

• Fully equipped and ready-to-run
• Licensed wheels modeled after 1:1 Method Wheels
• Licensed tires modeled after 1:1 BFGoodrich Tires

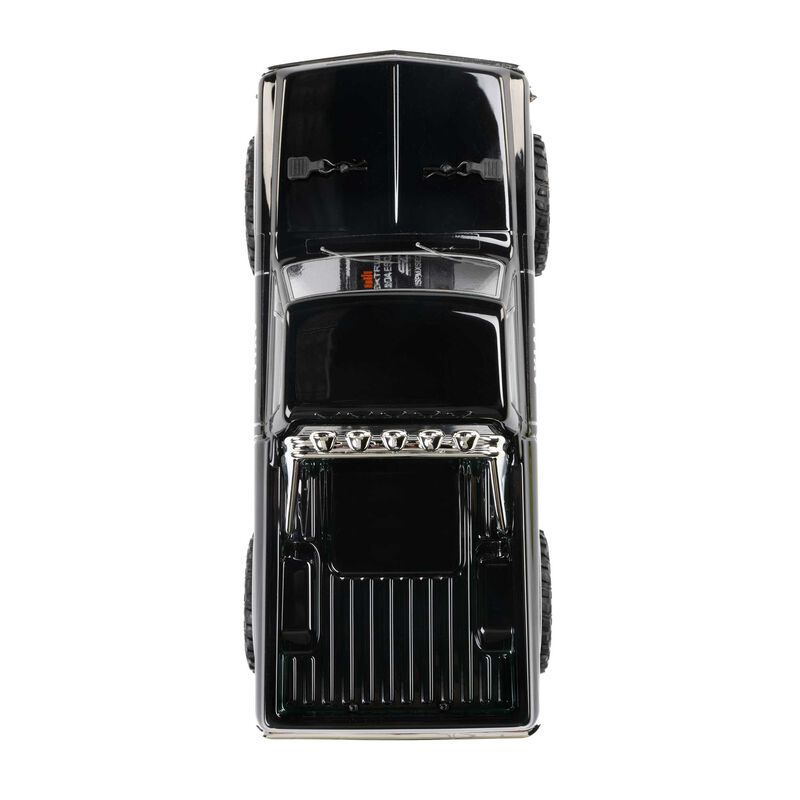

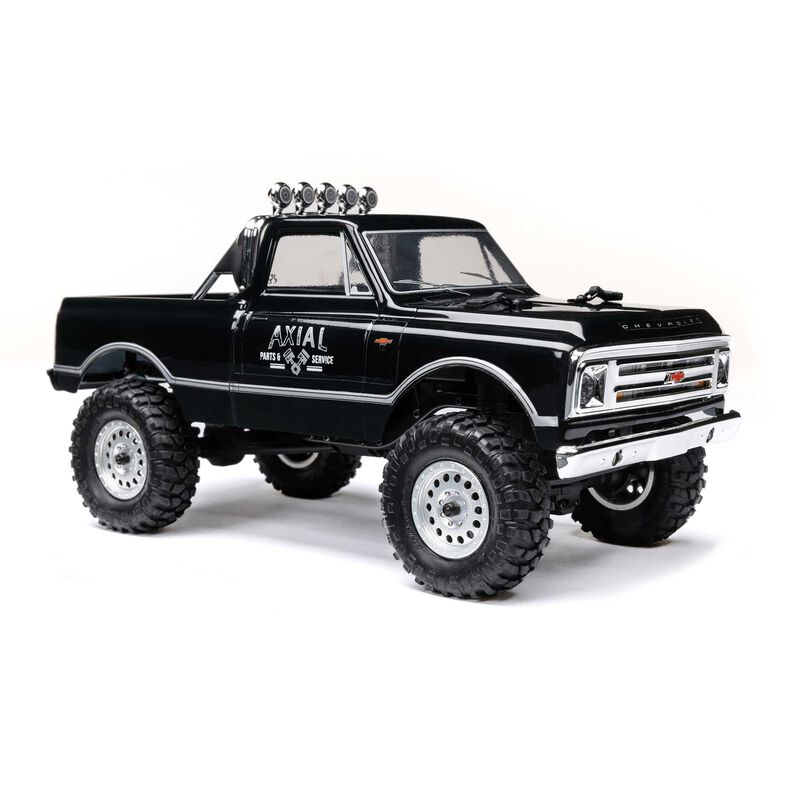

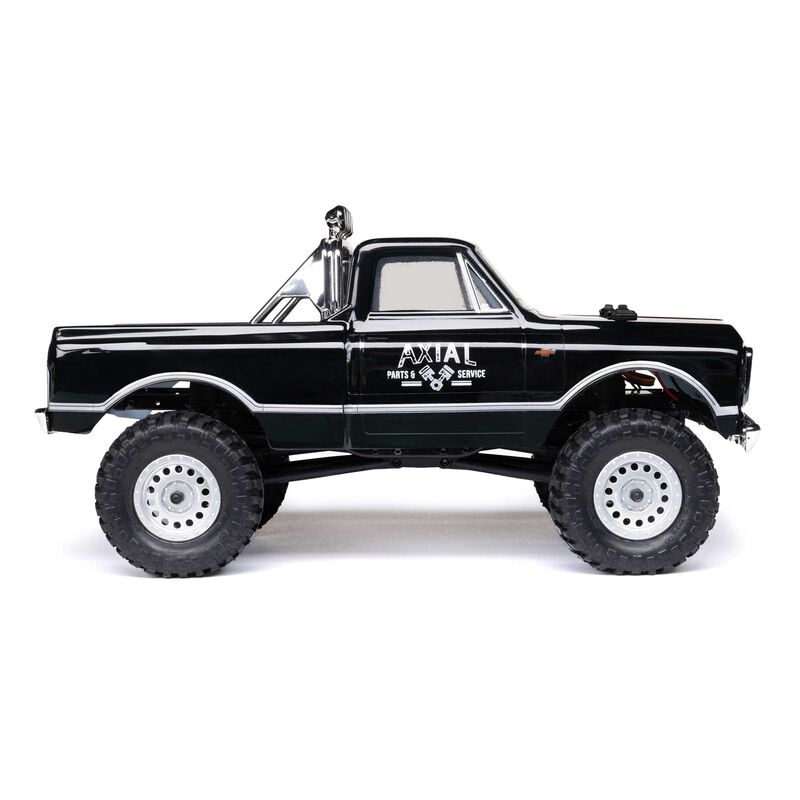

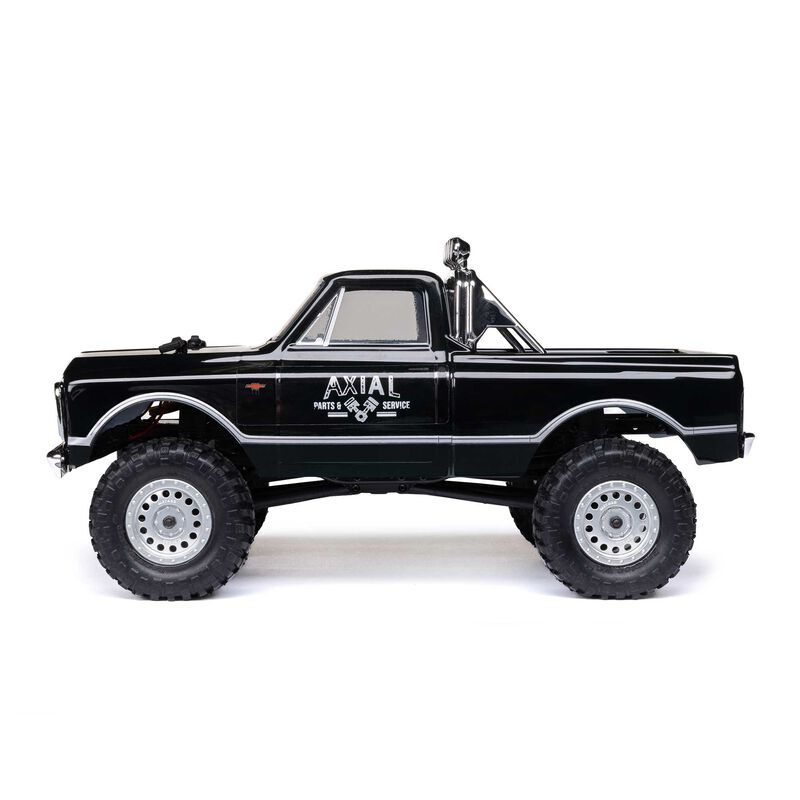

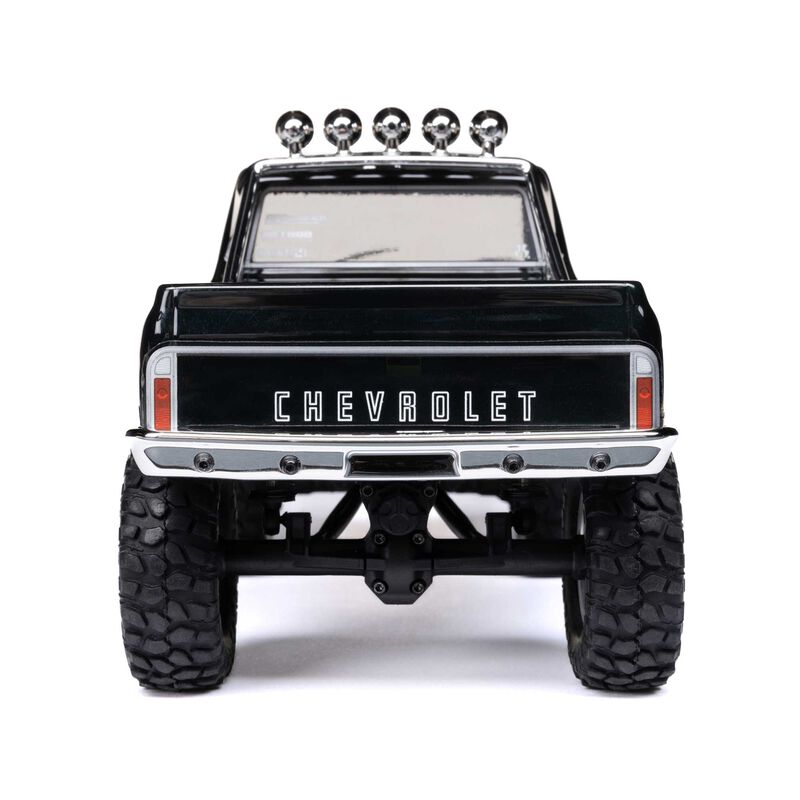

1967 CHEVROLET C10 BODY

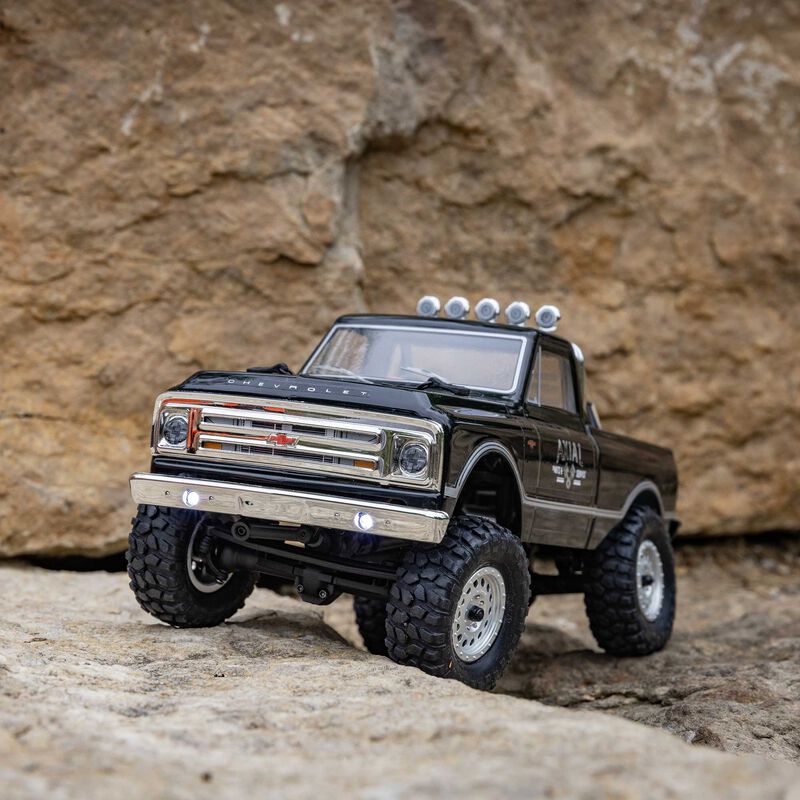

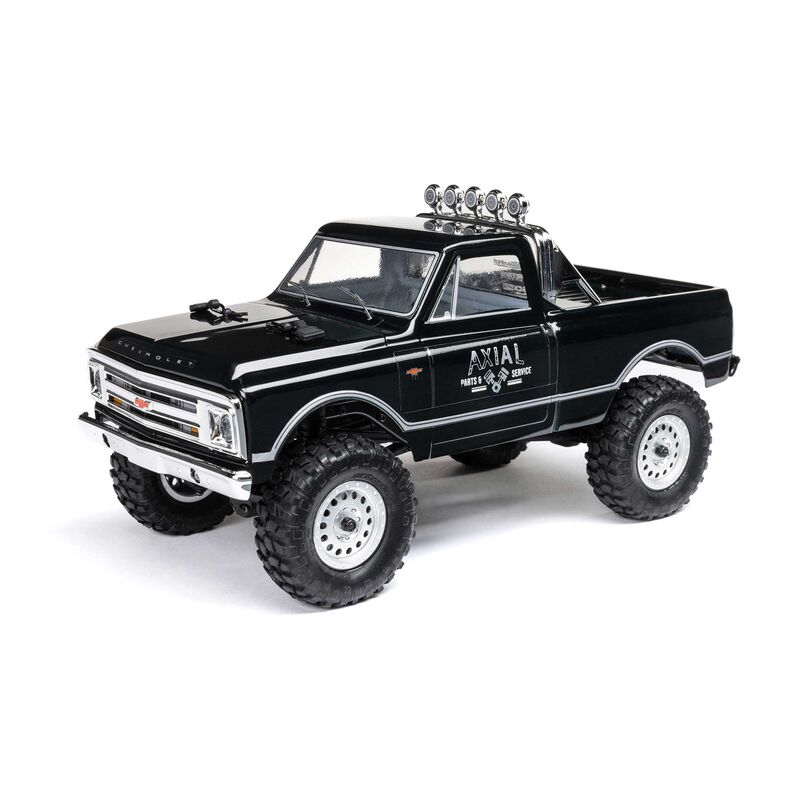

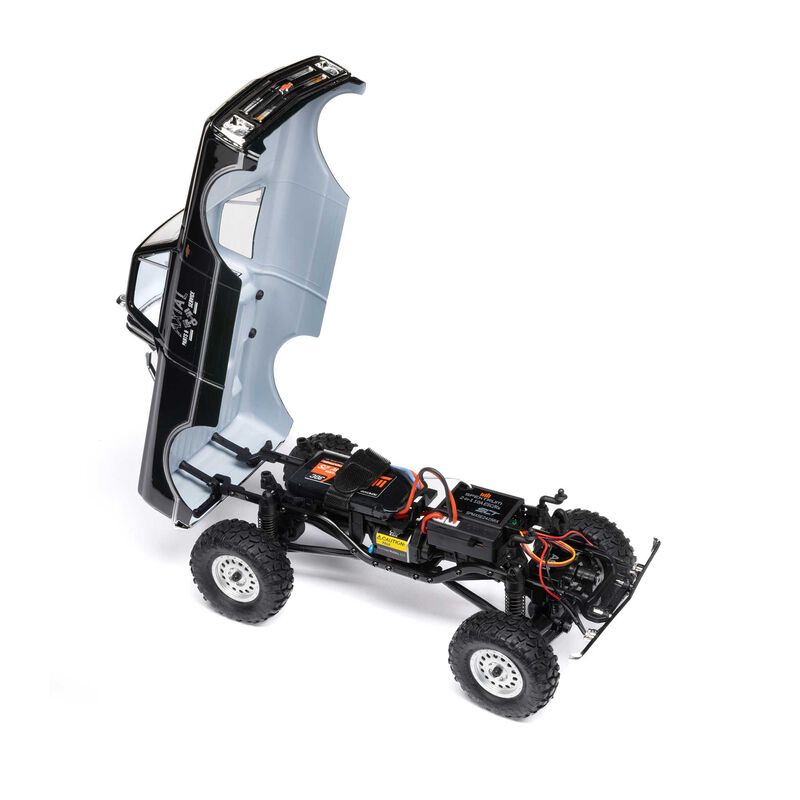

The full-size 1967 Chevrolet C10 had the sturdy look of a do-it-all workhorse, and the Axial SCX24 1/24 scale RC rig follows suit. Its detailed scale body comes factory-finished in two new color options. For quick battery access, just remove two clips to tilt back the body.

WORM GEARS

The front and rear differentials house metal worm gears for durability, increased ground clearance, and strong drag brakes

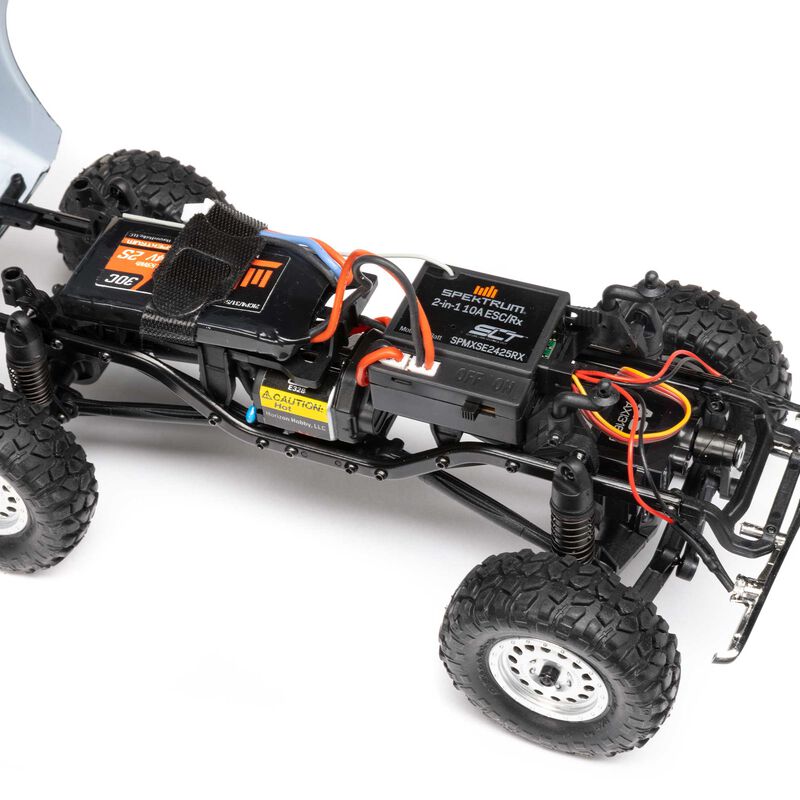

STEEL C-CHANNEL CHASSIS FRAME RAILS

Just like the 1/10 scale SCX10 platform, the SCX24 chassis features rugged and sturdy steel C-channel frame rails with bracing to keep everything intact and aligned.

FRONT AND REAR SOLID AXLE HOUSINGS

The front and rear axles consist of a two piece, molded composite solid axle design. For optimal handling, the SCX24 suspension features a 3-link front and 4-link rear setup.

4-LINK REAR SUSPENSION

The rear suspension geometry uses a 4-link design which is optimized to reduce axle steer and torque twist.

OIL-FILLED SHOCKS

Oil-filled shocks have been added that allow the suspension to articulate smoothly over rough terrain. You can adjust the preload with 1mm, 2mm, and 4mm spacers to fine-tune your rig for your handling needs.

DURABLE STEEL AXLES

Steel front and rear axles, front stub axles, and dogbones provide the strength and durability needed to keep going during tough climbs and over rough trails.

SPLINED DRIVE SHAFTS

The front and rear drive shafts are splined and sleeved to allow for maximum suspension travel while keeping the power to the wheels.

DYNAMITE BRUSHED MOTOR

The included Dynamite 88T 080-size brushed electric motor provides the right amount of torque for making steep climbs. It's mated to a steel motor mount to keep flex to a minimum and help protect the gears.

SPEKTRUM SLT2 2.4GHZ RADIO SYSTEM

The Spektrum SLT2 2-channel radio system offers high-end features such as throttle/steering travel adjust and throttle limiting. The ready-to-run package is so complete, even AA transmitter batteries are included.

FULL BALL BEARINGS

Just because the SCX24 is small doesn't mean its features follow suit. There are no bushings here. The drivetrain spins freely on sealed cartridge bearings throughout the entire vehicle.

METHOD MR307 HOLE WHEELS & BFGOODRICH® KRAWLER™ T/A® KX TIRES

The MR307 Hole is a fresh take on the classic hole-wheel design that dominated early off-road racing. BFGoodrich Krawler™ T/A® KX tires have won more rock-crawling championships than all other tires combined. The Axial version captures the same aggressive look in 1/24

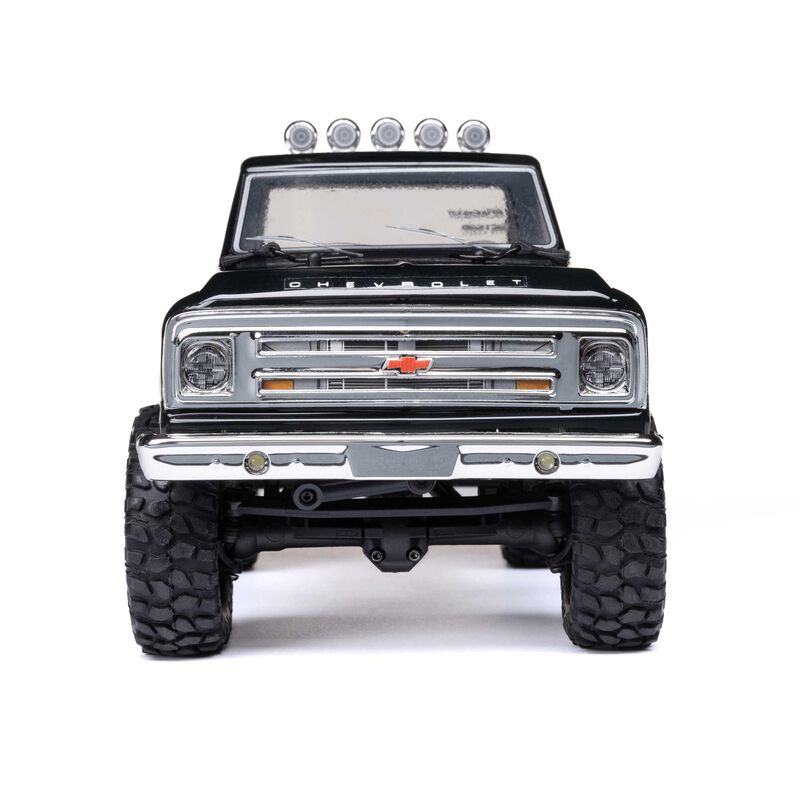

LED LIGHTS INCLUDED

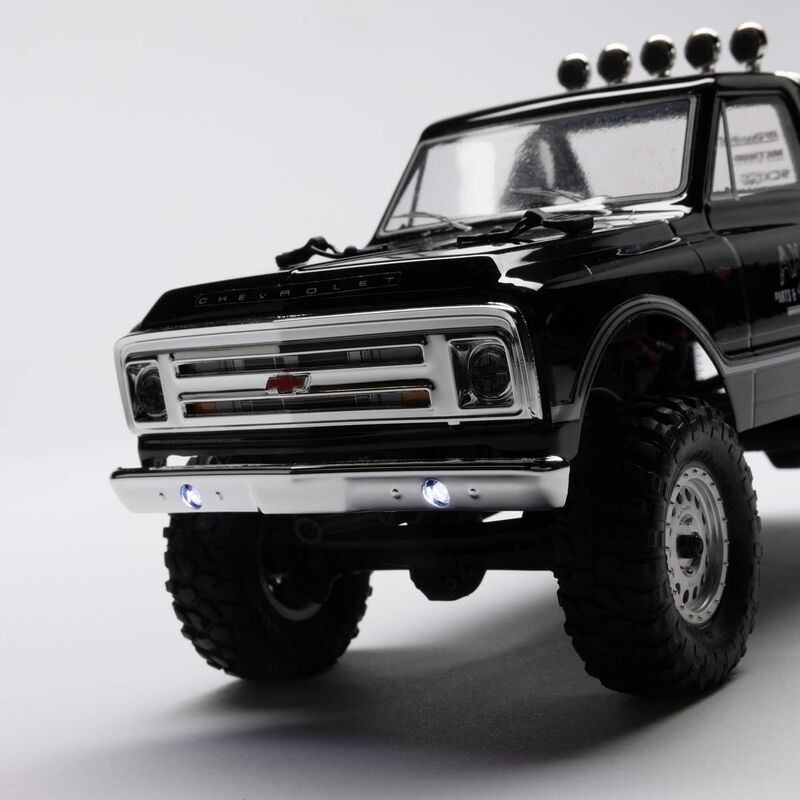

Two bright LED lights are included and are mounted in the front bumper. An extra LED light port on the ESC allows you to add optional LED lights.

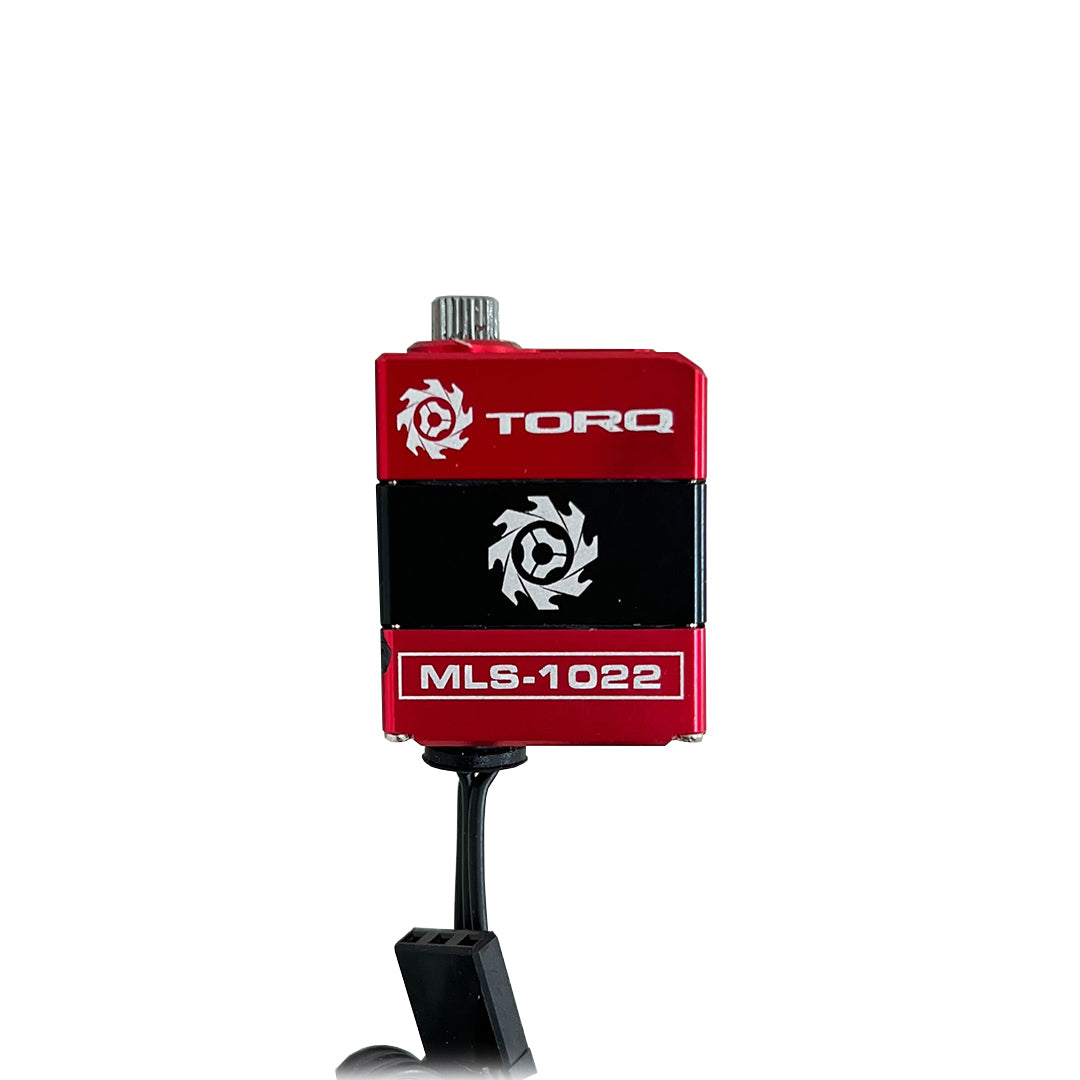

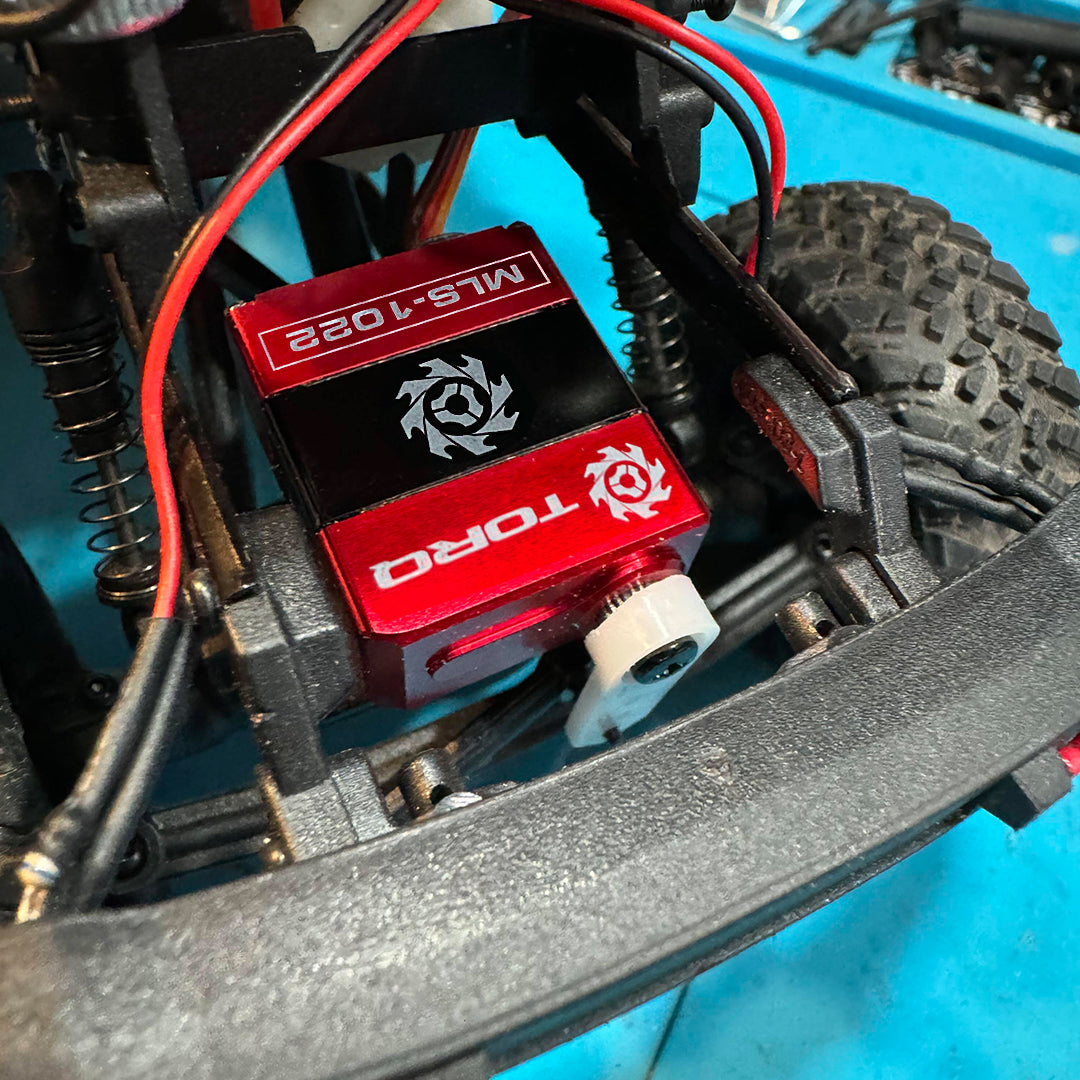

TORQ MLS-1022 High Torque Micro Servo - RED

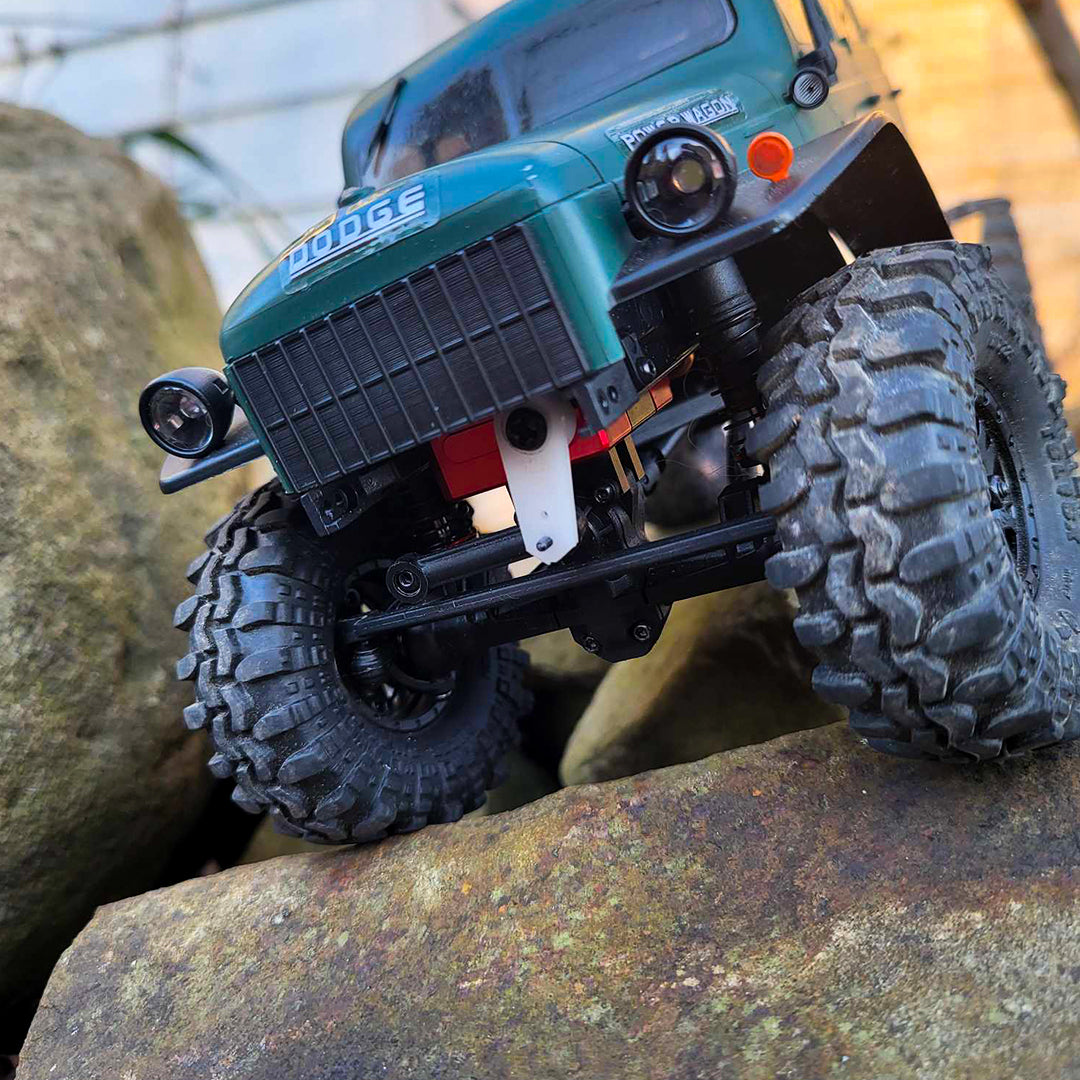

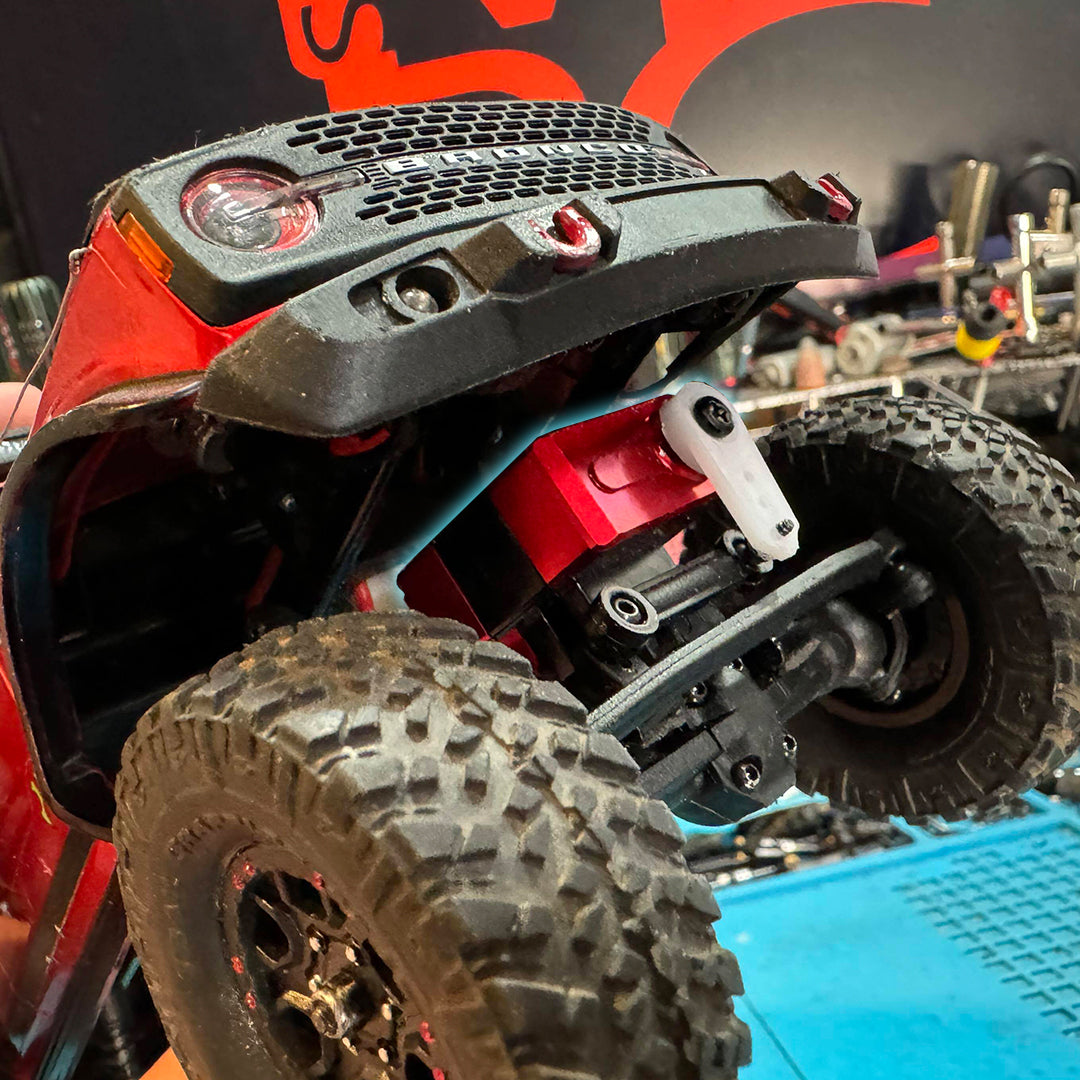

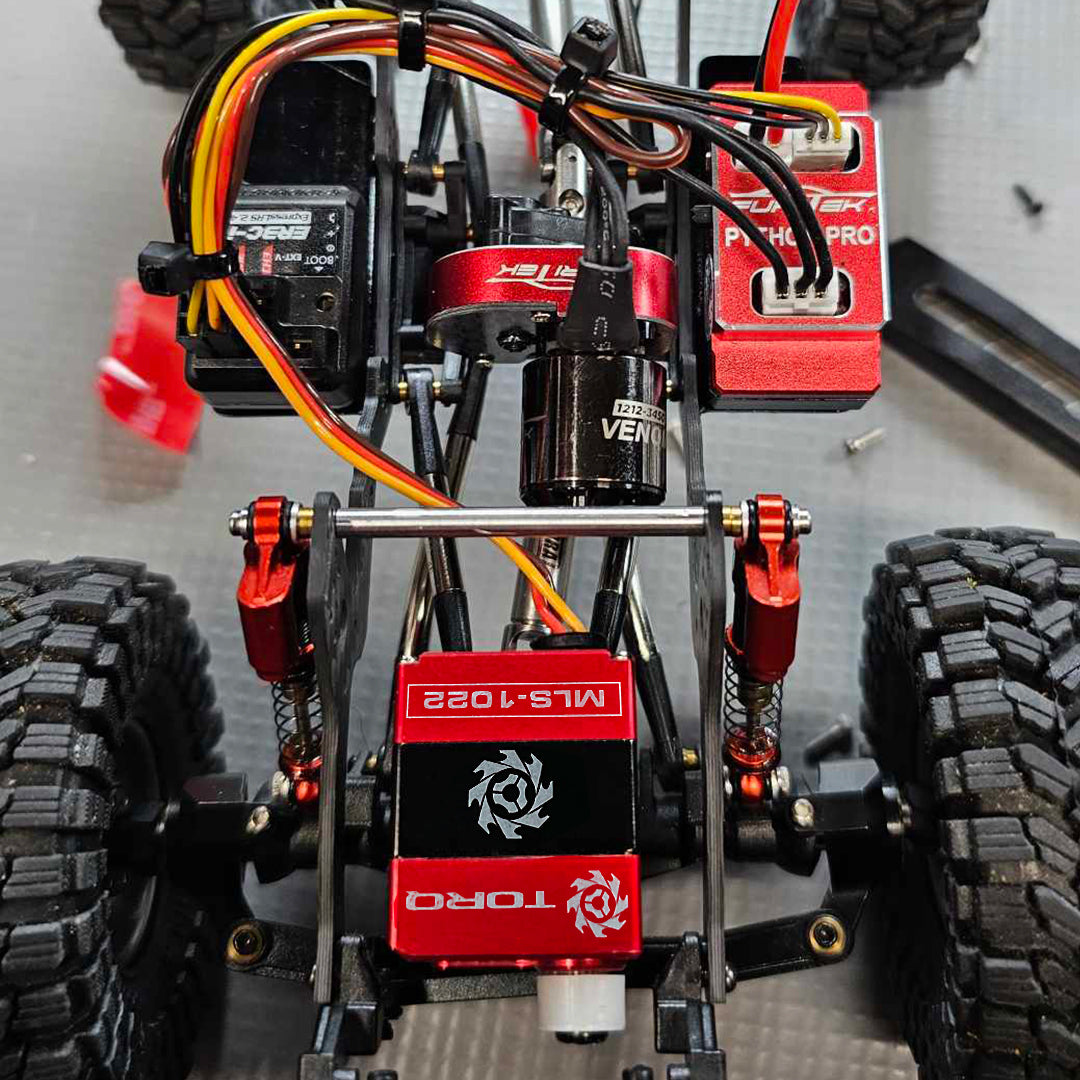

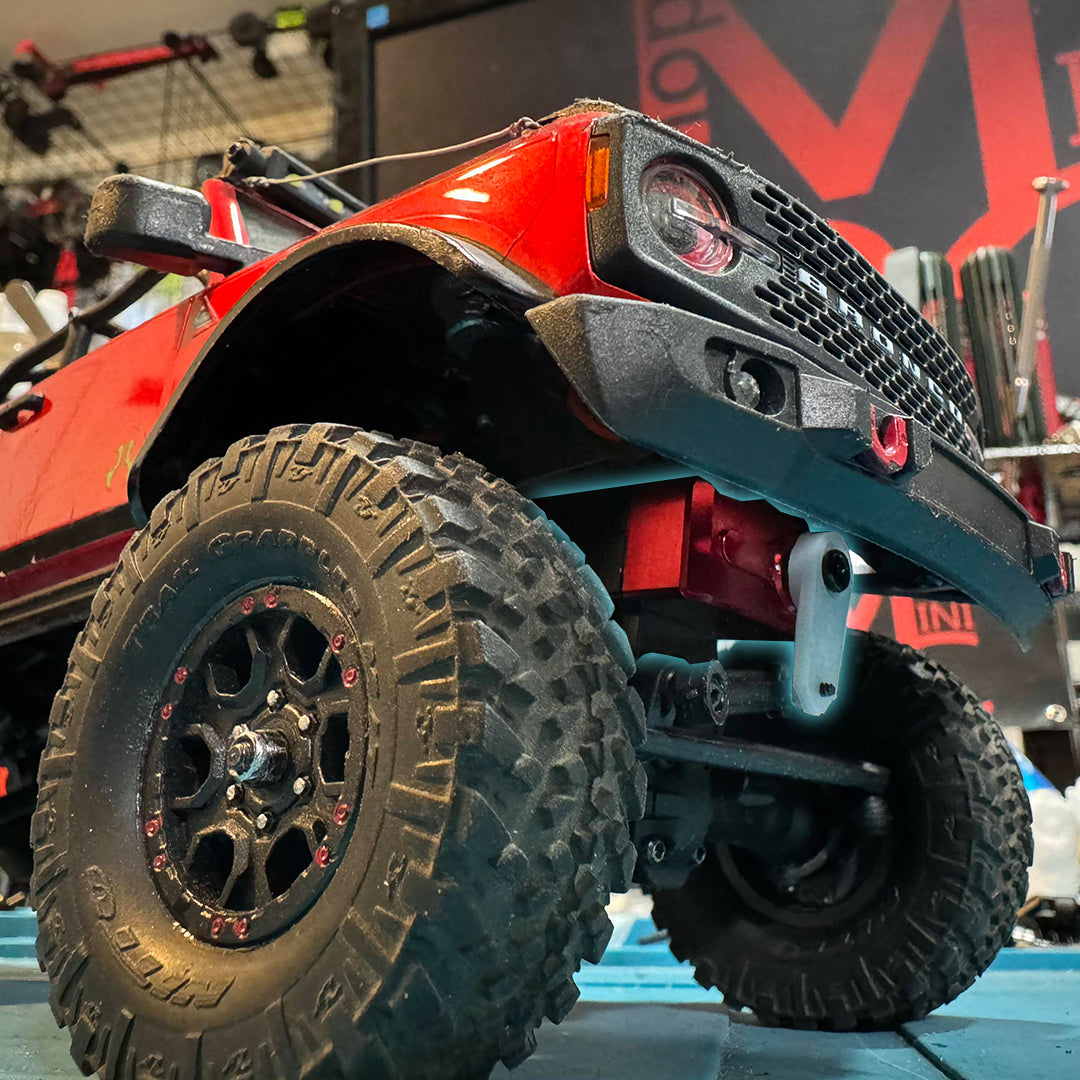

The TORQ MLS-1022 High Torque Micro Servo is expertly engineered to cater to the needs of small-scale crawlers. This innovative servo design eliminates traditional servo ears, providing ample clearance between the servo and the frame rails, ensuring smooth and unobstructed suspension movement. The MLS-1022’s unique configuration also eliminates the necessity for a separate servo mount, simplifying the installation process.

Key features include rear exit wires, further ensuring that suspension travel remains unhindered. This servo is designed for ultimate clearance all around, making it a standout choice for crawler enthusiasts. The design is patent-pending, showcasing its unique and innovative nature.

Included at no extra charge: CNC Metal Arms, a $15 value!

Features

-          High Torque Output: Delivers powerful performance for small-scale crawlers.

-          Mountless Design: Eliminates the need for a separate servo mount, reducing the overall cost.

-          No Servo Ears: Provides ample clearance between the servo and frame rails, ensuring smooth suspension movement.

-          Rear Exit Wires: Ensures suspension travel is unhindered for optimal performance.

-          Simplified Installation: Easy to mount due to its unique design.

-          Enhanced Clearance: Designed for ultimate clearance around the servo.

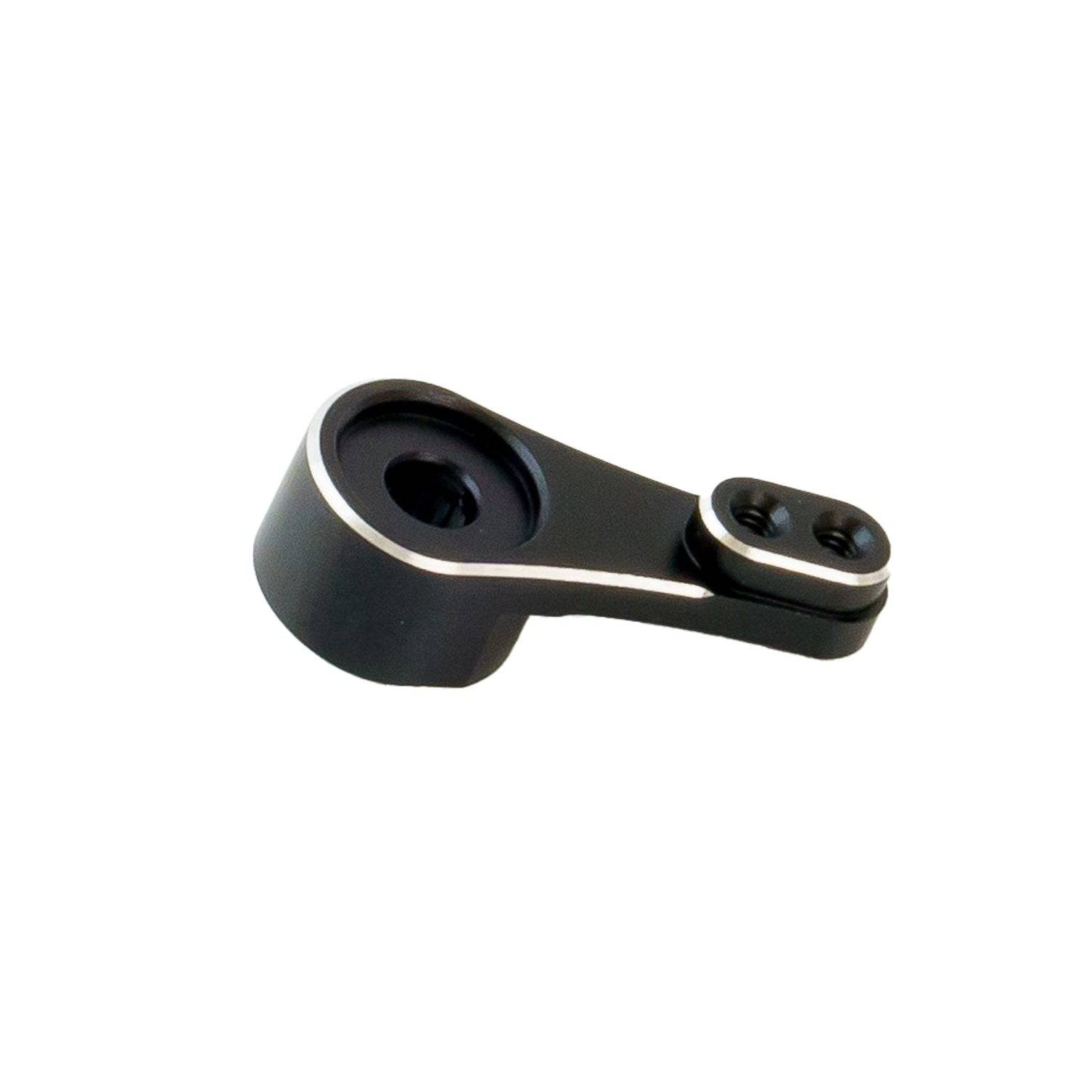

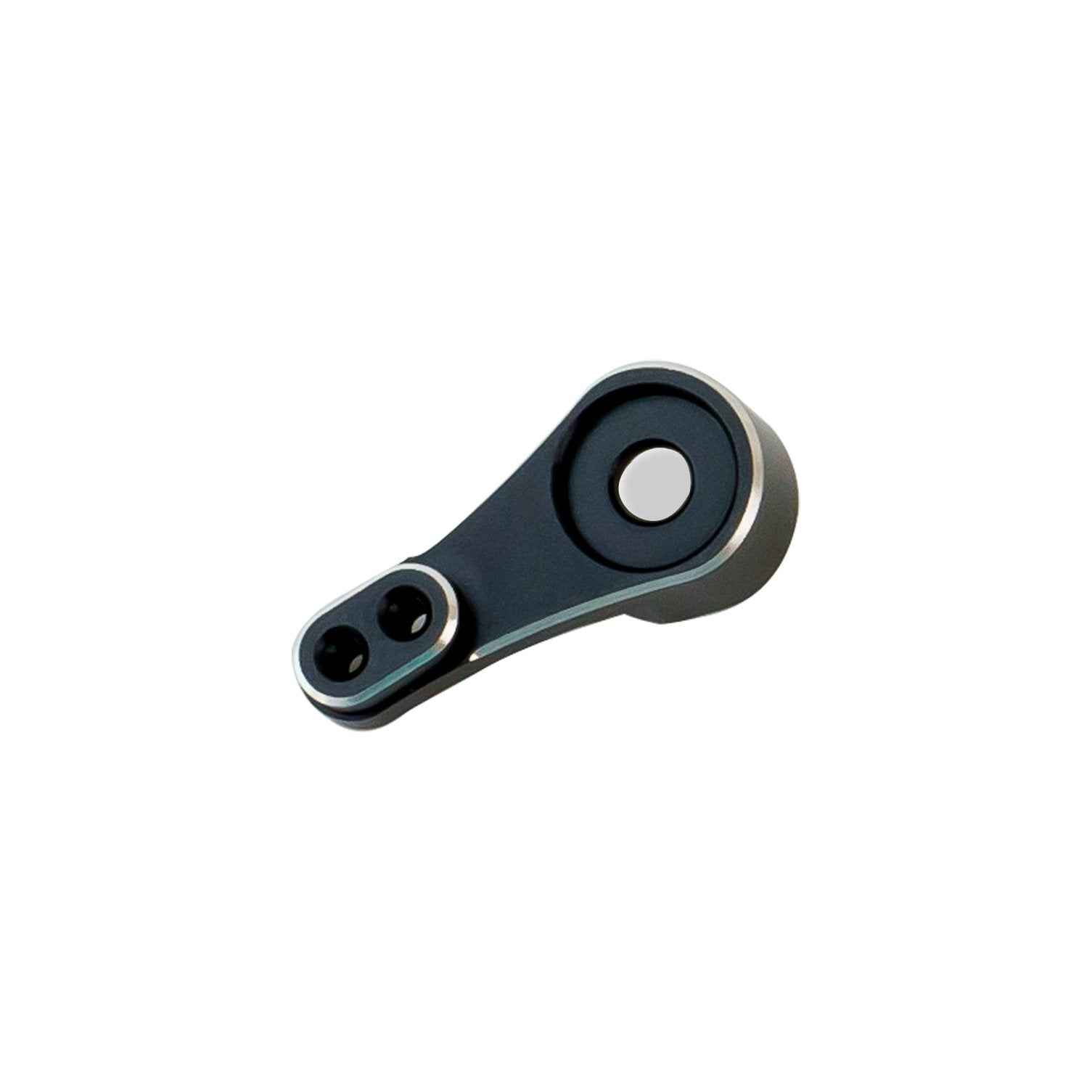

-          CNC Servo Horn Included: Limited time offer includes a free CNC servo horn.

-          Patent Pending: The innovative design is currently under patent protection.

-      Waterproof

Specifications

-          Dead Bandwidth: 3μs

-          Working Frequency: 1520μs / 330Hz

-          Operating Voltage: 5.0V - 8.4V

-          Motor Type: Coreless Motor

-          Operating Speed:

        ·       At 5.0V: 0.10 sec/60°

        ·       At 6.0V: 0.09 sec/60°

        ·       At 7.4V: 0.07 sec/60°

        ·       At 8.4V: 0.055 sec/60°

-          Stall Torque:

        ·       At 5.0V: 9 kg-cm (125 oz-in)

        ·       At 6.0V: 11.5 kg-cm (160 oz-in)

        ·       At 7.4V: 12.8 kg-cm (177 oz-in)

        ·       At 8.4V: 14.5 kg-cm (200 oz-in)

-          Dimensions: 23 x 12 x 27.5 mm (0.91 x 0.47 x 1.08 inches)

-          Weight: 22.0 g (0.78 oz)

-          Connector Wire Length: JR 170 mm (6.7 inches)

-          Output Gear Spline: 25T

Benefits

-          Space Efficiency: Compact design fits seamlessly within small-scale crawler setups.

-          Cost Savings: No need to purchase additional CNC servo mounts and CNC servo arms.

-          Performance Enhancement: Unhindered suspension movement leads to better crawler performance.

-          Ease of Installation: Simplifies the mounting process, saving time and effort.

•          The TORQ MLS-1022 High Torque Micro Servo - RED is an excellent choice for crawler enthusiasts looking for a high-performance, easy-to-install, and cost-effective servo solution.
