Boomerang Atom - White Blue

Download Instruction Manual

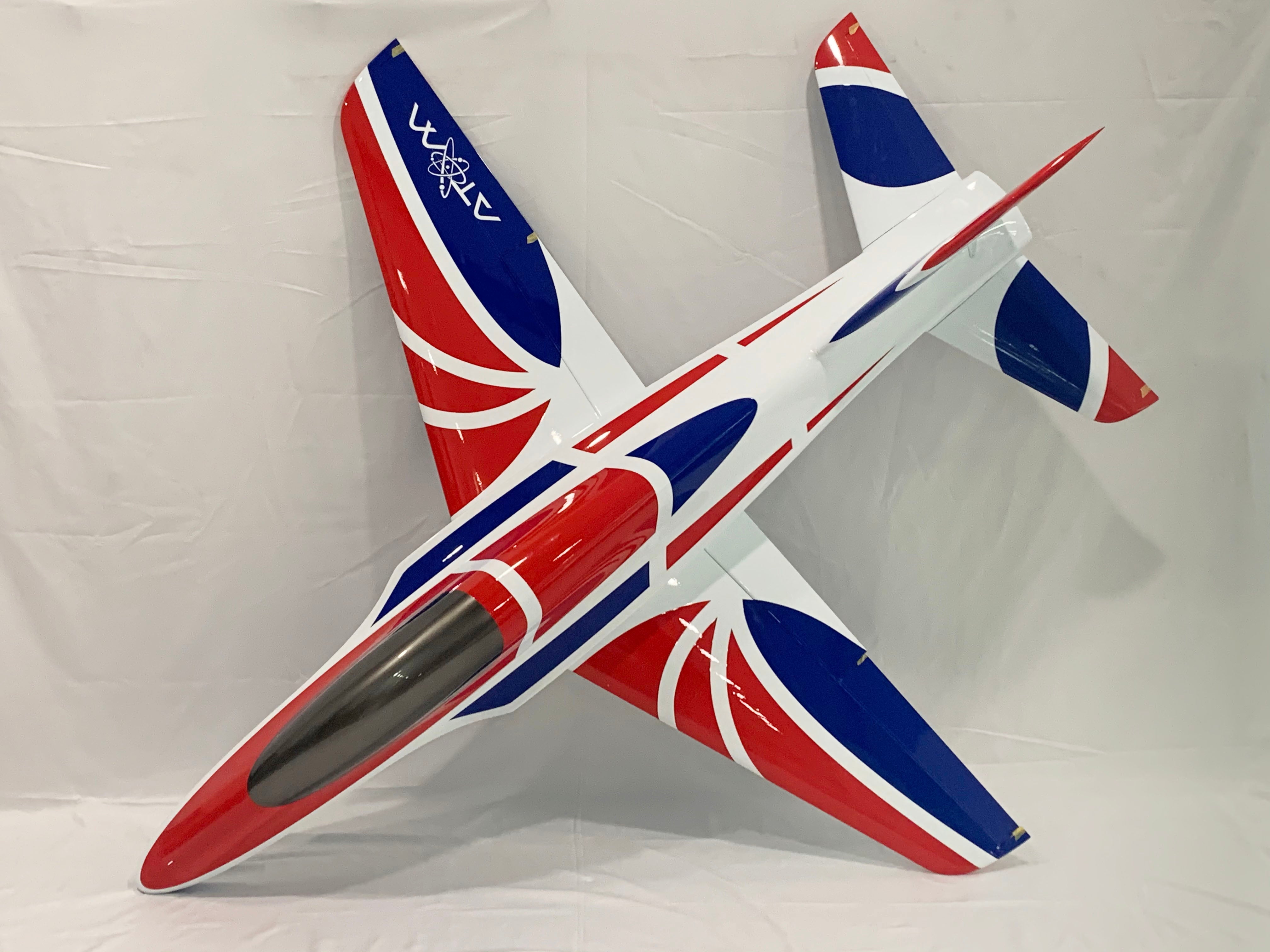

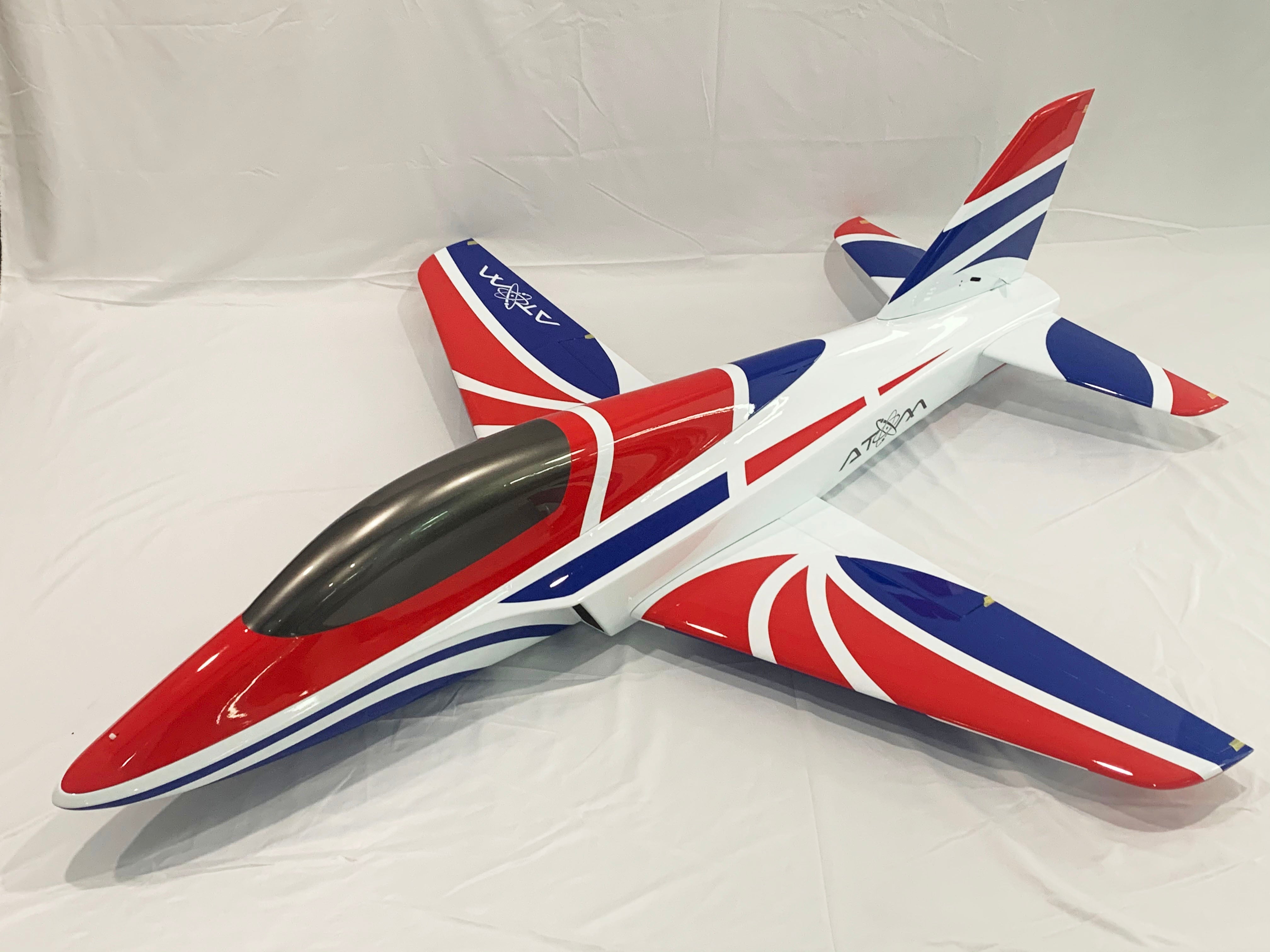

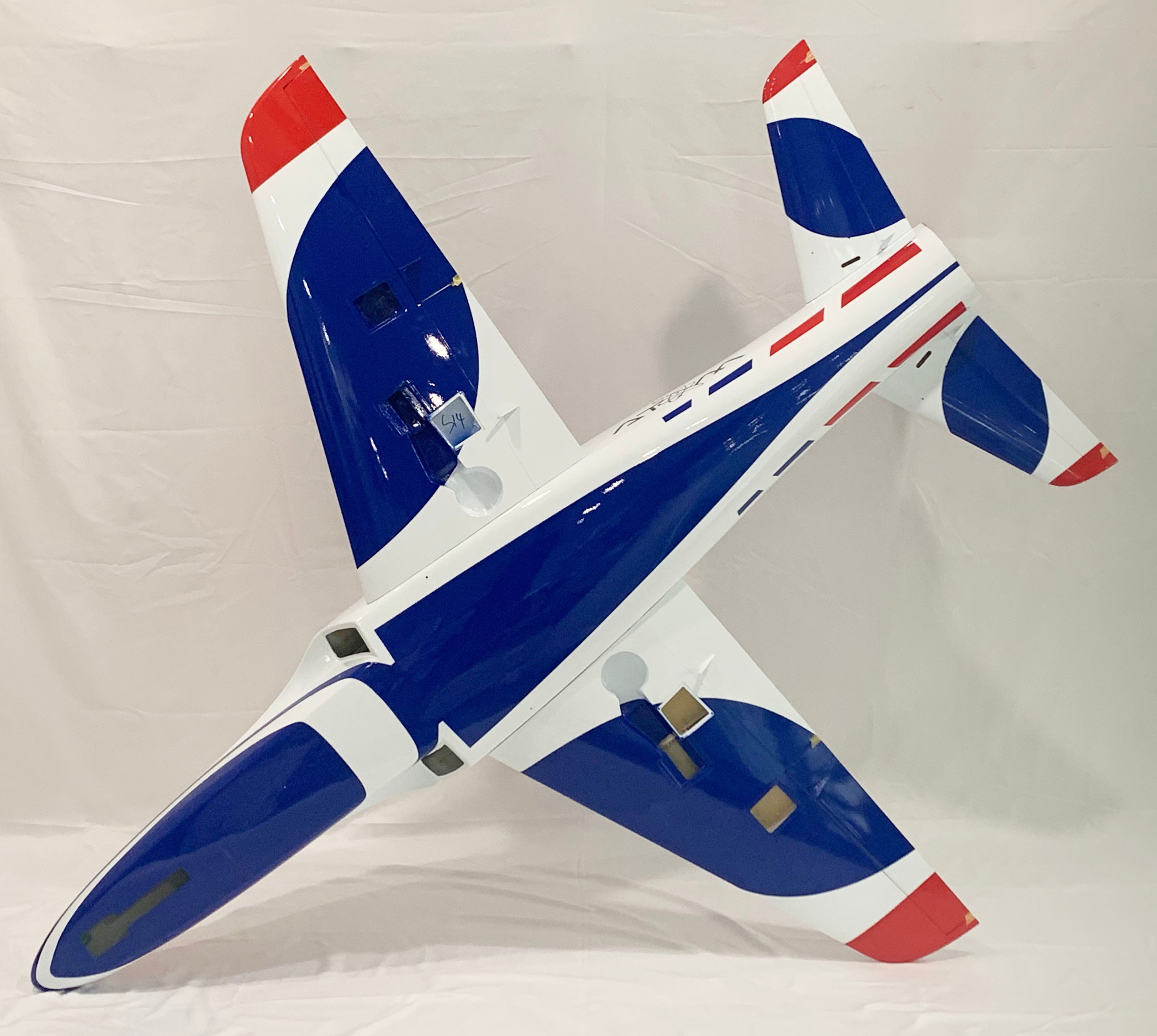

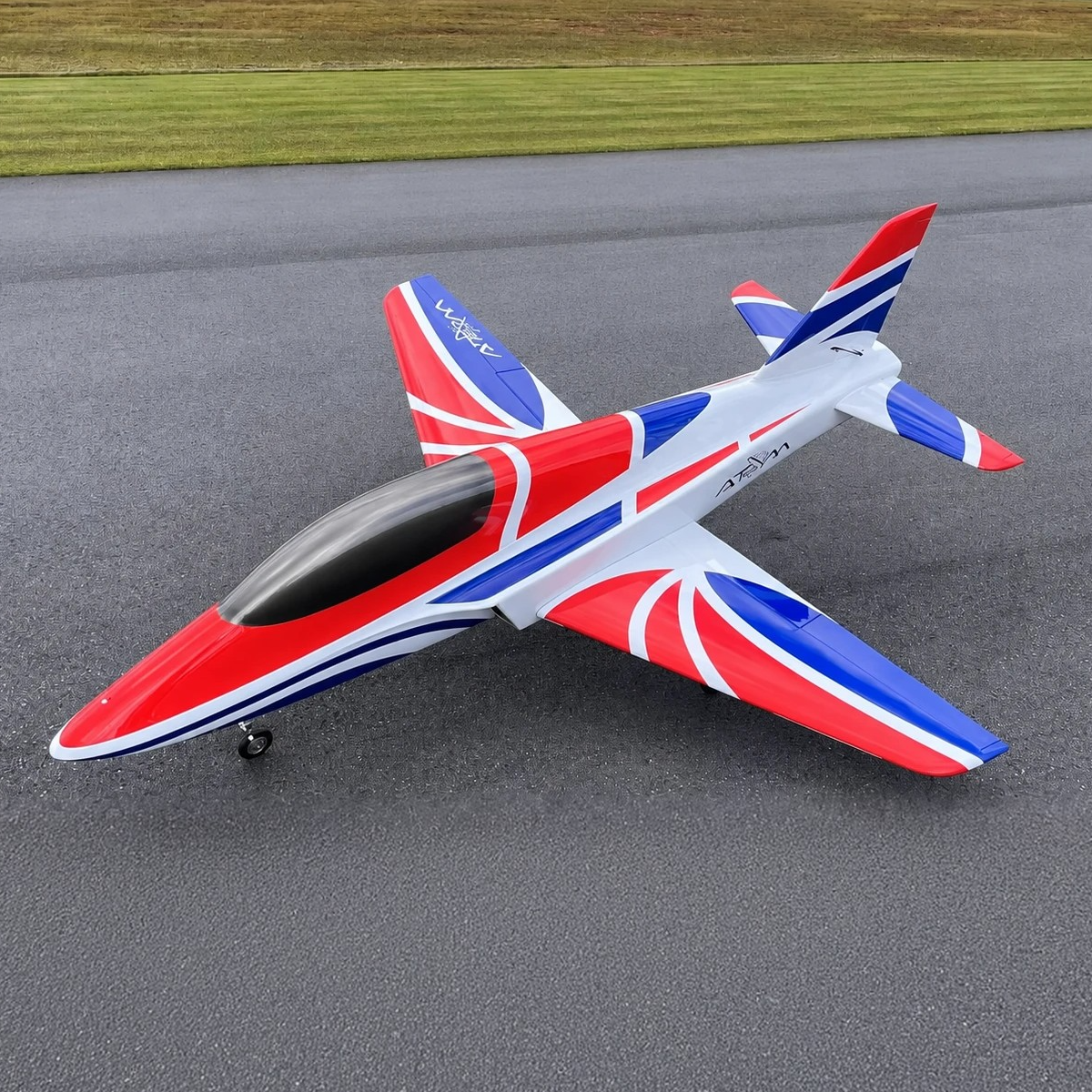

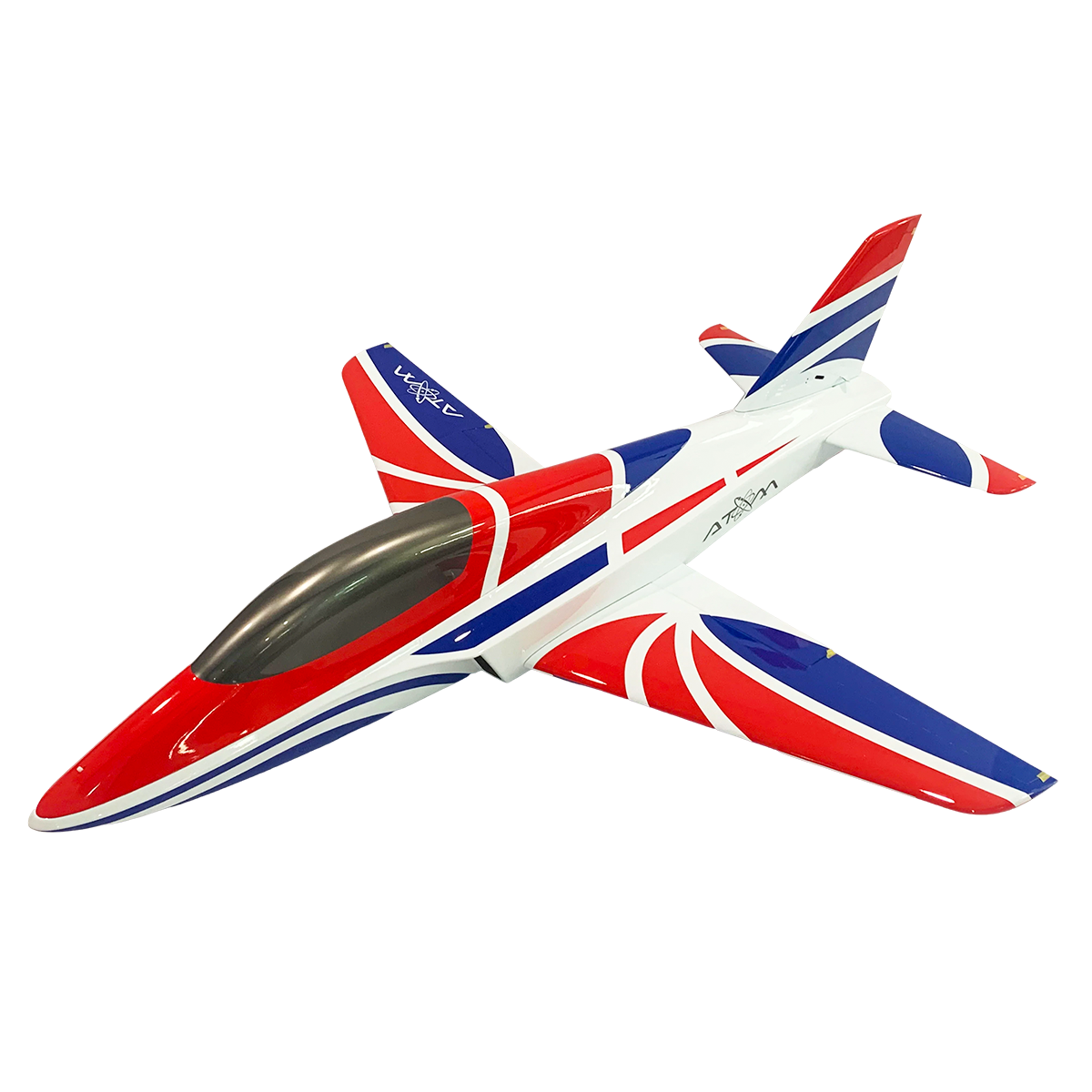

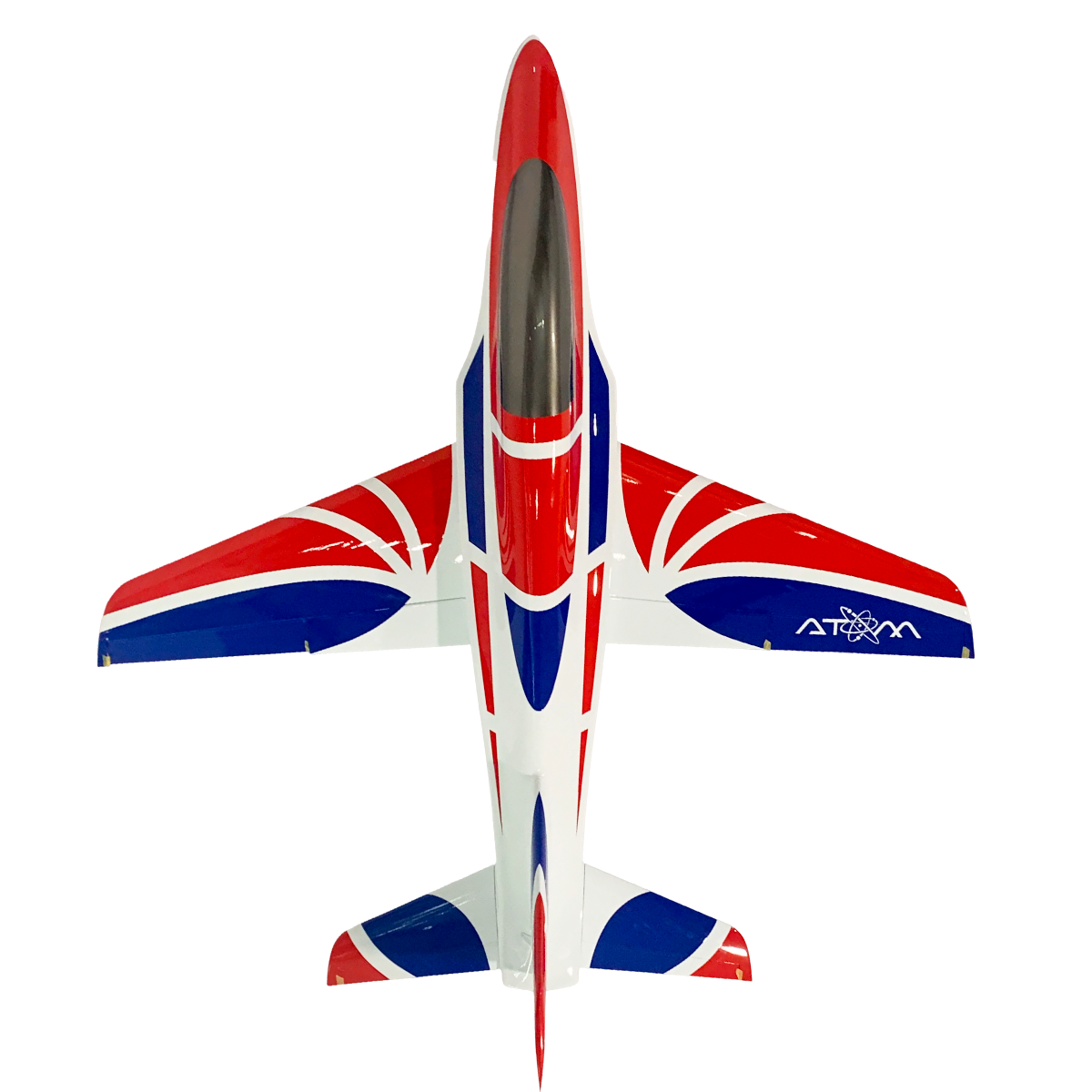

The Boomerang ATOM

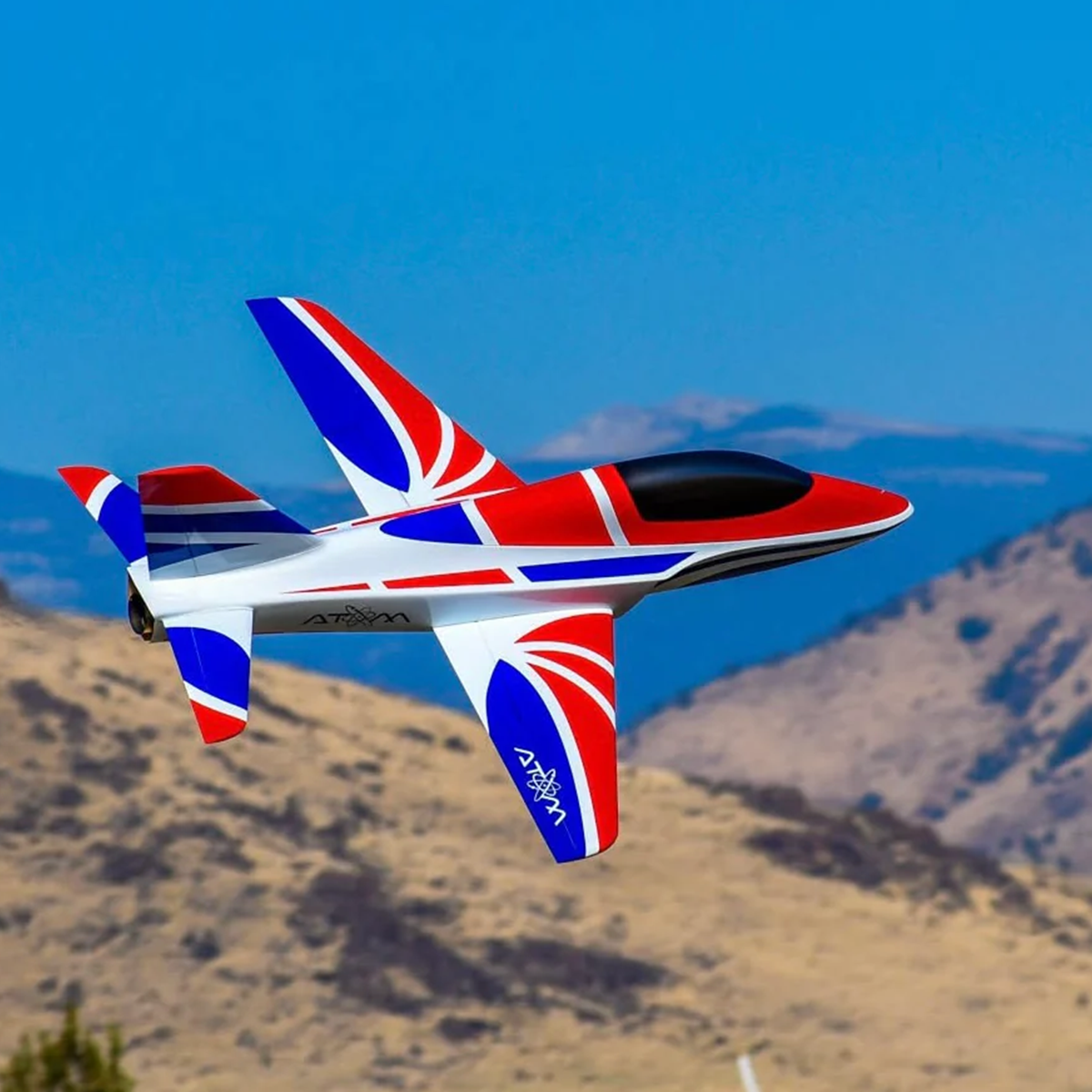

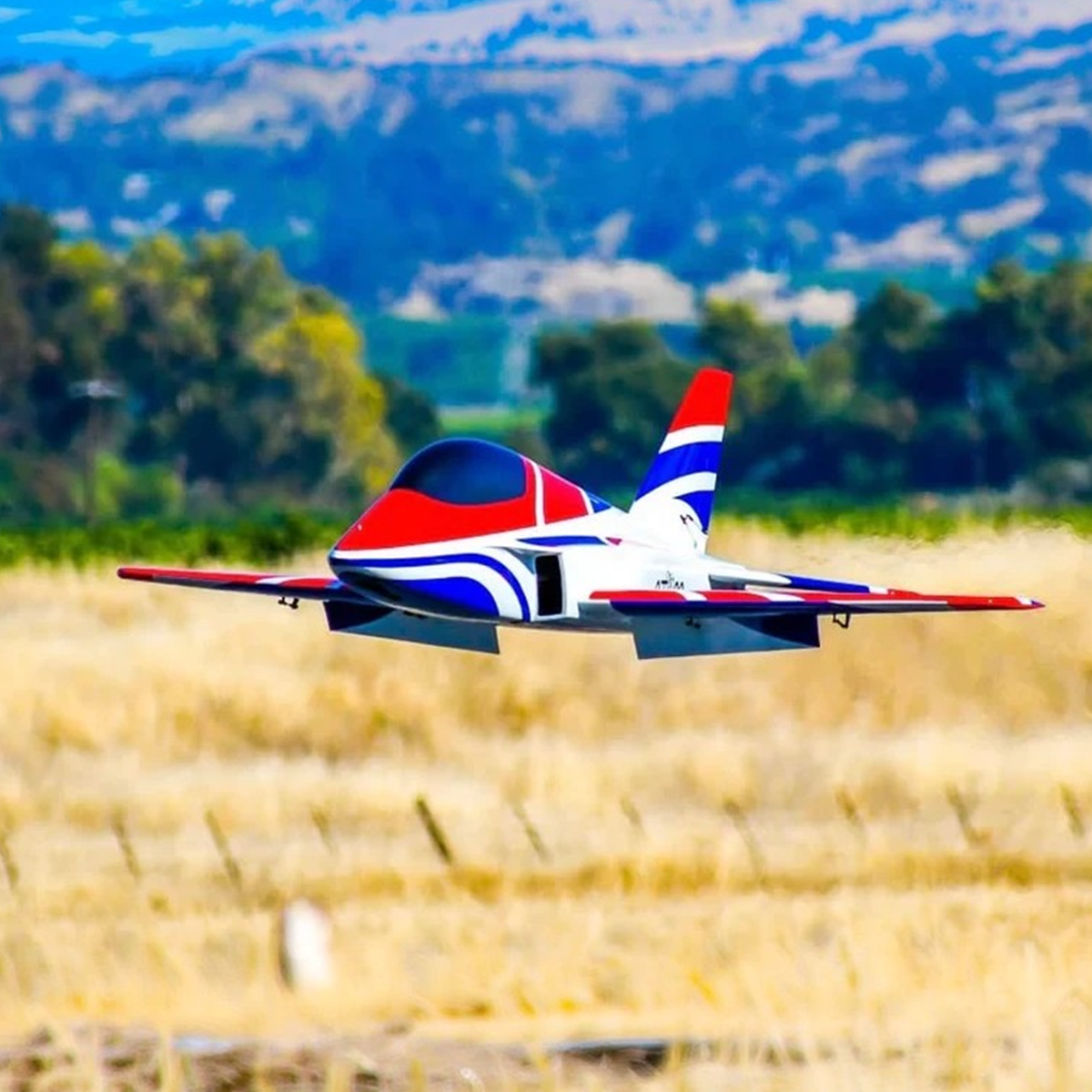

The ATOM is a fully composite, extreme flying sport jet capable of the most extreme maneuvers! Flip the switch and activate the Thrust vectoring unit and the flips, spins, and hovering are smooth and extreme, turn it back off and precision and grace are the name of the game. From high speed to low speed the ATOM will do it all.
The ATOM being a complete composite means no covering on the jet, the hinges are all skin or live hinges, and the control horns are painted and pre-installed. The ATOM comes with a composite 98 oz fuel tank, and thrust pipe as well as high-quality landing gear with brakes and the full hardware set.

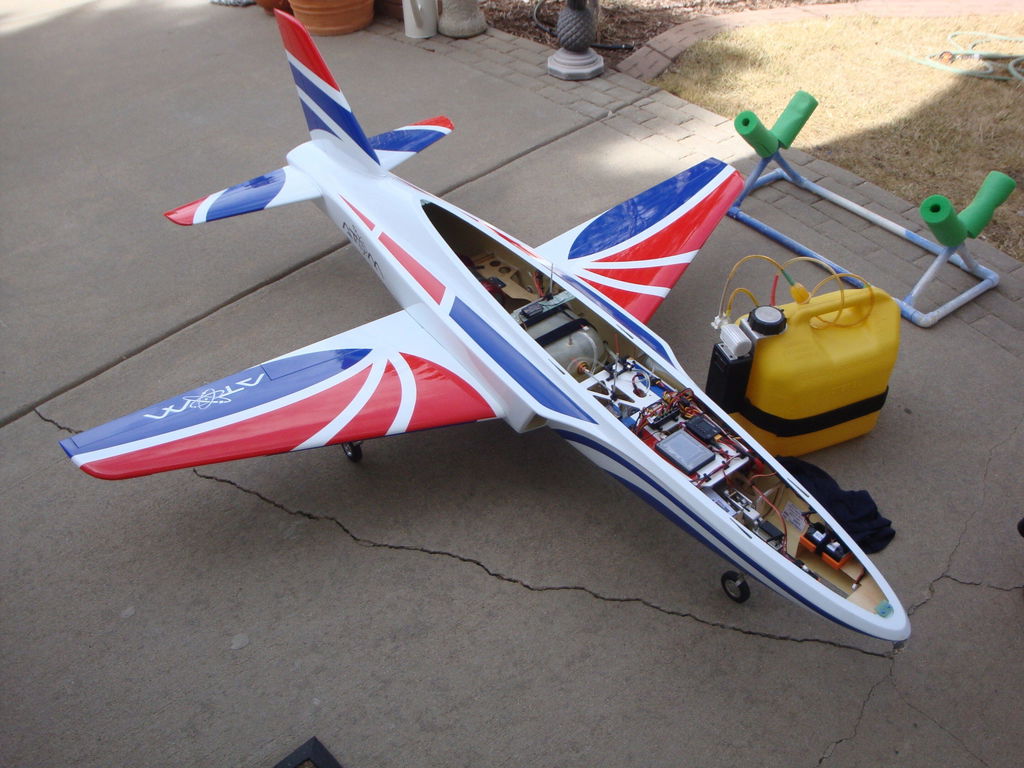

The large hatch on the top of the ATOM makes assembly easy and gives you tons of room to work while building and lots of space inside for all of your equipment and makes it easy to check inside while you are in the field.
The best part is the hatch is a one-latch system that is quick and easy. The
stabs and vertical fin are removable just like the wings to make transportation and storage of the ATOM super easy and use carbon fiber wing and stab tubes to provide the strength needed to perform the EXTREME maneuvers!
The ATOM being as light as it is, can be flown with a 100-size turbine up to a  160 depending on what you want. The 130/140 size turbine will fly the F3S patterns with ease while keeping the weight very light and will still do most all of the extreme maneuvers, however, to hover you will want to go up to the 160.

Servos:
6x Standard size servos, (8 if using the thrust vectoring)
2x Mini Servos for the Elevators

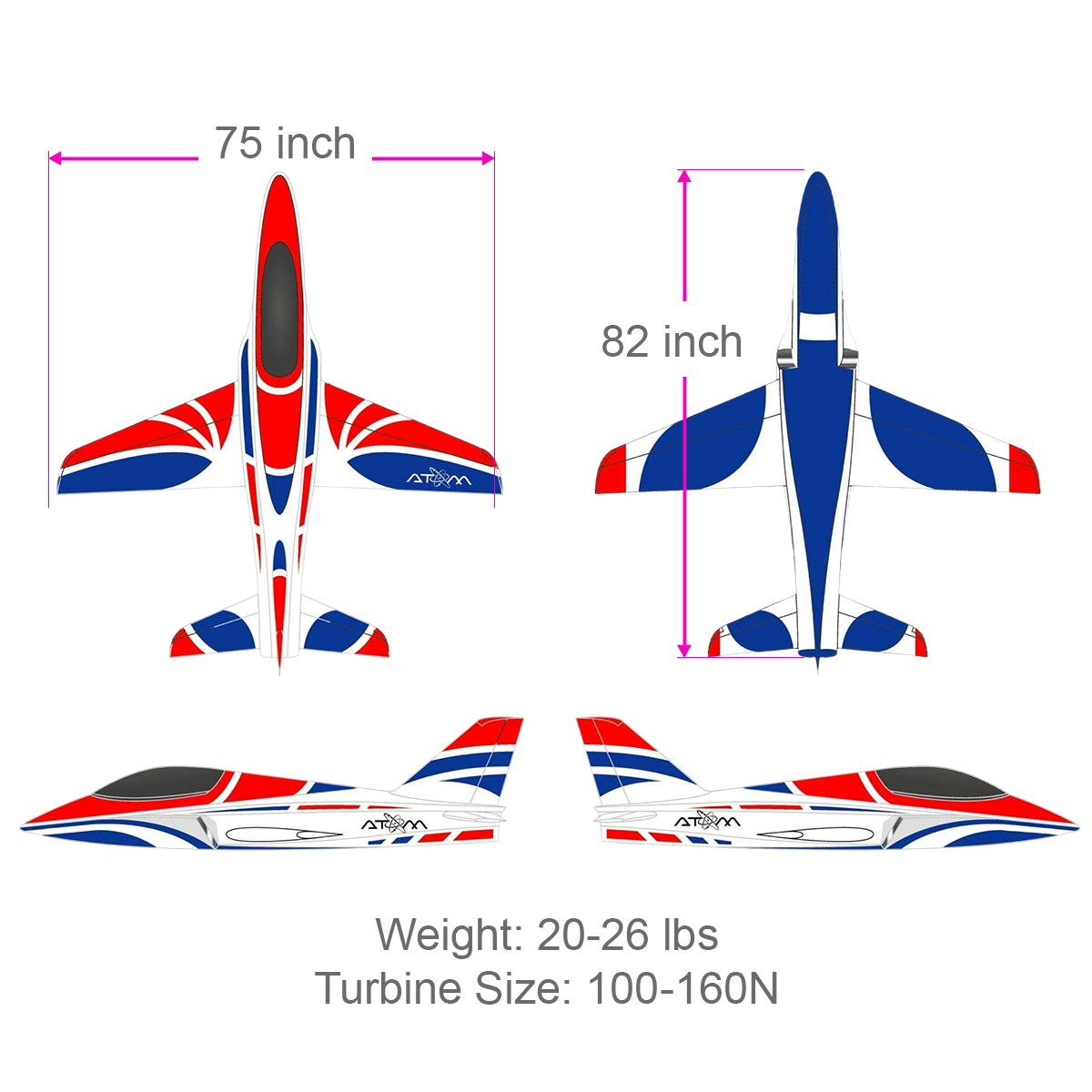

Specification:

Wingspan:  75 inches

Length:       82 inches

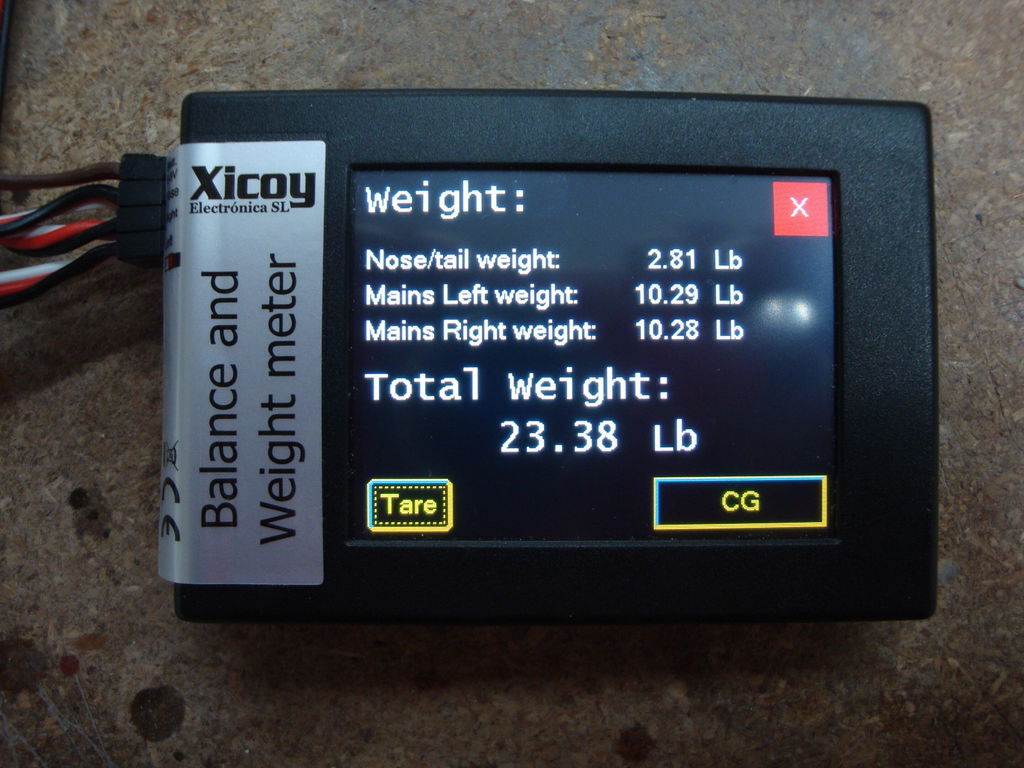

Weight:       20-26 lbs

Turbine Size: 100-160N

Servos:

- 6 standard size high Torq
- 2 mini high Torq (Nose wheel steering and Rudder)

What's Included:
(1) Boomerang Atom Jet Kit
(1) Fiberglass Fuel Tank
(1) Hardware Package
(1) Electric Retract System w/ Electric Brakes
(1) Carbon Fiber Wing and Stab Tubes Set

Required for Flight:
(1) 9+ Channel Transmitter
(1) 9+ Channel Receiver
(1) 100-160N Sized Turbine
(6) Standard Size Servos
(2) Mini Servos
(2) Additional standard servos if using Thrust vector nozzle
(1) UAT
Batteries

Recommended Components for Flight:

Servos:
             6x Standard size servos, (8 if using the thrust vectoring) TORQ BLS3813A
             2x Mini Servos for the Elevators TORQ CL1810A
Batteries:
             2x PULSE 2S 2550mAh for the radio
             1x Pulse 2100mah 3S 9.9V 25C
Turbine:
             K102 up to a K160
Gyro:
             AR Smooth Flite 16
UAT:
             Boomerang RC UAT 180CC
