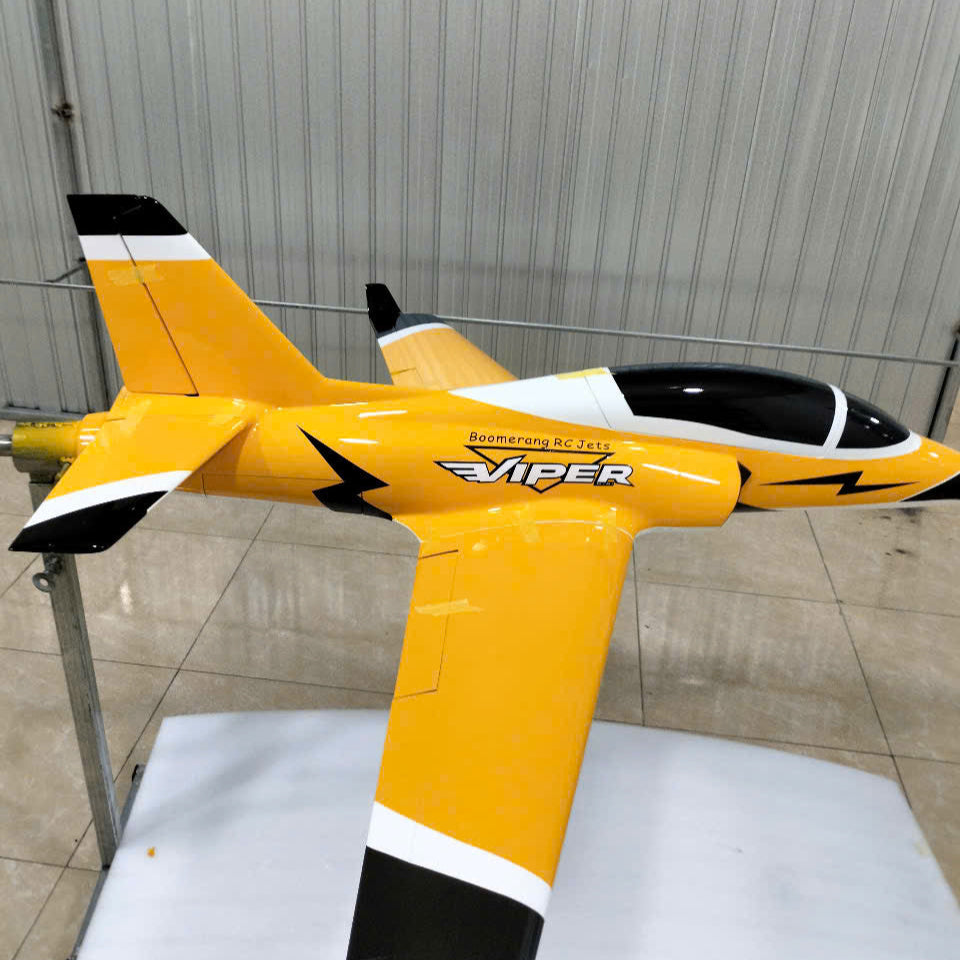

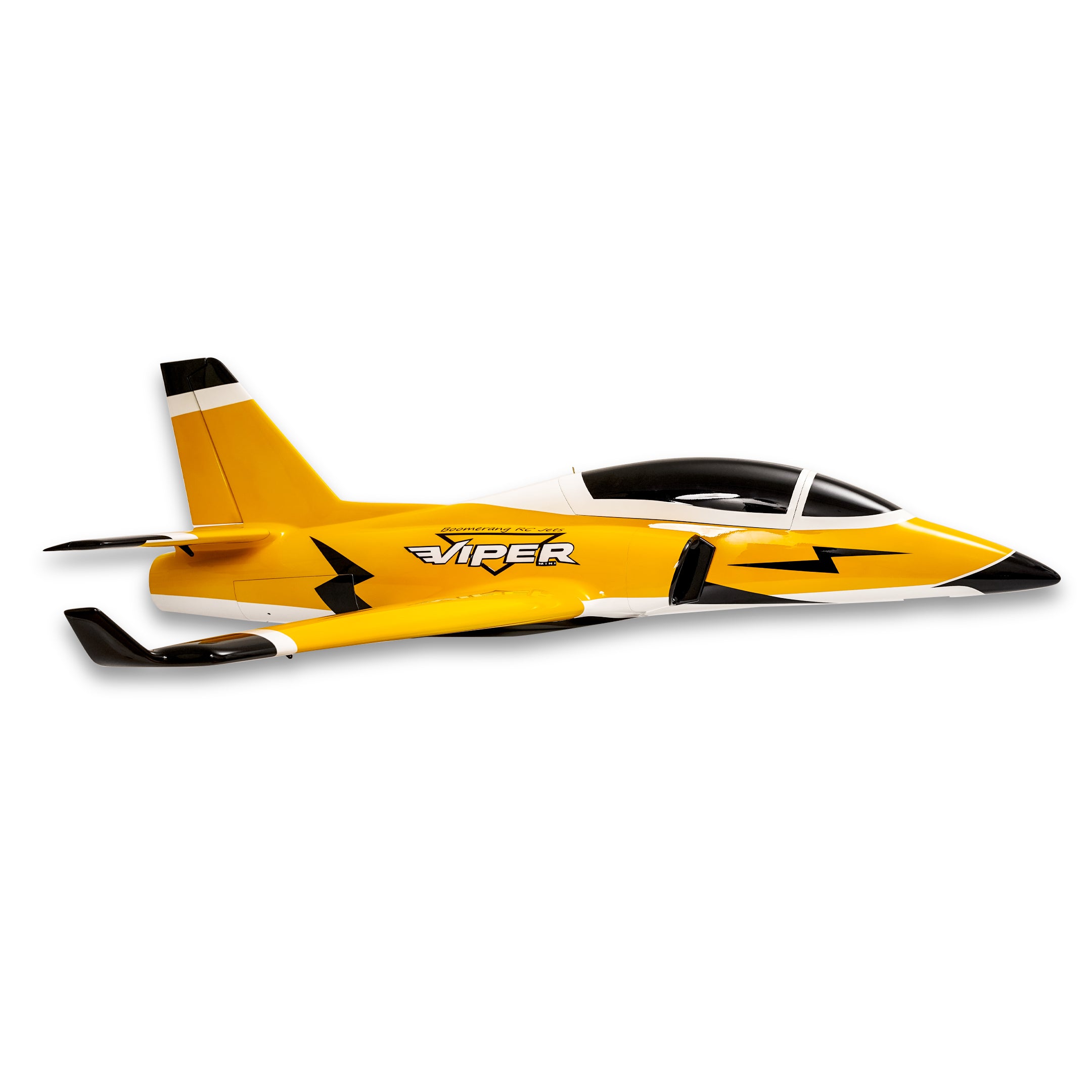

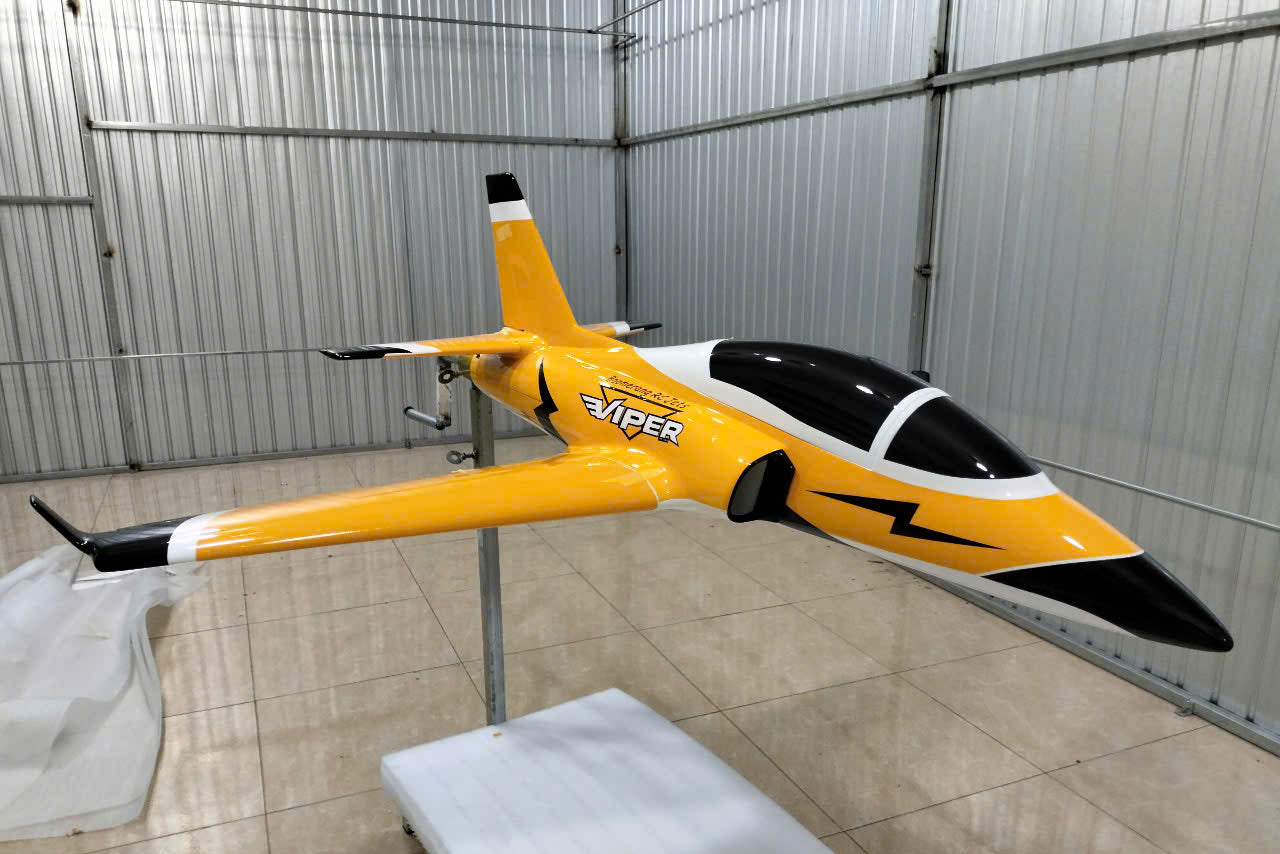

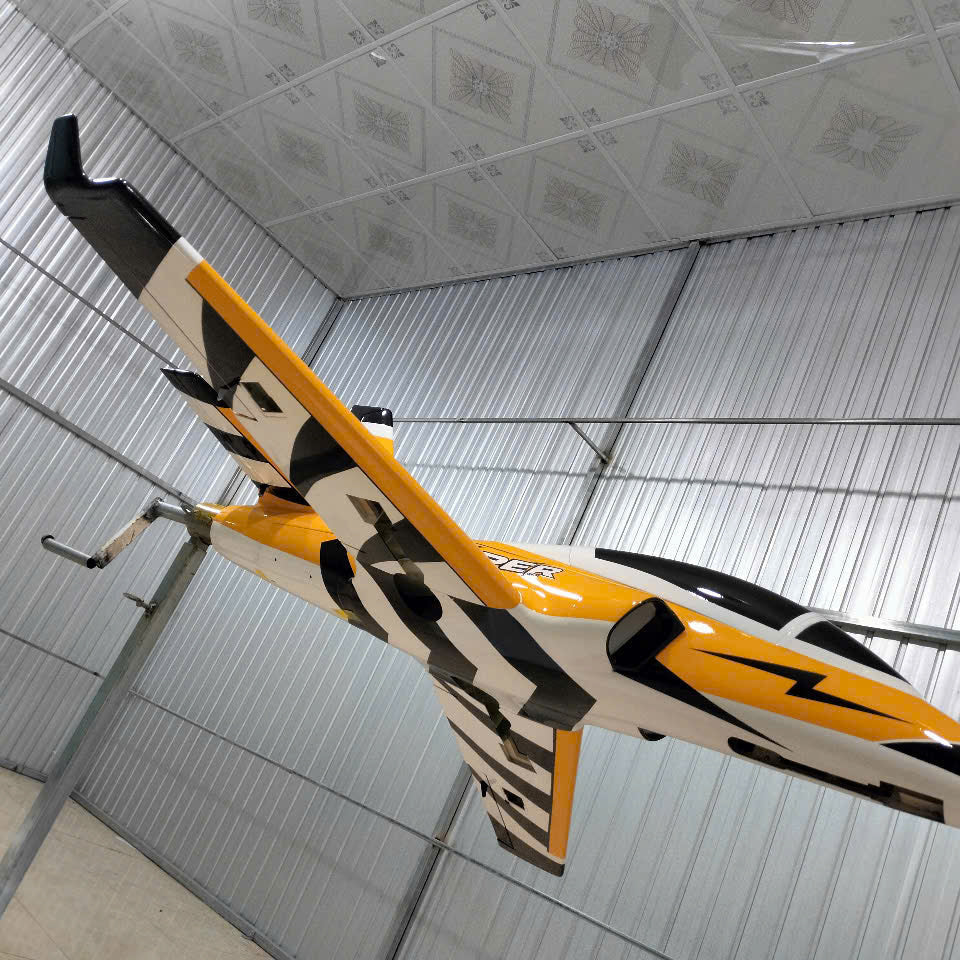

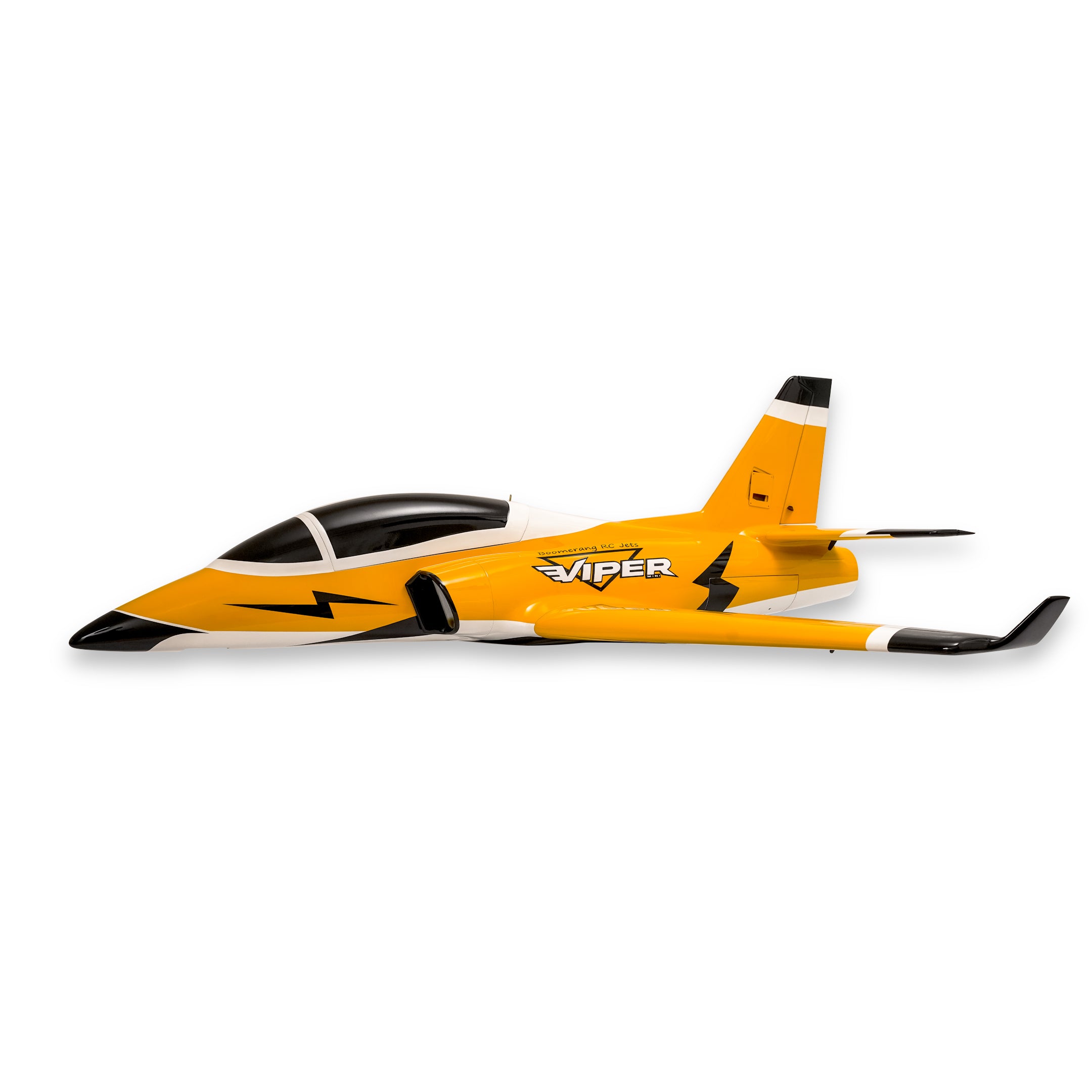

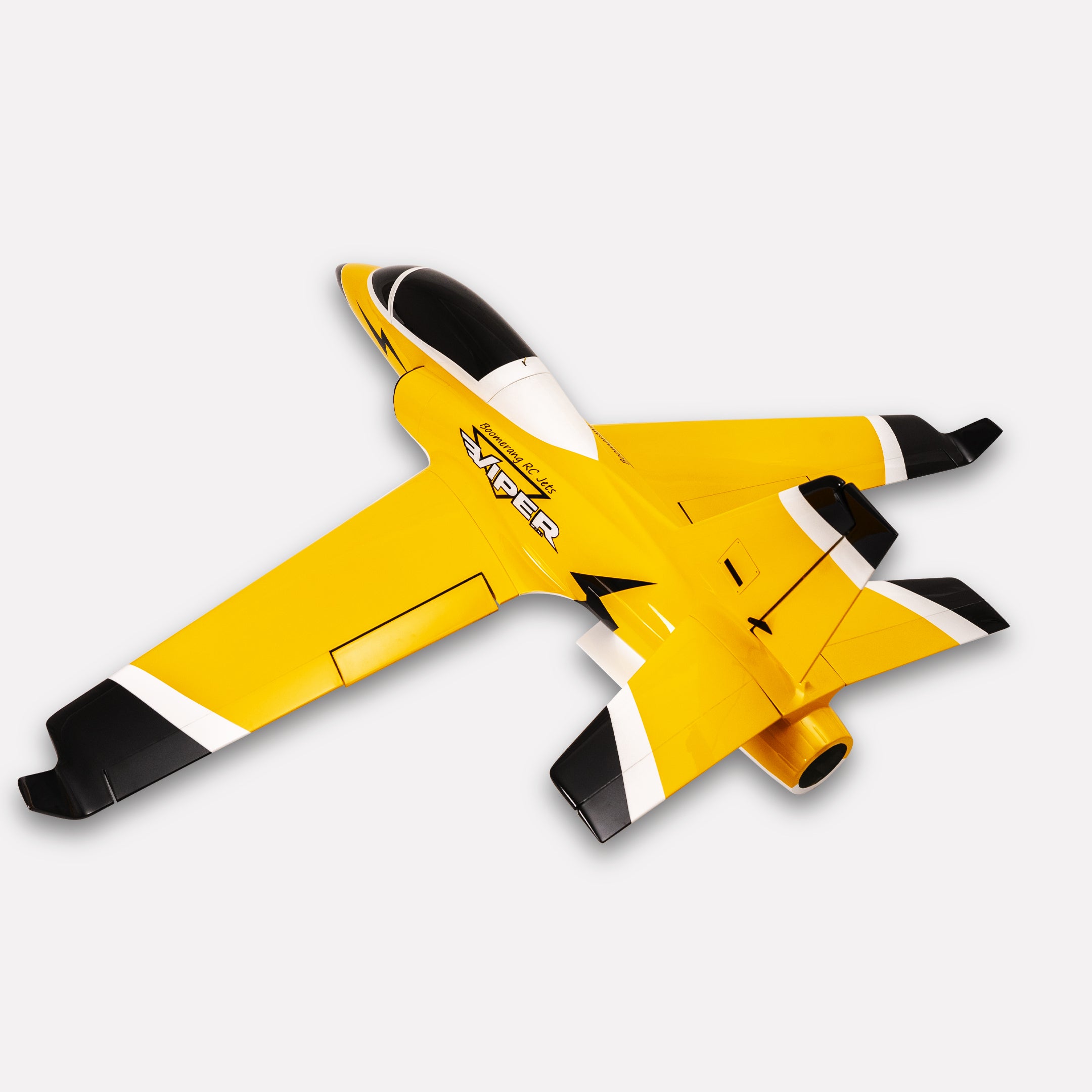

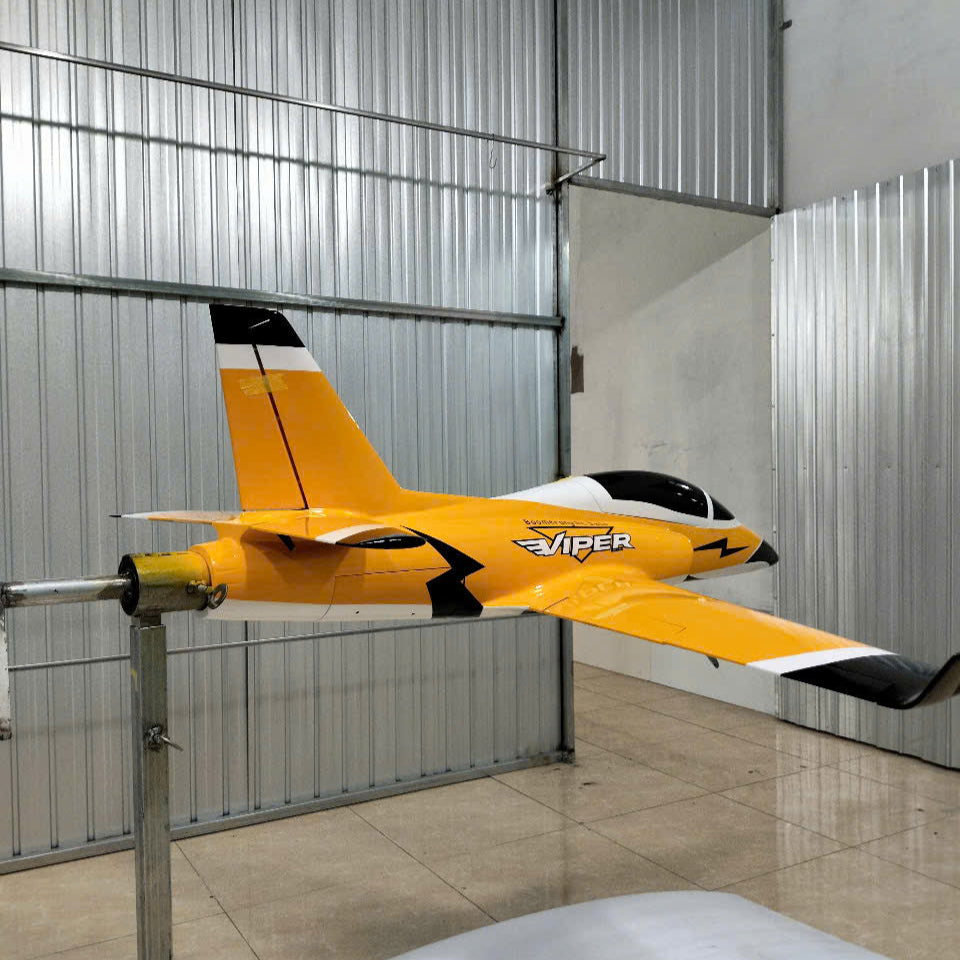

Boomerang RC Jets Mini Viper - YELLOW

DOWNLOAD INSTRUCTION MANUAL

The Mini Viper is a fully composite airframe designed to fly either as an EDF or as a Turbine!  The Mini Viper has all the amazing qualities of a Viper but pocket sized!  From the High speed, and High G flying to the relaxed and graceful, the Mini Viper can do it all.  Once you drop the flaps the MV will come to a crawl making landings a breeze.

Being fully composite means that the airframe is completely painted and uses live hinges for most all of the control surfaces and the rudder uses high quality pin style hinges to keep a center hinge location.  There are two hatches on the MV to allow for easy access to the battery and radio equipment and then one on the belly to allow for easy access to your EDF unit or turbine.

Included in the box is the full composite Mini Viper, Composite Thrust Tube, Hight Quality landing gear with brakes and brake controller and the hardware package.

To make transportation easy, the wings are removeable with a single bolt hidden in the main gear wells.

The Mini Viper will accept turbines 35-65 and fly just great!

Specs:

Wingspan: 55 inches or 1400mm

Length: 49.2 inches or 1250mm

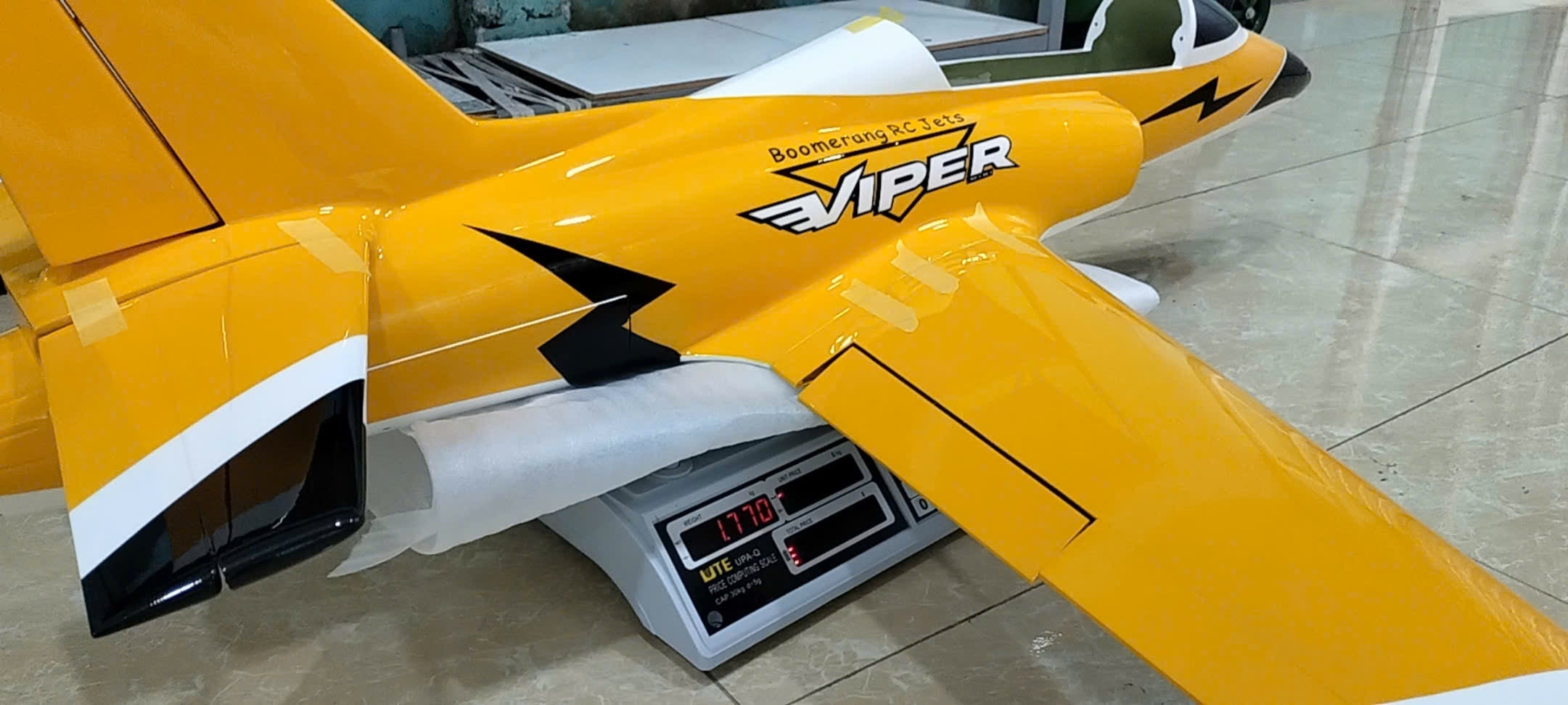

Weight: 15.4 lbs

EDF size: 90mm on 12s LiPo

Turbine:  35-65N if doing the turbine conversion

Fuel Tank Size:  33.8 oz or 1 liter (purchased in the turbine conversion)

Required:

7x  TORQ CL0508 Micro Servos

1x TORQ CL1208 Mini

EDF unit and ESC

12s LiPo for EDF

Receiver Battery

Gyro (AR SF10 Pro, recommended)

Turbine conversion includes:

Thrust Pipe

Fuel Tank
